Micro Matic Pro-Line MMPP4301-EP Service Manual page 16

CONDENSING UNIT
INLET WATER
PRESSURE CAN
NOT EXCEED 150
PSI. IF WATER
PRESSURE IS
ABOVE 150 PSI A
REGULATOR MUST
BE INSTALLED
16

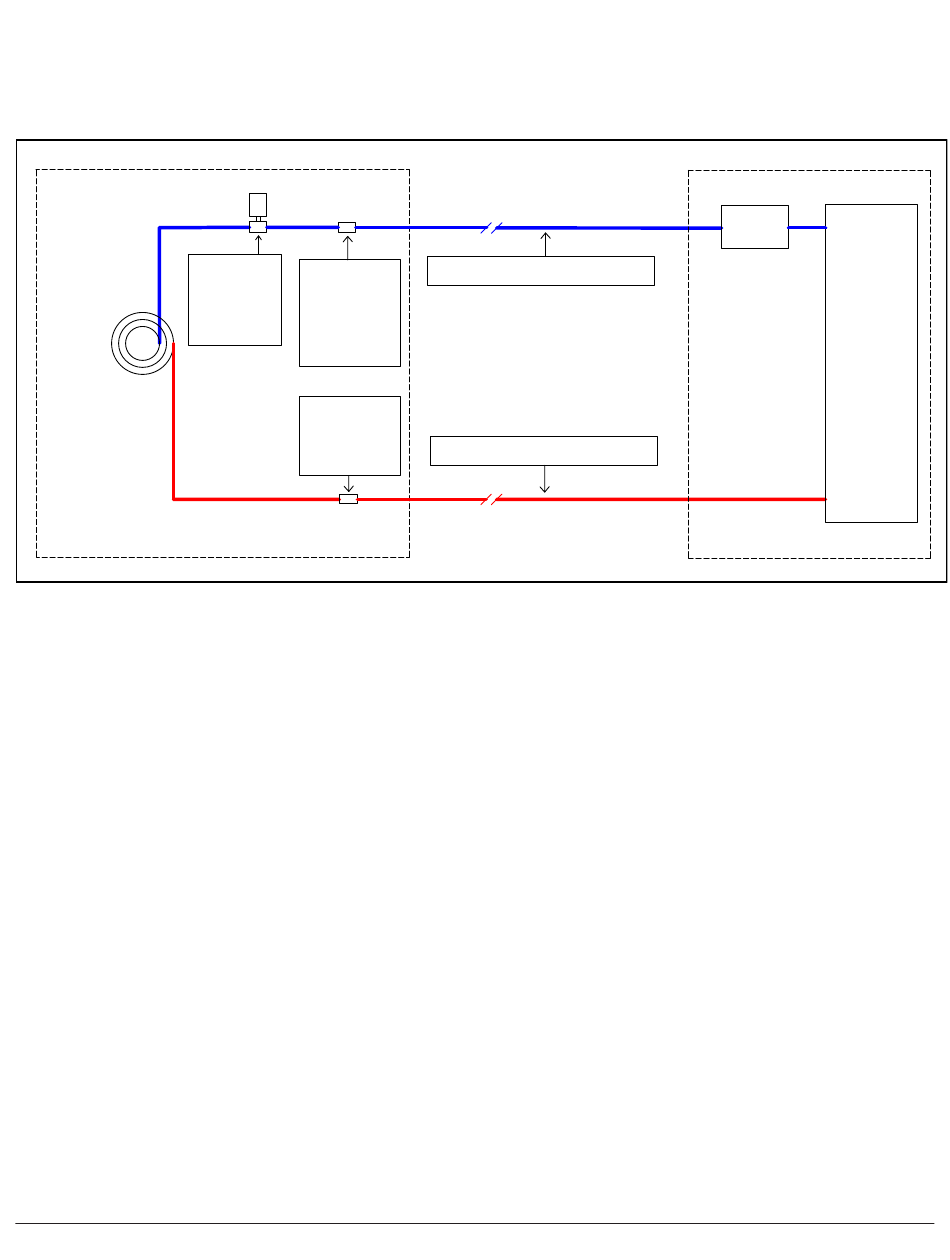

WATER COOLED, WATER HOOK UP SCHEMATIC
FIELD INSTRUCTIONS: INSTALL 1/2' O.D. HOSE AT
CUSTOMER
LENGTH DETERMINED BY TECHNICIAN
NEEDS TO
INSTALL 1/2"
O.D. SHARK BIT
& 3/8" X 1/2"
ADAPTOR
FITTING
CUSTOMER
NEEDS TO
INSTALL 1/2"
FIELD INSTRUCTIONS: INSTALL 1/2" O.D. HOSE AT
O.D. SHARK BIT
LENGTH DETERMINED BY TECHNICIAN
FITTING
SUPPLY LINE
RETURN LINE
RECIRCULATION SYSTEM
CUSTOMER
SUPPLIED
PUMP
CUSTOMER
SUPPLIED
RESERVIOR
TANK
