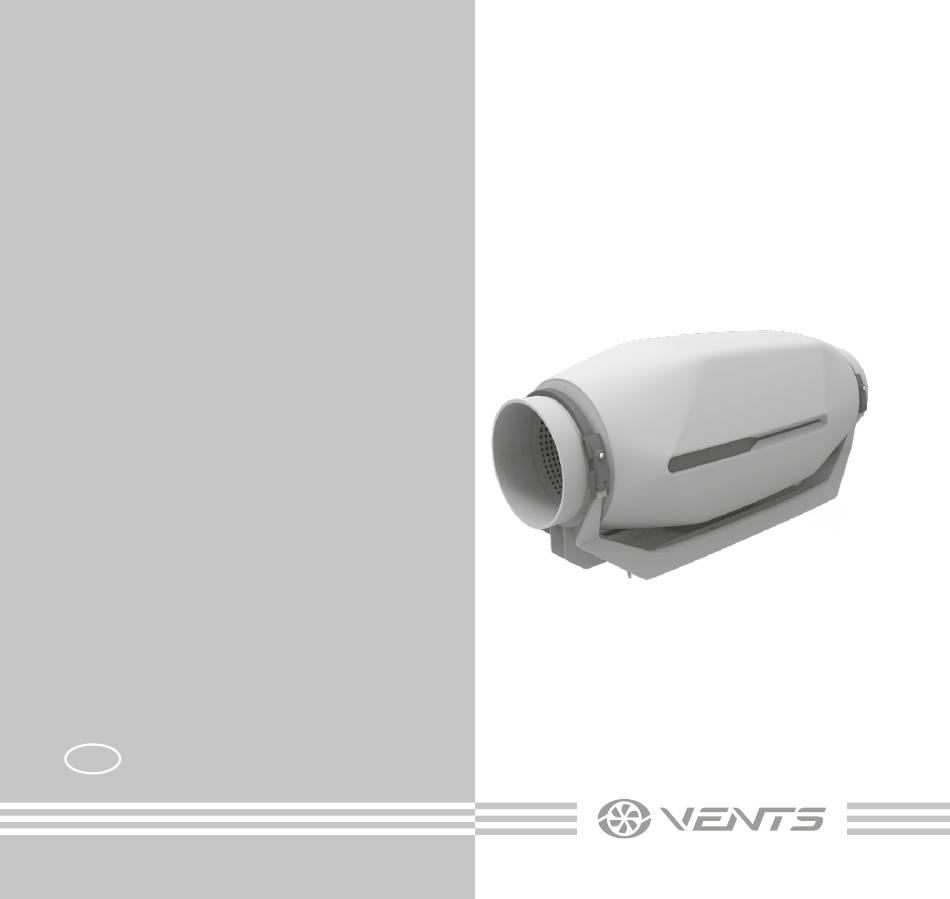

- Page 1 Stream PLASTIC SOUND-INSULATED FAN User’s manual www.vents-us.com...
-
Page 2: Table Of Contents
CONTENTS Overall dimensions ............................................9 Delivery set ................................................10 Brief description ..............................................10 Operation guidelines ............................................10 Designation key ..............................................11 Technical data ............................................... 12 Mounting ................................................. 13 Electronics operation algorithm ....................................... 18 Technical maintenance ........................................... 19 Troubleshooting ..............................................20 Storage and transportation regulations .................................... - Page 3 This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety.
- Page 4 Connection to the mains must be made through a disconnecting device, which is integrated into the fixed wiring system in accordance with the wiring rules for design of electrical units, and has a contact separation in all poles that allows for full disconnection under overvoltage category III conditions.
- Page 5 Do not attach the product to the support using glue or adhesives. Use only the fastening method specified in the "User’s manual". All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units.
- Page 6 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
- Page 7 The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time in order to incorporate the latest technological developments. Never touch the unit with wet or damp hands. Never touch the unit when barefoot. BEFORE INSTALLING ADDITIONAL EXTERNAL DEVICES, READ THE RELEVANT USER MANUALS.
- Page 8 THE UNIT MUST NOT BE OPERATED IN KITCHEN PREMISES. NOT SUITABLE FOR USE WITH SOLID-STATE SPEED CONTROLS MOTOR IS THERMALLY PROTECTED FOR INTERIOR USE ONLY INSTALL IN INTERIOR WALL THIS DUCT FAN SHALL BE INSTALLED A MINIMUM OF ONE METRE FROM ANY ACCESSIBLE OPENING OF THE DUCT THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
-
Page 9: Overall Dimensions
OVERALL DIMENSIONS Stream 100/125, ø100 mm (ø4") Stream 100/125, ø125 mm (ø5") Ø D 100 mm (4") 579 mm (22 13/16") Stream 100/125 207 mm (8 1/8") 224 mm (8 13/16") 123 mm (4 13/16") 125 mm (5") 502 mm (19 3/4") -
Page 10: Delivery Set
DELIVERY SET Fan – 1 pc. Screws and dowels – 8 pcs. User’s manual – 1 pc. Packing box – 1 pc. BRIEF DESCRIPTION The product described herein is a plastic sound-insulated fan for supply or extract ventilation of premises. The fan is connected to 100 mm (4”), 125 mm (5”) air ducts. -
Page 11: Designation Key
DESIGNATION KEY Stream 100 Un Options: _: speed switch and power cord with a mains plug (optional); Un: speed controller with electronic thermostat and external temperature sensor mounted on a 4 m (13 feet) long cord. Algorithm of operation by temperature;... -
Page 12: Technical Data
3060 0.24 Stream 100/125 120 V / 60 Hz 2475 * The parameters RPM, Watts, Amps are indicated at 0.2 in WG static pressure To comply with the ErP 2018 regulation, a local demand controller and speed controller must be used. -
Page 13: Mounting
MOUNTING The fan is suitable both for horizontal or vertical mounting on the floor, on the wall or on the ceiling. The fan can be installed independently or as part of a set with parallel or in-series connection. min 1 m... - Page 14 The diameter of the spigots in the Stream 100/125 model can be changed using adapters. On outlet (discharge) spigot side it is necessary to install: • in case of horizontal installation – a duct with a length of at least 1 m;...
- Page 16 Connection of the fan BREAKER BOX BREAKER BOX GREEN GREEN GROUND GROUND BREAKER BREAKER SCREW SCREW 120VAC, 60Hz 120VAC, 60Hz WALL SOCKET EARTH EARTH ~120V 60Hz Designations on diagrams: L – line; N – neutral; QF – automatic circuit breaker; X – input terminal.
- Page 17 Options Stream STOP Stream Un Thermostat dial Speed dial Stream P Speed dial...
-
Page 18: Electronics Operation Algorithm
ELECTRONICS OPERATION ALGORITHM Stream – the basic fan model. Equipped with an integrated speed switch and a power cord with a plug for connection to a standard wall socket or with a terminal box for direct connection to power. It has the following operation modes: “0”... -
Page 19: Technical Maintenance
TECHNICAL MAINTENANCE The fan surfaces must be regularly cleaned (once in 6 months) from dirt and dust. Disconnect the fan from power mains prior to any maintenance operations. To clean the fan, use a soft cloth or a brush wetted in a mild detergent solution. Do not allow water or liquid come into contact with electric components. -
Page 20: Troubleshooting
TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line When the unit is connected to power No power supply. is connected correctly, otherwise troubleshoot a connection error. mains, the fan does not rotate and does not respond to any controls. Internal connection fault. -
Page 21: Storage And Transportation Regulations
STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 ˚С (+41 ˚F) to +40 ˚С (+104 ˚F) and relative humidity up to 70 %. •... -
Page 22: Manufacturer's Warranty
Production meets standard operating requirements in the USA and Canada. Vents US warrants to the original purchaser of the unit that it will be free from defects in materials or workmanship for a period of 24 months from the date of original purchase. The Vents US warrants to the original purchaser of the unit that the integrated control unit will be free from defects in materials and workmanship for a period of 24 months from the date of original purchase. - Page 23 VENTS US OBLIGATION TO REPAIR OR REPLACE, AT VENTS US OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. VENTS US SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.
- Page 27 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 28 Certificate of acceptance Stream________________________________ The fan is recognized as serviceable. VUSA238-1EN-01...
