- Page 1 VENTS 100 Simple AXIAL FAN USER’S MANUAL www.ventilation-system.com...
-
Page 2: Table Of Contents
CONTENTS Delivery set ................................................6 Brief description ..............................................6 Operation guidelines ............................................6 Designation key ..............................................7 Installation and setup ............................................7 Fan setup ................................................8 Electronics operation algorithm ......................................10 Technical maintenance ........................................... 11 Storage and transportation regulations ....................................11 Manufacturer’s warranty .......................................... - Page 3 The manual contains information about the purpose, technical details, operating principle, design, and installation of the VENTS 100 Simple unit and all of its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
- Page 4 • Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. • Do not close or block the intake or exhaust vents in order to ensure efficient air flow. • Do not sit on the unit and do not put objects on it.
- Page 5 regarding safe use of the unit and understand the risks involved. • Do not allow children to play with the unit. THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE. DO NOT DISPOSE THE UNIT AS UNSORTED MUNICIPAL WASTE.
-
Page 6: Delivery Set

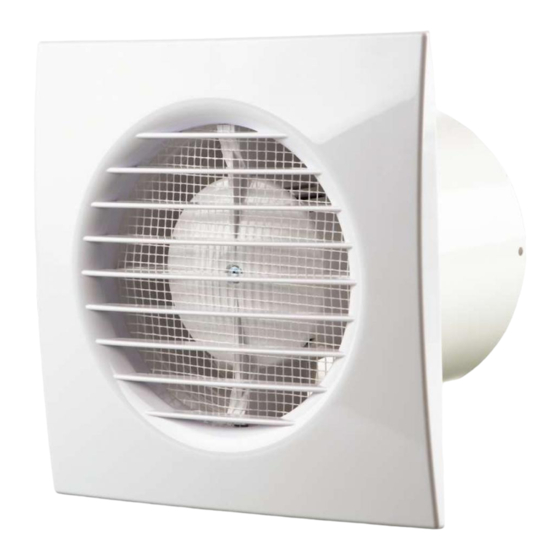

DELIVERY SET — 1 pc. Screws and dowels — 4 pcs. Plastic screwdriver (only for the models with a timer) — 1 pc. User’s manual — 1 pc. Packing box — 1 pc. BRIEF DESCRIPTION The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. The fan is made of white plastic. -
Page 7: Designation Key
DESIGNATION KEY Vents 100 Simple X Х Motor and impeller modifications: L — motor on ball bearings Turbo — high-powered motor 12 — motor with 12 V/50 Hz rated voltage K — backdraft damper Additional options: V — built-in pull-cord switch T —... -
Page 8: Fan Setup
Terminal designations on wiring diagrams: L — phase S — external switch N — 0 QF — automatic circuit breaker CAUTION! The fans rated for 12 V power voltage (stated on the packing box and on the fan casing) connect to 12 V power mains only! FAN SETUP —... - Page 9 The fan delivery set includes a specially designed plastic screwdriver for fan settings adjustments. Use it to change the turn-on and turn-off delay time and the humidity set point. Off 24 hour off 2 min 30 min...
-
Page 10: Electronics Operation Algorithm
ELECTRONICS OPERATION ALGORITHM The fan with the timer T — the fan is started after actuation of the external switch, e.g. the light switch. The control voltage is supplied to the input terminal LT (ST). After the control voltage is off the fan continues to operate within the set time period adjustable from 2 to 30 minutes by the timer. -
Page 11: Technical Maintenance
TECHNICAL MAINTENANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Disconnect the fan from power supply and make sure electricity has been turned off (Fig. 17). • Remove the front and the decorative panels, wipe the fan with a dry cloth or a brush (Fig. 18-19). •... -
Page 12: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above. - Page 13 • Redesign or engineering changes to the unit. • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. •...
- Page 14 ø 99.5...
- Page 16 T/VT/TH/VTH 2min 30min...
- Page 17 T/VT/TH/VTH 2min 30min Jumper 2min 30min...
- Page 19 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 20 Certificate of acceptance VENTS 100 Simple Turbo The fan is recognized as serviceable. V171EN-01...
