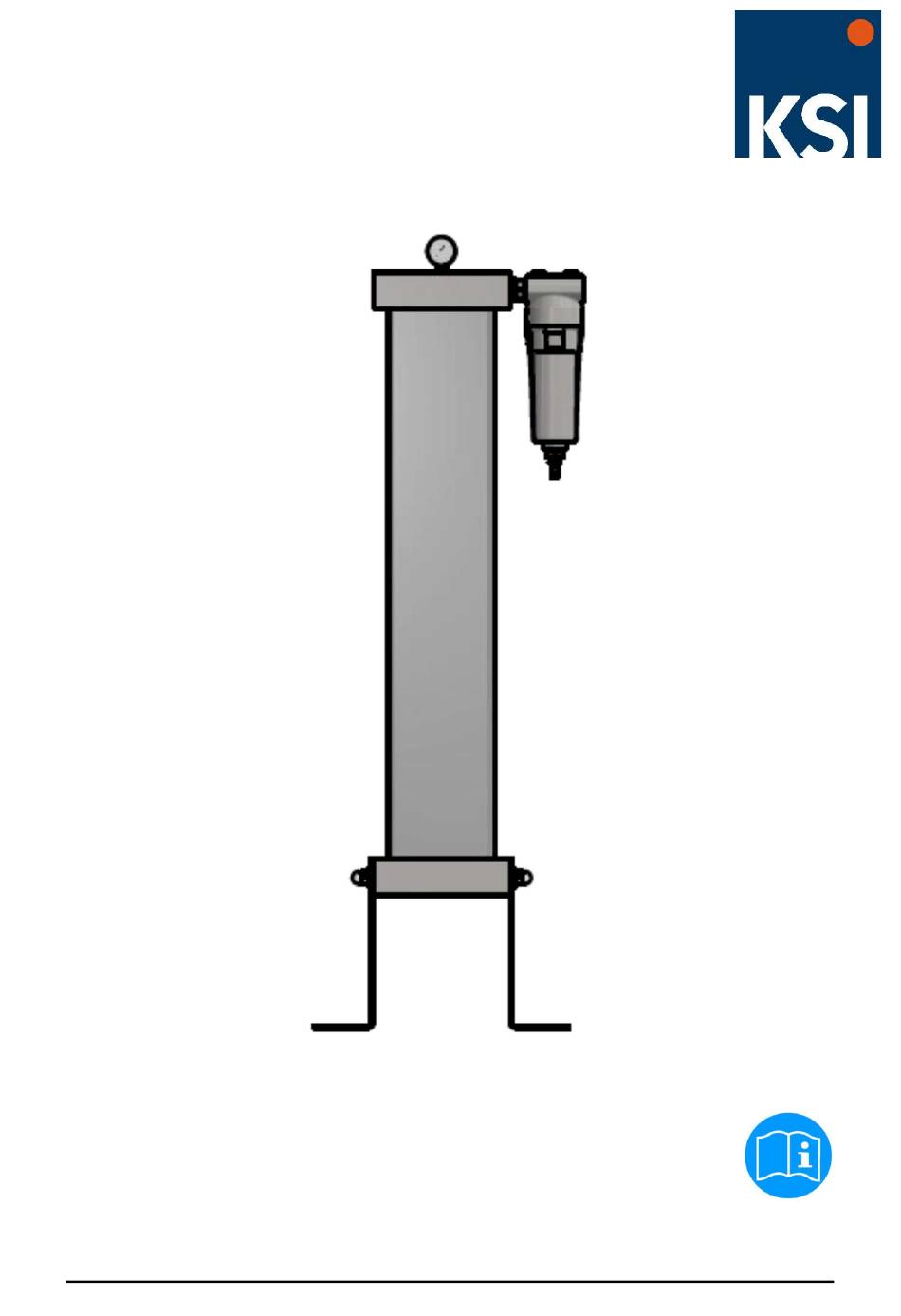

  • Page 1 ® ECOTROC CTAP 6 - 65 Operating manual Oil vapor adsorber Rev 02_0224 Operating manual CTA 6 - 65...
  • Page 2: Table Of Contents

    Contents General information ................ 3 System data ....................3 Contact data ....................3 Accompanying documents ................3 Warranty notes ..................... 4 Operating manual ..................4 Signs and symbols used ................5 Intended purpose / use ..............6 Intended use ....................6 Performance data ..................
  • Page 3: General Information

    General information Please complete the following information according to the type plate, vessel plate and contract documents. This enables the manufacturer to clearly identify the dryer and makes it easier to give advice if there are queries. It also simplifies the provision of spare parts and support.
  • Page 4: Warranty Notes

    Warranty notes For the conditions necessary for compliance with the warranty, please refer to our "General Terms of Sale and Delivery" The warranty shall be void if:  The adsorption dryer is used for anything other than its intended use. ...
  • Page 5: Signs And Symbols Used

    Signs and symbols used The following symbols are listed in this manual and/or are affixed to the construction: Symbol Bedeutung This symbol indicates tips for the efficient use of the adsorption dryer! Note This symbol indicates instructions for the safe handling of the adsorption dryer.
  • Page 6: Intended Purpose / Use

    Intended purpose / use The oil vapor adsorber is designed to be used to reduce the oil vapor fractions in the compressed air and reduce odorous and aromatic substances in industrial compressed air systems. It requires the supply of compressed air from a supply source.
  • Page 7: Performance Data

    Exceeding or even significantly undercutting the design data can lead to bad residual oil contents! The compressed air supplied to the oil vapor adsorber must be of the following quality:  Free from aggressive and corrosive substances,  Free from particles and solids, ...
  • Page 8: Safety Notes

    Safety notes The ATC oil vapor adsorbers have been built according to state-of-the-art technology and the latest safety regulations. However, there is still a risk of danger during operation, maintenance, installation and servicing, and during transport and setup. In particular, the disregard of safety regulations when handling compressed air may result in serious injury or death.
  • Page 9: Danger Zones

    Danger zones Risk from pressure-bearing parts Risk of slipping due to spilt desiccant on the floor  Never operate the adsorption dryer outside of the load limits shown on the vessel plate.  Never carry out work if the adsorption dryer is under pressure. ...
  • Page 10: Technical Product Data

    Technical product data Equipment overview, front view 1 After-filter 2 Manometer 3 Filling nozzle 4 Draining nozzle 5 Inlet 6 Outlet 7 Manual drain cock Function description From the filled adsorbent material, (active carbon in this case), oil vapors and odorous and aromatic substances are stored in the open pores of the active carbon, thus reducing its content in the compressed air.
  • Page 11: Monitoring The Operation

    Monitoring the operation The following components are provided for regular monitoring: The pressure gauge shows the operating pressure. As option it is possible to mount an oil check indicator. Based on the discoloration, the indicator provides information about the saturation of the active carbon.
  • Page 12: Setup

    Setup Please refer to the setup conditions described in Section 2.1. The basic data required for the setup can be found in the Performance data in Section 2.2. When setting up, make sure  that the ground is level and capable of bearing the weight. ...
  • Page 13: Demands On The Installation

    Demands on the installation Prior to installation, check the following points:  The compressed air system and the adsorption dryer must be free from pressure.  For compressed air systems which need to remain under pressure, shut-off devices must be protected against unintentional opening. ...
  • Page 14: Pressurization

    Pressurization Only once you have successfully completed all the checks listed in Section 8.1 can you perform the following steps in the specified order. Wear ear protection for this, as the flow noise can get very loud.  Make sure that the compressed air system is under pressure upstream of the adsorber.
  • Page 15: Disconnecting From The Mains

    Disconnecting from the mains Should you have to disconnect the adsorption dryer from the mains, e.g. for a maintenance operation, make sure that this work is only carried out when the device is free from pressure. Wear your personal protective equipment. Proceed as follows: ...
  • Page 16: Maintenance

    Maintenance Maintenance work may only be carried out by suitably qualified personnel! Make sure that the device is free from pressure before starting work and observe the applicable accident prevention regulations for the place of installation! Regular maintenance work The following table gives an overview of the intervals and scope of the maintenance work: Maintenance of Activity...
  • Page 17: Checking The Residual Oil Content

    Checking the residual oil content The residual oil content should be measured on a regular basis. Proceed as follows: Check that the indicator pipe is secure.  Record the date and time when measurements start.  Record the operating pressure (it should be constant during the measurement).
  • Page 18 Table for measurement pressure greater than 102 psi (g), residual oil content in Scale Duratio n in h 0.548 1.096 1.644 2.192 2.740 3.288 3.836 4.384 0.496 0.992 1.488 1.984 2.480 2.976 3.472 3.968 0.452 0.904 1.356 1.808 2.260 2.712 3.164 3.616 0.404 0.808 1.212...
  • Page 19 0.042 0.083 0.125 0.166 0.208 0.250 0.291 0.333 0.037 0.074 0.110 0.147 0.184 0.221 0.258 0.294 0.032 0.064 0.096 0.128 0.160 0.192 0.224 0.256 0.027 0.054 0.080 0.107 0.134 0.161 0.188 0.214 0.020 0.041 0.061 0.082 0.102 0.122 0.143 0.163 0.016 0.032 0.048...
  • Page 20: Overview Of Maintenance Parts

    Overview of maintenance parts Type Component Designation Interval Measure CTAP 6 APE-CTAP6-30 After-filter element Every year Replace A-4000-121 Oil check pipe Every year / Replace when required F-CTAP6 Filling active rec. after 4.000 Replace carbon Bh / or 1 year CTAP 12 APE-CTAP6-30 After-filter element Every year Replace...
  • Page 21: Replacing The Filter Elements

    Replacing the filter elements The job of the after-filter is to stop any abrasion dust that has built up from the active carbon. Proceed as follows to replace this filter element:  Close the cut-off valves upstream and downstream of the adsorber. ...
  • Page 22: Replacing The Active Carbon

    Replacing the active carbon When replacing the active carbon, make sure to wear your personal protective equipment, namely the respiratory protection and goggles. Risk of slipping if material is spilt! The service life of the active carbon does not need to be determined with accuracy as there are many factors which can reduce or increase the service life.
  • Page 23: Faults

    Faults The following faults may occur: Fault Cause Measure Oil in the compressed Volumetric flow via the Adapt to operating air downstream of the adsorber exceeds the conditions adsorber intended parameters Upstream cooling Inlet temperature is too Replace active carbon high Close by-pass Operating pressure is too...
  • Page 24: Manufacturer's Declaration

    Manufacturer's declaration Manufacturer’s declaration We, the manufacturer, KSI Filtertechnik GmbH Siemensring 54-56 D-47877 Willich hereby declare that for the assemblies listed below: Adsorption dryer ECOTROC CTAP Type 6 to 12 the harmonised standards: DIN EN ISO 12100-1-2have been adhered to.
  • Page 25: Ec Declaration Of Conformity

    EC Declaration of conformity EU Declaration of conformity We, the manufacturer, KSI Filtertechnik GmbH Siemensring 54-56 D-47877 Willich hereby declare that for the assemblies listed below: Adsorption dryer ECOTROC CTAP Type 20 to 65 the harmonised standards: DIN EN ISO 12100-1-2 DIN EN ISO 12100-1-2: DIN EN ISO 14121-1;...
