ABB A2STRAPKIT Installation And Maintenance Instructions

—
I N S TA L L AT I O N A N D M A I N TA N A N C E I N S T R U C T I O N S
A2STRAPKIT
H A Z A R DOUS VO LTAG E .
W I LL C AUS E S E V ER E
I N J U RY O R D E ATH .
Turn OFF power supplying this
equipment before working inside.
Kit Contains
Connecting Strap Left
Connecting Strap Right
Bolt 5/16
Washer 5/16
Instruction

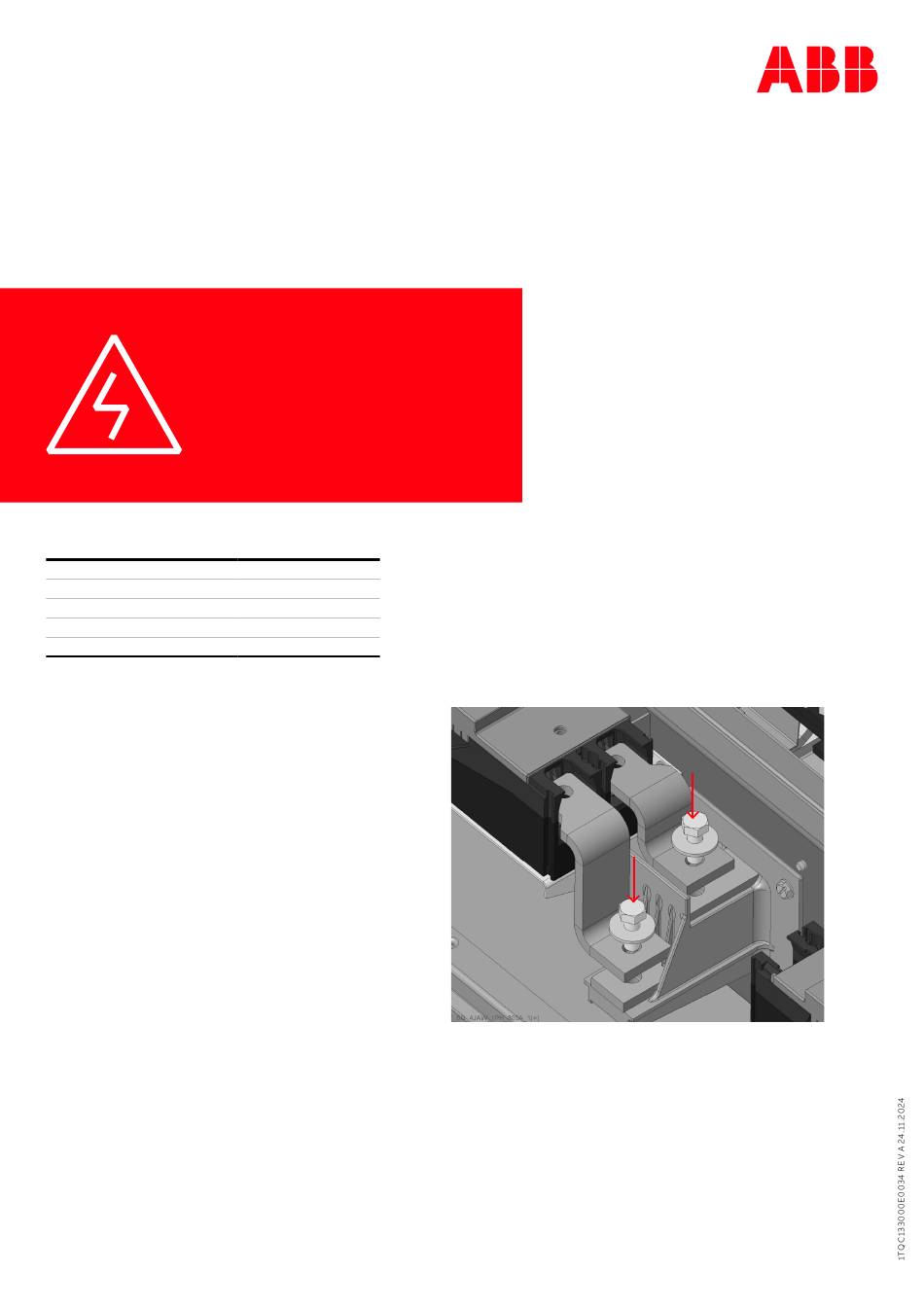

1. Turn OFF power supplying the equipment
2. Align bottom holes of straps with breaker con-
necting straps mounting holes
3. Insert bolt and washer to attach the two straps
and apply torque on the bolt
NOTE: attach straps to the breaker with breaker
kit hardware
Torque 170 lb.in
—
