Viking Professional VIBB536R Specifications

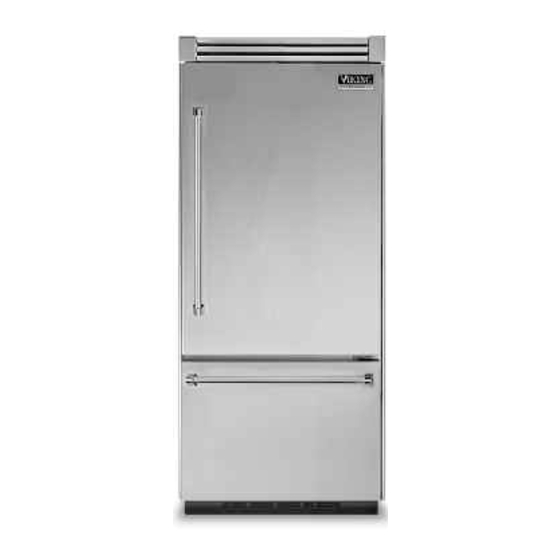

Quiet cool built-in 36”w. bottom-mount refrigerator/freezer.
Hide thumbs

Advertisement

Standard Features & Accessories
All models include
• Total capacity—20.3 cu. ft. (574.5 L)
o Refrigerator - 15.2 cu. ft.
o Freezer - 5.1 cu. ft.
o 84"H./24"D.
• ProChill™ Temperature
Management System
o Variable-speed DC Overdrive™
Compressor is one of the quietest,
most technologically advanced com-
pressors available
o Electronic controls maintain the tem-
perature selection within 1ºF
o Multi-channel airflow system and
Odor Eliminator™ Evaporator
removes odors and excess humidity
• Exclusive Plasmacluster™* Ion Air
Purifier
o Eliminates airborne bacteria and
mold spores
o Removes odors
o Enhances food preservation
o Never needs replacing
• Refrigerator Compartment
Model Options
VCBB536/VIBB536
Professional/Professional
Integrated
FINISH DETAILS FOR VCBB/VIBB MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite
Gray (GG), Stone Gray (SG), Taupe
(TP), Biscuit (BT), Cotton White (CW),
Oyster Gray (OG), Golden Mist (GM),
Lemonade (LE), Sage (SA), Mint Julep
(MJ), Sea Glass (SE), Iridescent Blue
(IB), Viking Blue (VB), Pumpkin (PM),
Racing Red (RR), Apple Red (AR),
Burgundy (BU), Plum (PL), Chocolate
(CH), and Cobalt Blue (CB).
• Finish codes designate door fronts.
Stainless steel upper grille, side trim,
and handles (with chrome-plated
brackets); black lower kickplate.
• Brass Trim Option (BR)—nameplate,
handle/brackets, and side trim. Brass
components have a durable protective
coating for maintenance-free normal
use.
ORDERING INSTRUCTIONS
First specify model number, followed by hinge preference ("R" for right or "L" for left), and then color code (VCBB536RSS).
If ordering optional brass trim, specify code at end (VCBB536RSSBR).
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M
Quiet Cool™ Built-In 36"W. Bottom-Mount
o Five adjustable tempered glass spill-
proof shelves
• Adjustable Cold Zone™ drawer with
precision ball-bearing glides
o Separate temperature control can be
set for produce or fresh meat storage
o Quick chill option chills foods and
beverages in minutes
• Adjustable Humidity Zone™ drawers
with precision ball-bearing glides
o Humidity can be set high for leafy
greens or low for fruits and vegeta-
bles with skins
• Two conveniently located deli drawers
with full-extension precision ball-bear-
ing glides
• Two in-the-door sealed dairy
compartments with covers
• Four patented adjustable aluminum
door bins with tempered glass fronts
• Top-shelf provides quick chill-down
area
• Full extension freezer drawer on preci-
sion ball-bearing glides
DFBB536
Custom Front
FINISH DETAILS FOR DFBB MODEL
• Handles not included—opt for custom
handles, or purchase a Viking
Professional Series or Designer Series
handle kit (see Installation Notes &
Accessories).
• See Custom Panels section for
more information and additional
specifications.
1 - 8 8 8 - V I K I N G 1
REFRIGERATION
Refrigerator/Freezer
o Positive self-closing feature ensures a
good seal
o Adaptive defrost
o Two slide-out wire baskets
• Super Clog-Resistant™ Condenser is
maintenance-free under normal use
• Tru-Flush™ design
o Allows Professional Integrated and
Custom Panel models to fit flush into
24" deep installation cutout
• Open door alarm sounds and glows to
warn that door has been ajar for three
minutes
• Adjustable door stops standard—90°,
110°, or 120° swing
• Sabbath Mode
• Must be ordered right or left hinge.
(As you face unit, RIGHT has hinge on
right side and handle on left side;
LEFT has hinge on left side and han-
dle on right side.)
*Plasmacluster is a registered trademark
of Sharp Corporation.
R E L E A S E D 3 / 1 / 0 9
© 2 0 0 9 V R C — INFORMATION SUBJECT TO CHANGE
