- Page 1 SK-UNI 240D Distroplate D-RGB - Black Edition INSTALLATION MANUAL UNI 240D SKU: SW10155 EAN: 4260754980898...
-
Page 2: Table Of Contents
SK-UNI 240D Distroplate D-RGB - Black Edition SK-UNI 240D Distroplate D-RGB - Black Edition INSTALLATION MANUAL INSTALLATION MANUAL TABLE OF CONTENTS PACKAGING CONTENT WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 DIMENSIONS (mm) . -
Page 3: Packaging Content Warning
Stealkey Customs assumes no liability, express or implied, for damage to your components resulting from the use of Stealkey Customs cooling products, whether due to errors or omissions on our part in the instructions below, or due to errors or defects in Stealkey Customs cooling products. Do not disassem- ble the distro plate. -
Page 4: Dimensions (Mm)

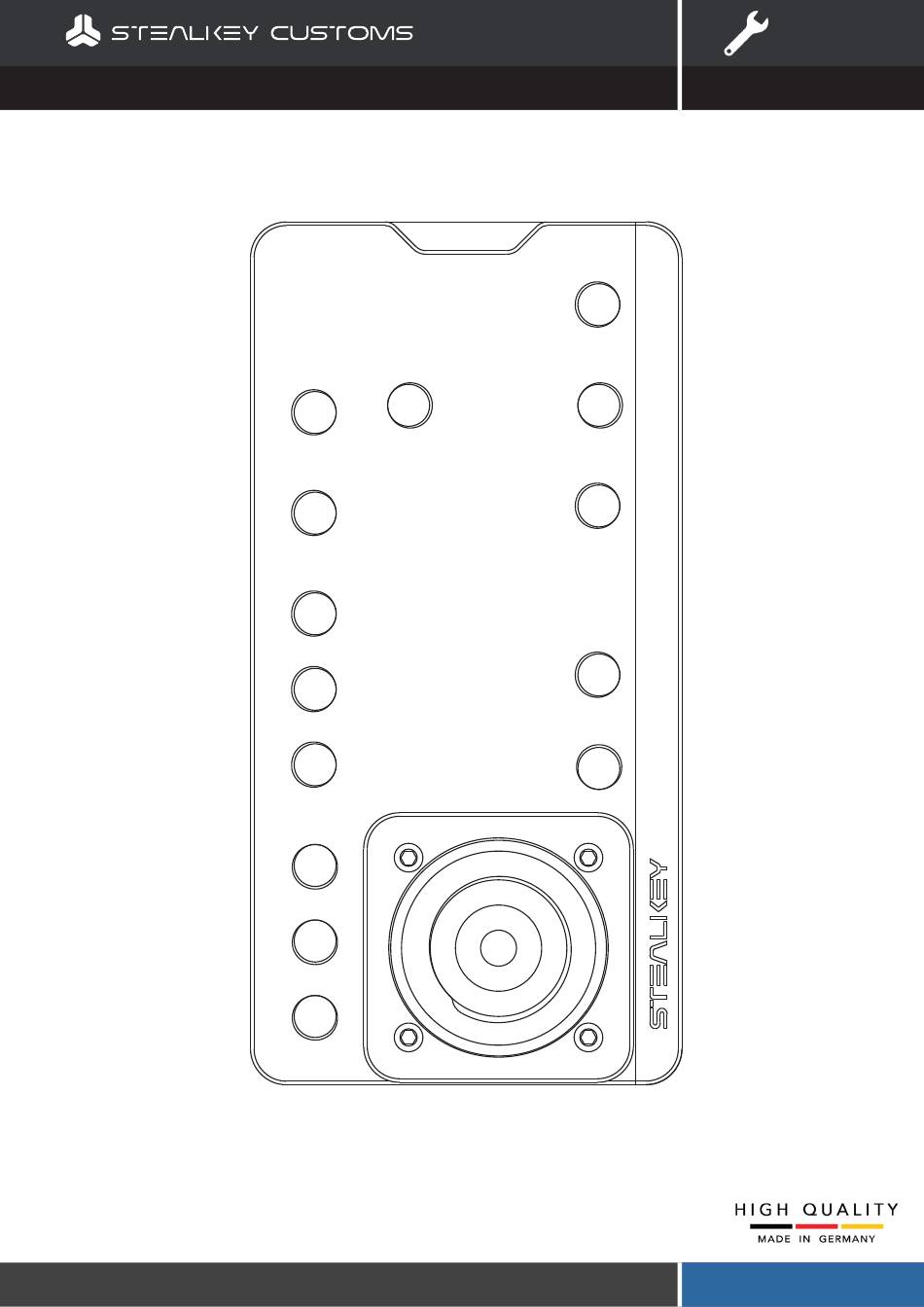

SK-UNI 240D Distroplate D-RGB - Black Edition SK-UNI 240D Distroplate D-RGB - Black Edition INSTALLATION MANUAL INSTALLATION MANUAL DIMENSIONS (mm) FRONT SIDE... - Page 5 SK-UNI 240D Distroplate D-RGB - Black Edition INSTALLATION MANUAL BACK...
-
Page 6: Flow Diagram
SK-UNI 240D Distroplate D-RGB - Black Edition SK-UNI 240D Distroplate D-RGB - Black Edition INSTALLATION MANUAL INSTALLATION MANUAL FLOW DIAGRAM... -
Page 7: Recommended Distro Plate Configuration
SK-UNI 240D Distroplate D-RGB - Black Edition SK-UNI 240D Distroplate D-RGB - Black Edition INSTALLATION MANUAL INSTALLATION MANUAL RECOMMENDED DISTRO PLATE CONFIGURATION A configuration with 2 radiators is shown here. Close any unused ports with the provided plugs. FRONT VIEW... -
Page 8: Installing The D5 Or Ddc Pump
SK-UNI 240D Distroplate D-RGB - Black Edition SK-UNI 240D Distroplate D-RGB - Black Edition INSTALLATION MANUAL INSTALLATION MANUAL INSTALLING THE D5 OR DDC PUMP STEP 1 Remove the 4 x M4 x 20 mm screws (2,5 mm hexagon socket). Set the screws aside as they will be needed to secure the pump. - Page 9 SK-UNI 240D Distroplate D-RGB - Black Edition INSTALLATION MANUAL STEP 3 Installing the D5 pump. Place the D5 ring over the pump. Make sure the supplied o-ring is in the nut before installing the pump through the d5 ring on the adapter. Tighten the screws with 0,3 - 1,5 Nm. Handle with care when tightening.
-
Page 10: Installing The Distrobution Plate
SK-UNI 240D Distroplate D-RGB - Black Edition SK-UNI 240D Distroplate D-RGB - Black Edition INSTALLATION MANUAL INSTALLATION MANUAL INSTALLING THE DISTROBUTION PLATE STEP 1 Using the included M4 screws you can mount the reservoir directly to your chassis or any other standard fan mounting location. -
Page 11: Connecting The D-Rgb Cable
SK-UNI 240D Distroplate D-RGB - Black Edition SK-UNI 240D Distroplate D-RGB - Black Edition INSTALLATION MANUAL INSTALLATION MANUAL CONNECTING THE D-RGB CABLE Connect the D-RGB cable to a compatible motherboard (3-Pin ARGB Connector) . INSTALLING THE CONNECTIONS Mount the connections with G1/4 thread and close the remaining connections with stop fittings. Always per- form a leak test before applying power to the system components (max .
