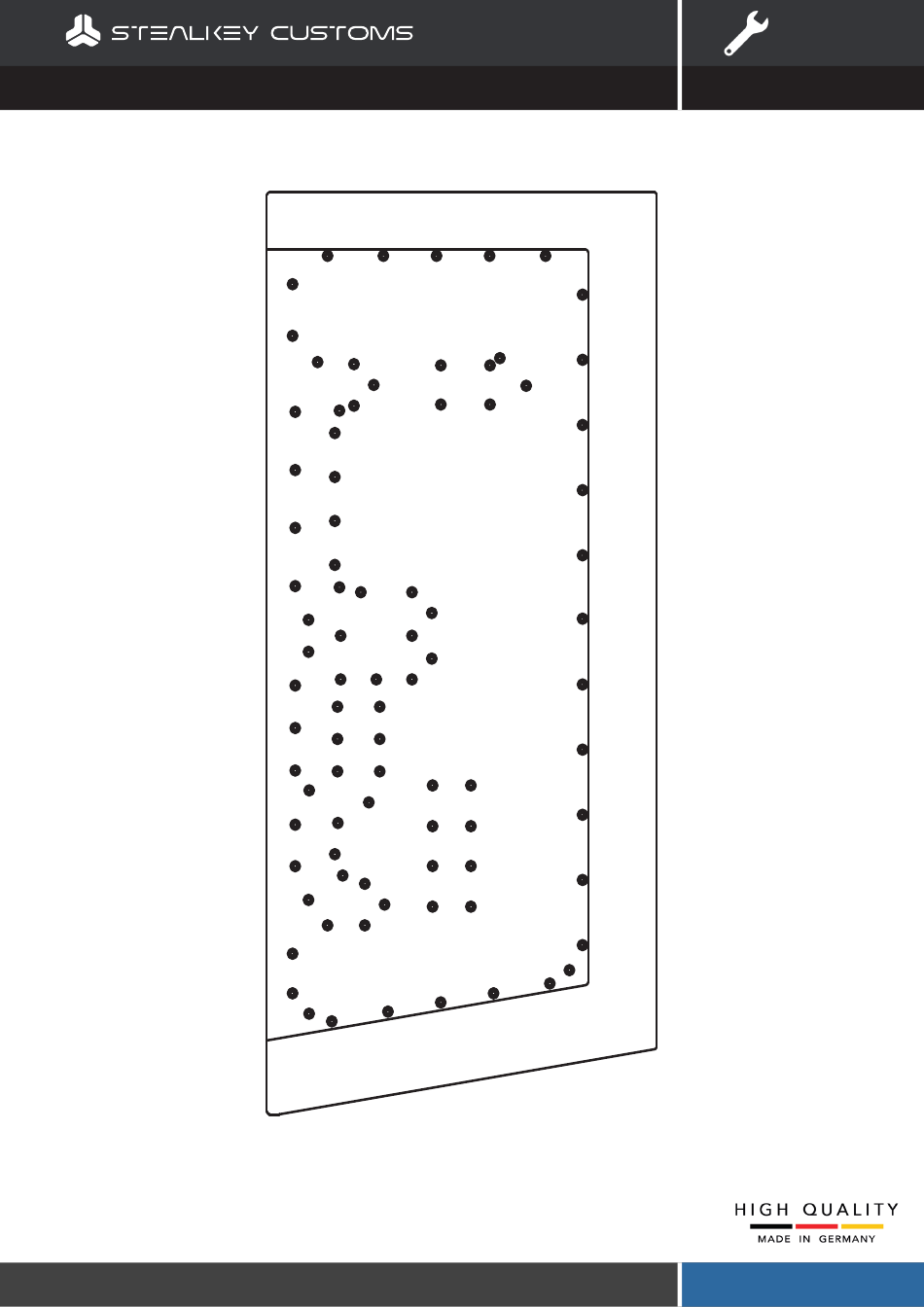

- Page 1 Phanteks NV7 x Stealkey Distroplate D-RGB INSTALLATION MANUAL White Black SKU: SW10154 SKU: SW10153 EAN: 4260754980874 EAN: 4260754980867...
-
Page 2: Table Of Contents
Phanteks NV7 x Stealkey Distroplate D-RGB Phanteks NV7 x Stealkey Distroplate D-RGB INSTALLATION MANUAL INSTALLATION MANUAL TABLE OF CONTENTS PACKAGING CONTENT WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 DIMENSIONS (mm) . -
Page 3: Packaging Content Warning
Stealkey Customs assumes no liability, express or implied, for damage to your components resulting from the use of Stealkey Customs cooling products, whether due to errors or omissions on our part in the instructions below, or due to errors or defects in Stealkey Customs cooling products. Do not disassem- ble the distro plate. -
Page 4: Dimensions (Mm)
Phanteks NV7 x Stealkey Distroplate D-RGB Phanteks NV7 x Stealkey Distroplate D-RGB INSTALLATION MANUAL INSTALLATION MANUAL DIMENSIONS (mm) FRONT SIDE 25.5... - Page 5 Phanteks NV7 x Stealkey Distroplate D-RGB INSTALLATION MANUAL BACK...
-
Page 6: Flow Diagram
Phanteks NV7 x Stealkey Distroplate D-RGB Phanteks NV7 x Stealkey Distroplate D-RGB INSTALLATION MANUAL INSTALLATION MANUAL FLOW DIAGRAM... -
Page 7: Recommended Distro Plate Configuration
Phanteks NV7 x Stealkey Distroplate D-RGB Phanteks NV7 x Stealkey Distroplate D-RGB INSTALLATION MANUAL INSTALLATION MANUAL RECOMMENDED DISTRO PLATE CONFIGURATION A configuration with 3 radiators is shown here. Close any unused ports with the provided plugs. BACK VIEW FILL PORT TOP RADIATOR OUTLET (TRIPLE RADIATOR... -
Page 8: Installing The D5 Or Ddc Pump
Phanteks NV7 x Stealkey Distroplate D-RGB Phanteks NV7 x Stealkey Distroplate D-RGB INSTALLATION MANUAL INSTALLATION MANUAL INSTALLING THE D5 OR DDC PUMP STEP 1 Remove the 4x M4 x 20 mm screws (2,5 mm hexagon socket). Set the screws aside as they will be needed to secure the pump. STEP 2 Now remove the D5 ring. - Page 9 Phanteks NV7 x Stealkey Distroplate D-RGB INSTALLATION MANUAL STEP 3 Installing the D5 pump. Place the D5 ring over the pump. Make sure the supplied o-ring is in the nut before installing the pump through the d5 ring on the adapter. Tighten the screws with 0,3 - 1,5 Nm. Handle with care when tightening. Cross-tighten screws for stress-free installation to avoid cracks in the acrylic glass .
-
Page 10: Installing The Distrobution Plate
Phanteks NV7 x Stealkey Distroplate D-RGB Phanteks NV7 x Stealkey Distroplate D-RGB INSTALLATION MANUAL INSTALLATION MANUAL INSTALLING THE DISTROBUTION PLATE STEP 1 Removing the original front panel: First, remove the two screws located at the top and bottom of the front panel. Then carefully slide the front panel out to the side. - Page 11 Phanteks NV7 x Stealkey Distroplate D-RGB INSTALLATION MANUAL STEP 3 Insert the distro plate into the case in the same way as the original front panel, then secure it using the original screws. STEP 4 Tighten the four visible cylinder head screws at the top and bottom inside the case. A 2.5 mm Allen key is required for this step.
-
Page 12: Connecting The D-Rgb Cable
. Acrylic paints can leave residues . 10 . SUPPORT AND SERVICE Contact Stealkey Customs Mail: support@stealkeycustoms .de Instagram: https:/ /www .instagram .com/stealkeycustoms Website: https:/ /www .stealkeycustoms .de FAQ: https:/ /www .stealkeycustoms .de/pages/faq...
