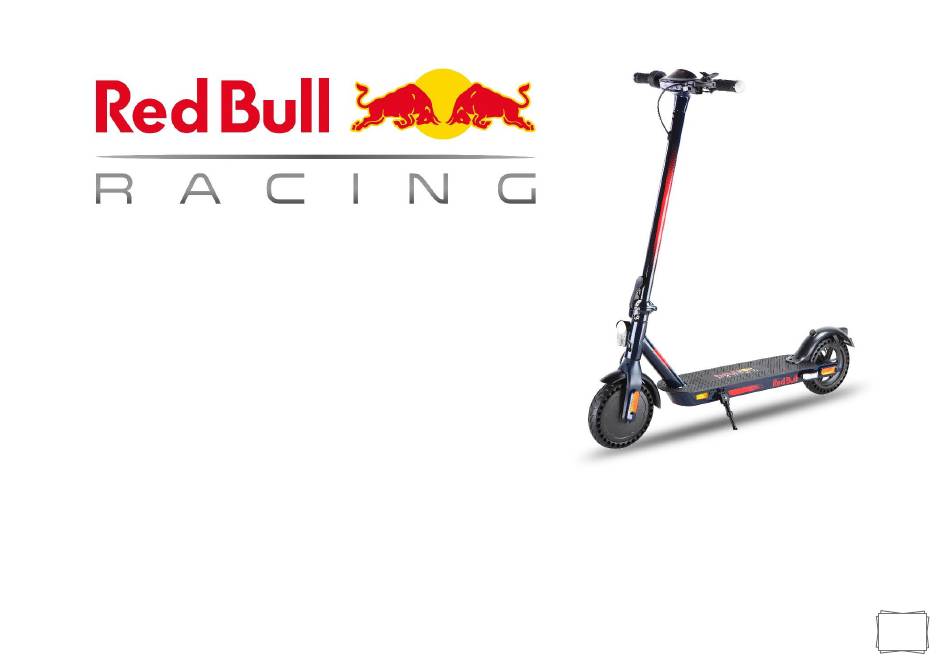

USER MANUAL FOR E-SCOOTER
RB-RTEEN10-75
Red Bull® Marks and the Red Bull Racing Logo are licensed by Red Bull GmbH/Austria
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB-RTEEN10-75 and is the answer not in the manual?

Questions and answers

Summary of Contents for Red Bull Racing RB-RTEEN10-75

  • Page 1 USER MANUAL FOR E-SCOOTER RB-RTEEN10-75 Red Bull® Marks and the Red Bull Racing Logo are licensed by Red Bull GmbH/Austria...
  • Page 2 Page 3-25 USER MANUAL – Original instructions Page 27-51 MANUALE D’USO...
  • Page 3 RB-RTEEN10-75 E-SCOOTER WARNING FOR ELECTRIC KICKSCOOTER ead and follow all the instruction in the user manual before using the e-scooter. ake sure you understand and follow the safety instructions and warnings to reduce the risk of injury. The user is responsible for all the consequences derived from the incorrect use of the electric scooter.
  • Page 4 appliance in a safe way and understand the hazards involved. l eaning and user maintenance shall not be made by children without supervision. o not recharge non-rechargeable batteries. he battery is to be disposed of safely. Introduction For your better use experience, please read this product manual carefully. Keep this user manual for future references. In order to avoid damage, carefully read and follow the instructions of this user manual.
  • Page 5 The product...
  • Page 6 Folding/Unfolding steps How to unfold For the very first use, the e-scooter is folded inside its box. Hand pull the handlebar from the rear wheel. Upward the handlebar. Close the lever of the handlebar. Note: after installation is completed, please double check to make sure the interlock button is reset.
  • Page 7: How To Fold

    When the installation is done, please test the power switch of the display. If the display turns-on, the installation is well done. You can use the easel to keep the kickscooter standing alone. How to fold Open the interlock button and pull out the clamp of the handlebar at the same time.
  • Page 8: Led Display

    The folding procedure is now completed. The product can be easily carried. LED Display The LED display is on top of the handlebar, in front of the user. Long press the power button to turn on/off the e-scooter. The display will turn on and show the ODO info (total mileage) for a moment. Then it will show the TRIP info. Short press the power button one time to switch from Gear 1 to Gear 2.
  • Page 9: Warning Indicator

    Warning indicator (4) This indicator will turn on and blink when the battery is almost empty (the four bars about the battery capacity are off). Please stop riding the e-scooter for your safety and charge the battery for further use. Battery capacity (5) The battery capacity of the e-scooter is displayed by four bars, from 100% (full battery) to 0% (empty...
  • Page 10 Instructions for use Before riding the electric kickscooter for the first time, the battery must be fully charged. Follow the instructions on this user manual to avoid technical problems. Try to recharge after each ride, which can greatly extend the service life of the battery. First put the electric kickscooter on a flat surface.
  • Page 11: Battery Charging

    Loading Driver’s maximum weight should be of 100 Kg and minimum weight should be 30 Kg. These limits ensure the driver’s safety and reduce damages to the scooter. Battery The battery charge (and therefore the maximum distance) is affected by some factors like: 1.
  • Page 12: Instructions For Charging

    Do not attempt to open the battery and do not insert objects inside it. Do not charge overnight or when you are not able to observe the e-scooter. Charge and store in an open dry area, away from combustibles (meaning items that can catch fire). If giving to someone for the holidays, leave it in its partially charged state.
  • Page 13: Transport Of The Battery

    3. The indicator light on the charger will be red: this grants that the charge is proceeding. Charging should be in a safe, dry, and clean environment. 4. When the indicator light is turned to green colour, the battery is fully charged. Please stop charging or the battery life will be reduced.
  • Page 14: Speed Limit

    Speed Limit The maximum speed is 20 Km/h. When the driver reaches the maximum speed, the e-scooter will keep the speed even if the driver accelerates. Safety drive Please carefully read this user manual before first use. Always wear comfortable flat shoes and keep your shoelaces tied. Never use the product barefoot. Please always wear helmet, knee protections, elbow pads, when riding (check your local laws).
  • Page 15 Adapt the speed to the type of road. The speed of the e-scooter is affected by the road type, the ambient temperature, the maintenance of the battery. 20. Applying the brakes too hard or suddenly can lock a wheel, which could cause you to lose control and fall. Sudden or excessive application of the brake can cause injury or death.
  • Page 16 DO NOT ride during rainy / wet weather. Ride at a controlled and slow speed while you ride through uneven surfaces. Slightly bend your knees to absorb the bumpy impacts. Always steer clear of obstacles.
  • Page 17 Look out for doors, elevators, and other overhead obstacles. DO NOT ride with any adult or child. DO NOT step on the rear mudguard. DO NOT take the hands off from the handlebars while riding.
  • Page 18 DO NOT try to ride up or down stairs, or jump DO NOT accelerate when you go downhill. over the obstacles. DO NOT press the accelerator when you are walking DO NOT hang bags or other heavy accessories on alongside the scooter. the handlebar.
  • Page 19 Always keep both feet on the deck. DO NOT turn the handlebar violently during high-speed riding. DO NOT ride into a puddle that is deeper than 2 cm. DO NOT touch the disc brake. It might be really hot.
  • Page 20 Maintenance of the electric kickscooter The e-scooter requires routine cleaning and maintenance. First, make sure the charging cable is not connected. Fasten the rubber cover of the charging port on the deck. Second, the e- scooter must be powered off. Now you can wipe the case of the e-scooter with a soft damp cloth. Do not use alcohol, gasoline, kerosene or other corrosive, volatile chemical solvents for cleaning or the surface and the internal structure may be severely damaged.
  • Page 21: Adjust The Handlebar

    Adjust the handlebar Staggering of steering rack: use a hex wrench, tighten two screws near the folding mechanism. WARNING As with any mechanical component, a PLEV is subject to high stresses and wear. The various materials and components may react differently to wear or fatigue. If the expected service life for a component has been exceeded, it may break suddenly, therefore risking causing injuries to the user.
  • Page 22 Storage of the electric kickscooter Please make sure your e-scooter is fully charged before storing it. If the e-scooter is stored for long time, ensure a full charge every 2 month. The battery may be damaged due to over discharge if it is not recharged one time every 2 month. Such damage is irrecoverable. Battery damages due to over discharge will not be recharged anymore and shall not be covered by the warranty service.
  • Page 23: After-Sale Service

    Battery voltage 36V d.c. Charging temperature 0°C ̴ 40°C Storage relative Humidity 5% ̴ 95% Working temperature 0°C ̴ 40°C Charging time 4-6 hours approx. Body dimensions 113 x 54 x 116 cm approx. Folded body dimensions 113 x 54 x 53 cm approx. Net unit weight 17 kg approx.
  • Page 24: Correct Disposal Of The Product

    Correct disposal of the battery According to the European Directive 2006/66/CE This marking on battery indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
  • Page 25 Images inside this user manual are for illustrative purposes only. Our Company is not responsible for improper use of the product. Our Company reserves the right to modify the product and the content of this manual without prior notice. MADE IN CHINA EN 17128:2020 Class2 IMPORTED AND DISTRIBUTED BY GIVI Distribuzione S.p.A.
