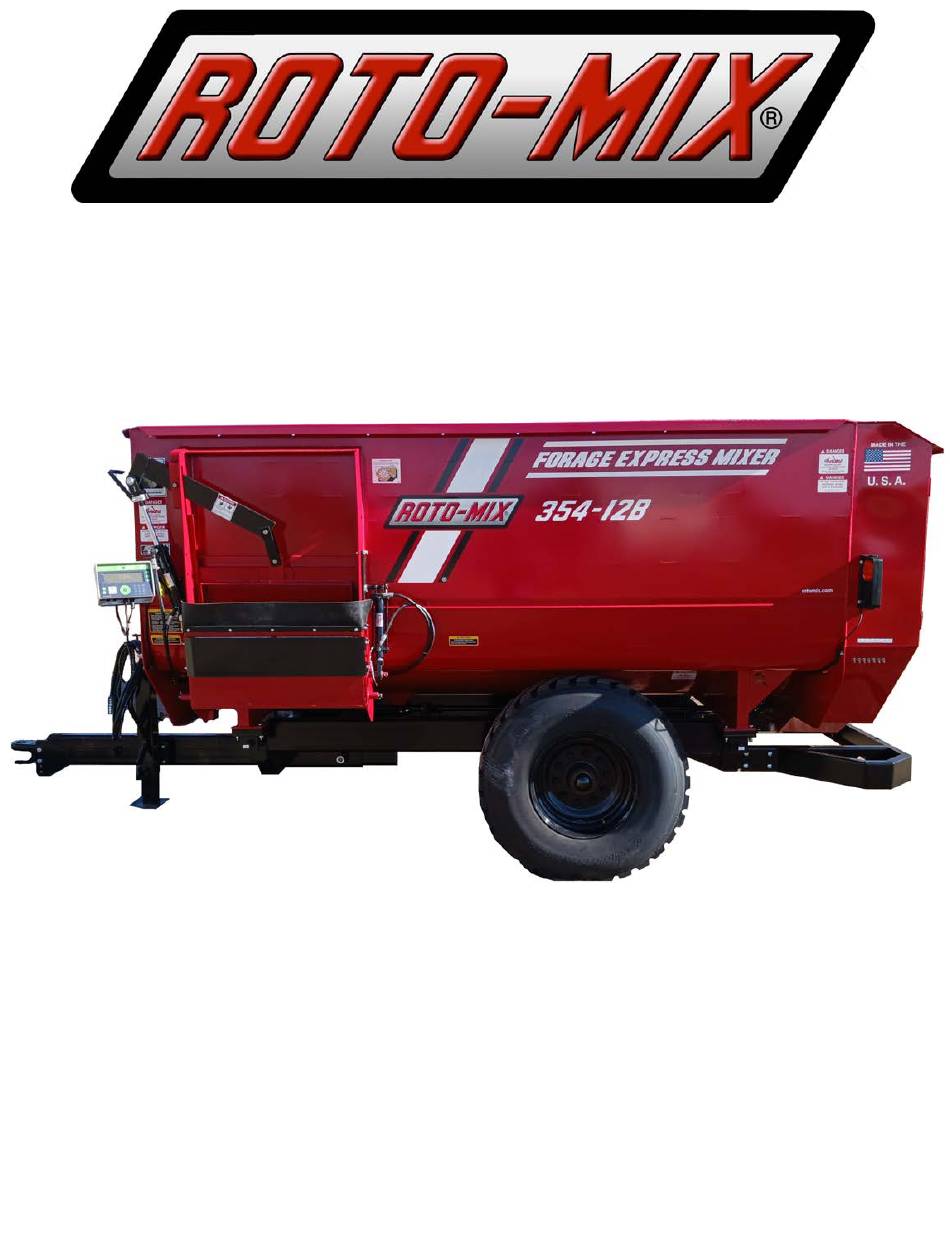

354-12, 354-12B & Deere 135
FEED MIXER
OPERATION AND PARTS MANUAL
ROTO-MIX
P.O. BOX 1724
2205 E. Wyatt Earp Blvd.
Dodge City, Kansas 67801
(620) 225-1142
© ROTO-MIX 2006
SERIAL NUMBER ____________
441904
07/2024
Printed in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 354-12 and is the answer not in the manual?

Questions and answers

Related Manuals for Roto-Mix 354-12

Summary of Contents for Roto-Mix 354-12

  • Page 1 354-12, 354-12B & Deere 135 FEED MIXER OPERATION AND PARTS MANUAL ROTO-MIX P.O. BOX 1724 2205 E. Wyatt Earp Blvd. Dodge City, Kansas 67801 (620) 225-1142 © ROTO-MIX 2006 SERIAL NUMBER ____________ 441904 07/2024 Printed in U.S.A.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE NO. WARRANTY ---------------------------------------------------------------------------------------- 3 SCALES WARRANTY & SERVICE POLICY ----------------------------------------------- 4 OPERATOR QUALIFICATIONS --------------------------------------------------------------- 5 SAFETY -------------------------------------------------------------------------------------------- 6-16 OPERATION ------------------------------------------------------------------------------------- 16-23 LUBRICATION ------------------------------------------------------------------------------------ 24 SPECIFICATIONS -------------------------------------------------------------------------------- 25 PTO CHART --------------------------------------------------------------------------------------- 26 DIMENSIONS ------------------------------------------------------------------------------------ 27-30 REPAIR PARTS TOC --------------------------------------------------------------------------- 32 Revision Date Changes 7/2024...

  • Page 3: Warranty

    Product Registration - It is a condition of this warranty that the original purchaser must fill out the warranty card furnished by ROTO-MIX and that it be returned to ROTO-MIX within 10 days of purchase and be recorded in ROTO-MIX’s owner file for this warranty to be valid. In the event an owner’s card is not on file at the ROTO-MIX office, the warranty period will extend only from date equipment was picked up or shipped from the ROTO-MIX plant.

  • Page 4: Scales Warranty & Service Policy

    SCALES WARRANTY & SERVICE POLICY DIGI-STAR SCALE SYSTEMS Digi-Star, LLC warrants for a period of one year from date of installation, to correct by repair or replacement, at Digi-Star’s option, any defect in material or workmanship in any part of this product. In the event of replacement, Digi-Star’s sole obligation shall be to provide replacement products or parts.

  • Page 5: Operator Qualifications

    OPERATOR QUALIFICATIONS Operation Of this mixer/feeder shall be limited to competent and experienced persons. In addition, anyone who will operate or work around a mixer/feeder must use good common sense. In order to be qualified, he or she must also know and meet all other qualifications, such as: 1.

  • Page 6: Signal Words

    It may also be used to alert against unsafe practices. If you have questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or ROTO-MIX, 2205 E. Wyatt Earp, Dodge City, Kansas, 67801. (Telephone) 620-225-1142 (Fax) 620-225-6370...

  • Page 7: Safety First

    SAFETY FIRST REMEMBER: The careful operator is the best operator. Most accidents are caused by human error. Certain precautions must be observed to prevent the possibility of injury or death. DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE. NEVER START MACHINE UNTIL ALL GUARDS AND SAFETY SHIELDS ARE IN PLACE.

  • Page 8: Equipment Safety Guidelines

    SAFETY READ BEFORE YOU FEED EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufactures build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
  • Page 9 SAFETY READ BEFORE YOU FEED KEEP ALL SHIELDS IN PLACE Do not operate mixer/feeder without safety shields in place. Rotating parts can crush or dismember causing personal injury or death. Disconnect PTO driveline before removing shields for adjustment or service. OPERATE MIXER/FEEDER SAFELY Rotating parts can entangle or strike people, resulting in personal injury or death.

  • Page 10: Stay Clear Of Rotating Drivelines

    SAFETY READ BEFORE YOU FEED STAY CLEAR OF ROTATING DRIVELINES Entanglement in rotating driveline can cause serious injury or death. Keep tractor master shield and driveline shields in place at all times. Make sure rotating shields turn freely. Wear close fitting clothing. Stop the engine and be sure PTO driveline is stopped before making adjustments, connections, or cleaning out PTO driven equipment .
  • Page 11 SAFETY READ BEFORE YOU FEED PREPARING TRACTOR FOR TRAILER MIXER POSITIONING DRAWBAR IMPORTANT: Drive components can be damaged from excessive speed. Under no circumstances should a feed mixer equipped with 540 RPM be operated by a tractor with 1000 RPM PTO. Feed mixers are available with either 540 or 1000 RPM driveline.

  • Page 12: Safety Signs

    SAFETY SIGNS...
  • Page 13 SAFETY SIGNS...
  • Page 14 SAFETY SIGNS...

  • Page 15: Safety Decal Care

    Replace safety decals and signs that are missing or have become illegible. Replaced parts that displayed a safety sign should also display the current sign. Safety decals or signs are available from your dealer or the ROTO-MIX manufacturing plant. How to Install Safety Decals: Be sure that the installation area is clean and dry.

  • Page 16: Before Operation

    Your best assurance against accidents is a careful and responsible operator. If there is any portion of this manual or function you do not understand, contact your dealer or the ROTO-MIX plant. BEFORE OPERATION: Carefully study and understand this manual.

  • Page 17: During Operation

    SAFETY READ BEFORE YOU FEED DURING OPERATION: Beware of bystanders, particularly children! Always look around to make sure that it is safe to start the engine of the towing vehicle or move the unit. This is particularly important with higher noise levels and quiet cabs, as you may not hear people shouting.

  • Page 18: Following Operation

    SAFETY READ BEFORE YOU FEED DURING OPERATION (CONT.) Never leave running mixer/feeder unattended. As a precaution, always recheck the hardware on mixer/feeder following every 100 hours of operation. Correct all problems. Follow the maintenance safety procedures. FOLLOWING OPERATION: Following operation, or when unhitching, stop the tractor or towing vehicle, set the brakes, disengage the PTO and all power drives, shut off the engine and remove the ignition keys.

  • Page 19: Performing Maintenance

    SAFETY READ BEFORE YOU FEED HIGHWAY AND TRANSPORT OPERATIONS (CONT.): Comply with state and local laws governing highway safety and movement of farm machinery on public roads. Use approved accessory lighting flags and necessary warning devices to protect operators of other vehicles on the highway during daylight and nighttime transport.
  • Page 20 If equipment has been altered in any way from original design, ROTO-MIX does not accept any liability for injury or warranty. A fire extinguisher and first aid kit should be kept readily accessible while...

  • Page 21: Chain Tension

    READ THE FOLLOWING BEFORE WELDING ON THIS MIXER/FEEDER When welding on your mixer/feeder, do not allow the current to flow through the ball bearings or the roller chains. Ground directly to the item being welded. Always disconnect the scale instrumentation from the weigh bars or load cells and the power source.
  • Page 22 THE ROTO-HAY PROCESSOR MUST BE PROPERLY USED. ALWAYS USE DRY HAY. Drain rain water out of mixer before use. 1” of rain in a 354-12 equals 46 gal (460 lbs.) of water which will increase the moisture in 1000 lbs. of dry hay (12%) to 40% moisture or 500 lbs.

  • Page 23: Operation

    OPERATION: Trailer mounted mixers can be furnished with single tractor controls or dual controls. Dual controls are standard unless specified. 1. Single controls operate as follows: Spout goes down first - door opens second. Door closes first - spout goes up second. 2.

  • Page 24: Lubrication

    LUBRICATION CHART DISENGAGE PTO & SHUT OFF POWER BEFORE LUBRICATING THE MACHINE. LOOSE OR FLOPPY CLOTHING SHOULD NOT BE WORN BY THE OPERATOR. OIL BATH: Fill the oil bath with 30 weight motor oil to sight plug at center of input shaft. GREASE BANK: Grease every 100 hours.

  • Page 25: Specifications

    354-12 SPECIFICATIONS Capacity (Cu. ft.)............350 Struck level capacity (Cu. ft.)......... 400 Top Auger Bearing (Front) ..........1-3/4” 4-Bolt Top Auger Bearing (Rear) ..........2-1/2” 4-Bolt Bottom Auger Bearing (Front)........2-3/16” 4-Bolt Bottom Auger Bearing (Rear)......... 3” 4-Bolt Rotor Bearing (Front) ............ 2-7/16” 4-Bolt Rotor Bearing (Rear) .............

  • Page 26: Pto Chart

    PTO CHART 354-12 INPUT JACKSHAFT (% ENGINE SPEED) SPROCKET SPROCKET 18 Tooth 42 Tooth DIESEL 16 Tooth 42 Tooth STANDARD 15 Tooth 42 Tooth TRANS 18 Tooth 54 Tooth 17 Tooth 54 Tooth 15 Tooth 54 Tooth DIESEL AUTOMATIC 85-87...

  • Page 27: Dimensions

    OPTIONAL HAY PROCESSOR 53 1/2" 64 1/2" 78" 2" 24 1/2" 13 1/2" APPROX. WEIGHT, LESS MOTOR 354-12 STATIONARY - 8,600 LB WITH HAY PROCESSOR - 9,200 LB 24" 47 1/2" 20 1/2" 146 1/2" 2 1/2" 144" 17" 2"...
  • Page 28 102 1/2" OVERALL SPOUT UP HEIGHT DIMENSIONS BASED 100 1/2" ON 44” OD TIRE 92" APPROXIMATE WEIGHT 22 1/2" 354-12 ON TRAILER - 10,000 LB OPTIONAL HAY PROCESSOR W/ HAY PROCESSOR - 10,600 LB 2" 40" * INCREASE DIMENSIONS BY 4”...
  • Page 29 354-12 TRAILER DIMENSIONS (WITH CONVEYOR) 118 3/4" 116" 98 1/2" 92" OPTIONAL HAY 40" 22 1/2" PROCESSOR 2" CONVEYOR WEIGHT 24”..330 LB’s 36”..415 LB’s 48”..500 LB’s 42" 30" 31" 29" 55" 49" 43" 39" - 41" 46"...
  • Page 30 18” 10” 15” HEIGHT DIMENSIONS BASED 106" ON 36” TRUCK FRAME WITH 17” SPOUT 52" APPROXIMATE WEIGHT 354-12 ON TRUCK - 9,300 LB W/ HAY PROCESSOR - 9,900 LB 96" 161 1/2" 2" 2 1/2" 144" 4 3/4" 105" OPTIONAL HAY PROCESSOR 112"...
  • Page 31 354-12 MOUNTING DIMENSIONS AUGER SIDE OF PEDESTAL 46" TRAILER 11" 34" TRUCK 15" All Dimensions & Specifications are Approximate and Subject to Change Without Notice.

  • Page 32: Repair Parts Toc

    PARTS PAGES TABLE OF CONTENTS DESCRIPTION PAGE # TRUCK HYDRAULIC SCHEMATIC -------------------------------------------------------------------------- 33 JOYSTICK ASSEMBLY ------------------------------------------------------------------------------------------ 34 WIRING SCHEMATIC FOR DISCHARGE DOOR -------------------------------------------------------- 35 SPOUT ASSEMBLY -------------------------------------------------------------------------------------------- 36-37 CHAIN CONVEYOR ASSEMBLY --------------------------------------------------------------------------- 38-39 CHAIN CONVEYOR HYDRAULIC ASSEMBLY ----------------------------------------------------------- 40 STAGGERED ROTOR ASSEMBLY -------------------------------------------------------------------------- 41 3 ARM ROTOR ASSEMBLY ---------------------------------------------------------------------------------- 42-43 5 ARM ROTOR ASSEMBLY ---------------------------------------------------------------------------------- 44-45 TOP &...
  • Page 33 TRUCK HYDRAULICS NOTE: HYDRAULIC POWER UNIT MAY BE IN A DIFFERENT LOCATION ON TRUCK ITEM# PART# DESCRIPTION QTY. 362152 12V HYD POWER UNIT 364035 HYDRAULIC CYLINDER 1-1/2" x 8" 364055 HYD CYL 2" x 8" 20-1/4" CL 366006 3/8" HYDRAULIC HOSE AS NEEDED 367064 HOSE COUPLING, 3/8"...
  • Page 34 JOYSTICK CONTROL PANEL & WIRING WIRE COLOR FUNCTION POWER BLACK GROUND BARE ENDS FOR POWER, GROUND, GREEN DOOR STACK VALVE HYDRAULIC VALVE, & BUNK LIGHT; YELLOW DOOR STACK VALVE FORK ENDS FOR JOYSTICK & BROWN SPOUT STACK VALVE ROCKER SWITCHES WHITE SPOUT STACK VALVE PURPLE...
  • Page 35 WIRING SCHEMATIC FOR 12V HYDRAULIC POWER UNIT VALVE WIRING COM - BLACK WIRE GREEN YELLOW YELLOW WIRE WHITE BROWN GREEN WIRE COM - BLACK WIRE HYDRAULIC VALVE STARTER WHITE WIRE SOLENOID BROWN WIRE TO BATTERY ITEM# PART# DESCRIPTION QTY. 357705 JOYSTICK, (4-WAY) SCHNEIDER 9001K35 358028 BATTERY CABLE 4-GA...
  • Page 36 17" SPOUT ASSEMBLY 9 11 9 11 9 11...
  • Page 37 17" SPOUT ASSEMBLY ITEM # PART # DESCRIPTION QTY. 150150 SPOUT RUBBER END PLT 150299 SPOUT MAGNET GUARD 8" x 51-3/4" 150159 SPOUT MAGNET GUARD 8" x 39-1/2" 150383 SPOUT PIVOT TUBE 52-3/4" 150160 SPOUT PIVOT TUBE 40-3/4" 150384 SPOUT RUBBER, 6" x 57 1/2" 150161 SPOUT RUBBER, 6"...
  • Page 38 CHAIN CONVEYOR ASSEMBLY...
  • Page 39 CHAIN CONVEYOR ASSEMBLY #781411 ....24”L x 36”W CONVEYOR ASSEMBLY #781410 ....36”L x 36”W CONVEYOR ASSEMBLY #781412 ....48”L x 36”W CONVEYOR ASSEMBLY ITEM# PART# DESCRIPTION QTY. 8 TOOTH #55 SPROCKET x 1”ID 160025 36”W CONVEYOR DRIVE SHAFT 188412 36”W CONVEYOR IDLER SHAFT 188413 RCJC 1”...
  • Page 40 CHAIN CONVEYOR HYDRAULIC ASSEMBLY TO MOTOR PORT A TO CONV FRONT TRACTOR DOWN TRACTOR END SHEET TO MOTOR PORT B TO CONV UP CONVEYOR CYLINDER ITEM# PART# DESCRIPTION QTY. 874071 CONVEYOR MOTOR PLATE WELDMENT 3/8” X 125” HYD. HOSE ASSY. (3/8”MP ENDS) 781329 1/2”...
  • Page 41 354-12B STAGGERED ROTOR ASSEMBLY ITEM # PART # DESCRIPTION QTY. 190473P PLASTIC WIPER 190474 WIPER CHANNEL 10-3/16"x27-3/4" 400908 HEX CROWN LOCNUT 1/2"-13 #9 400914 HHCS CROWN LOCK 7/8"-9 GRD 5 PLTD 401106 HEX NUT, 3/8"-16 NYLOC #5 PLTD 402408 WASHER, FLAT 1/2" MED PLTD 402806 FLAT WASHER 3/8"...
  • Page 42 354-12B 3 ARM ROTOR ASSEMBLY AFTER SERIAL #890473440 ITEM # PART # DESCRIPTION QTY. 150013 WIPER STRAP 90 1/2" 150014 END WIPER STRAP 19 1/4"19.250 150015 PLASTIC WIPER 2-1/2" x 94-1/2" 150016 END PLASTIC WIPER 2-1/2" x 22-1/2" 400910 HEX CROWN LOCNUT 5/8"-11 #9 PLTD 400914 HEX CROWN LOCK 7/8"-9 GRD 5 PLTD 401106...
  • Page 43 354-12 3 ARM ROTOR ASSEMBLY BEFORE SERIAL #890473440 END WIPER ASSY. #750093 CTR WIPER ASSY. #750150 ITEM# PART# DESCRIPTION QTY. 150013 CENTER WIPER STRAP 150014 END WIPER STRAP 150015 CENTER PLASTIC WIPER 150016 END PLASTIC WIPER 150025 ROTOR DRIVESHAFT 150031...
  • Page 44 354 WIPER TUBE WELDMENT 850006 12 FT WIPER WA 850007 ROTOR SPRING COVER WA 850268 354 5 ARM ROTOR W.A. 850268RH 354 5 ARM ROTOR W.A. RH 850502 274/354 ROTOR SHAFT FLANGE WA 750004 354-12 WIPER ASSEMBLY (Includes Items 1,2,3,4,7,8,&13)
  • Page 45 354-12 5 ARM ROTOR ASSEMBLY BEFORE SERIAL #890473440 CTR WIPER ASSY. #750004 ITEM# PART# DESCRIPTION QTY. 150013 CENTER WIPER STRAP 150014 END WIPER STRAP 150015 CENTER PLASTIC WIPER 150016 END PLASTIC WIPER 150025 ROTOR DRIVESHAFT 150031 ROTOR HUB SPACER SLEEVE KEY, RECTANGULAR, 5/8”...
  • Page 46 354-12 STANDARD TOP & BOTTOM AUGER ASSEMBLY FROM SERIAL #890473440 REF. NO PART NO. DESCRIPTION QTY. 850096 TOP AUGER W.A............1 A. 382026 20” OD x 6-5/8” ID x 3/8” RH 14” PITCH FLT....8 B. 150126 TOP AUGER PADDLE ..........3 850097 BOTTOM AUGER W.A..........
  • Page 47 354-12 STANDARD TOP & BOTTOM AUGER ASSEMBLY BEFORE SERIAL #890473440 REF. NO PART NO. DESCRIPTION QTY. 850257 TOP AUGER W.A..............1 382024 20” OD x 6-5/8” ID x 1/4” RH 14” PITCH FL T......6 382026 20” OD x 6-5/8” ID x 3/8” RH 14” PITCH FL T ......2 150126 TOP AUGER PADDLE .............
  • Page 48 354-12 OPTIONAL TOP & BOTTOM AUGER ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 850642 TOP AUGER 1/2” FLIGHT W.A........1 FLIGHT RH 20” OD x 6-5/8” ID x 1/2” x 14” PITCH ..8 382724 150126 TOP AUGER PADDLE ............ 3 850257B TOP AUGER DOUBLE FLIGHT W.A.
  • Page 49 354-12B FRONT END ASSEMBLY FROM SERIAL #890473440 TO CURRENT ITEM # PART # DESCRIPTION QTY. 185258 ROTOR PLATE INDICATOR, 15/16" OD 340427 1 3/4" - 4 BOLT FLANGE BRG F3W228U 340436 BEARING 2 3/16" FAFNIR 340438 FAFNIR 2 7/16" BEARING 400208 HEX NUT 1/2"-13 #5 PLTD 400210...
  • Page 50 354-12 FRONT END ASSEMBLY BEFORE SERIAL #890473440 ITEM# PART# DESCRIPTION QTY. FLANGE BEARING VCJ 1 3/4” 4-BOLT 340428 FLANGE BEARING RCJ 2 3/16” 4-BOLT 340435 FLANGE BEARING RCJ 2 7/16” 4-BOLT 340438...
  • Page 51 354-12B OIL BATH DOOR ASSEMBLY 19 2 11 13 13 15 11 13 14 ITEM # PART # DESCRIPTION QTY. 189503 CAM ROD SPACER 351056 RUBBER BULB SEAL 5/32" 370316 CAM LOCK TOP PLATE 370317 CAM LOCK BOTTOM PLATE 370319 CAM LOCK HANDLE 370320 HANDLES CAM LOCK...
  • Page 52 354-12B DISCHARGE DOOR ASSEMBLY ITEM# PART# DESCRIPTION QTY. 150049 DOOR ARM 150385 DOOR MARKER BAR (TRAILER) 184259 DOOR CYLINDER MARKER PLATE (TRUCK) 184267 DOOR CYLINDER MARKER CLAMP FLAT WASHER 3/4” SAE 402512 COTTER PIN 5/32” X 1 1/4” 404003 CLEVIS PIN 3/4” X 2” 404350 HYDRAULIC CYLINDER 2”...
  • Page 53 352-12 HAND WHEEL ASSEMBLY ITEM# PART# DESCRIPTION QTY. 150244 HAND WHEEL BEARING BLOCK 150387 HAND WHEEL SHAFT - 53-1/2" 185114 DRIVE GEAR, 1" 189105 BEARING BRAKE BLOCK 189106 HAND KNOB BLOT SUPPORT 189112 BRAKE ARM 340216 1" FLANGE MOUNT BEARING 407047 CHCS, 3/8-16 x 3", #5 PLTD 410305...
  • Page 54 354-12 OIL BATH BEARING LUBE SYSTEM ROTOR TOP AUGER BTM AUGER FRONT INPUT FRONT JACKSHAFT DETAIL A SCALE 1 : 3 REAR JACKSHAFT REAR INPUT ITEM # PART # DESCRIPTION QTY. 310750 FPT GREASE ZERK PLTD 1/8 368000 PIPE ELBOW, 90° STREET 1/8"MP x 1/8"FP 402507 FLAT WASHER 7/16"...
  • Page 55 354-12 SCALE INDICATOR ASSEMBLY ITEM# PART# DESCRIPTION QTY. 151274 414 PTO SHIELD MTG BRACKET 184283 HOSE CARRIER 36" 185302 P.T.O. SHIELD 412205 CABLE CLAMP, 3/8" 440830-S DANGER : ROTATING DRIVE LINE 850047 SCALE INDICATOR PLATE W/A 850048 SCALE INDICATOR ARM WA...
  • Page 56 354-12B LOWER AUGER FLOAT ASSEMBLY ITEM# PART# DESCRIPTION QTY. 150418 BEARING SLIDER PLASTIC 150764 FLOATING AUGER SHIELD 400206 HEX NUT 3/8"-16 #5 PLTD 400210 HEX NUT 5/8"-11 #5 PLTD 400610 HEX JAM NUT # 5 PLTD 5/8"-11 402006 SPRING LOCK WASHER 3/8" MED PLTD 402010 SPRING LOCK WASHER 5/8"...
  • Page 57 354-12B TRAILER WEIGH BAR SCALE FRAME ASSY ITEM# PART# DESCRIPTION QTY. 872169 WEIGH BAR MOUNT – 2 1/8” 850070 WEIGH BAR RISER BLOCK (OPTIONAL) 185609 WEIGH BAR MOUNTING PAD...
  • Page 58 354-12B TRUCK LOAD CELL SCALE KIT 7 7 10 10 14 ITEM # PART # DESCRIPTION QTY. 182881 SCALE MOUNT MIXER PLATE 182915 LOAD CELL CAGE PLATE 182998 BRACKET, TRUCK FRAME, 8 185997 SCALE PAD 190075 DIGI-STAR LOAD CELL SUPPORT PT 400210 HEX NUT 5/8"-11 #5 PLTD 400212...
  • Page 59 354-12B TRUCK WEIGH BAR SCALE FRAME ITEM# PART# DESCRIPTION QTY. 850080 TRUCK WEIGH BAR FRAME – 34” 850274 TRUCK WEIGH BAR FRAME – 29 1/2” 182998 TRUCK FRAME BRACKET 185609 MIXER BAR MOUNT PAD 872169 WEIGH BAR MOUNT 2 1/8”...
  • Page 60 354-12B TRUCK WEIGH BAR SADDLE BRACKET (USED WITHOUT REGULAR SCALE FRAME) USE SMALLER BACKING PLATE IN WELD SUPPORT TO INSIDE PLACES THAT THE REGULAR LARGER OF BACKING PLATES BACKING PLATE WILL NOT FIT. BETWEEN FRAME WHEN NEEDED. TRUCK FRAME ITEM# PART# DESCRIPTION QTY.
  • Page 61 354-12 TRUCK LOAD CELL SADDLE BRACKET TRUCK FRAME ITEM# PART# DESCRIPTION QTY. 161486 STIFFNER TUBE 185567 SADDLE MOUNT BOLT PLATE 189238 SCALE MNT MIXER PAD 190371 PLATE, FRT SADDLE MNT 10" x 15" 190372 PLATE, FRT SADDLE MNT 190375 TUBE, SADDLE MNT 4" SQ x 49"...
  • Page 62 354-12B STATIONARY LOAD CELL SCALE FRAME ASSEMBLY ITEM# PART# DESCRIPTION QTY. 872019 STATIONARY SCALE FRAME LOAD CELL W.A. 870519 MIXER SCALE CHECK 182915 LOAD CELL CAGE PLATE 185124 RUBBER SCALE PAD 182881 SCALE MOUNT MIXER PLATE SCALE CHECK ROD W.A. 19 1/2” 870501 SCALE CHECK ROD W.A.
  • Page 63 354-12B STATIONARY WEIGH BAR SCALE FRAME ASSEMBLY ITEM # PART # DESCRIPTION QTY. 185609 BAR MOUNT MIXER PAD 7" 400210 HEX NUT 5/8"-11 #5 PLTD 400906 HEX NUT, 3/8"-16 CROWN LOC #5 PLTD 402010 SPRING LOCK WASHER 5/8" PLTD 402406 FLAT WASHER 3/8"...
  • Page 64 354-12B STATIONARY FLOOR MOUNT SCALE ASSY ITEM# PART# DESCRIPTION QTY. 450863 STATIONARY BASE BRACKET W.A. – 2 1/8” W.B. 850524 STATIONARY PAD W.A. 151016 STATIONARY SCALE PAD 404280 LATCH PIN – 3/4” X 3 1/2” 404281 WEIGH BAR PIN – 5/8” X 4 3/4”...
  • Page 65 354-12B TRAILER FRAME ASSEMBLY 9 13 ITEM # PART # DESCRIPTION QTY. 374002 JACK, 5,000# (G & G 456-0510) 780904 JACK, 9,000# DROP LEG (OPTIONAL) 374100 CAT 3 BASE HITCH BODY (PPI-237VR) 374101 CAT 3 CLEVIS INSERT (PPI-208VR) 400114 HEX NUT, 1/2-13 SERRATED FLANGE #5 400908 HEX CROWN LOCNUT 1/2"-13 #9 400912...
  • Page 66 354-12B TRAILER, 12K HUB ASSEMBLY #372209A INCLUDES THESE PARTS AS AN ASSEMBLY ITEM # PART # DESCRIPTION QTY. 150117 SPINDLE, 3" DIA, 12,000 LB x 20" 342209 INNER BEARING 2-1/2" BORE 342210 BEARING, 1.75 BORE Tim #460 342211 INNER BEARING RACE 4-7/16"OD 342212 OUTER BEARING RACE 4-1/4"...
  • Page 67 354-12 TRAILER DRIVELINE ASSEMBLY ITEM# PART# DESCRIPTION QTY. 150511 1-1/2" BEARING PLATE 5 x 8 150551 414 FRONT SHAFT - 59-1/4 (540 RPM) 150700 414 INPUT SHAFT 150644 354 DRIVELINE 69-3/4 (540 RPM) 151274 414 PTO SHIELD MTG BRACKET 185299...
  • Page 68 354-12 TRAILER DRIVESHAFT ASSEMBLY #338023 ITEM # PART # DESCRIPTION QTY. 338441 CROSS KIT 2300 338452 INBOARD YOKE I W2300 041318 338455 YOKE 1-3/8"-6 W2300 ASGE 338456 YOKE W2300 1-1/2" RB 338461 INNER PROFILE Ov W2300 013377 338462 OUTER PROFILE I W2300 050184...
  • Page 69 354-12 TRUCK DRIVELINE ASSEMBLY (STANDARD TRANS) ATTACHED TO MIXER SHELL ATTACHED TO TRUCK FRAME DRIVELINE COMPONENTS LISTED ON NEXT PAGE ITEM# PART# DESCRIPTION QTY. 150700 414 INPUT SHAFT 183319 TRUCK JACKSHAFT BRACKET 185483 KEY 5/16" SQ x 1-1/4" LG. 183327 JACKSHAFT, TRUCK, 1-3/8"...
  • Page 70 354-12B TRUCK DRIVELINE ASSEMBLY (AUTOMATIC TRANSMISSION) STAR GEARBOX 18 20 STARTING WITH S/N 820742847 18 20 ITEM # PART # DESCRIPTION QTY. 150704 274/354 AUTO TRUCK DRIVELINE - 68" 183319 TRUCK JACKSHAFT BRACKET 185483 KEY 5/16" SQ x 1-1/4" LG. 185504 JACKSHAFT, 720 TRK, 1-3/8"...
  • Page 71 354-12 TRUCK DRIVELINE – REAR #780494 (STANDARD TRANSMISSION) REF. NO PART NO. DESCRIPTION QTY. 338053 DRIVESHAFT SPLINE TUBE ASSY. (SPICER) .....1 338422 YOKE 1 3/8” (SPICER) ..............2 338435 CROSS KIT (SPICER) ..............2 354-12 TRUCK DRIVELINE – FRONT #780486 (AUTO & STANDARD) TRANSMISSION) REF.
  • Page 72 354-12 TRUCK DRIVELINE - REAR #338042 AUTOMATIC TRANSMISSION 1 3/4" 24 3/16" 25 3/16" 1 3/4" ITEM # PART # DESCRIPTION QTY. 338443 CROSS KIT 32mm x 76mm W2400 312410 338448 INNER PROFILE W2400 1B-021467 338449 Yoke 1-3/4"RD, W2400, 3/8"-16 Shear Bolt, 385559 - 383397...
  • Page 73 GEARBOX 2:1 HUB CITY #344022 SECTION A-A ITEM # PART # DESCRIPTION 310710 PIPE BUSHING, 1/2" x 1/8" GALV 310718 BREATHER PLUG, 1/8" PIPE 310798 PIPE PLUG, 1/2" INTERNAL HEX 344209 GEARBOX SEAL 1-3/4" CR 18039 344210 BEARING CONE 1-13/16" ID 18690 344211 BEARING CUP 3-1/8"...
  • Page 74 354-12 ELECTRIC SINGLE MOTOR DRIVE...
  • Page 75 354-12 ELECTRIC SINGLE MOTOR DRIVE REF. NO PART NO. DESCRIPTION QTY. 330654 #60 B 54 RC SPROCKET........330607 #60 B 17H RC SPROCKET (20 & 25 HP)....1 330610 #60 B 15H RC SPROCKET (15 HP)....... 1 340228 VCJT 1-3/4” 2-BOLT FLANGE BEARING ....
  • Page 76 354-12 ELECTRIC DUAL MOTOR DRIVE...
  • Page 77 354-12 ELECTRIC DUAL MOTOR DRIVE REF. NO PART NO. DESCRIPTION QTY. 150716 ELECTRIC MOTOR INPUT SHAFT....... 150229 ELECTRIC MOTOR PIVOT PIPE......850200 MOTOR BASE WELDMENT (213T-254T)....1 850318 LEFT MOTOR BASE WELDMENT (213T-254T)..1 850311 ELECTRIC EXT. BELT SHIELD WELDMENT..
  • Page 78 354-12 DRIVE ASSEMBLY ROTOR BOTTOM AUGER...
  • Page 79 354-12 DRIVE ASSEMBLY ITEM# PART# DESCRIPTION QTY. 150075 1-3/4 BEARING COVER PLATE 5-3/8 150224 #80 IDLER BLOCK 1-3/4 x 3-1/2 150271 SQUARE KEY, 3/8" x 1-3/16" LGT 150700 414 INPUT SHAFT 151011 BOTTOM AUGER SHIM - 2-1/2" 151097 414 JACKSHAFT 14-11/16"...
  • Page 80 354-12 DRIVE ASSEMBLY Before Serial #890473440...
  • Page 81 354-12 DRIVE ASSEMBLY Before Serial #890473440 ITEM # PART # DESCRIPTION QTY. 342048 REX MB2300 4-BOLT FLANGE BEARING 850043 #100 B 45 RC SPROCKET WELDMENT 3” SHAFT SPACER 21/32” 150035 1/2” x 3/4” RECT. KEY x 1/2” 150079 150082 #100 B 13H RC SPROCKET 1/2”...
  • Page 82 ROTO-HAY PROCESSOR ASSEMBLY REF. NO PART NO. DESCRIPTION QTY. 850058 HAY PAN FRONT BEARING WELDMENT……….. 1 850237 HAY PAN TUBE WELDMENT………………………. 1 850063 HAY PAN WELDMENT……………………………… 1 150198 BAFFLE PLUNGER UHMW………………………….1 850300 CROSS BAR WELDMENT………………………….. 1 850057 HAY PAN CENTER BEARING WELDMENT……… 1 872354 HAY PAN REAR BEARING WELDMENT………….
  • Page 83 ROTO-HAY PROCESSOR (Hydraulic Option) REF. NO PART NO. DESCRIPTION QTY. 188226 FEEDER ELECTRIC CONTROL BRACKET……… 1 357702 PUSH BUTTON SWITCH 12V-2 POLE……………. 1 362207 SLD ADD ON VALVE VX-13D (TRUCK)…………... 1 780109 2” x 8” STRAIGHT DOOR CYLINDER ASSY……... 1 368007 3/8”MP x 3/8”FPSW 90°...
  • Page 84 ROTO-HAY PROCESSOR (Cable Option) REF. NO PART NO. DESCRIPTION QTY. 850090 HAY PAN CABLE ARM WELDMENT……………… 1 150188 CABLE BAR……………………………………………2 150189 SLEEVE 1”OD x 13/16”……………………………… 1 412204 1/4” CABLE CLAMP………………………………… 2 150669 CABLE………………………………………………….1 850066 CABLE PULLEY BRACKET WELDMENT………… 1 850067 CABLE WINCH MOUNT PLA TE WELDMENT…….
  • Page 85 354-12 FENDERS, FENDER MOUNT & MUD FLAPS ITEM # PART # DESCRIPTION QTY. 183087 MUD FLAP STRAP 354391 POLY FENDER 354392 POLY FENDER TUBING MOUNT KIT (2 per kit) 354393 POLY FENDER TAPER BRACKET KIT (2 per kit) 370200 ROTO-MIX MUD FLAP 24" x 30"...
  • Page 86 FORAGE EXPRESS LADDER ASSY #950020 ITEM # PART # DESCRIPTION QTY. 150389 LADDER MOUNT ANGLE 5" 150390 LADDER MOUNT BRACKET 6 7/8" 190979 LADDER, FORMED 7 RUNG 400114 HEX NUT, 1/2-13 SERRATED FLANGE #5 400208 HEX NUT 1/2"-13 #5 PLTD 402008 SPRING LOCK WASHER 1/2"...
  • Page 87 TRUCK CAB SCALE INDICATOR FRAME PARTS 7 12 7 12 ITEM # PART # DESCRIPTION QTY. 185930 ARM REST PAD 12" 192578 ARM REST SLIDE BAR 192585 BRACKET, PASSENGER CAB SEAT 192587 SPACER, TRUCK CAB DRIVER'S SEAT 192593 PLATE, TRUCK CAB MOUNT SETTING 400107 HEX NUT, 3/8"-16 SERRATED FLANGE #5 400606...
  • Page 88 REAR BUMPER, 10", RECT. LIGHT HOLES #780948 ITEM # PART # DESCRIPTION QTY. 185600 TAIL LIGHT BRKT 192219 PLATE, FLR 10" RR BMPR ROTO-MIX 400107 HEX NUT, 3/8"-16 SERRATED FLANGE #5 400115 FLANGE NUT, 5/8-11 SERRATED 407040 CHCS 3/8"-16 x 1" #5 PLTD 407121 CHCS 5/8"-11 x 2"...
  • Page 89 REAR BUMPER, 10", ROUND LIGHT HOLES #780949 ITEM # PART # DESCRIPTION QTY. 192219 PLATE, FLR 10" RR BMPR ROTO-MIX 400107 HEX NUT, 3/8"-16 SERRATED FLANGE #5 400115 FLANGE NUT, 5/8-11 SERRATED 407040 CHCS 3/8"-16 x 1" #5 PLTD 407121 CHCS 5/8"-11 x 2"...
  • Page 90 354-12 SHELL REPAIR PARTS...
  • Page 91 354-12 SHELL REPAIR PARTS ITEM# PART# DESCRIPTION QTY. 150421 HAY ANGLE 7" x 20" 150996 GUSSET END CAP 4 1/2" x 4 1/2" 15150746 354 LEFT SIDE SHEET 15150410 HAY ANGLE 7" x 47 3/4" 151116 INSIDE ANGLE 12" x 98"...
  • Page 92 354-12 CROSS BAR ASSEMBLY 4 5 3 ITEM# PART# DESCRIPTION QTY. 150141 354 CROSS BAR PLATE 400107 HEX NUT, 3/8"-16 SERRATED FLANGE #5 400908 HEX CROWN LOCNUT 1/2"-13 #9 402120 INT/EXT STAR LOCKWASHER 1/2" PLTD 402408 WASHER, FLAT 1/2" MED PLTD 407101 CHCS 1/2"-13 x 1-1/4"...
