Quick Links
Component List
Attention: The drawings below are only for reference which might be slightly different from the actual object, please refer
to the actual product. If there are any tools missing or installation problems, please contact the customer service.
1
Bed Frame (x1)
Unpack the case
and you can see
1
Core Accessories Package
(Remote control, adaptor, AC power cord,
Remote Control
switch cord, accessories package)
(x1)
A.螺栓x2
B.塑料垫片x4
C.螺母x2
D.扳手x2
塑料轴套x2
垫片x2
×1
Adjustable Leg/
1
Bed Foot Pad (x6)
＋
Adjustable Leg
×6
Item No.: Cab-PC-08388
Cab-PC-08389
Installation guide
2
Mattress Retainer Bar (x1)
2
3
4
Adaptor
AC Power Cord
Switch Cord
(x1)
(x1)
(x1)
5
Accessories Package
(x1)
A.
Bolt x2
B.
Plastic
C.
Nutx2
D.
Wrenchx2
Gasket x4
Steel
Plastic
Gasket x2
Sleeve x2

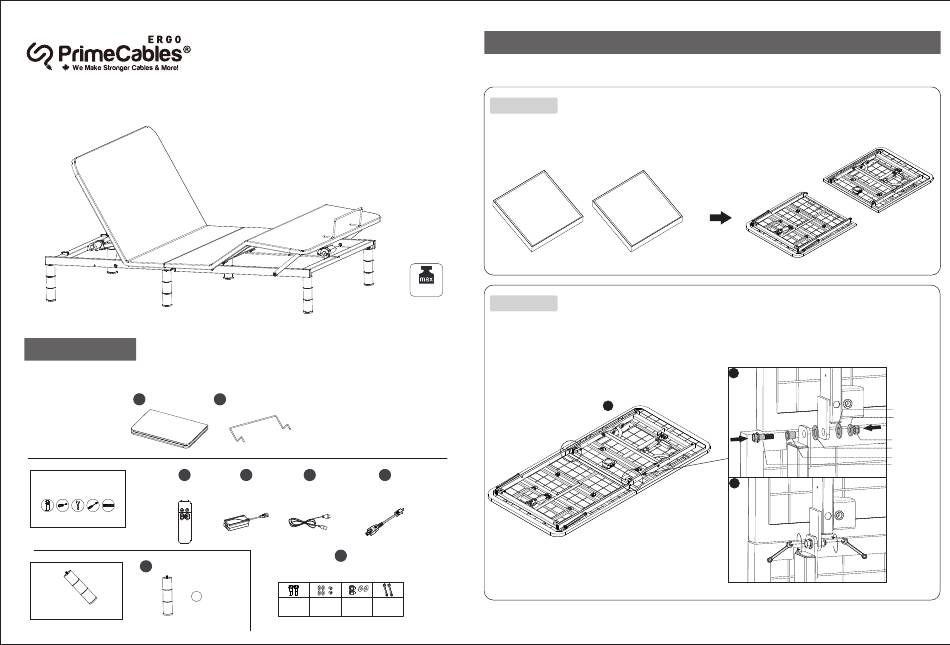

Installation Guide
Attention: For safety reasons, the installation of the adjustable bed must always be carried out by two persons
at all times; and the product should always be on a flat surface before opening.
Do not cut off the pre-arranged cable ties, in order to prevent the wiring harness from being squeezed
STEP1
and leaked due to wrong wiring; the customer only needs to cut the cable ties that fix the lever.
Please open the box cover and take out the bed, making sure not to puncture the carton with any sharp objects;
Take two bed frame pieces out of the bag. Take out all accessories, and set them aside.
272kg
STEP2
Connect the bed frame
A. Please flatten and align the two halves of the spliced bed frame;
B. Please insert the bolts and washers in sequence according to the
diagram, and pre-tighten the nuts by hand;
C. Please use two wrenches to tighten the nut.
(Note: the other side is connected in the same way)
Take out bed frame
B
A
Insert
C
Plastic Gasket
Steel Gasket
Nut
Plastic Gasket
Plastic Sleeve
Bolt
Tighten
