PrimeCables ERGO Cab-PC-08385 Installation Manual

Attention: The drawings below are only for reference which might be slightly different from the actual object, please refer

to the actual product. If there are any tools missing or installation problems, please contact the customer service.

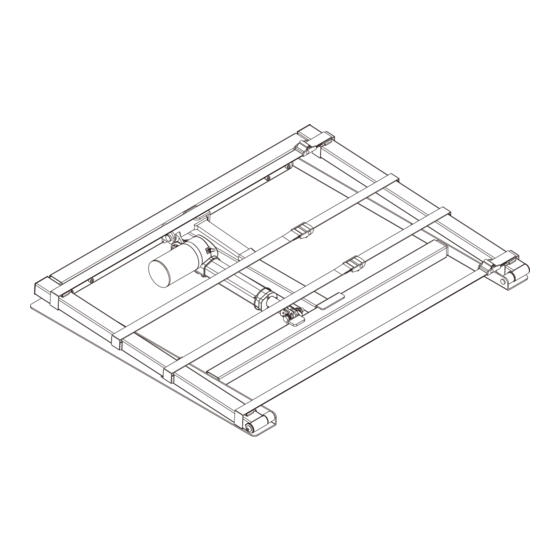

1. Bed frame (x1)

4. AC power cord (x1)

Attention

This product is not recommended to be used with an anti-slip mattress. The anti-slip mattress will produce abnormal

noise when it contacts and rubs against the product.

Item No.: Cab-PC-08385

Installation guide

2. Adaptor (x1)

3. Remote control (x1)

5. Allen key (x1)

6. 1.2m strap (x4)

Bed Frame Installation

When the user's bed frame has no backrest, in order to better fix the bed

frame, it is recommended to fix the bottom frame with straps. Otherwise, it

may cause relative displacement of the bottom frame as it rises and falls

during use.

Place the product on the bed frame.

Secure the product to the bed frame with straps.

Head straps

Waist straps

150Lbs

1 2

Tighten the 2 straps in

the direction of the arrow

Tighten the 2 straps in

the direction of the arrow

When using this product, keep

away from children to prevent

pinching.

Table of Contents

Do you have a question about the ERGO Cab-PC-08385 and is the answer not in the manual?

Page 1 Bed Frame Installation When the user's bed frame has no backrest, in order to better fix the bed When using this product, keep frame, it is recommended to fix the bottom frame with straps. Otherwise, it away from children to prevent may cause relative displacement of the bottom frame as it rises and falls pinching.
Page 2 Mattress Installation STEP2 STEP1 Pull the straps outwards According to the user's preference, choose one side for wiring on the left and right sides. Press Pull out all the straps 2 Place the mattress on the bed frame, and make sure the head of the mattress protrudes from the bed Snap the clip into the slot.
Page 3 Troubleshooting STEP3 Adjust the bed frame once to confirm that the product can be used normally. If the adjustable bed fails, please refer to the solution to the corresponding problem in the table below. Problem Solution 1. Make sure all the power cords are properly connected. 2.
