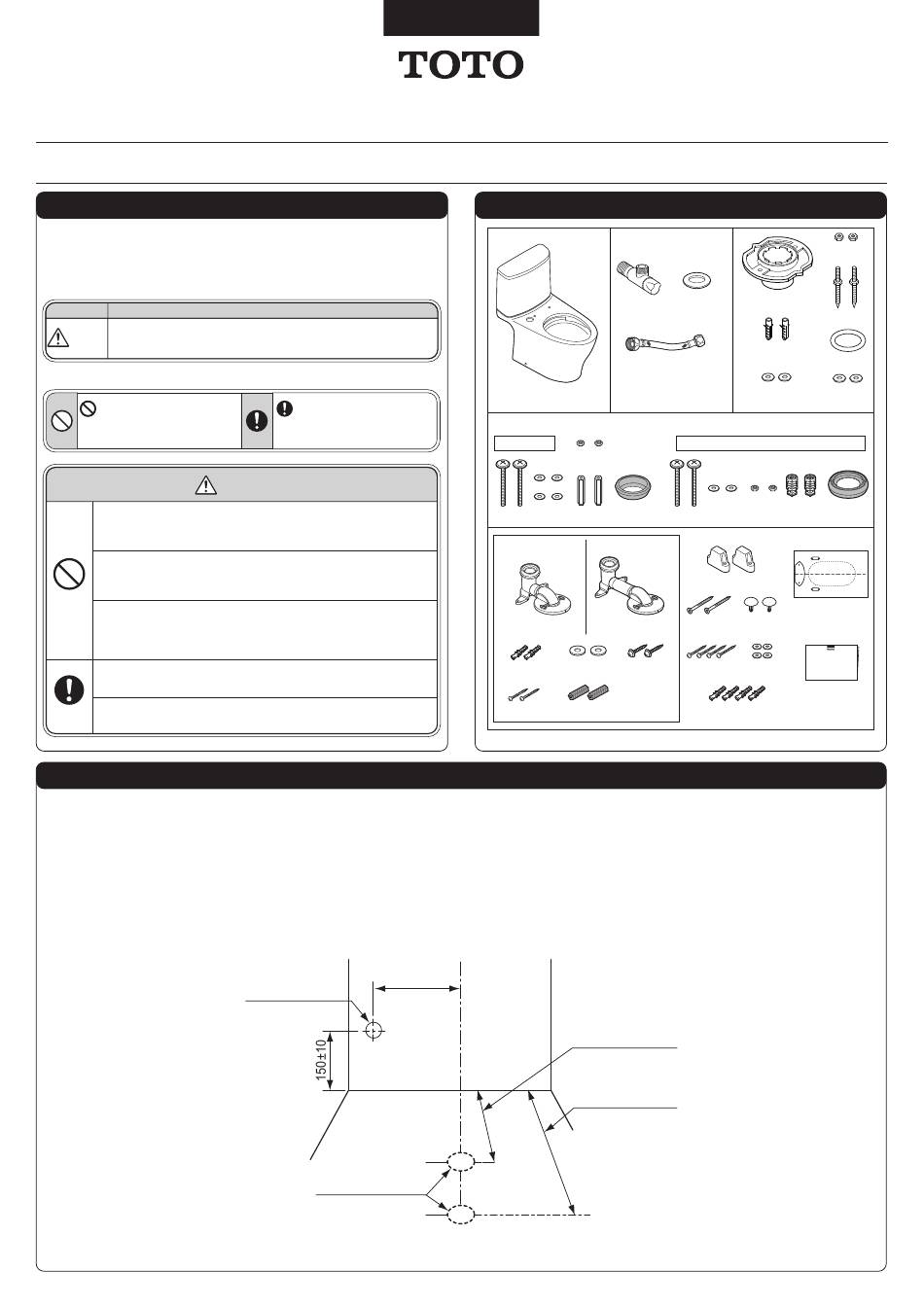

Toto CS769 Series Installation Manual

0IM079409R
CS767*** CS769*** CS838*** CS986*** Separated Toilet
Install the product properly according to this installation manual for best performance. When the installation
Safety Cautions
Read these "Safety Cautions" carefully before starting installation work. Install the product properly.
This manual uses various indications to ensure a proper, safe installation and to prevent injury to the customer,
injury to other people and damage to property.
The symbols should be interpreted as follows.
Symbol example
Improper use or installation of this product may result in injury or
Caution
property damage.
Items to be observed are classified by type and explained with the following pictograms.
This symbol is used to
indicate no tampering with
this product.
Do not subject the toilet bowl to strong forces or impacts.
Otherwise, the toilet bowl may break causing injury or leaks that
may damage property.
Do not excessively bend or twist the water supply hose.
Otherwise, the flexible water supply hose may break causing leaks
that may damage property.
Prohibited
Do not remove the water supply filter with the water supply
valve being open.
If the water supply valve is not closed, water may gush out causing
leaks that may damage property.
Be sure to use the included or specified parts for installation work.
Otherwise, the product may not be installed properly.
Carry out the installation work according to this installation manual.
Required
Otherwise, damage caused by water leaks may occur.
• Secure the space required for toilet installation and at the same time, check door opening/closing for possible interference.
• Turn on electricity and water supply to the product after completing all installation work.
• Use care not to damage the end of the connection hose.
• The minimum required water pressure (flowing) is 7PSI at 2.64 Gal/min (0.05MPa at 10 L/min) while the maximum water pressure (static) is 108PSI (0.75MPa).
• Make sure before installation that the water supply source and water drain pipe are in the specified positions according to the diagram.
If it is not positioned properly, the product may not be able to be installed correctly.
•
• Please wash away the dust or sand in the water supply pipe completely before installing the water supply valve.
• If there is a gap between the discharge pipe and floor, fill it with mold-resistant silicone-based seal material (Mediseal).
• Doing otherwise may cause water to leak downstairs.
Installation manual
work is complete, give a detailed explanation of how to use this product to the customer.
(Observe these cautions for safety's sake.)
Meaning
This symbol is used to
indicate a required step in
the use of this product.
Caution
Precaution before installation
For setting water supply Rc 1/2
PVC water drain pipe
A-1
CS767***
F-1 F-2
<When di s tance from wal l to
drai n age center i s 305 mm (12-3/8' ' ) >
C-1(305)
C-2
C-5
*The product may be slightly different in shape than the product shown in the figure depending on the model.
200±10
305±10
400±10
01
Included parts
B-3
B-1
B-2 (300)
<These parts are not included for Singapore>
If purchased as a tank set
CS769*** / CS838*** / CS986***
F-3
F-7 F-5 F-1 F-2
<When di s tance from wal l to
drai n age center i s 400 mm (15-3/4' ' ) >
E-1
C-1(400)
E-2
E-4
C-3 C-4
C-6
E-6
(mm)
<When distance from
wall to drainage center is
305 mm (12-3/8'')>
<When distance from
wall to drainage center is
400 mm (15-3/4'')>
