Lưu ý trước khi lắp đặt
Vui lòng đọc kỹ tài liệu này trước khi tiến hành lắp đặt sản phẩm.
Lắp đặt theo đúng bản hướng dẫn lắp đặt này để đảm bảo an toàn
và có thể sử dụng đầy đủ các tính năng của sản phẩm.
Quét mã QR để xem phương pháp lắp đặt sản phẩm.
Hoặc truy cập theo đường link dưới đây:
https://vn.toto.com/tai-lieu/lap-dat-bao-duong
Please read this document carefully before proceeding to install the
product.
Install in accordance with this installation manual for safety and full
use of product features.
Scan the QR code to see the product installation method.
Or follow the link below:
https://vn.toto.com/tai-lieu/lap-dat-bao-duong
3. Lấy dấu lỗ cố định bích nối sàn.

Marking the fixed holes of the floor flange.

Lấy dấu
Mark
01

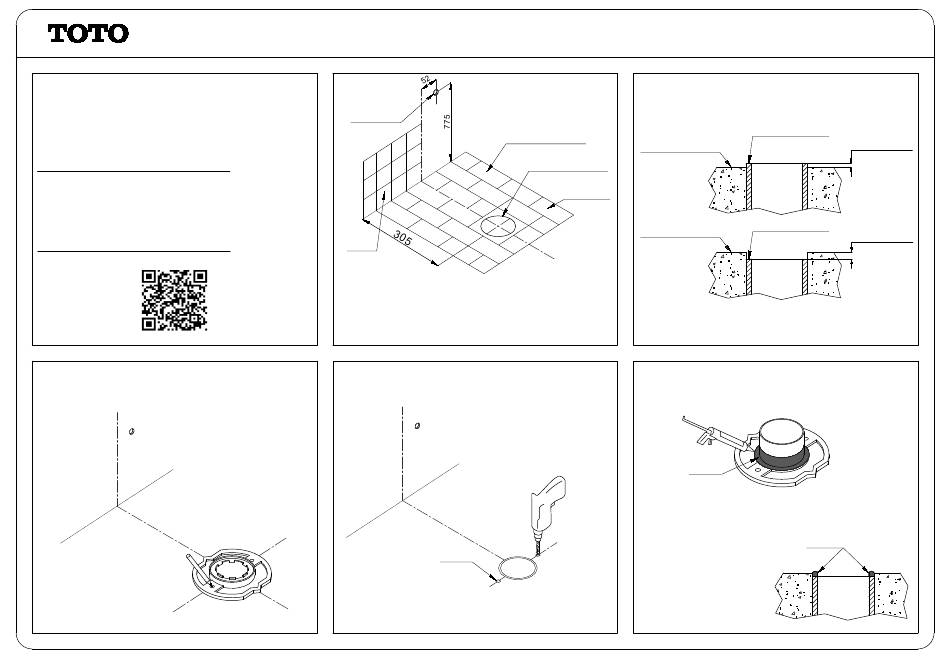

HƯỚNG DẪN LẮP ĐẶT BÀN CẦU HAI KHỐI
TWO PIECES TOILET INSTALLATION MANUAL
1. Kiểm tra kích thước lắp đặt.

Checking the installation dimensions.

Lỗ cấp nước
Water supplied
hole
Mặt sàn hoàn thiện
Finished floor
Tường
Wall
Chú ý: Trường hợp khi cắt gạch không làm kín khít xung quanh
ống thải thì phải làm phẳng với vữa và cao bằng mặt sàn hoàn
thiện.
Note: If the flooring tile does not fit tightly around the outlet
pipe, it must be leveled that area by the mortar so that same as
the finished floor.
4. Khoan lỗ.

Drill the fixed holes.

Ø8x60
Chú ý: Làm sạch sàn sau khi khoan.
Note: Clean the floor after drill.
2. Kiểm tra bề mặt ống thải/ Checking top surface of the outlet pipe.
Ống thải chỉ được cao hơn 1mm hoặc thấp hơn 2mm so với mặt
sàn/ The outlet pipe is only allowed taller 1mm or lower 2mm than the
floor.
Mặt sàn hoàn thiện
Finished floor
Ống thải Ø110
Outlet pipe Ø110
Gạch lát nền
Flooring tile
Mặt sàn hoàn thiện
Finished floor
Chú ý: Nếu không làm đúng theo yêu cầu, có thể gây mùi khi sử
dụng.
Note: Be sure that making right, otherwise it may cause of the
smell nasty.
5. Bôi si-li-côn vào phần rãnh ở mặt dưới bích nối sàn.
Nếu không có thể gây mùi hôi khi sử dụng.

Paste silicone to the groove on the underside of the floor flange.

Otherwise may cause of the smell nasty.
Si-li-côn
Silicone
Với trường hợp ống thải thấp hơn mặt sàn, phải bôi si-li-côn vào
ống thải.
If the outlet pipe is lower than the floor surface, you must apply
silicone to the outlet pipe.
CS761***
CST761***
Ống thải Ø110
Tối đa 1mm
Outlet pipe Ø110
Maximum 1mm
Ống thải Ø110
Tối đa 2mm
Outlet pipe Ø110
Maximum 2mm
Si-li-côn
Silicone
0IM047002N/09
