To Charge The Battery - Sony Ericsson W550i User Manual

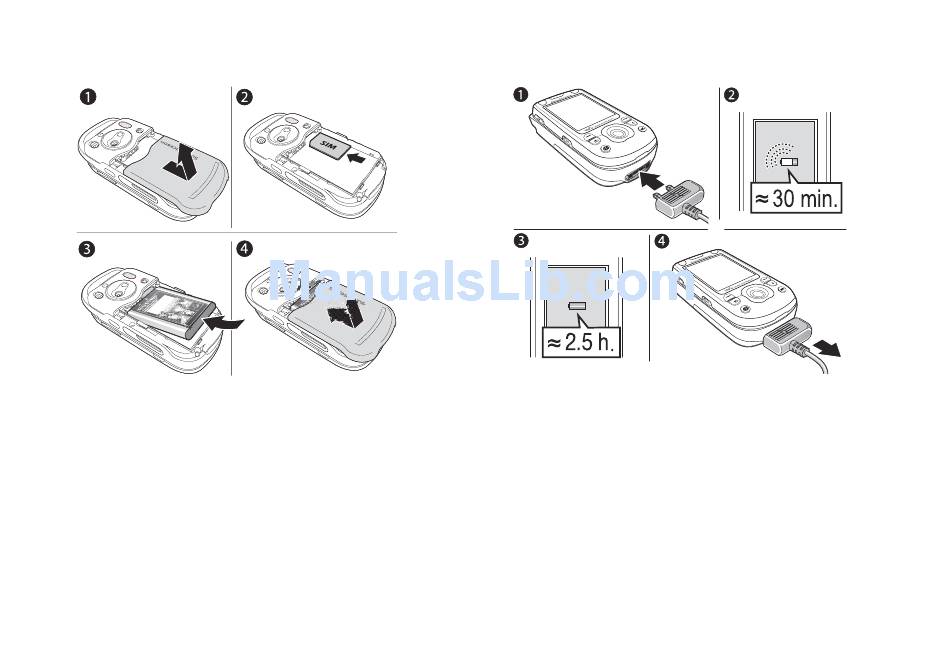

To insert SIM card and battery
1
Remove the battery cover by sliding
it as shown in the picture.
2
Insert the SIM card in the slot with the cut off
corner first and the gold contacts facing down.
3
Place the battery with the label side up and
the connectors facing each other.
4
Place and slide the battery cover into place.
This is the Internet version of the user's guide. © Print only for private use.

To charge the battery

1
Connect the charger to the phone. The symbol
on the charger plug must face upwards.
2
It may take up to 30 minutes before the battery
icon appears on the screen.
3
Wait approximately 2,5 hours or until
the battery icon indicates that the battery
is fully charged. Press a key to activate
the screen.
4
Remove the charger by pulling it out.
Getting started
5
