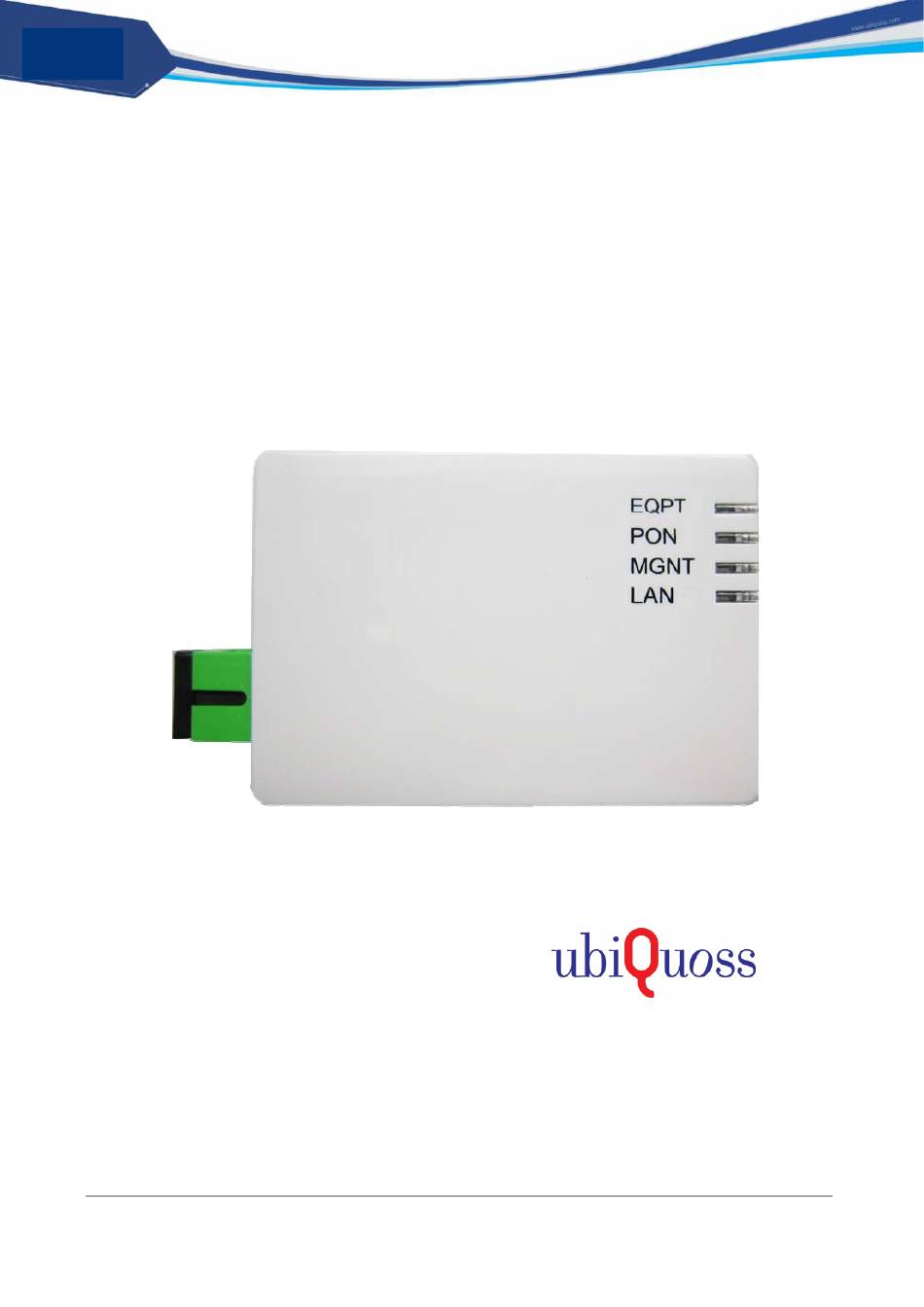

- Page 1 C601A Installation Guide ubiQuoss Inc. 24F Millennium B/D, 467-12 Dogok-Dong Gangnam-Gu, Seoul 135-700 Korea TEL: +82-70-8666-5013,4912 FAX: +82-2-2190-3201 E-mail: oversea.group@ubiQuoss.com www.ubiQuoss.com...
-
Page 3: Table Of Contents
Using this Document......................1 Installation........................3 The Appearance........................4 Hardware Connecting .......................7 Configure the laptop......................8 Maintenance ........................9 Login ONT via local console .....................9 Login the ONT via telnet session ..................12 Configure example......................13 Appendix I........................18 Physical Interfaces......................18 Appendix II Power Adapter Specification..............19 Input:..........................19 C601A Installation Guide... -
Page 5: Introduction
Introduction This is the user manual for UBIQUOSS ONT. Information contained in this manual is applicable for installation and maintenance of UBIQUOSS ONT C601A. Features High speed INTERNET access. Full GPON bandwidth of up to 2.5 G bps downstream and 1.25 G bps upstream. - Page 6 Product Special messages This document uses the following icons to call your attention to specific instructions or explanations. CAUTION indicates a potentially dangerous situation that will cause injury and tells you how to avoid the problem. NOTICE indicates potential damage and tells you how to avoid the problem. LASER RADIATION indicates a potentially dangerous situation that will cause injury via thermal effects and tells you how to avoid the problem. TIPS indicates important information that helps you make better use of your device. ...
-
Page 7: Installation
Installation In addition to this manual, your package contents should include: One power adapter and power cord. One Ethernet Cable C601A Installation Guide... -
Page 8: The Appearance
Product The Appearance Front Panel The front panel contains four LEDs that indicate the status of the ONT. Fig 1. ONT Front Panel Label Color Function Power LED. EQPT Green Steadily On: Unit is powered on. Steadily Off: Unit is powered off. - Page 9 The right panel contains the ports for the ONT’s data connections. Fig 3. ONT Right Panel Label Function RJ-45 Connector. Connects the device to your PC's Ethernet port, or to the uplink port on your LAN's hub, using the cable provided. Table 3. Right Panel Label C601A Installation Guide...
- Page 10 Product Bottom Panel There is a label on the bottom panel with the model name, the SN of the ONT, MAC address of the pon interface. Fig 4. ONT bottom Panel...
-
Page 11: Hardware Connecting
LAN port on the ONT 2. Attach the power connector. Connect the AC power adapter to the PWR connector on the back of the device and plug in the adapter to a wall outlet or power strip. C601A Installation Guide... -
Page 12: Configure The Laptop
Product 3. Connect the PON interface with Optical Fiber. Make sure your connector on the optical fiber is the same type with the ONT. Connect one end of the optical fiber to the port labeled GPON, on the left panel of the ONT. Connect the other end to the GPON network. -
Page 13: Maintenance
Fig 6. Open the shell of ONT and find J3 2. Connect console cable Find the “◄” symbol, and connect console cable of pin-1 at it. Figure 7 illustrate how to connect the console cable. Fig 7. Connect console cable C601A Installation Guide... - Page 14 Product 3. Configure the application software. Activate the application software for login and configure the related parameters. Figure 8 illustrate the configuration of the parameters. Fig 8. Software configuration for local console 4. Turn the ONT Turn on the ONT, when boot-up finish, the console will show as below.
- Page 15 Enter the frame processing sub-dir gpon Enter GPON sub-dir addr Enter ADDRTBL sub-dir traffic Enter TRAFFIC sub-dir stat Enter STAT dir power_save Enter Power save sub-dir igmp Enter IGMP dir script Enter script sub-dir Shell is case insensitive PAS74XXB> Please type “?” to get more information about the usage of commands C601A Installation Guide...
-
Page 16: Login The Ont Via Telnet Session
Product Login the ONT via telnet session In this section, you can login the ONT remotely via an Ethernet cable. Please follow the steps that follow for specific instructions. 1. Configure the application software Activate the application software for login and configure the related parameters. Figure 9 illustrate the configuration of the parameters. -
Page 17: Configure Example
4. Type “show” and you can get all information stored in the NV memory. Please check the item “gpon_pwd” to get current password. 5. Assume the password is “1234567890ABCDEFGHIJ”, Type “set gpon_pwd 0x12,0x34,0x56,0x78,0x90,0xAB,0xCD,0xEF,0xGH,0xIJ” 6. Then you may type “show” again to check the modification. C601A Installation Guide... - Page 18 Product Modify the configuration to support dual image. Please follow the steps to get the information of the firmware on the ONT. 1. Enter PASSHEL engineer shell by typing “passhell” 2. Type “Peripheral” to enter the directory. 3. Type “nvdb” to enter the directory.
- Page 19 “active 1” modify the flag of the image. 12. Also type “..” to back to parent directory, then type “nvdb” and “set committed_image 1” to modify the commit flag of the image. Figure.10 Send file to ONT C601A Installation Guide...
- Page 20 Product Figure.11 Downloading the file. Please check the image status before you start to download, and make sure the image you want to upgrade is not activated. Reboot the ONT Please follow the steps to reboot the ONT. 1. After you login the ONT, enter PASSHEL engineer shell by typing “passhell” 2. Type “device” to enter the directory. 3. Type “reboot” to enter the directory.
- Page 21 4. Type “omci” to enter the directory” 5. Type “debug_level 3” to change the log level. 6. After the configuration, please connect the fiber back, then you can see the OMCI message printed on the telnet session. C601A Installation Guide...
-
Page 22: Physical Interfaces
Product Appendix I Physical Interfaces One Gigabits Passive Optical Network (GPON) interface (SC/APC). One 10/100/1000 BASE-T Ethernet ports (RJ-45). Power Requirement Input: 100 to 240 VAC, 50/60 Hz. Output: 12 VDC, 900 mA. ... -
Page 23: Appendix Ii Power Adapter Specification
Output Voltage 12V±5% Minimum Load 0 Amp. Maximum Load 1 Amp. Connector Type Storage: Ambient temperature: -25 ~ +85 °C. Relative Humidity: 10% ~ 95%. Operation: Ambient temperature: 0 ~ 40 °C. Relative Humidity: 10% ~ 95%. C601A Installation Guide...
