Summary of Contents for ubiquoss U9264H GE-PON

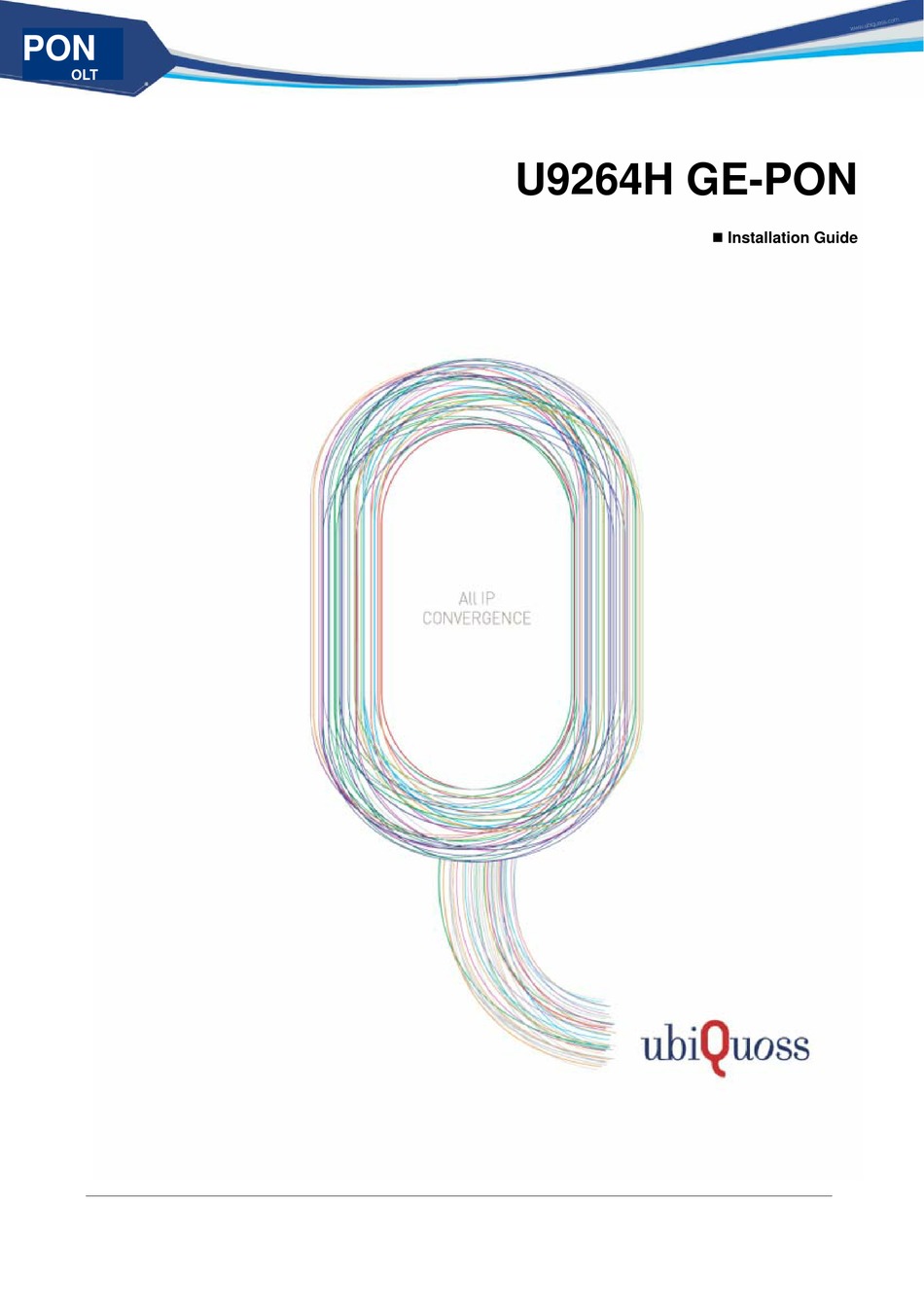

- Page 1 U9264H GE-PON Installation Guide...
- Page 2 U9264H GE-PON Installation Guide...
- Page 3 This preface provides the overview of U9264H user guide, which describes guide conventions, and lists other publications that may be useful. Introduction This user guide describes how to install U9264H, the PON OLT of Ubiquoss. It describes how to install U9264H and connection it to other devices.
- Page 4 Preface Symbols in this Guide The symbols below are used to indicate the product names and notes in the user guide. Product Name The name of the product (PON OLT system) is U9264H. Description of Symbols The user guide uses the following icons and fonts to indicate special messages for the reader.
- Page 5 U9264H and how to resolve them. Appendix A. Product Spec Appendix A describes the product specifications of U9264H. Appendix B. Cable Spec Appendix B describes the specifications of the cable used to connect the ports of U9264H. U9264H GE-PON Installation Guide...
-
Page 6: Table Of Contents
Table of Content Table of Content Preface.......................... III Introduction........................III Related Documents ......................III Symbols in this Guide......................IV Organization ........................V Table of Content......................VI List of Table......................... VIII List of Figure ......................... IX Chapter 1. Introduction ................1 Overview ........................2 Main function and features .................... - Page 7 Setting IP Address ......................26 Chapter 4. Troubleshooting..............29 Troubleshooting Case....................30 Appendix A. Product Spec............... 33 Appendix B. Cable Spec ................35 Ethernet cable.........................36 Optical cable ........................36 Console cable .........................37 U9264H GE-PON Installation Guide...
-
Page 8: List Of Table
List of Table List of Table Table 1 Description on each U9264H unit ............... 4 Table 2 LED for each U9264H unit ................6 Table 3 List of items necessary for Installation ............15 Table 4 List of Package Items ................16 Table 5 Specification .................... - Page 9 Figure 13. U9264H DC Power Connection Diagram ..........8 Figure 14. U9264H AC Connecting Power ............22 Figure 15. U9264H DC Connecting Power............23 Figure 16. Connecting Console Terminal............... 24 Figure 17. Connecting Management Port.............. 25 U9264H GE-PON Installation Guide...
-
Page 11: Chapter 1. Introduction
Chapter 1. Introduction This chapter introduces the product types and features of U9264H and the name and function of each part as well. The chapter consists of the followings: Overview Features U9264H GE-PON Installation Guide... -
Page 12: Overview
This section describes the function and features of an EPON OLT U9264H. Main function and features Ubiquoss U9264H, adopted the state-of-the-art PON technology, can accommodate both the downstream and upstream 1.25G EPON optical line service(1.25G Line Card) or downstream 2.5G/upstream 1.25G EPON optical line service(2.5G Line Card or Turbo GE- PON Line Card). -
Page 13: Features
Features Front Panel Rack Rack AC Power DC Power Unit Unit Figure 1. Front Panel Slot Slot Slot Slot Slot Slot Slot Slot Slot Slot Slot Slot Slot Slot Figure 2. Slot Layout U9264H GE-PON Installation Guide... -
Page 14: Description On Each U9264H Unit
Features Description on each U9264H unit Table 1 Description on each U9264H unit Unit Description Remarks System Management Block and Switch Configuration Unit Common PSU-PA AC 110/220V Power Module: Supporting redundancy. Common PSU-PD DC -48V Power Module: Supporting redundancy. Common Fan Module Unit: Modular unit Common EPON 1.25G 8-port Line Card... -
Page 15: Figure 6. Fmu
Figure 6. FMU Figure 7. PIU-8E Caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instrocutions. Figure 8. LIU-8M Figure 9. LIU-8T Figure 10. LIU-2X U9264H GE-PON Installation Guide... -
Page 16: Led For Each U9264H Unit
Features LED for each U9264H unit Table 2 LED for each U9264H unit Unit Status Description GREEN Power ON ORANGE Reset or Power Fail System Critical Alarm ON System Critical Alarm OFF System Major Alarm ON ORANGE System Major Alarm OFF System Minor Alarm ON ORANGE System Minor Alarm OFF... -
Page 17: Fan Ventilation
(convection cooling). Consequently, if the top and the bottom of the device are blocked, the internal warm air and the external cold air cannot be circulated properly and the product can be overheated. U9264H GE-PON Installation Guide... -
Page 18: Power Supply
Features Power Supply U9264H uses AC or DC to supply power to the system, and it provides two terminals that provide power to the system for power redundancy as shown below. Status LED Power Switch Power Port Figure 12. U9264H AC Power Connection Diagram Status LED Fuse Terminal Power Switch... -
Page 19: Ground Terminal
For the electric safety, the product administrator and user should ground the product before supplying power to the product. If the product is not grounded, static electricity or sparks can be generated and the product can be damaged by a surge or a thunderstorm U9264H GE-PON Installation Guide... -
Page 21: Chapter 2. Installation Preparation
The user should fully understand the notes in this chapter before installing the product to prevent any problem that may occur during the installation of product. This chapter consists of; Notes for installation Items necessary for installation Checking the contents of package U9264H GE-PON Installation Guide... -
Page 22: Notes To Take Before Installation
Do not disassemble the product The user should not disassemble the product. If the user thinks that a repair is necessary, contact the Ubiquoss Technical Support Team. Installation site condition The product should be installed in the site satisfying the following conditions to use the product safely and stably: ... -
Page 23: Grounding
In case of installing the device on a rack, it is recommended to use an open-type rack. In case of using a closed-type rack, install an additional ventilation device. U9264H GE-PON Installation Guide... -
Page 24: Notes To Take When Cleaning The Product
Notes to Take before Installation Notes to take when cleaning the product Do not wipe the inside of the device with wet cloth. Do not use tough tools or chemical components, such as benzene, to wipe the product because it can deform the product appearance. -
Page 25: Necessary Items For Installation
Console Terminal * Management Ethernet Port Connection Cable Gigabit Ethernet Port Connection Cable * Rack* Binder head screw: 4 EA (used to mount the device onto the rack)* Cross screw driver * U9264H GE-PON Installation Guide... -
Page 26: Package Items
Package Items Package Items The U9264H package includes the followings: Table 4 List of Package Items Items Quantity Usage 1 EA U9264H Body Body The manual that describes how to install the device and connect cables Hardware Installation 1 EA A manual CD that includes a release note, a user Guide or a manual CD guide, a command guide, and a configuration user... -
Page 27: Chapter 3. Installation
The chapter consists of the following sections: Selecting an Installation Site Installation onto a Rack Connecting Power Connecting a Console Terminal Connecting a Management Ethernet Port Connecting a Gigabit Ethernet Port Checking the Operation U9264H GE-PON Installation Guide... -
Page 28: Selecting Installation Place
Installation Place Installation Place To install and use U9264H safely, it should be installed in the environment that satisfies the following conditions: Avoid the location whose temperature is too high or low. (Especially, avoid the location that is exposed to direct sunrays or the location around a heater.) ... -
Page 29: Mounting On A Rack
In case of installing the product onto an empty rack, use the bottom of the rack first. U9264H GE-PON Installation Guide... - Page 30 Installing LINE Card Installing LINE Card 1. Insert LINE Card in the chassis rail. 2. Hang the each side hinge of ejector at the hanging pin. 3. Press the lever with fingers and push it forward powerfully. 4. When the hinges of ejectors are inserted in the holes, the LINE card is installed on backplane socket well.
- Page 31 6. Pull out the each side hinge of ejector from the hanging pin of a chassis. 7. Take the end of ejector lever and pull it backward powerfully. 8. While the ejectors unfold more, the LINE Card is separated from the backplane socket. Figure 15. UnInstalling the LINE Card U9264H GE-PON Installation Guide...
-
Page 32: Connecting Power
Connecting Power Connecting Power Before connecting power to U9264H, make sure the power switches on the rear side of the product are set to OFF. AC power: Connect a power cable accompanying the product to a power input terminal and then connect the plug of the power cable to the grounded AC power outlet. -
Page 33: Figure 15. U9264H Dc Connecting Power
Voltage: DC –48VDC Power consumption: Max 600 Watt (Typical: 450Watt) – based on full installation The supply of the power that fails to satisfy the above specifications can cause product damage or a fire. U9264H GE-PON Installation Guide... -
Page 34: Connecting Console Terminal
Connecting Console Terminal Connecting Console Terminal U9264H can be set or monitored through a local console port. The use of console cable that came with the product is recommended to connect between the product and the console terminal. Connect the RJ-45 connector of console cable to the console port of the product and the DB-9 connector (the other side of the cable) to the console terminal. -
Page 35: Connecting Management Port
You must use only the crossover cable type to connect MNG port. In case of connecting MNG Fast Ethernet port using other cables than those accompanying the product, refer to the cable specification in Appendix B “Cable Spec.” U9264H GE-PON Installation Guide... -
Page 36: Operation Checking
Operation Checking Operation Checking If the device installation is completed and all cables are connected, use the following procedure to check if the device operates with no problem: Checking LEDs Turn on the device by setting the power-connected power switch to ON. Then, check if the LEDs on the front of the device operate as described below. - Page 37 16. After checking if the IP address is correct set, please use the following command to save the IP address in the system. U9264H# copy running-config startup-config * For CLI menu items, please refer to a separate manual. U9264H GE-PON Installation Guide...
-
Page 39: Chapter 4. Troubleshooting
If the device fails to operate normally, see the description in this chapter and check if the problem can be resolved. If the user thinks that the problem is too difficult, contact the Technical Support Team of Ubiquoss Inc., and the team will take proper actions promptly. U9264H GE-PON Installation Guide... -
Page 40: Troubleshooting Case
Troubleshooting Case Troubleshooting Case [Problem 1] The Power LED is not turned on. The power is not supplied normally. Solution Check if the power cable is properly connected to the power input terminal and the outlet. Check the power supplying status of the outlet that the power cable is connected to. - Page 41 Check if the connector of the cable is inserted into the port properly. Check if the connected device is operating normally. Check if the cable used for the port satisfies the specifications in Appendix B. U9264H GE-PON Installation Guide...
-
Page 43: Appendix A. Product Spec
0 ~ 80% (relative humidity) Certification Certificate Hardware Spec. Processor PowerPC Processor Boot Flash 2 Mbytes Application Flash 64 Mbytes System Memory 1Gbytes • Watchdog System Monitoring • Sensing the FAN failure, monitoring temperature, sensing improper power. U9264H GE-PON Installation Guide... -
Page 45: Appendix B. Cable Spec
Appendix B. Cable Spec Appendix B describes the specifications of the cable used to connect the ports of U9264H. Appendix B consists of: Ethernet cable Optical cable Console cable U9264H GE-PON Installation Guide... -
Page 46: Ethernet Cable
Troubleshooting Case Ethernet cable In case of connecting the management Ethernet port on the front of U9264H, use the UTP cable that has RJ-45 connectors on both sides. In case of using a twisted-pair cable, choose the one of a proper category, depending on the device speed. -
Page 47: Console Cable
The table below describes the types of the signals transmitted from each pin of the connectors on both sides of a console cable. Table 6 Console Cable Pin Signal Pin No. Pin No. Signal Pin Definition (Console Port) (Console Terminal) Transmit Data Receive Data U9264H GE-PON Installation Guide...
