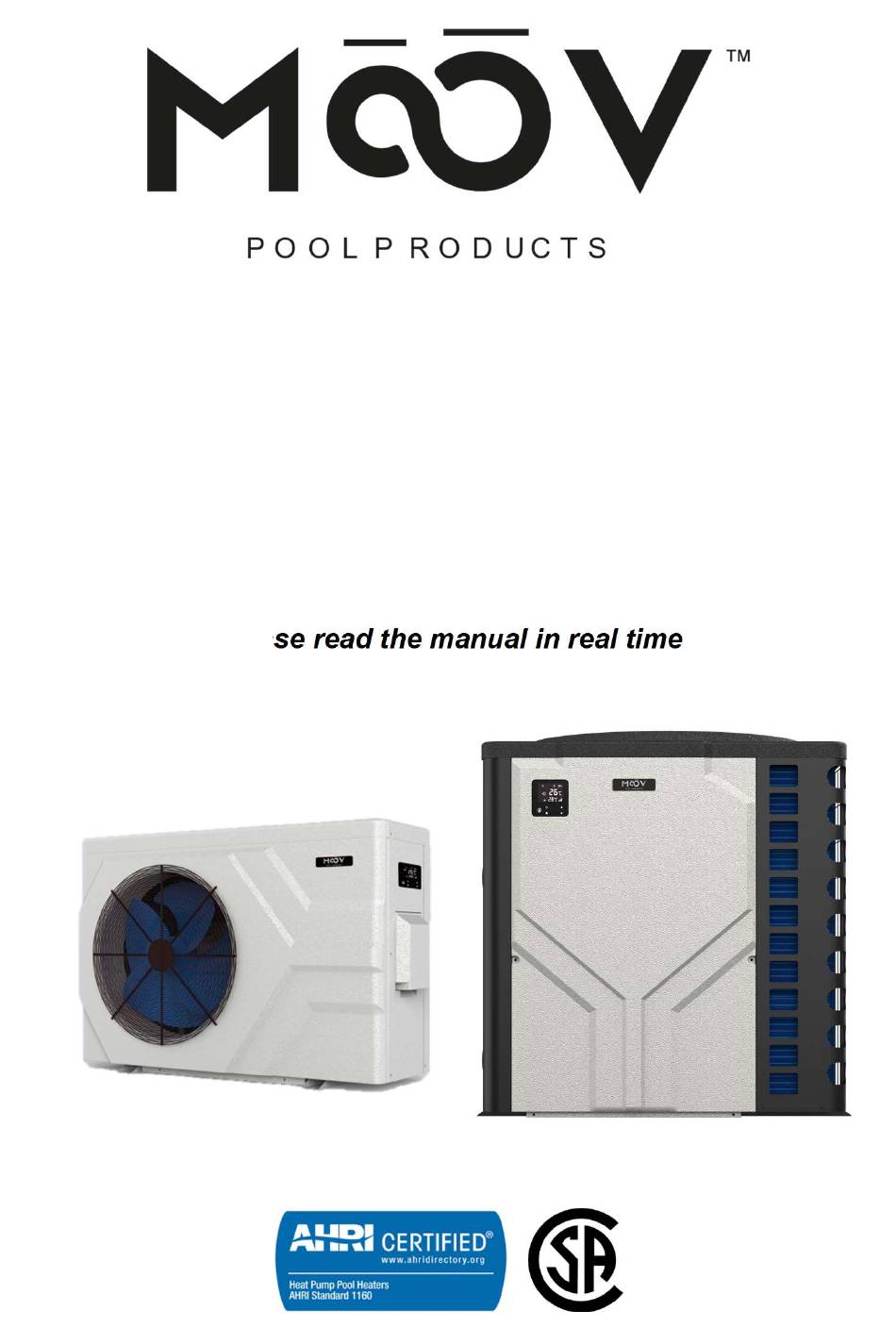

- Page 1 Moov Inverter MI(C)500-MI(C)650X-MI(C)900- MI(C)1100-MI(C)1400 Inverter Heat Pump for Swimming Pools Please read the manual in real time...
- Page 2 Content Application ....................3 Features ....................3 III. Technical Parameter ................4 Dimension ....................5 Installation instruction ................6 Operation instruction ................10 VII. Testing ....................14 VIII. Precautions ..................15 Maintenance ..................16 Trouble shooting for common faults ..........17 WI-FI SETTING ...................
- Page 3 Not following such indications can cause damage to the heat pump or any user of the product. If any questions arise at any point, please reach out to the technical service team at Moov Pool Products.
- Page 4 The recommended heating temperature is 85’F. The unit can work above and below this recommendation up to a specific capacity depending on operating conditions. Please contact Moov for more information. C. Don’t put obstacles near the air inlet and outlet of the heat pump.
- Page 5 Moov Pool Products directly. Do not try to repair the heat pump yourself. Application 1- Set swimming pool water temp efficiently and economically to provide you comfort and pleasure. 2- User may choose the model based off technical parameters presented in this manual.
- Page 6 Always refer to your pool expert on the correct unit for the size of your pool and your needs as these will vary depending on operating conditions. You may also contact Moov Pool Products for confirmation. Related parameters are subject to adjustment periodically for technical improvement without further notice.
- Page 7 Dimension Size(inch) Name Model 12.4 23.2 12.3 13.4 37.8 13.0 25.9 650X 15.6 23.2 15.4 16.5 37.8 14.2 29.8 15.6 28.3 15.4 16.5 43.0 24.4 37.7 Name Size(inch) Model 1100 36.3 17.6 35.6 37.2 27.8 20.9 38.5 1400 39.8 20.5 32.3 40.8 39.2...
- Page 8 Note: The picture above is the specification diagram of the pool heater, for technician’s installation and layout reference only. The product is subject to adjustment periodically for improvement without further notice. Installation instruction 1. Drawing for water pipes connection. (Notice: The drawing demonstration and layout of the pipes is only for reference.)
- Page 9 2. Electric Wiring Diagram Grounding Grounding Note: 1) Must be hard wired, no plug allowed. 2) The swimming pool heater must be grounded. 3) WARNING: Before obtaining access to terminals, all supply circuits must be disconnected. Options for protecting devices and cable specification MODEL MI(C)500 MI(C)650X...
- Page 10 3. Installation and Requirements The swimming pool heater must be installed by a pool professional. End users are not qualified to install the heater. Damage may occur to the heater or threaten the safety of the user. Pool professional guidelines will vary depending on your country, state or province regulation and can include HVAC technicians or electricians.
- Page 11 2) Heater must be grounded. 3) Wiring must be handled by a professional technician respecting circuit diagram. 4) Moov Inverter units do not require a GFCI to function. If required by code, please respect following guidelines. i. Set GFCI according to the local code for wiring (current leakage ≤ 30mA).
- Page 12 Operation instruction 1.1. Notice before using 1.1.1 For longer service life, please ensure water pump is on before heat pump starts to work, and water pump is off after heat pump is off. 1.1.2 Ensure no water leakage on piping system, then unlock screen and power on heat pump.
- Page 13 Speed Select Smart/Silence mode Up / Down Adjust set temperature Turn on or off Spa function Note: ( will be light all the time when power is on) 1.2.1. Standby screen display When the screen is locked, the key lamp will be off. Will show “0%”...
- Page 14 Water inlet temperature Water outlet Smart/ temperature Silence mode Heating Cooling Auto Heating capacity percentage Wi-Fi connection Water inlet Water outlet Power On: Press for 3 seconds to light up screen, then press power on heat pump. Adjust Set Temperature: When screen is unlocked, press...
- Page 15 display or adjust the set temperature. Mode Selection: Press to select mode. Heating: Adjustable temperature range 64°F~104°F. Cooling: Adjustable temperature range 54°F~86°F. Auto: Adjustable temperature range 54°F~104°F. Spa function When the screen is on, press the once to activate the SPA function. icon shows on the screen.
- Page 16 Compulsory Defrosting: When heat pump is heating, press together for 5 seconds to start compulsory defrosting, and will be flashing. After defrosting, will stop flashing. Note: Compulsory defrosting intervals should be more than 30 minutes and the compressor should run for more than 10 minutes. Temperature display conversion between °C and °F Press together for 5 seconds to switch between °C and °F.
- Page 17 D. If there are abnormal conditions such as noise, smell, smoke, electrical issues or leakage, please switch off the machine immediately and contact the local dealer or Moov Pool Products. Don’t try to repair it yourself; E. Don’t use or stock combustible gas or liquid such as thinners, paint and fuel to avoid fire;...
- Page 18 D．If the machine is stopped for a long time, please cut off the power supply and drain water clear of the machine by opening the tap of inlet pipe and outlet pipe. Maintenance Caution: Danger of electric shock power supply of the heater before cleaning, examination and repairing 1.
- Page 19 Air outlet blocked Remove the obstacles heating 3minutes protection Wait patiently Set temp too low Set proper heating temperature If the above solution doesn’t work, please contact your dealer or Moov Pool Products. Don’t try to repair the heater yourself.
- Page 20 Failure code Display Not failure description No water protection Power supply excesses operation range Excessive temp difference between inlet and outlet water(Insufficient water flow protection) Ambient temperature too high or too low protection Anti-freezing reminder Display Failure description High pressure protection Low pressure protection Phases lack protection (three phase model only) Water outlet temp too high or too low protection...
- Page 21 WI-FI SETTING 1.1. APP Download Android Mobile please download from iPhone please download from 1.2. Account registration Registration by Cell phone number/Email...
- Page 22 Cell phone number registration 1.3. Create family Please set a name for the family and choose the room of the device.
- Page 23 1.4. Three methods of device binding Please connect your phone to the Wi-Fi network first. 1.4.1. Auto Discovery (Bluetooth) Please make sure the Bluetooth function is enabled on your phone. Press for 3 seconds after the screen unlock, will be flashing rapidly to enter Wi-Fi binding status.
- Page 24 1.4.2. EZ Mode (Easy-connect) Activate the Wi-Fi module Press for 3 seconds after the screen unlocks, will be flashing rapidly to enter Wi-Fi binding status. Click "Add device", and follow the instructions below to finish binding. display on the screen once the Wi-Fi connection success. Note: After allowing the APP to locate, it can read the Wi-Fi name automatically.
- Page 25 1.4.3. AP Mode Activate Wi-Fi module Press for 10 seconds after the screen unlock, will be flashing slowly to enter Wi-Fi binding status. Click "Add device", and follow the instructions below to finish binding. display on the screen once the Wi-Fi connection success. Note: If it doesn't jump automatically, click "Confirm hotspot connection, next".
- Page 26 Press for 10 seconds, will be flashing slowly for 60 seconds. Then will be off. The original binding will be removed. Follow steps above for rebinding. Remarks: Please make sure the router is configured at 2.4 GHz.
- Page 27 1.5. Operation instructions The following instructions are for heat pumps with heating and cooling functions. More share device Heating capacity percentage Indicate the working status The current swimming pool water temp Switching °C/°F Setting temp Temp adjustment slider Smart/Silence Selection Heating/Cooling/Auto Selection Cloud Timer ON/OFF...
- Page 28 1.6. Share devices with your family members After binding, if your family members also want to control the device. Please let your family members register the APP first, and then the administrator can operate as below (The following pictures are for reference only): Then your family members will see this heat pump once they log in to the APP.
- Page 29 Warranty is only valid upon first install. Some claims will not be approved under any circumstances by Moov Pool Products. Such claims include and are not limited to: Heat Exchanger broken due to water left in through unproper winterization.
