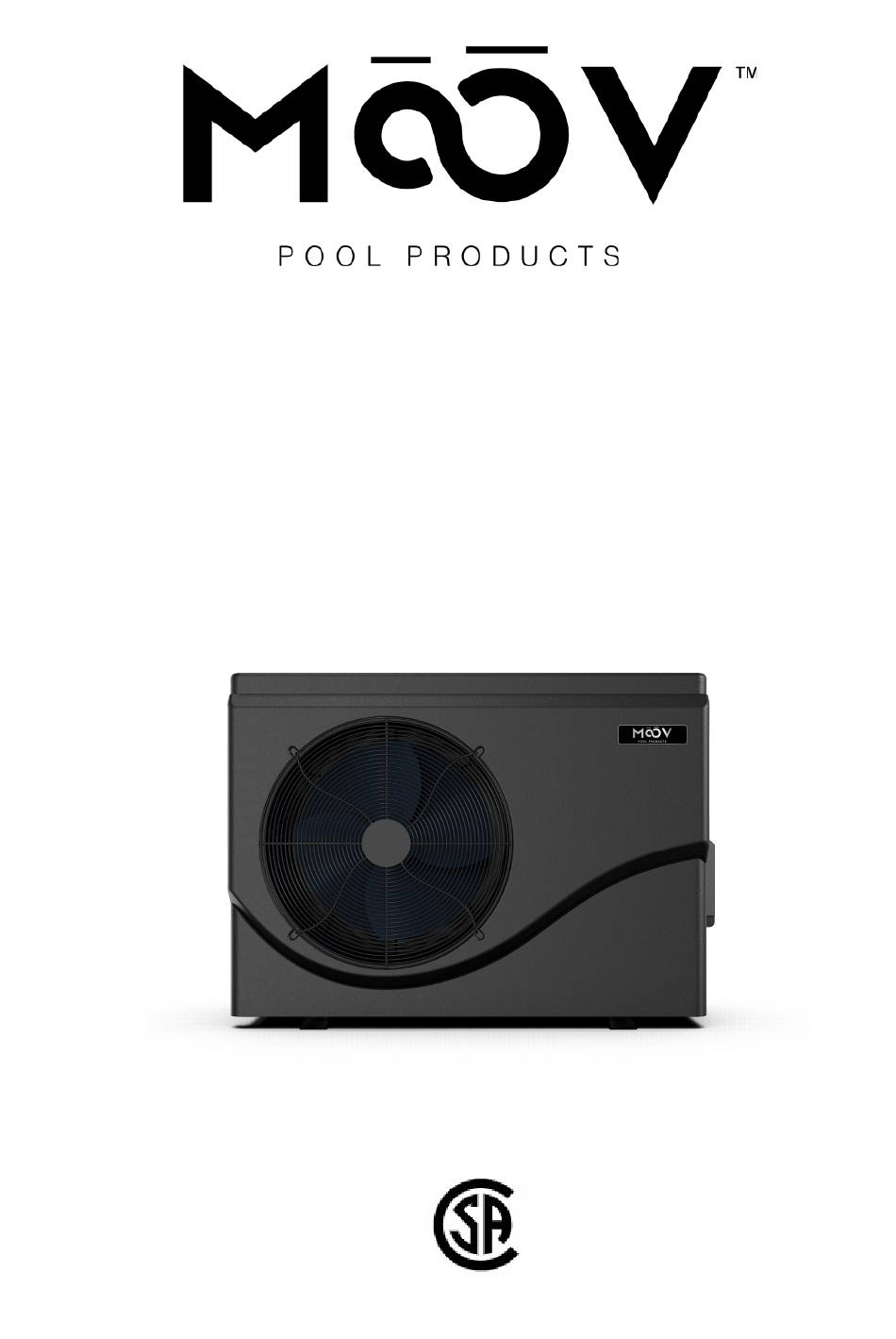

Swimming Pool Heat Pump
MR550X
INSTALLATION AND USER MANUAL
Please read the manual in real time

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR550X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MOOV MR550X

  • Page 1 Swimming Pool Heat Pump MR550X INSTALLATION AND USER MANUAL Please read the manual in real time...
  • Page 2: Table Of Contents

    Content I. Application ......................... 1 II. Features ........................1 III. Technical Parameters ....................2 IV. Dimension ....................... 3 V. Installation Guide ..................... 3 VI. Operation Instruction ....................5 VII. Testing ........................8 VIII. Precautions......................8 IX. Maintenance ......................9 X. Trouble shooting for common faults ................ 9 XI.
  • Page 3: Application

    Warning A. DO NOT use this unit for any other purpose than to regulate swimming pool water temperature. Utilization for any other application will void warranty. B. The inlet & outlet connection joint cannot support any other piping system’s weight. C.
  • Page 4: Technical Parameters

    6- Temp control compulsory defrosting 7- International brand compressor 8- Easy installation and operation III. Technical Parameters Model MR550X Heating capacity 55,000 BTU Voltage 208-230V Frequency/phase 60Hz/1Ph Heating current (air80°F, water80°F) 10.8A Heating power (air80°F, water80°F) 2.3KW Heating current (air80°F, water95°F) 13.2 A...
  • Page 5: Dimension

    IV. Dimension Size(mm) Name Model MR550X Note: The picture above is the specification diagram of the pool heater, for technician’s installation and layout reference only. The product is subject to adjustment periodically for improvement without further notice. V. Installation Guide 1.
  • Page 6: Electric Wiring Diagram

    Notice:The drawing is just for demonstration, and layout of the pipes is only for reference. 2. Electric Wiring Diagram Note:The swimming pool heater must be grounded well. Options for protecting devices and cable specification. Model MR550X Rated current Breaker Rated Residual Action Current mA...
  • Page 7: Operation Instruction

    A.Installation The swimming pool heater should be installed in a place with good ventilation; 2-The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid and fastened; the bracket must be strong enough antirust treated. 3-Please don’t stack substances that will block air flow near inlet or outlet area, and there is no barrier within 50cm behind the main machine, or the efficiency of the heater will be reduced or even stopped.
  • Page 8: Time Setting

    CLOCK TIME ON TIME OFF HEAT COOL Symbol Designation Operation Press to power on or off the heat Power ON/OFF pump Press to set desired water Up/ Down temperature 1. Operation Display a. The display shows Time when the machine is off. b.
  • Page 9: Automatic On/Off

    a. Press key to set time according to your local time. Time on the LED screen flashes. b. Press again then press key to set hour. c. Before it stops flashing, press and then press key to set minutes. d. After setting, press and the water temperature will appears.
  • Page 10: Testing

    the controller display will be back to the normal mode. C. Canceling the automatic mode a. Press to cancel timer on and off. b. When the number is flashing, press . When timer indicator light is off and LED shows water temperature, the timer on and off is canceled. c.
  • Page 11: Maintenance

    D.If there are abnormal conditions such as noise, smell, smoke and electrical leakage, please switch off the machine immediately and contact the local dealer. Don’t try to repair it yourself. E.Don’t use or stock combustible gas or liquid such as thinners, paint and fuel to avoid fire. F.Connecting pipes of the swimming pool and the heater should be ≤10m, or the heating effect of the heater cannot be ensured.
  • Page 12 satisfactory Temperature set too low Increase temperature setting accordingly If the above mentioned faults cannot be solved, please contact the professional and inform model and detailed faulty condition. Atten: Please don’t disassemble and repair the swimming pool heater by yourself, please leave it to the professionals.
  • Page 13: Warranty & After-Service

    Heat Exchanger broken due to water left in through unproper winterization. Appropriate winterization can be found on Moov Pool Products website or on page 1 (3F) of this manual. Any unproper winterization claims will be refused.
  • Page 14 Thermopompe de piscine MR550X GUIDE D’UTILISATION Veuillez lire le guide attentivement...
  • Page 15 Table des matières I. Utilisation générale ....................1 II. Caractéristiques de l’appareil ................... 1 III. Paramètres techniques ..................... 2 IV. Dimensions ......................3 V. Installation ........................ 3 VI. Fonctionnement de l’appareil .................. 6 VII. Vérification ......................6 VIII. Précautions à prendre ................... 9 IX.
  • Page 16: Utilisation Générale

    Ne tentez pas de vérifier vous-même l’appareil. Contactez un technicien ou Moov Pool Products. N’entreposez pas de matières inflammables près de l’appareil (toiles, bois de foyer …).
  • Page 17: Paramètres Techniques

    6- Un contrôle automatique de la température de déglaçage 7- Un fabricant du compresseur de réputation internationale 8- Une installation et une utilisation faciles III. Paramètres techniques Modèle MR550X Capacité thermique 55,000 BTU Voltage 208-230V Fréquence/phase 60Hz/1Ph Courant (air 80°F, eau 80°F) 10.8A...
  • Page 18: Dimensions

    IV. Dimensions MR550X Note: Le diagramme ci-dessus fournit des données techniques de la thermopompe de piscine; il est présenté pour les besoins de l’installation par le technicien et à titre de référence seulement. Notez que cet appareil est sujet à des améliorations périodiques, sans autre avis.
  • Page 19 2.Dessin du réseau électrique Note:La mise à la terre de l’appareil doit être correctement effectuée. Options pour la protection de l’appareil et données techniques pour le cablage. MR550X Modèle Courant effectif A Disjoncteur Courant alternatif résiduel Fusible A 2×12 Cordon d’alimentation (...
  • Page 20 Les utilisateurs ne sont pas qualifiés pour procéder eux-mêmes à l’installation de la thermopompe de la piscine. L’installation doit être effectuée par une équipe de professionnels pour éviter des dommages à l’appareil ou des situations mettant en danger la sécurité des utilisateurs. A.Installation 1-La thermopompe doit être placée à...
  • Page 21: Fonctionnement De L'appareil

    VI. Fonctionnement de l’appareil Témoin lumineux de la minuterie Marche Auto Sélection du mode chauffage ou refroidissement Horloge Arret Aut Alimentation Vers le haut/vers le bas minuterie Témoin lumineux de la ON/OFF refroidissement HORLOGE MARCHE AUTO ARRET AUT CHAUFFAGE Symbole Désignation Fonctionnement Appuyez sur cette touche pour...
  • Page 22: Réglage De L'heure

    température de l'eau de la piscine. b. Les chiffres de l'écran LED clignotent pendant l'opération. c. Au bout de cinq secondes, le clignotement s'arrête et le réglage est sauvegardé, l'écran LED revient à l'affichage permanent. d. Lorsque vous voulez vérifier la température, appuyez sur la touche pour voir le réglage actuel.
  • Page 23: Vérification

    c. Avant que le clignotement ne s'arrête, appuyez sur pour régler les minutes. Utilisez pour ajuster. d. Après le réglage, appuyez sur « TIMER ON » et la température de l'eau s'affichera. 30 secondes plus tard, l'écran du contrôleur revient au mode normal. B.
  • Page 24: Mise En Marche

    effectuée correctement. C.Assurez-vous que l’interrupteur de l’appareil est placé à la position «Fermée» (off). D.Vérifiez le degré de température choisi. E.Vérifiez que les entrée et sortie d’air sont libres. 2.Mise en marche A . Vous devez toujours démarrer la pompe de circulation de l’eau avant de démarrer la thermopompe;...
  • Page 25: Maintenance

    chauffe-eau démarre automatiquement. Alors s'il vous plaît éteindre l'alimentation quand il y a une coupure de courant, et réinitialiser température quand le courant est rétabli. C.Arrêtez l’appareil lors d’un orage, pour éviter qu’il ne soit endommagé par un éclair. D.Lorsque vous arrêtez l’appareil pour une période prolongée (par exemple lors d’une absence), coupez l’alimentation électrique (disjoncteur) et drainez l’eau à...
  • Page 26: Diagnostic Et Solution Pour Les Troubles Les Plus Courants

    X. Diagnostic et solution pour les troubles les plus courants Trouble Cause Solutions Courant principal coupé Attendez qu’il se rétablisse Ne démarre Interrupteur fermé (turned off) Ouvrez l’interrupteur (turn on) Fusible brulé Remplacez le fusible Disjoncteur déclenché Enclenchez le disjoncteur Entrée d’air bloquée Nettoyez le conduit d’entrée L’air circule...
  • Page 27: Garantie Et Service Après - Vente

    L’échangeur de chaleur endommagé suite à une mauvaise hivernisation. Comment hiverniser votre produit Moov Reversible est détaillé sur la page 8 de ce manuel ou sur le site web de Moov Pool Products. Tout autre demande de garantie résultant d’une mauvaise installation ne sera pas traitée.
