55 Ton Capacity (50 Metric Tons)
HYDRAULIC ROUGH TERRAIN CRANE

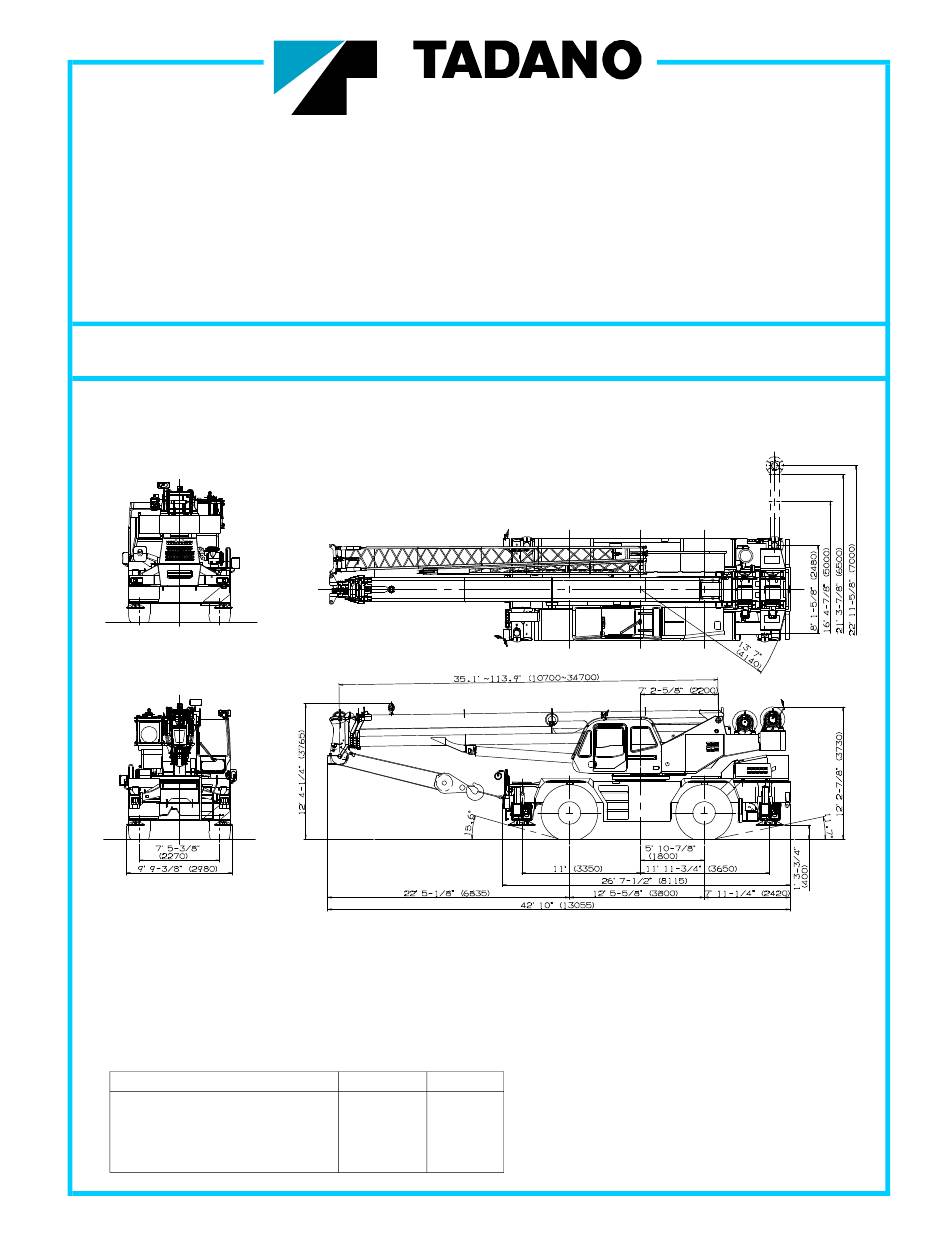

GENERAL DIMENSIONS
(23.5 - 25 Tires)
Turning radius
4 wheel steer
2 wheel steer
Tail swing of counterweight
GR-550XL
DIMENSIONS
Feet
Meters
22'
6.7
38' 5"
11.7
13' 7"
4.14
Note : Dimension is with boom angle at -0.8 degree.
Specifications are subject to change without notice.
Specification effective with serial number 541097 and up.
Advertisement
Related Manuals for Tadano GR-550XLL
Summary of Contents for Tadano GR-550XLL
- Page 1 GR-550XL 55 Ton Capacity (50 Metric Tons) HYDRAULIC ROUGH TERRAIN CRANE DIMENSIONS Note : Dimension is with boom angle at -0.8 degree. GENERAL DIMENSIONS (23.5 - 25 Tires) Feet Meters Turning radius 4 wheel steer 2 wheel steer 38' 5" 11.7 Tail swing of counterweight 13' 7"...
-
Page 2: Crane Specifications
CRANE SPECIFICATIONS BOOM WIRE ROPE - Warrington seal wire, extra improved plow steel, Four section full power synchronized telescoping boom, preformed, independent wire rope core, right regular lay. 35.1'~113.9' (10.7m~34.7m), of round box construction 3/4" (19 mm) 6x31 class with four sheaves, 17-5/16" (0.44m) root diameter, at boom head. Breaking strength (Main and Aux): 54,700 lbs (24,800 kg) The synchronization system consists of telescope cylinder, two extension cables and retraction cables. - Page 3 Tadano electronic LOAD MOMENT INDICATOR system TADANO AML-C monitors outrigger extended length and (AML-C) including: automatically programs the corresponding "RATED LIFTING Control lever lockout function CAPACITIES" table Boom position indicator Outrigger state indicator Operator's right hand console includes transmission gear ...
-
Page 4: Standard Equipment
- Anti-Two block device (overwind cutout) - 23.5-25(OR) tires - Boom angle indicator - Disc brakes - Tadano electronic load moment indicator system (AML-C) - Fenders - Outrigger extension length detector - Air dryer - Electronic crane monitoring system... - Page 5 GR-550XL WORKING RANGE CHART...
- Page 6 GR-550XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 22' 11-5/8"(7.0m) SPREAD ROTATION 35.1' 48.2' 61.4' 74.5' 87.6' 100.7' 113.9' (10.7m) (14.7m) (18.7m) (22.7m) (26.7m) (30.7m) (34.7m) 110,000 100,600 46,700 46,700 44,300 87,900 46,700 46,700 44,300 41,200 73,400 46,700 46,700 44,300 40,300...
- Page 7 GR-550XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 16' 4-7/8"(5.0m) SPREAD ROTATION 35.1' 48.2' 61.4' 74.5' 87.6' 100.7' 113.9' (10.7m) (14.7m) (18.7m) (22.7m) (26.7m) (30.7m) (34.7m) 110,000 100,600 46,700 46,700 44,300 87,900 46,700 46,700 44,300 41,200 72,400 46,700 46,700 44,300 40,300...
- Page 8 GR-550XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 22' 11-5/8"(7.0m) SPREAD ROTATION 113.9' (34.7m) Boom + 28.9' (8.8m) Jib 113.9' (34.7m) Boom + 50' (15.2m) Jib offset offset offset offset offset offset 12,300 8,400 6,050 6,350 4,050 2,750 25.6' 34.8' 41.5'...
- Page 9 GR-550XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 21' 3-7/8"(6.5m) SPREAD ROTATION 113.9' (34.7m) Boom + 28.9' (8.8m) Jib 113.9' (34.7m) Boom + 50' (15.2m) Jib offset offset offset offset offset offset 12,300 8,400 6,050 6,350 4,050 2,750 25.6' 34.8' 41.5'...
- Page 10 1. RATED LIFTING CAPACITIES apply only to the machine as 9. When boom length is between values listed, refer to the originally manufactured and normally equipped by TADANO rated lifting capacities of the next longer and next shorter LTD. Modifications to the machine or use of optional booms for the same radius.
- Page 11 GR-550XL RATED LIFTING CAPACITIES (IN POUNDS) ON RUBBER Stationary Creep Over Front Over Front Rotation 35.1' 61.4' 87.6' 35.1' 61.4' 87.6' 35.1' 61.4' 87.6' (10.7m) (18.7m) (26.7m) (10.7m) (18.7m) (26.7m) (10.7m) (18.7m) (26.7m) 48,300 27,200 35,600 41,800 22,500 30,500 16,300 34,300 30,500 16,300...
- Page 12 -500 -630 -227 -286 4. Base jib -1,380 -2,510 1,130 -626 -1,139 5. Auxiliary lifting sheave -110 -300 -136 TADANO AMERICA Corporation 4242 West Greens Road Houston, Texas, 77066 U.S.A. Phone: (281) 869-0030 Fax: (281) 869-0040 www.tadanoamerica.com Form No. TAC-GR-550-3-00311-08042015...
