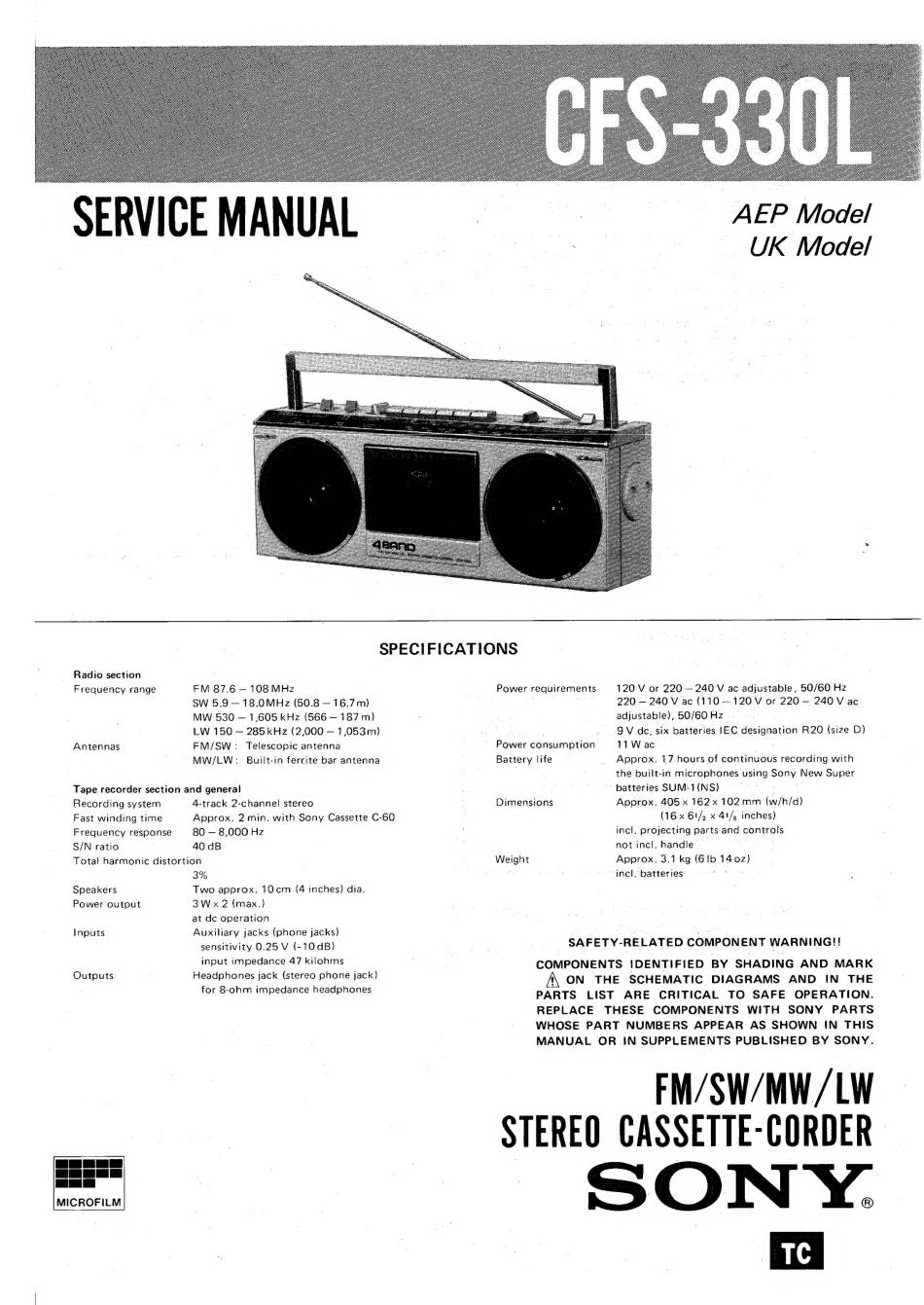

Sony CFS-330L Service Manual

Radio section
Frequency range
Antennas
AEP Mode!
~ «UK Model
FM 87.6 — 108 MHz
SW 5.9—18.0MHz (50.8 — 16.7m)
MW 530 — 1,605 kHz (566 — 187 m)
LW 150 — 285kHz (2,000 — 1,053m)
FM/SW :: Telescopic antenna
MW/LW: Built-in ferrite bar antenna
Tape recorder section and general
Recording system
Fast winding time
Frequency response
S/N ratio
4-track 2-channel stereo
Approx. 2 min. with Sony Cassette C-60
80 — 8,000 Hz
40 dB
Total harmonic distortion
Speakers
Power output
Inputs
Outputs
MICROFILM
3%
Two approx. 10cm (4 inches) dia.
3W x 2 (max.)
at dc operation
Auxiliary jacks (phone jacks)
sensitivity 0.25 V (-10dB)
input impedance 47 kilohms
Headphones jack (stereo phone jack)
for 8-ohm impedance headphones
Power requirements 120 V or 220 — 240 V ac adjustable, 50/60 Hz
-_ ee 220 — 240 V ac (110 — 120 V or 220 — 240 V ac
adjustable}, 50/60Hz.
pete 4 ° A QV de; six batteries IEC designation R20 (size D)
Power consumption 11W ac | |
Battery life _ Approx. 17 hours of continuous recording with
| the built-in microphones using Sony New Super
batteries SUM:1(NS) |
Dimensions Approx. 405 x 162 x 102 mm (w/h/d)
(16 x 61/2 x 41/5 inches)
incl. projecting parts and controls
not incl. handle as
'Weight Approx. 3:1:kg (6'b 14 oz)
'incl batteries = * >
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
— -FM/SW/MW/LW
STEREO CASSETTE-CORDER
a TC
