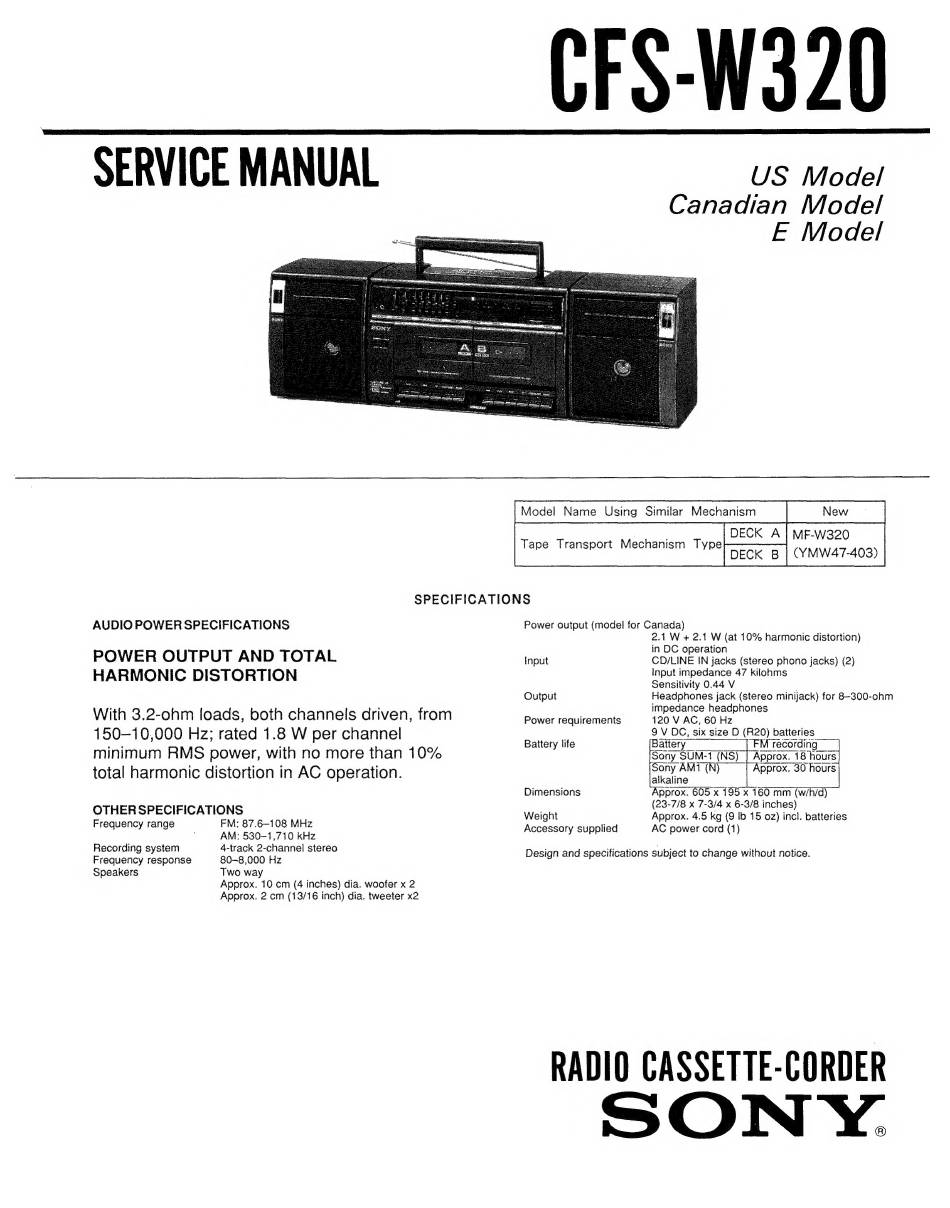

Sony CFS-W320 Service Manual

CFS-W320
SERVICE MANUAL US Model
Canadian Model
E Model
Model Name Using Similar Mechanism New
Tape Transport Mechanism Type DECK A | MF-W320
. i " DECK B | (YMW47-403)
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS Power output (model for Canada)
2.1 W + 2.1 W (at 10% harmonic distortion)
POWER OUTPUT AND TOTAL GDVLINE IN jac
Input CD/LINE IN jacks (stereo phono jacks) (2)
HARMONIC DISTORTION Input impedance 47 kilohms
Sensitivity 0.44 V
Output Headphones jack (stereo minijack) for 8-300-ohm
With 3.2-ohm loads, both channels driven, from eMseans. "Aeevac cone
150-—-10,000 Hz; rated 1.8 W per channel eaieiiie Batter six size D ( = eure
minimum RMS power, with no more than 10% Sony S SoM "Approx. 18 hours
total harmonic distortion in AC operation. Sony ATTN) PppoN Sones
Dimensions pprox. 605 x 195 x 160 mm (w/h/
OTHER SPECIFICATIONS Weight Approx. 4.5 kg (9 1 02) incl. batteries
Frequency range FM: 87.6-108 MHz Accessory supplied AC power cord (1)
' AM: 530-1,710 KHz
Bical leer aN an sleiee Design and specifications subject to change without notice.
Speakers Two way
Approx. 10 cm (4 inches) dia. woofer x 2
Approx. 2 cm (13/16 inch) dia. tweeter x2
RADIO CASSETTE-CORDER
SONY.
