Omron Eco Temp Basic MC-246-E Manual

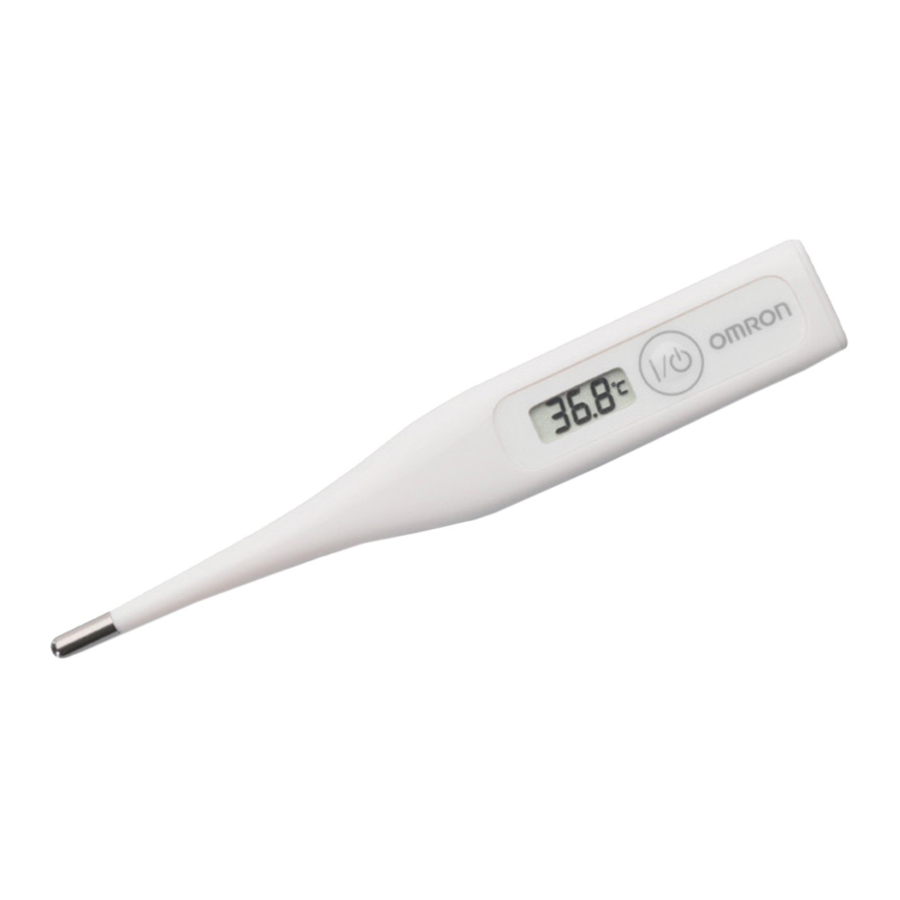

Overview

1. Sensor Tip
2. Display Window
3. Button
4. Storage Case

1. Beep
2. After 5 seconds
3. After 2 seconds
4. All of the display symbols appear.
5. The thermometer will automatically switch itself off.
6. °F
7. All of the display symbols appear.
8. The most recently measured temperature is displayed together with the M indicator.
9. 37.0°C (98.6°F) test display
10. When the [°C (°F)] indicator symbol blinks, the thermometer is ready for use.
11. Temperature measurement will commence and the [°C (°F)] indicator symbol will blink.
12. Beep-beep-beep
13. The [°C (°F)] indicator symbol will stop blinking and stay on when the reading is ready.
14. The display section is faced upwards.
15. Root of Tongue
16. Placement Points
17. Tongue
18. Turn the display so that it faces inwards.
19. The angle should be 35-45 degrees in relation to the arm.
20. Coin
21. Battery Cover
22. Battery
23. The "+" mark faces upwards

Introduction

Thank you for purchasing the OMRON Digital Thermometer Eco Temp Basic.
The thermometer you purchased offers a safe, accurate and quick temperature reading. You can measure your temperature either in the anus (rectally), in the mouth (orally) or in the armpit (axillary). This thermometer eliminates any worries about broken glass or mercury hazards. Note that your temperature is affected by smoking, eating or drinking.
Contact your doctor if you have any questions regarding specific temperatures.

Switching between Fahrenheit/Centigrade (Celsius)

Press the button for 7 seconds until a beep is emitted.
The display will change to the other measurement system at the time when the beep sounds.

Use of the thermometer

1. Press the button.

   The result of the previous measurement is displayed for a few seconds. Then 37.0°C (98.6°F) is displayed as an internal test-function.

   Note: When a temperature other than 37.0°C (98.6°F) is displayed, please refer to the "Display Indications and Troubleshooting" section for details to correct the problem.
2. Apply the thermometer to the measurement site.
   Note: Even if the "L" indicator fails to display (when only the temperature is displayed), this is not an error. The temperature may be taken as is.

3. When the reading is ready, the thermometer will emit a [beep-beep-beep] sound three times. Remove the thermometer from the measurement site and read the result.

   Buzzer notification timing
   Rectal: approx. 60 seconds
   Oral: approx. 80 seconds
   Armpit: approx. 2 minutes
   Notes:
   • The buzzer notification timing is based on an environmental temperature of 23 degrees.
   • Since oral and armpit may give lower measurement results it is recommended to apply the device rectally to get the most accurate result.
4. Turn off the thermometer. Clean and disinfect before returning it to its protective case.
   Notes:
   • The reading will automatically be stored in memory.
   • Turn off the thermometer manually to conserve the battery. It will automatically switch off 30 minutes after use or 3 minutes when turned on but not used.

Displaying the last temperature

Press the button to display the temperature that was measured most recently. For details, please refer to the "Use of the thermometer" section.

Correct measurement

Measurement accuracy cannot be assured when the method used to measure the temperature is incorrect.

Rectal use:

• Commonly used for small children when it is difficult to take an oral or armpit temperature.
• Lubricate with non-irritating skin-friendly gel.
• Gently insert the probe tip no more than 1.3 cm into the rectum. Do not force the tip into the rectum if resistance is encountered.
• Disinfect the thermometer after use.

Oral use (for ages 4 and older):
The mouth should remain closed up to 5 minutes before starting a reading.

• Place the thermometer in the mouth under the tongue so that it rests to the left or right of the root of the tongue.

• Use downward tongue pressure to hold the thermometer in place.
• Hold the thermometer to keep it from sliding around in the mouth.


Armpit (axillary) use:

• Place the sensor tip in the centre of the armpit.

• Lock the sensor tip under the arm, using the arm to slightly apply pressure inwards.


The following may result in incorrect measurements:

• Taking the temperature immediately after exercising, bathing, eating or drinking will result in an incorrect measurement.
  Correct: Wait at least 30 minutes before taking the temperature.
• Taking the temperature after moving around.
  Correct: Take the temperature immediately after waking up or wait for at least 30 minutes after moving around.
  * Moving around after awakening increases the body temperature.

The following may result in incorrect measurements when taking armpit temperatures:

• Heavy armpit perspiration
  Correct: Wipe off any armpit perspiration before taking the temperature.
• Taking the temperature after being under the blankets for a long time.

Battery replacement

Battery: Alkaline-Manganese Button Battery LR41 (available commercially)

Battery Replacement Indicator ()
Replace the battery when the battery replacement indicator appears when the thermometer is switched on.

1. Use a coin to take off the cover.
   (Fig. 12)
2. Remove the battery.
   (Fig. 13)
3. Insert the new battery with the "+" pole facing up as shown in the diagram. Make sure the battery is put in with the right polarity.
   (Fig. 14)
4. Use a coin to replace the battery cover.
   (Fig. 15)
   Notes:
   • The thermometer comes fitted with a battery for testing purposes. This battery may not provide the same amount of battery life as a new battery.
   • Do not loose the O-ring around the screw. Water-resistant will fail and can lead to misreadings and failure of the unit.

Display Indications and Troubleshooting

Indicator	Cause	Remedy
(low)	Displayed when the temperature of the sensing section is less than 32°C (89.6°F).	This is not an error so it may be ignored and the temperature taken.
(high)	Displayed when the temperature of the sensing section is higher than than 42°C (107.6°F).	Cool the sensing section and then take the temperature.
Air Temperature Displayed	Displayed when the surrounding temperature exceeds 32°C (89.6°F).
[37.0°C (98.6°F)] is not displayed during the measurement preparation period as a test display, after the most recent measurement result is displayed.	Turn the thermometer on and off several times. If a temperature other than that in the range from [36.9°C (98.4°F)] to [37.1°C (98.8°F)] is displayed as a test display, please contact your nearest authorized OMRON dealer.

Storage

Store the thermometer in its storage case.
Do not store the thermometer in the following types of places. Doing so may damage the thermometer.

• Wet locations.
• Locations with high heat and humidity or those that are exposed to direct sunlight. Areas close to heating equipment, dusty locations, or environments where there are high salt concentrations in the air.
• Locations where the unit will be subjected to leaning, shock or vibration.
• Pharmaceutical storage areas or locations where corrosive gases are present.

Cleaning and Disinfecting

OMRON recommends to wipe the device with damp cloth. For disinfection, 70% Ethanol or Isopropyl alcohol can be used. Do not attempt to disinfect the sensing section of the thermometer by immersing in alcohol or in hot water (water over 50°C). Do not submerge deeper than 15 cm and longer than 30 minutes.

Specifications

Product Type and Number	Digital Thermometer MC-246-E
Product Name:	Eco Temp Basic
Power Supply:	1.5V DC, 1 LR41 Alkaline-Manganese Button Battery
Power Consumption:	0.1 mW
Battery Life:	Approx. 2 years or more (3 times per day)
Sensing Unit:	Thermistor
Measurement Method:	Actual measurement (non-predictive)
Temperature Display:	3 digits (°C), or 4 digits (°F) display in 0.1 degree increments
Measurement Accuracy:	±0.1°C (32.0 to 42.0°C) ±0.18°F (89.6 to 107.6°F) (when measured at a standard room temperature of 23°C (73.4°F) in a test tank held at constant temperature)
Measurement Range:	32.0 to 42.0°C (89.6 to 107.6°F)
Usage Environment Temp and Humidity:	Surrounding temperature +10 to +40°C (+50 to +104°F), Relative Humidity 30 – 85%RH
Storage Environment Temp and Humidity:	Surrounding temperature -20 to +60°C (-4 to +140°F), Relative Humidity 10 – 95%RH
Weight:	Approx. 11 g (with battery installed)
External Dimensions:	19.4 mm (w) × 132.5 mm (l) × 10.0 mm (d)
Package Content:	Test Battery (Alkaline-Manganese Button Battery LR41), Storage Case, Instruction Sheet.
Applied part:	= Type B

Notes:

• The specifications may be changed without prior notice.
• This unit is water-resistant.
• The tip of the thermometer contains Nickel.
• This thermometer does not contain any serviceable part. OMRON recommends that the accuracy is verified every two years by OMRON's representative.

Important Safety Notes

To assure the correct use of the product basic safety measures should always be followed including the precautions listed below.

• A high or prolonged fever requires medical attention, especially for small children. Please contact your doctor.
• Carefully read and follow the enclosed instructions to ensure accurate temperature readings. Note that temperature readings are affected by many factors including physical exertion, the drinking of hot or cold beverages before measurement, as well as measuring technique.
• Please keep still during measurement.
• The use of temperature readings for selfdiagnosis is dangerous and may lead to the worsening of the existing conditions. Consult your doctor for the interpretation of the results.
• This thermometer is used for taking temperatures through oral, rectal or armpit. Do not attempt to take temperatures at other sites, such as in the ear, as it may result in false readings and may lead to injury.
• Store the thermometer out of the reach of children. Do not allow children to take their temperatures unattended. Children may injure themselves when attempting to take temperatures without supervision.
• Do not leave the battery, battery cover or probe cover where children can get to them. Children may swallow them. Should a child swallow the battery, battery cover or probe cover, contact a doctor immediately.
• Do not attempt measurements when the thermometer is wet as inaccurate readings may result.

• Do not bite down on the thermometer. Doing so may lead to breakage and/or injury.
• Do not allow the thermometer to be shared among individuals.
• Do not attempt to disassemble or repair the thermometer. Doing so may result in inaccurate readings.
• Do not attempt to incinerate the battery. It may burst.
• Pay attention to polarity (+ –) when replacing the battery. Failure to do so may lead to fluid leakage, heat generation or bursting, resulting in damage to the unit.
• Remove the battery when the thermometer will not be used for 3 months or more. Failure to do so may lead to fluid leakage, heat generation or bursting, resulting in damage to the unit.
• Do not use the thermometer in places where strong static electricity or electromagnetic fields are present. Doing so may lead to inaccurate readings and may contribute to instrument failure.
• Do not attempt rectal measurements on persons with rectal disorders. Doing so may aggravate or worsen the disorder.
• Do not step on the unit or the hard case.

General safety precautions

• Do not use the thermometer to measure anything other than human body temperatures.
• Do not drop the thermometer and storage case or expose them to shock or vibration.
