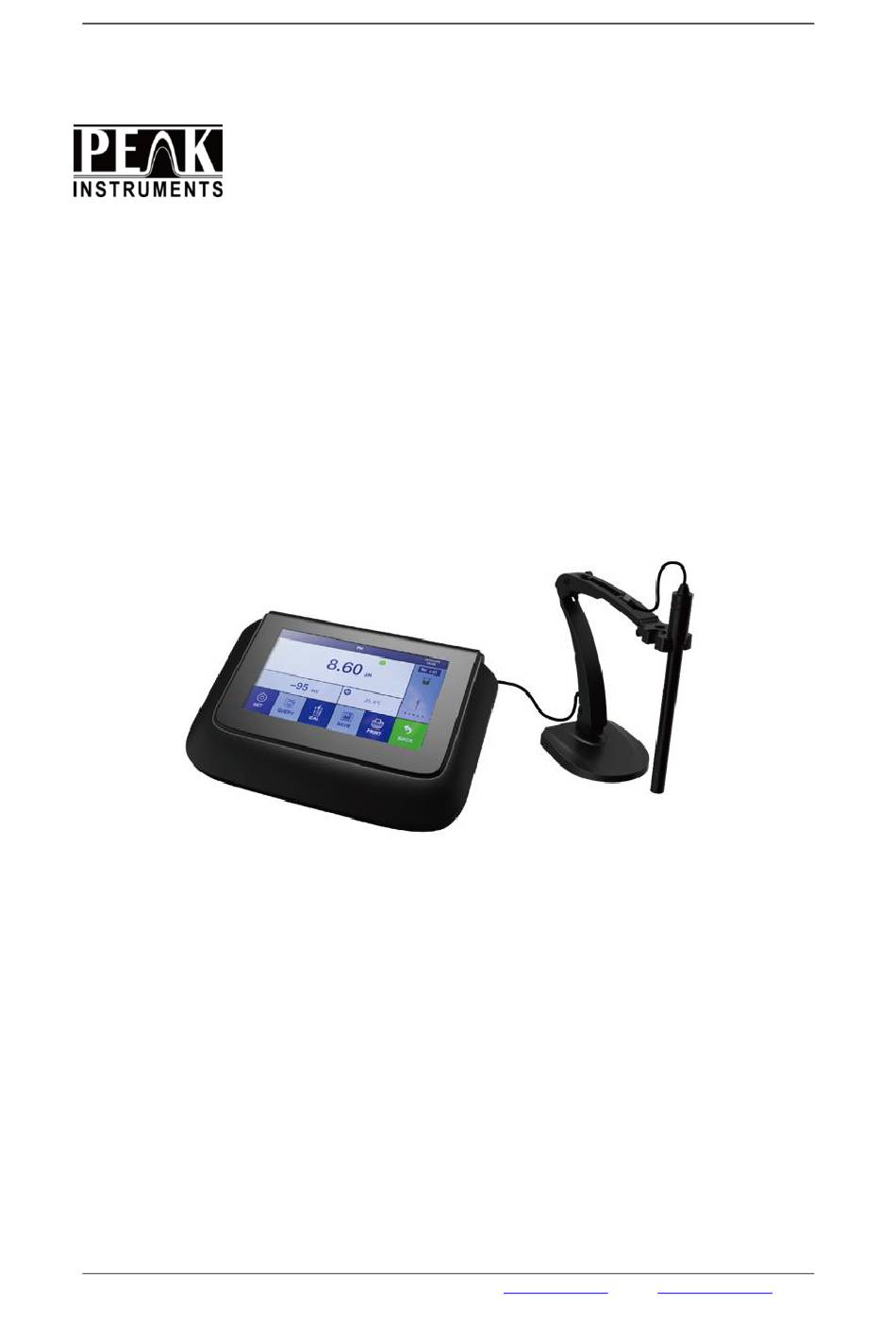

- Page 1 User Manual PEAK INSTRUMENTS T-710L pH Meter User Manual PEAK INSTRUMENTS INC Version 1801 Address: 16223 Park Row, Houston, TX-77084, USA. Website: www.peakii.com. Email: frank@peakii.com...
-
Page 2: Table Of Contents
User Manual PEAK INSTRUMENTS CONTENTS I. General Information ................. 1 II. Specifications ................... 2 III. Operation Instructions ................3 1. Interface Diagram ................3 2. Main interface ................... 3 2.1. System setup ................3 2.2. pH interface display ..............6 IV. -
Page 3: General Information
PEAK INSTRUMENTS I. General Information Thanks for using T-710L pH meter. In order to help you operate and maintain the instrument properly, please read the user manual before using it. We reserve the rights to update the manual and its parts subject to the purpose of improving the instrument’s performance. -
Page 4: Specifications
User Manual PEAK INSTRUMENTS II. Specifications Measuring Range (-2.00～19.99) pH Resolution 0.1/0.01 pH Accuracy Electrode: ±0.01pH Instrument: ±0.02 pH Input Current ≤1×10 Input Impedance ≥1×10 Ω Stability ±0.01 pH/3h Temperature (0～100)℃(Auto/Manual) Compensation Measuring Range -1999 mV～0～1999 mV Resolution Accuracy ±0.03%FS... -
Page 5: Operation Instructions
User Manual PEAK INSTRUMENTS III. Operation Instructions 1. Interface Diagram ① Conductivity electrode connector ② pH electrode connector ③ DO electrode connector ④ Temperature electrode connector ⑤ USB port for data transfer ⑥ Data cable interface ⑦ Power supply connector 2. - Page 6 User Manual PEAK INSTRUMENTS 2.1.1. Set up the date and time. In this menu you can change the current date and time by pressing the arrow“ ”. Then press to save the changes or press to back. 2.1.2. Set up system language: English or Chinese. Then press...
- Page 7 User Manual PEAK INSTRUMENTS 2.1.3. Adjust screen brightness by moving slide mark “ ”, Then press to save the changes or press to back. Choose the unit of temperature(℃/℉). The default unit is ℃. Then 2.1.4. press to save the changes or press to back.
- Page 8 User Manual PEAK INSTRUMENTS 2.1.5. To choose Bluetooth connection to printer or APP. The cell phone APP is optional. Entering authorization code(only for APP connection) and press save the setting or press to back. 2.1.6. Press this icon to return Home window.
- Page 9 User Manual PEAK INSTRUMENTS 2.1.8. Print current data on the screen. 2.1.9. Press this icon to make the system fall asleep. If you want to go back, just press “Weak up”. Address: 16223 Park Row, Houston, TX-77084, USA. Website: www.peakii.com. Email:...
-
Page 10: Ph Interface Display
User Manual PEAK INSTRUMENTS 2.2. pH interface display 2.2.1. Press icon to enter pH test mode, there are five functions: SET, QUERY, CALIBRATION, SAVE AND PRINT. You can read pH value, mV value and temperature on the screen. On the right, it will show the pH value of its corresponding calibration point and indicator of electrode status on the right after you calibrate the instrument. - Page 11 User Manual PEAK INSTRUMENTS 2.2.3.1. compensation. There are three options: NONE, PURE H2O and O. Select the mode and press OK to confirm or cancel to quit. No compensation. Pure water compensation NH3 compensation 2.2.3.2. Clear saved data. It is used to clear all saved data. Press to enter Address: 16223 Park Row, Houston, TX-77084, USA.
- Page 12 User Manual PEAK INSTRUMENTS the following interface. Press to clear all data or press to back. 2.2.3.3. There are two modes: Auto or Manual. Press to enter the following window and select proper mode, and press to save the setting or press to back.
- Page 13 User Manual PEAK INSTRUMENTS window and select the preferred standard, and press to save the setting or press to back. 2.2.3.5. Resolution, there are two options 0.1 or 0.01. Press OK to confirm your selection or press cancel to back.
- Page 14 User Manual PEAK INSTRUMENTS 2.2.3.7. Restore the system to its original factory setting delete all saved data, you can use this function whenever there is mistake in the system. 2.2.3.8. Transfer the saved data to USB drive. 2.2.3.9. Quit the setting.
-
Page 15: Ph Measurement
User Manual PEAK INSTRUMENTS 2.2.6. Press this button to save current measurement data including pH, mV, temperature and date. Only when the test result is stable(stability indicator is green) you can save it. 2.2.7. To print the current test data via wireless Bluetooth printer. Please make sure the Bluetooth is connected to printer(default setting) before printing. -
Page 16: Calibration
User Manual PEAK INSTRUMENTS 2. Calibration 2.1. Selection of standard buffer solution. 2.1.1. There are three series of standard buffers in the set menu. CH: 1.68 pH, 4.00 pH, 6.86 pH, 9.18 pH, 12.46pH NIST: 1.68 pH, 4.01 pH, 6.86 pH, 9.18 pH, 12.45pH USA: 1.68 pH, 4.00 pH, 7.00 pH, 10.01 pH, 12.45pH... -
Page 17: Ph Solution Measurement
User Manual PEAK INSTRUMENTS 2.1.4. Put both pH electrode and temperature electrode into the first calibration point pH6.86, wait until the indicator becomes green, then press . The first point is finished. Take out electrodes and clean them with pure water, do the second calibration point pH4.0 or pH9.18. -
Page 18: Notes On Ph
User Manual PEAK INSTRUMENTS 4. Notes on pH 4.1. Times to be calibrated depend on test sample, electrode and measurement accuracy. For high accuracy test (≤±0.02pH), it should be calibrated in time with high accuracy buffers. For normal accuracy measurements (≥ ±0.1pH), after being calibrated one time, it can be used for one week or even longer. -
Page 19: Mv Measurement
3. Users can only read its mV result and ignore the pH value when testing mV. VI. Packing List Description Number T-710L pH meter 1 unit pH electrode 1 piece Temperature electrode 1 piece... - Page 20 User Manual PEAK INSTRUMENTS Email: info@peakii.com Address: 16223 Park Row, Houston, TX-77084, USA. Website: www.peakii.com. Email: frank@peakii.com...
