Installation, Operation and
Maintenance Manual
Total PFAS Filtration System
Model: H2O-DWCBTP100
Please read carefully before proceeding with
installation. Your failure to follow any attached
instructions or operating parameters may lead to the
product's failure.
Keep this Manual for future reference.
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after
the system. Systems certified for cyst reduction may be used on
disinfected water that may contain filterable cysts.
If you are unsure about installing your WATTS water filter, contact
a WATTS representative or consult a professional plumber.
Test the water periodically to verify that the system is performing
satisfactorily.
Failure to install the system correctly voids the warranty.
Handle all components of the system with care. Do not drop,
drag or turn components upside down.
H2O-DWCBTP100 is certified by
IAPMO R&T to meet NSF/ANSI 42
for the reduction of Chlorine, Taste
and Odor, and Particulates Class 1;
NSF/ANSI 53 for the reduction
of Total PFAS, Lead, Cyst and
Asbestos; NSF/ANSI/CAN 372 for
low lead Compliance; NSF/ANSI
401 for reduction of Micro-Plastics;
and to CSA B483.1 as verified and
substantiated by test data.
Refer to enclosed warranty for operating parameters
to ensure proper use with your water supply.
IOM-WQ-H2O-DWCBTP100
H2O-DWCBTP100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the pure H2O and is the answer not in the manual?

Questions and answers

Jim giles
June 21, 2025

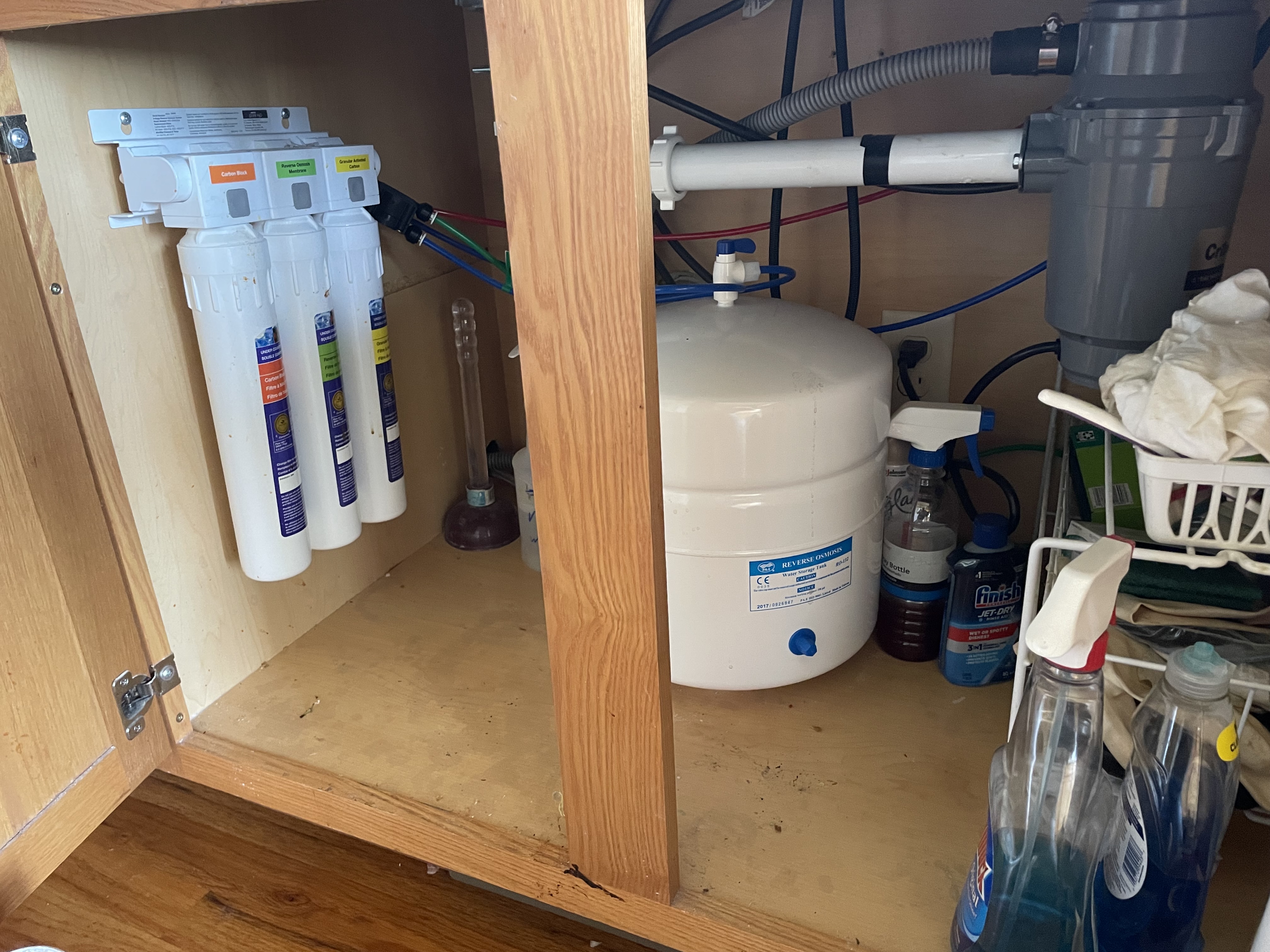

How do I add psi to the tank It seems to loose pressure after about 15 seconds of running- I checked the tank pressure and it's at 25 psi

User image 6857080a4fc5b

Subscribe to Our Youtube Channel

Summary of Contents for Watts pure H2O

  • Page 1 Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. If you are unsure about installing your WATTS water filter, contact a WATTS representative or consult a professional plumber. Test the water periodically to verify that the system is performing satisfactorily.
  • Page 2: Table Of Contents

    Overview Installation Precautions Thank you for your purchase of a state of the art Water Treatment system. • System is intended to be installed on the cold water line ONLY. Your new system is equipped with a high capacity Carbon Block Do not use hot water supply filter tested as a mixture made up of PFOA (500 ppt), PFOS (1,000 ppt), PFHxS (300 ppt), PFNA (50 ppt), PFHpA (40 ppt),...
  • Page 3: Recommended Tools For Installation

    Recommended Tools Kitchen Faucet Adapter For Installation Connection • Small knife or tube cutter Water supply line to the system must be from the cold water supply • Variable speed drill line only. Hot water will severely damage your system. •...
  • Page 4: System Module Mounting

    Using Quick-Connect Fittings System Module Mounting Step 1 Cutting - Mount the system to one side of the cabinet Cut the tube square. It is allowing 2" of clearance essential that the outside below the filter for diameter be free of score easy filter removal and marks, and that burrs and replacement.
  • Page 5: System Start Up

    Mark the date the filter is installed on cartridge label Product Registration Troubleshooting To Register your product, please visit www.watts.com/pureh2o and select “Register Now”. Registration is in accordance with LEAKS BETWEEN THE SYSTEM HEAD ASSEMBLY AND THE FILTERS: our Privacy Policy and Terms of Use.
  • Page 6: Performance Data Sheet

    Performance Data Sheet Watts Pure H2O In U.S.-Watts Regulator Co., N. Andover, MA 01845 (Watts.com); In Canada-Watts Water Technologies (Canada), Inc., Burlington, ON L7L 5H7 (Watts.ca) Total PFAS Filtration System - H2O-DWCBTP100 GENERAL USE CONDITIONS • H2O-DWCBTP100 is certified by IAPMO R&T to meet NSF/ANSI 42 for the reduction of Chlorine, Taste and Odor, and Particulates Class 1;...
  • Page 7: Service Record

    Service Record Date of Purchase:_____________ Model Number________________ Serial Number:_____________ Date of Install:________________ Installed By: ________________ H2O-F47 Total PFAS Reduction Filter (6 months) Page 7...
  • Page 8: Limited Warranty

    If any part of this system is found to be defective within the warranty period, return the system after obtaining a return authorization from Watts (see below), and Watts will repair, or at Watts’ option, replace the system at no charge.
