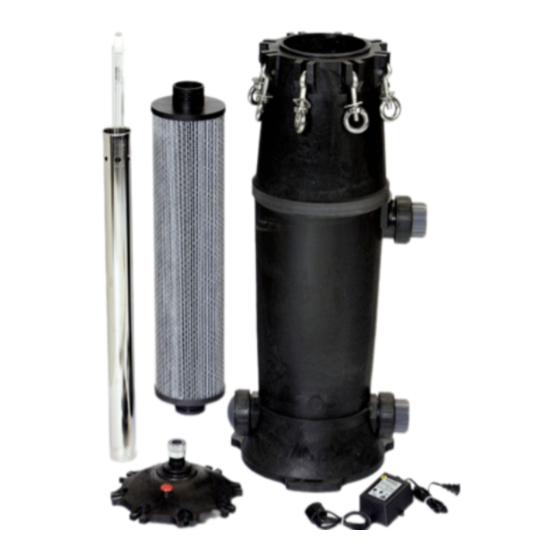

Water Filtration Systems By Watts
INSTALLATION, OPERATION
AND MAINTENANCE GUIDE
Models: HSFS & HSFS 5M
WARNING: Please read carefully before proceeding with installation. Failure to follow attached instructions or
Operating parameters may lead to the product's failure. Please save this manual for future reference.
Advertisement
Related Manuals for Watts Hydrosafe HSFS
Summary of Contents for Watts Hydrosafe HSFS
- Page 1 ® Water Filtration Systems By Watts INSTALLATION, OPERATION AND MAINTENANCE GUIDE Models: HSFS & HSFS 5M WARNING: Please read carefully before proceeding with installation. Failure to follow attached instructions or Operating parameters may lead to the product’s failure. Please save this manual for future reference.
-
Page 2: Table Of Contents
Table of Contents Introduction, Specifications, and Warnings ...…………………………………………………… 4 Installation …………………………………………………………….…………………………. 5 Startup & Operation ………………...…………………………………………………………… 6 Maintenance ……………………………………………………………………………………... 6 Trouble Shooting ………………………………………………………………………………... 7 Replacement Parts ………………………………………………………………………………. 7... -
Page 3: Introduction, Specifications, And Warnings
Power, ballast 115 / 230 volt 60 / 50 htz. / <1 amp Power, lamp 45 watts * Higher flow rates can be achieved but the UV effectiveness will be reduced. Warning: Before installing this product, read all installation instructions and warnings carefully. -
Page 4: Installation
Installation: 1. The unit should be installed indoors. Make sure there is at least four feet of clear space available above the unit. The space above the unit is necessary for cartridge and UV lamp replacement. 2. Remove the union adapters from the package and put the union ring over the adapter. Apply Teflon tape to the gauge threads and screw the gauges into the adapters (see figure 3. -
Page 5: Startup & Operation
Startup & Operation: 1. Slowly turn on the water supply. 2. Press the red pressure relief button on top of the housing. Hold the button down until water comes out from underneath the button. 3. Check for and repair any leaks. If Necessary, tighten the swing bolts with a crescent wrench or by sliding the shaft of a large screwdriver through the swing bolt eyelet. -
Page 6: Troubleshooting
5 micron pleated carbon cartridge HSFSLAMP Ultraviolet Lamp HSFSQUARTS Quartz Sleeve WUVBALLAST6-12 UV Power Supply HSFSUVOR Quartz Sleeve O-Ring HSFSUVNUT UV Retaining Nut PG15L25 Pressure Gauge 0 – 200 psi HSFSCOUPLING-T Inlet and Outlet Coupling Adapter with Gauge Port © Watts 2011 M-WWQP-HYDRO-1117...
