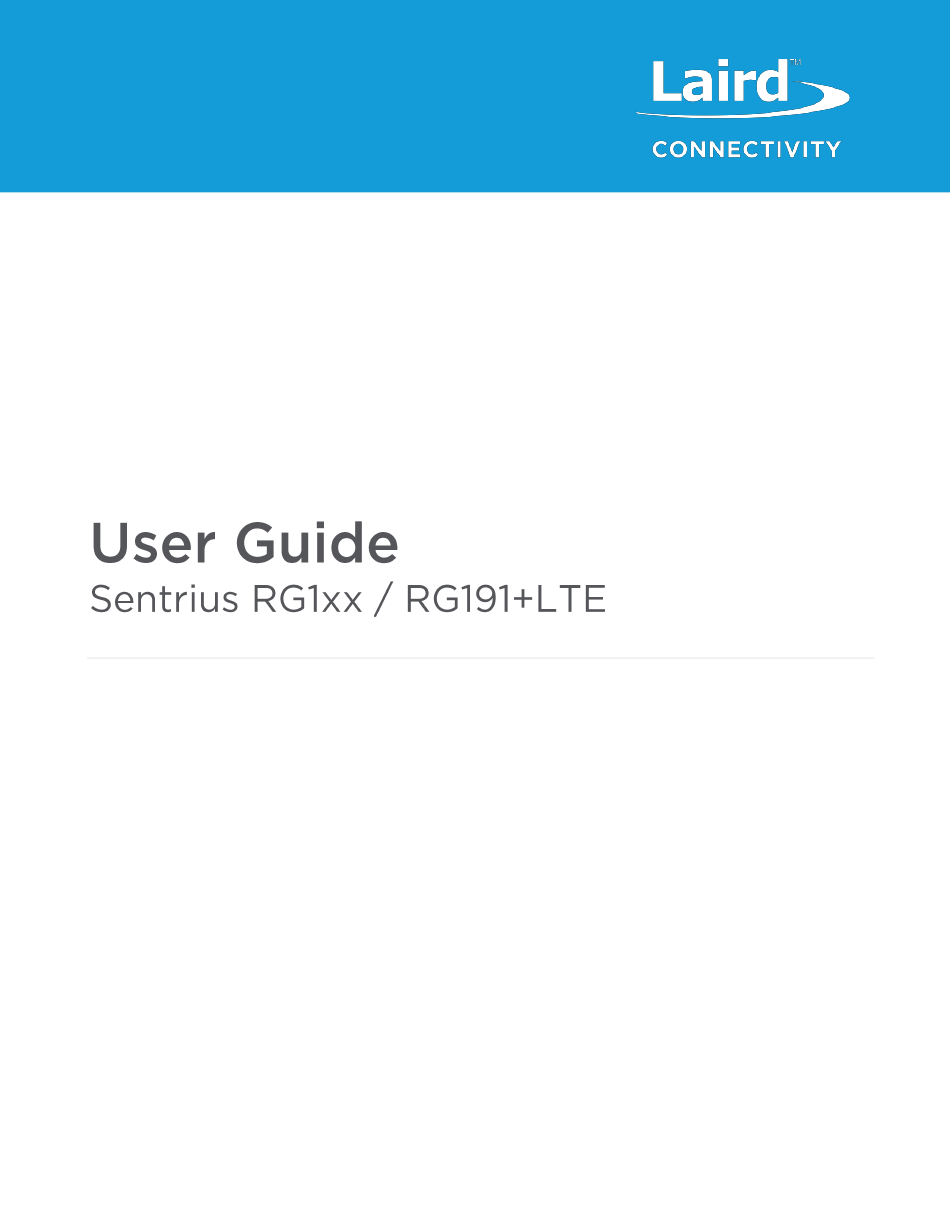

Laird Sentrius RG1 Series User Manual

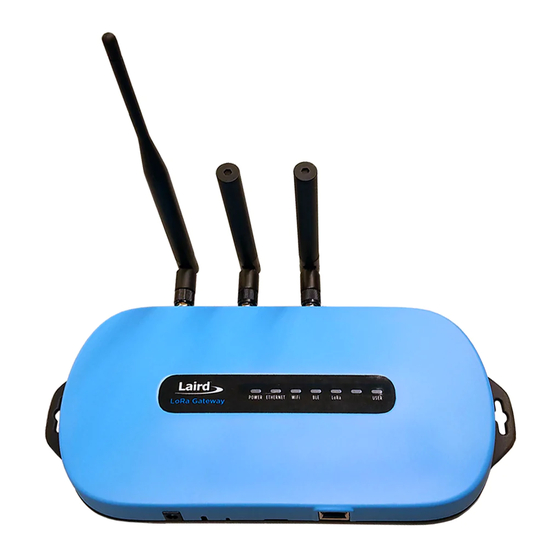

Lora-enabled gateway
Hide thumbs Also See for Sentrius RG1 Series:

Advertisement

Version 6.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sentrius RG1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Laird Sentrius RG1 Series

  • Page 1 Version 6.1...
  • Page 2 25 May 2021 Chris Boorman content Robert Gosewehr 20 Dec 2021 Updated firmware update section for new release Adam Ruehl Chris Boorman https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 3 Configuration ..............................29 8.4.3 Radios ................................30 8.4.4 LoRa Radio Card (Australia) ..........................33 8.4.5 LoRa Radio Card (New Zealand) ........................33 https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 4 Pole Mount ................................. 62 Regulatory ..................................63 11.1 Current Regulatory Certifications ..........................63 11.2 Documentation Requirements ..........................63 11.3 FCC Regulatory ............................... 63 https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 5 13.4.2 New Zealand (NZ) .............................. 72 13.4.3 Hong Kong (HK) ..............................72 13.4.4 Australia (AU) ..............................73 13.4.5 Singapore (SG) ..............................73 https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 6 Sentrius RG186 and other AS915, AU923 variants; differences are highlighted in the notes. Laird’s Sentrius™ RG1xx LoRa-Enabled Gateway is the ultimate in secure, scalable, robust LoRa solutions for end-to-end control of your private LoRaWAN network. Leveraging Laird Connectivity’s field-proven and reliable 50 Series Wireless Bridge certified module, it also offers enterprise dual-band Wi-Fi and wired Ethernet for complete design freedom.
  • Page 7 65 Mbps (MCS7,HT40) 11dBm Note: Bluetooth support not included at a Bluetooth Low Energy software level within the RG1xx 6 dBm 1 Mbps https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 8 -123 dBm (Bandwidth = 250 kHz, Spreading Factor = 7, DR6) Interfaces Wired Ethernet - RJ45 Connector Wireless LoRa, 802.11a/b/g/n, Cellular LTE (Only RG191+LTE model) Power Supply Voltage 12V/1A https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 9 2.1 dBi (2.4-2.5 GHz), 2.4 dBi (4.9 GHz) 2.6 dBi (5.25 GHz), 3.4 dBi (5.875 GHz) LoRa Antenna Model Laird 001-0028 (863-870 MHz) used with RG186 Laird 001-0002 (902-928 MHz) used with RG191 plus AS915 and AU923 variants Type Dipole Connector RP-SMA (001-0002 &...
  • Page 10 450-00109-K1 Accessories 690-1002 Pole Mount Bracket - Accessory for 450-0190 or 450-0191 690-1003 Wall Mount Bracket - Accessory for 450-0190 or 450-0191 https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 11 Note: The RG191+LTE production units come with a Truphone SIM card pre-installed. The SIM will need to be registered and activated, see section 5.2. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 12 Note: The RF cables are connected to the modules and glued in position. If the antennas are installed, remove the antennas before moving the top enclosure in position for the indoor (non-IP67) gateway. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 13 Figure 7: SIM Install (Right: Picture of SIM card contact side) Note: To remove the SIM card, push the card out from Red Arrow side and remove SIM. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 14 The password can be changed on the Wi-Fi > Advanced web page. Upon logout or client disassociation, Wi-Fi Quick Config shuts down and normal operation resumes. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 15 IP address at https://192.168.1.1 Accept the self-signed security certificate in the browser. Click Advanced (Figure Figure 9: Web interface – first screen https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 16 After logging in, the program warns you to change the default credentials for security reasons (Figure 12). Figure 12: Change the default credentials https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 17 Note: By default, the Cellular modem within the gateway is disabled!! Users will need to enable it!!! Figure 14: Enable/Disable Cellular Button https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 18 Wait a few seconds and try it again by refreshing the page. If all fields show N/A, please make sure that the Cellular modem is turned on and installed properly. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 19 Apply your settings by clicking on the Save Configuration button and reboot the gateway when requested. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 20 Your Alternative DNS Server 1 IP and Alternative DNS Server 2 will be only used when there is no Ethernet and Wi-Fi connection available / configured. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 21 Auto – In auto mode, you have the option of selecting the auto DHCP method (either stateless or SLAAC). At this time, IPv6 static mode is only partially supported. Figure 19: IPv6 Configuration page https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 22 This view is intended to support advanced users in troubleshooting their network. Figure 20: Advanced view https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 23 Connect to a Wi-Fi network – click Scan to scan for nearby Wi-Fi networks. Scanning continues until you click Stop or click on one of the listed scan results (Figure 22). Figure 22: Scan function Click on the applicable scan result. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 24 The profile page shows all Wi-Fi profiles that are saved in the gateway. You can add, activate, or delete the profiles shown on this page. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 25 The Wi-Fi advanced page shows more detailed information about the Wi-Fi radio status and allows the user to configure the Quick Config AP mode password (Figure 26). Figure 26: Wi-Fi Advanced page https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 26 LoRa pages). Select the preset from the drop down. Information about this preset is displayed in a panel to the right (Figure 29). https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 27 CUPS servers to provision the LNS certificates. Figure 30: LNS server https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 28 The status of the connection to the LNS is shown on the sidebar when in the LoRa view. Figure 32: LoRa view https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 29 The forwarder page allows configuration of the packet forwarder. The mode allows the user to change to different packet forwarders. The configuration changes based on what packet forwarder is used. Figure 34: Semtech packet forwarder configuration https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 30 LoRa STD and FSK channels have configurable bandwidth. For these channels, when operating in 250-kHz or 500-kHz bandwidth, the offset can be -0.3 to +0.3 MHz. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 31 The interface displays a warning and marks each channel in red if they overlap (Figure 38). Channel configuration is shown in Figure Figure 37: Channels window Figure 38: Overlapping channels https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 32 The EU region specifies keep out areas in the allowed frequencies. These are highlighted in red on the illustration. The interface displays a warning if a channel lies in a keep-out area. Figure 40: EU region gateways – keep out channels https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 33 TX power will be clipped to the highest allowable power if the requested power exceeds the legal limit for this region. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 34 TX power will be clipped to the highest allowable power if the requested power exceeds the legal limit for this region. The Advanced page provides additional configuration options for the specific forwarder. Figure 42: Advanced configuration page https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 35 To watch live traffic, click Poll Traffic. Traffic columns can be sorted, and filters can be applied to one column at a time. Figure 44: LoRa traffic https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 36 (Figure 46). Enter the current password, and then the new desired username and password. Click Update. Figure 46: Change username and password https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 37 Note: This information is only available with the RG191+LTE hardware for the US market only, see Ordering Information for product part numbers. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 38 Click Start Update. The firmware update process downloads the firmware to the gateway and then flashes it. Figure 50: Updating gateway firmware window https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 39 After updating with this link, the gateway will be running version 93.7.2.10. Follow the instructions for that version to update to the latest version of firmware. WARNING: This upgrade performs a factory reset on the gateway. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 40 Modem firmware updates should ONLY be performed when something is not working, you are facing connection problems, or you have been instructed to do so by the Laird Connectivity support team. Before starting, please make sure that the Cellular Modem is turned on and you have restarted the Gateway.
  • Page 41 Figure 54: Save/Restore settings After restoring settings, the gateway must be rebooted for changes to take effect. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 42 This works much like it does with the web User Interface (UI). When the system administrator has a new firmware release to load, they will update the InternetGatewayDevice.Laird.GatewayManagement.Versions.FirmwareUpdateURL. The value is the link to download the firmware. This link always points to a fw.txt file. Once that is done, the gateway will respond with success, and download the firmware in the background.
  • Page 43 Total up time Unused in our implementation. Request an upload of type 4 InternetGatewayDevice.DeviceInfo.DeviceLog Vendor Log File via the ACS InternetGatewayDevice.DeviceInfo.ModelName Model name https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 44: Parameter Name

    Hardcoded Wi-Fi settings in the gateway InternetGatewayDevice.Laird.WIFIGlobalSettings.IgnoreNullSSID Hardcoded Wi-Fi settings in the gateway InternetGatewayDevice.Laird.WIFIGlobalSettings.PMKCaching Hardcoded Wi-Fi settings in the gateway InternetGatewayDevice.Laird.WIFIGlobalSettings.ProbeDelay Hardcoded Wi-Fi settings in the gateway https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 45 N/A – This can be updated via InternetGatewayDevice.Laird.LORASettings.RadioConfig channel plan used by the Legacy vendor config file upload. Semtech UDP packet forwarder. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 46 URL to point to a new InternetGatewayDevice.Laird.GatewayManagement.Versions.FirmwareUpdateURL file with the firmware version firmware hosted on an external server https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 47 String representing InternetGatewayDevice.ManagementServer.ParameterKey the parameter key (opt.) String representing InternetGatewayDevice.ManagementServer.PeriodicInformTime Time of the last inform message the time of the last inform message https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 48 Wi-Fi connection is allowed on this gateway Sub-node for each Wi-Fi device. Only InternetGatewayDevice.WANDevice.{x}.WANConnectionDevice.{y}.WANIPConnection one Wi-Fi connection is allowed on this gateway https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 49 Enables the specific Wi-Fi InternetGatewayDevice.LANDevice.{x}.WLANConfiguration.{y}.RadioEnable true, false device Enables the specific Wi-Fi Represents the SSID of InternetGatewayDevice.LANDevice.{x}.WLANConfiguration.{y}.SSID device the active Wi-Fi profile https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 50: Ordering Information

    This is the ICCID of the SIM card that is inserted. InternetGatewayDevice.Cellular.Interface.{x}.USIM.IMSI This is the IMSI stored on the SIM card that is inserted. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 51 PSK. Displays the enabled security mode. A string InternetGatewayDevice.WiFi.EndPoint.{x}.Profiles.{y}.Security.ModeEnabled These are the standard TR-181 security selected from type strings InternetGatewa https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 52 Data model reference to the SSID for the InternetGatewayDevice.WiFi.EndPoint.{x}.SSIDReference currently active profile Profile reference for the currently active InternetGatewayDevice.WiFi.EndPoint.{x}.ProfileReference profile InternetGatewayDevice.WiFi.EndPoint.{x}.Status Profile status InternetGatewayDevice.WiFi.EndPoint.{x}.Enable true, false https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 53 At the bottom of the web UI is a debug pane that can be used to view system logs on the gateway. Click the arrow buttons to expand or collapse the debug pane. To start or stop debug log polling, click Auto Update Logs. Figure 56: Debug info https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 54 At this time the Bluetooth and Bluetooth Low Energy functionality onboard the RG1xx Gateway is not enabled. Please visit the RG1xx page on Lairdconnect.com for more information: https://www.lairdconnect.com/wireless- modules/lorawan-solutions/sentrius-rg1xx-lora-enabled-gateway-wi-fi-bluetooth-ethernet https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 55 LoRa and Wi-Fi antennas Power supply module CAT6 Ethernet module Moulded plastic cover 250 mm Figure 58: Top of the IP67 Rated Sentrius™ RG1xx Gateway https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 56 Figure 60: Side panel of the IP67 Rated Sentrius™ RG1xx Gateway (Current Generation) CAT6 Ethernet module Plastic gore ventilation plug https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 57 Laird 001-0012 IP67-rated Type Dipole Connector RP-SMA Antenna Gain 2.0 dBi (2.4–2.5 GHz), 2.0 dBi (4.9–5.875 GHz) LoRa Antenna Laird 001-0029 IP67-rated (863–870 MHz) used with RG186 Model Laird 001-0011 IP67-rated (902–928 MHz) used with RG191 Type Dipole Connector RP-SMA 2.0 dBi (863–870 MHz) used with RG186...
  • Page 58 Figure 61: LED displays with User button (#6 from Figure Reference Description Power Ethernet Wi-Fi User Note: All LEDs are green. Figure 62: Six LED display (#7 from Figure https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2021 Laird Connectivity Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 59 Figure 63: Side panel of the IP67 Rated Sentrius™ RG1xx Gateway (Revision 1 & 2) CAT6 Ethernet module Plastic gore ventilation plug Figure 64: Power cable (left) and Ethernet (right) assembly components https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/lorawan-solutions/sentrius-rg1xx-lora- © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 enabled-gateway-wi-fi-ethernet Hong Kong: +852 2923 0610...
  • Page 60 (Figure 67). Fit the lock (vi) and o-ring (ix) onto the housing (vii) (Figure 67). Figure 67: Steps 3 and 4 https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/lorawan-solutions/sentrius-rg1xx-lora- © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 enabled-gateway-wi-fi-ethernet Hong Kong: +852 2923 0610...
  • Page 61 4” hose clamps – 2 M5x1.0x10.0 mm, stainless steel screws with washers (optional) – 4 Figure 70: Wall Mount Figure 71: Wall mount dimensions https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/lorawan-solutions/sentrius-rg1xx-lora- © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 enabled-gateway-wi-fi-ethernet Hong Kong: +852 2923 0610...
  • Page 62 Figure 73: Pole mount (pole diameter range ~34 mm – 90 Figure 74: Pole mount dimensions https://connectivity.lairdtech.com/wireless-modules/lorawan- America: +1 919 597 7300 solutions/sentrius-rg1xx-lora-enabled-gateway-wi-fi-bluetooth- Europe: +46 31 420530 ethernet © Copyright 2020-2021 Laird. All Rights Reserved Asia: +86 755 2714 1166...
  • Page 63 The following sections (FCC, ISED Canada, European Union, and others) outline the information that may be included in the user’s guide and external labels. The RG191 contains the RG191-M2 and the WB50NBT from Laird Connectivity Model...
  • Page 64 RG191+LTE Regulatory Information document which is also available from the RG191+LTE product page. The RG191+LTE contains the RG191-M2, the WB50NBT from Laird, and the Quectel Wireless Solutions EG91-NA. It holds current certifications in the following countries: Model US/FCC CANADA/IC RG191+LTE...
  • Page 65 This device complies with part 15 of the FCC rules operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The RG191 contains the RG191-M2 and the WB50NBT from Laird. Model CANADA/ISED...
  • Page 66 2 dBi antenna. The OEM can operate the RG186 module with any other type of antenna but must ensure that the gain does not exceed 2 dBi to maintain the Laird approval. The OEM should consult with a qualified test house before entering their device into an EU member country to make sure all regulatory requirements have been met for their complete device.
  • Page 67 Šiuo [gamintojo pavadinimas] deklaruoja, kad šis [įrangos tipas] atitinka esminius reikalavimus ir kitas Lietuvių kalba [Lithuanian] 2014/53/ES Direktyvos nuostatas. https://connectivity.lairdtech.com/wireless-modules/lorawan- America: +1 919 597 7300 solutions/sentrius-rg1xx-lora-enabled-gateway-wi-fi-bluetooth- Europe: +46 31 420530 ethernet © Copyright 2020-2021 Laird. All Rights Reserved Asia: +86 755 2714 1166...
  • Page 68: Română [Romanian]

    Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga Svenska [Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 2014/53/EU. https://connectivity.lairdtech.com/wireless-modules/lorawan- America: +1 919 597 7300 solutions/sentrius-rg1xx-lora-enabled-gateway-wi-fi-bluetooth- Europe: +46 31 420530 ethernet © Copyright 2020-2021 Laird. All Rights Reserved Asia: +86 755 2714 1166...
  • Page 69 EN 301 893-v2.1.1 (2017-05) Declaration: We, Laird Connectivity, declare under our sole responsibility that the essential radio test suites have been carried out and that the above product to which this declaration relates is in conformity with all the applicable essential requirements of Article 3 of the EU Radio Equipment Directive 2014/53/EU, when used for its intended purpose.
  • Page 70 Figure 75: TRA Label Information (Standard GW – Left, AS923 & AU915 Region Supported/Latest Revision – Right https://connectivity.lairdtech.com/wireless-modules/lorawan- America: +1 919 597 7300 solutions/sentrius-rg1xx-lora-enabled-gateway-wi-fi-bluetooth- Europe: +46 31 420530 ethernet © Copyright 2020-2021 Laird. All Rights Reserved Asia: +86 755 2714 1166...
  • Page 71 The RG191 is the base for all current country variants: Figure 77: RG191 Region Supported Label Figure 78: RG191+LTE Supported Label https://connectivity.lairdtech.com/wireless-modules/lorawan- America: +1 919 597 7300 solutions/sentrius-rg1xx-lora-enabled-gateway-wi-fi-bluetooth- Europe: +46 31 420530 ethernet © Copyright 2020-2021 Laird. All Rights Reserved Asia: +86 755 2714 1166...
  • Page 72 Figure 80: New Zealand 923MHz Region Supported Label Figure 81: Hong Kong 923MHz Region Supported Label https://connectivity.lairdtech.com/wireless-modules/lorawan- America: +1 919 597 7300 solutions/sentrius-rg1xx-lora-enabled-gateway-wi-fi-bluetooth- Europe: +46 31 420530 ethernet © Copyright 2020-2021 Laird. All Rights Reserved Asia: +86 755 2714 1166...
  • Page 73 Figure 82: Australia 915 or 923MHz Region Supported Label (Frequency changes depending on setting) Figure 83: Singapore 923MHz Region Supported Label https://connectivity.lairdtech.com/wireless-modules/lorawan- America: +1 919 597 7300 solutions/sentrius-rg1xx-lora-enabled-gateway-wi-fi-bluetooth- Europe: +46 31 420530 ethernet © Copyright 2020-2021 Laird. All Rights Reserved Asia: +86 755 2714 1166...
