Laird Sentrius RG1 Series Quick Start Manual

Hide thumbs Also See for Sentrius RG1 Series:

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Start Manual
A
Version 3.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sentrius RG1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Laird Sentrius RG1 Series

Summary of Contents for Laird Sentrius RG1 Series

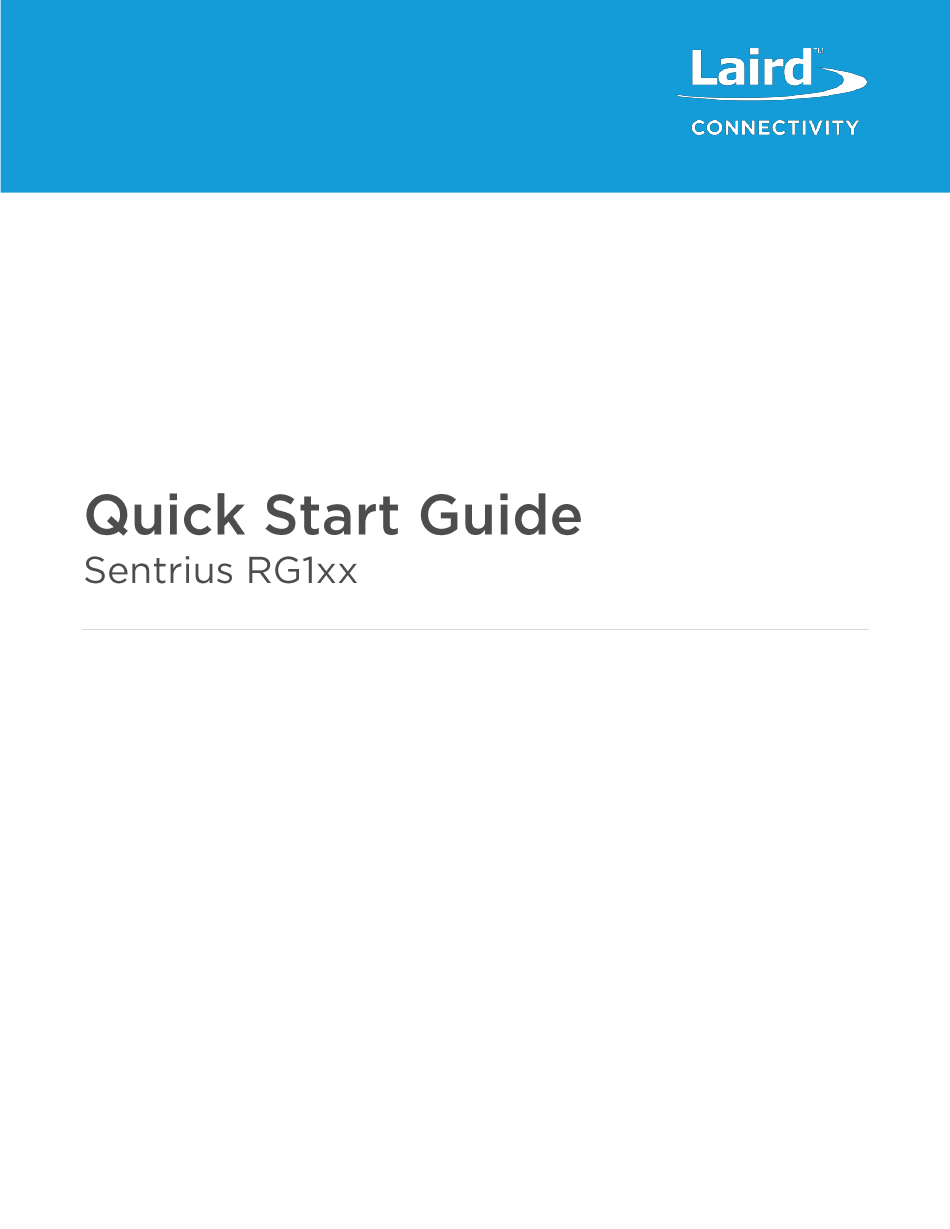

  • Page 1 Version 3.0...
  • Page 2 Version Date Notes Contributor(s) Approver 20 July 2017 Initial Release Jonathan Kaye 28 July 2017 Minor fixes Dave Drogowski Clarified web interface URL in section 3 Aug 2017 into the Gateway. Identified separate mDNS Shewan Yitayew address. Update info for compatibility with GA2 29 Nov 2017 Ryan Erickson (93.7.2.x) firmware.
  • Page 3 Overview ..................................... 4 Product Overview ............................... 4 Connect the Hardware ................................. 5 Connect the Gateway ..............................5 2.1.1 Antenna Configuration ............................5 2.1.2 Wi-Fi Quick Config..............................6 Log into the Gateway ................................6 Connecting the Gateway to the Internet ..........................8 Setting Up Ethernet ..............................
  • Page 4 Gateway The Sentrius™ RG1xx LoRa-Enabled Gateway from Laird is the ultimate in secure, scalable, robust LoRa solutions for end-to-end control of your private LoRaWAN network. Leveraging Laird’s field-proven and reliable 50 Series “Wireless Bridge” certified module, it also offers enterprise dual-band Wi-Fi, BT v4.0 (BLE and Classic) and wired Ethernet for complete design...
  • Page 5 To use the gateway, you must power up the gateway and access the web interface via the Ethernet port. To do this, complete the following steps: Follow the label on the box and connect the three antennas. Refer to Antenna Configuration for additional information.
  • Page 6 The gateway includes a mode to allow you to configure without ethernet access, in the case that you wish to join a wireless network. Apply power to the gateway and allow to start, then perform the following: Depress and hold the user button (see #2 in Figure 2) for 7 seconds. From a wirelessly enabled device perform a scan.
  • Page 7 Figure 6: Web interface – second screen Log on using the following default credentials (Figure Username: sentrius Password: RG1xx Figure 7: Gateway interface login screen https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/ramp-ism-modules Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 8 By default, the Ethernet port is set up for DHCP addressing. Connect the Ethernet cable to a network with internet access. If more advanced Ethernet configuration is needed, please see the Sentrius RG1xx User Manual in the documentation tab of the RG1xx product page at https://www.lairdconnect.com/wireless-modules/lorawan-solutions/sentrius-rg1xx-lora-enabled- gateway-wi-fi-ethernet...
  • Page 9 In the dropdown labeled Select Preset, select the preset for The Things Network Legacy (TTN). Click Apply. Figure 11: LoRa page – TTN preset Note: In addition to the TTN, Laird currently supports presets for other LoRa network servers. https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/ramp-ism-modules...
  • Page 10 Figure 12: LoRa presets Note: If operating with a network server that is not available as a preset, you may also manually configure the forwarder in the Forwarder page, available in the left menu. More information on this is available in the RG1xx User Guide, available in the documentation tab of the RG1xx product page at lhttps://www.lairdconnect.com/wireless-modules/lorawan-solutions/sentrius-rg1xx-lora-enabled-gateway-wi-fi- ethernet...
  • Page 11 To set up your account with The Things Network, follow these steps: Go to https://www.thethingsnetwork.org/. Create an account or log in to your existing account (Figure 13). Figure 13: TTN login page Click Console. Register your gateway: From the console screen, click Gateways (Figure 14).
  • Page 12 Click register gateway (Figure 15). Figure 15: Click register gateway. Obtain the gateway ID from the Sentrius RG1xx web interface (Figure 16) or from the bottom label (Figure 17) on the Gateway. Figure 16: Gateway ID Figure 17: Gateway label (Standard GW – Left, AS923 Region Supported/Latest Version – Right) Select the preset “The Things Network Legacy –...
  • Page 13 Figure 18: Gateway registration Click Register Gateway. Note: Be sure to select a frequency plan appropriate for the region your device was purchased for. Once the gateway is registered, and if the gateway is communicating to The Things network, the status should display as connected (Figure 19).
  • Page 14 Figure 19: Registered gateway To create an application that can receive data from your LoRa-enabled gateway, complete the following steps: At The Things Network’s website, click Applications in the top right of the menu. Click Add Application Complete the field as shown in Figure 20.
  • Page 15 To register your end-device as the device that will send data to TTN, follow these steps: From the applications screen, select the application that you added in the previous section. Click register device (Figure 21). Figure 21: Application screen https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/ramp-ism-modules Europe: +44-1628-858-940...
  • Page 16 Choose and enter a Device ID and an eight-byte Device EUI (Figure 22). Figure 22: Enter a Device EUI Click Register. Make note of the Device EUI, Application EUI, and the App Key. These keys are needed later to set up the DVK- RM1xx (Figure 23).
  • Page 17 To set up the DVK-RM1xx to send data to the cloud, follow these steps: Connect the DVK-RM1xx to a PC via the USB connector on the board (Figure 24). Figure 24: Connect the DVK-RM1xx to the PC Download UwTerminalX (version 1.06) from the following site: https://github.com/LairdCP/UwTerminalX/releases/tag/v1.06 Download RM1xx-defs.h and lora.app.us.sb (or lora.app.eu.sb) from https://github.com/LairdCP/RM1xx-Applications.
  • Page 18 Click OK (Figure 26). Figure 26: Select the applicable virtual COM port Press Enter on the keyboard. The module should respond with 00. Type at&f* to completely reset the module and clear the program flash. Figure 27: Type at&f* Load the lora.app.us (or lora.app.eu.sb) script by right-clicking in the window, clicking Xcompile + Load, and then selecting lora.app.us or lora.app.eu.sb (Figure 28 Figure...
  • Page 19 Figure 28: Right-click and select XCompile+Load Figure 29: File downloaded https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/ramp-ism-modules Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 20 The command at+dir provides the content of the flash file system, which shows the loaded LoRa app (Figure 30). Figure 30: Loaded LoRa app Right-click the Terminal window and select Automation. The automation window appears (Figure Figure 31: Automation window Enter the security data to configure the module.
  • Page 21 Enter the commands as shown in Figure Figure 32: TTN website data entered https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/ramp-ism-modules Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 22 Send the commands to the module by clicking Send next to each command. Figure 33: Commands sent Run the LoRa app by typing lora into UwTerminalX and pressing Enter. The module should join the network (Figure 34). Figure 34: Run the LoRa app https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/ramp-ism-modules...
  • Page 23 To view DVK-RM1xx data in the cloud, do the following: Navigate to the device page on the TTN website; the device should display as connected (Figure 35). Figure 35: TTN device page https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/ramp-ism-modules Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 24 Click on the Data tab to view the data sent by the RM1xx (Figure 36). Figure 36: RM1xx data https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/ramp-ism-modules Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
