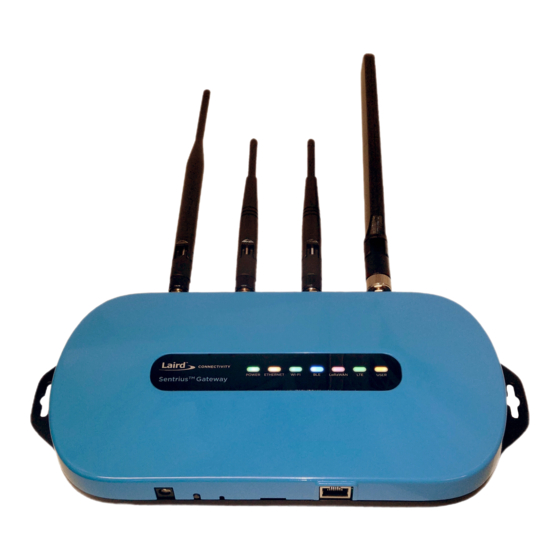

Summary of Contents for Laird Sentrius RG191+LTE

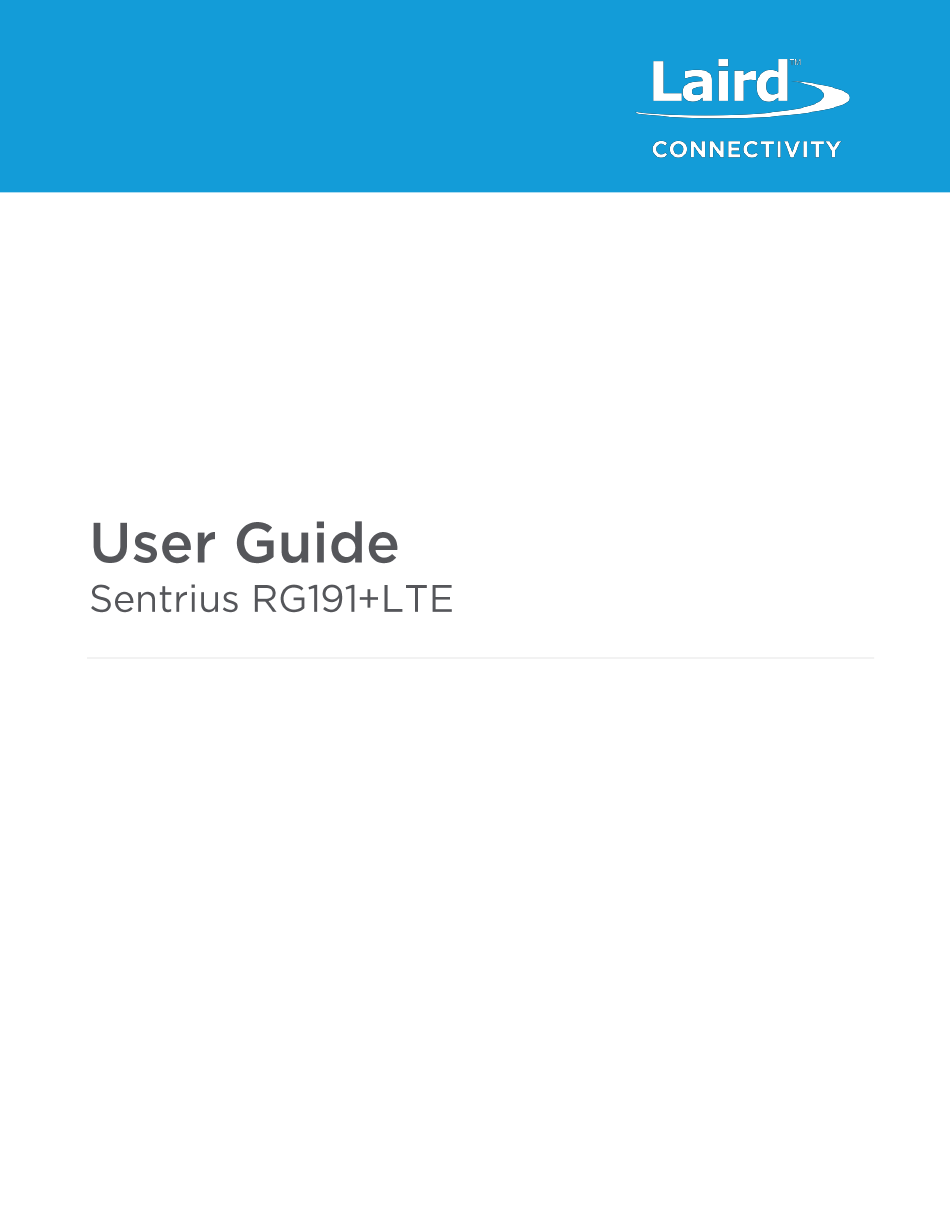

  • Page 1 Version 2.0...
  • Page 2 Addition of section 5.3 Adam Ruehl Chris Boorman Moved detailed regulatory information to a 16 Feb 2021 Sue White Jonathan Kaye separate document http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 3 10.5 Mounting Hardware ..............................53 Regulatory ..................................55 LTE Network Certification ..............................55 12.1 PTCRB Certification ..............................55 Labels ....................................56 http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 4 Based on the Semtech SX1301/SX1257 chipset designs, it offers a LoRa range up to ten miles and pre-loaded LoRa Packet Forwarder software options, perfect for highly scalable, flexible IoT networks. The Sentrius RG191+LTE Gateway works with Laird’s Sentrius RM1xx / RS1xx Series LoRa+BLE certified modules / sensors for simple out-of-the-box integration and is compatible with third-party cloud and LoRa partners, as well as any LoRaWAN-certified client devices.
  • Page 5 -91 dBm 54 Mbps -74 dBm (PER <= 10%) 802.11n (2.4 GHz) 6.5 Mbps (MCS0) -91 dBm 65 Mbps (MCS7) -71 dBm http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 6 FCC – Contains FCC ID: SQG-RG191NALTE IC – Contains IC ID: 3147A-RG191NALTE Wi-Fi Antenna Model Laird MAF94051 Type Dipole Connector RP-SMA http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 7 Specification Antenna Gain 2.1 dBi (2.4-2.5 GHz), 2.4 dBi (4.9 GHz) 2.6 dBi (5.25 GHz), 3.4 dBi (5.875 GHz) LoRa Antenna Model Laird 001-0002 (902-928 MHz) used with RG191+LTE Type Dipole Connector RP-SMA Antenna Gain 2.0 dBi (902-928 MHz) used with RG191...
  • Page 8 Alternatively use the Wi-Fi Quick Config mechanism. Refer to Wi-Fi Quick Configuration for additional information. Your gateway is now connected and ready. Figure 3: Connecting the gateway http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 9 Note: The RF cables are connected to the modules and glued in position. If the antennas are installed, remove the antennas before moving the top enclosure in position for the indoor (non-IP67) gateway. http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 10 Figure 7: SIM Install (Right: Picture of SIM card contact side) Note: To remove the SIM card, push the card out from Red Arrow side and remove SIM. http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 11 The password can be changed on the Wi-Fi > Advanced web page. Upon logout or client disassociation, Wi-Fi Quick Config shuts down and normal operation resumes. http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 12 IP address at https://192.168.1.1 Accept the self-signed security certificate in the browser. Click Advanced (Figure Figure 9: Web interface – first screen http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 13 After logging in, the program warns you to change the default credentials for security reasons (Figure 12). Figure 12: Change the default credentials http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 14 Cellular modem. Note: By default, the Cellular modem within the gateway is disabled!! Figure 14: Enable/Disable Cellular Button http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 15 Wait a few seconds and try it again by refreshing the page. If all fields show N/A, please make sure that the Cellular modem is turned on and installed properly. http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 16 Apply your settings by clicking on the Save Configuration button and reboot the gateway when requested. http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 17 Your Alternative DNS Server 1 IP and Alternative DNS Server 2 will be only used when there is no Ethernet and Wi-Fi connection available / configured. http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 18 2017, IPv6 static mode is only partially supported. Please see the software release notes for current information. Figure 18: IPv6 Configuration page http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 19 In the sidebar on the left, you can navigate to various Wi-Fi pages and see the status of the Wi-Fi interface. There is also a button to enable/disable the Wi-Fi radio. http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 20 In the Wi-Fi profile window, enter the appropriate credential information for your chosen Wi-Fi network (Figure 22). Figure 22: Wi-Fi profile window http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 21 Click + Profile to display the Wi-Fi profile dialog (Figure 24). Figure 24: Wi-Fi profile dialog Enter the appropriate information for the new profile. Click Add. http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 22 Be sure that the gateway you are operating matches the region in which you are operating it. Figure 26: LoRa connection setup page http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 23 After applying a preset, further changes can be made on the other screens. Some presets use a custom forwarder and may not be modified. Figure 28: Selecting a preset configuration http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 24 Certificate. This clears out all three files at once for the server. The text box indicates which files are already present. http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 25 In the Dashboard view, the status is shown with a circle that will be green when connected and black when disconnected. Figure 32: Dashboard view http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 26 At the top of the Radios page is a graphic representation of the full bandwidth range, channels, and radios. This graphic is different for gateways operating in US mode and EU mode. Figure 34: Channel plan graphic http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 27 The interface displays a warning and marks each channel in red if they overlap (Figure 37). Channel configuration is shown in Figure Figure 36: Channels window http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 28 If a 500-kHz channel is not configured, the interface displays a warning. Figure 38: US region gateways http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 29 The user must take care to set the appropriate credentials when restoring the saved configuration to a gateway. Figure 40: Current configuration file http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 30 Figure 41: LoRa traffic Clicking on a traffic row displays packet details. Figure 42: LoRa packet details http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 31 When polling LoRa traffic, the time is set to the maximum of 60 minutes. When polling is stopped, the time out is set back to the saved setting. Figure 44: Change web session time out http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 32 The Cellular > Status page shows detailed software/firmware information of the cellular modem in the gateway. The Firmware Revision string is the firmware version for the modem software package. Figure 46: Modem Version information http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 33 Click the tab in the main menu. Then click Update Firmware in the left menu. Use a valid Firmware Update URL provide by Laird Connectivity, once an update is available it will be defined within this user guide.
  • Page 34 Click Reboot. The gateway must be rebooted for the update to take effect (Figure 49). Figure 49: Reboot prompt This is the initial production release firmware. https://connectivity-firmware.s3.amazonaws.com/rg1xx-lora-gateway/firmware/93.9.5.7/fw.txt http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 35 Modem firmware updates should only be performed when something is not working, you are facing connection problems, or you have been instructed to do so by the Laird Connectivity support team. Before starting, please make sure that the Cellular Modem is turned on and you have restarted the Gateway.
  • Page 36 Not for connections initiated by the ACS. The parameter key is optional. Press the update button when all parameters are correctly entered. Figure 52: Save/Restore settings http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 37 A remote user would then poll for InternetGatewayDevice.Laird.GatewayManagement.Versions.FirmwareUpdateStatus to be set to “1” indicating that the firmware was successfully downloaded and is ready to reboot to switch to the new firmware. The system administrator would then issue the TR-069 “Reboot”...
  • Page 38 Username used by some InternetGatewayDevice.Laird.ActiveProfileSettings.Username A string representing the username authentication methods Password used by some InternetGatewayDevice.Laird.ActiveProfileSettings.Password A string representing the password authentication methods http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 39 The URL of the server. Semtech UDP packet forwarder. This is the port used by the InternetGatewayDevice.Laird.LORASettings.STPortUp A 2-4 digit port number. Semtech packet forwarder http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 40 IP mode (DHCP or static) InternetGatewayDevice.Laird.LANSettings.IPv6 IPv6 settings InternetGatewayDevice.Laird.LANSettings.IPv6.DeviceAddr IPv6 address InternetGatewayDevice.Laird.LANSettings.IPv6.Mask IPv6 net mask InternetGatewayDevice.Laird.LANSettings.IPv6.IPMethod IPv6 mode InternetGatewayDevice.Laird.LANSettings.IPv6.AutoDHCPMethod IPv6 auto DHCP mode http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 41 WEP type for the selected Wi-Fi profile cckm-tkip, cckm-aes, wpa- psk-aes, wpa-aes InternetGatewayDevice.Laird.SavedProfileSettings.Mode Selected Wi-Fi profile mode InternetGatewayDevice.Laird.SavedProfileSettings.Powersave Displays the enabled power save mode off,max,fast http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 42 URL used by the URL for the gateway to initiate a gateway to initiate a InternetGatewayDevice.ManagementServer.URL connection with the ACS connection with the http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 43 InternetGatewayDevice.IPPingDiagnostics.DiagnosticsState Diagnostic data for the IP connections InternetGatewayDevice.IPPingDiagnostics.Host Diagnostic data for the IP connections InternetGatewayDevice.IPPingDiagnostics.NumberOfRepetitions Diagnostic data for the IP connections http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 44 Whether/not the channel is in use InternetGatewayDevice.WiFi.Radio.{x}.Channel Indicates the applicable channel InternetGatewayDevice.WiFi.Radio.{x}.AutoChannelSupported Whether/not auto channel is supported InternetGatewayDevice.WiFi.Radio.{x}.OperatingStandards Supported Wi-Fi modes InternetGatewayDevice.WiFi.SSID SSID node InternetGatewayDevice.WiFi.SSID.{x} http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 45 A string InternetGatewayDevice.WiFi.EndPoint.{x}.Profiles.{y}.Security.UserCertPassw representing Certificate password the certificate path. A string InternetGatewayDevice.WiFi.EndPoint.{x}.Profiles.{y}.Security.PACName PAC file name representing the PAC name. http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 46 IPv4 Settings for the particular IP InternetGatewayDevice.IP.Interface.{x}.IPv4Address interface. InternetGatewayDevice.IP.Interface.{x}.IPv4Address.{y} InternetGatewayDevice.IP.Interface.{x}.IPv4Address.{y}.SubnetMask The subnet mask. InternetGatewayDevice.IP.Interface.{x}.IPv4Address.{y}.Enable Is this interface enabled. InternetGatewayDevice.IP.Interface.{x}.IPv4Address.{y}.AddressingType The addressing type. http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 47 For the latest version of this manual, regulatory information and firmware release notes, please see the Documentation tab on the Laird Connectivity website: https://www.lairdconnect.com/wireless-modules/lorawan-solutions/sentrius-RG191+LTE-lora- enabled-gateway-wi-fi-bluetooth-ethernet http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 48 Figure 56: Side panel of the IP67 Rated Sentrius™ RG191+LTE Gateway (Current CAT6 Ethernet module Generation) Plastic gore ventilation plug http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 49 ▪ External enclosure housing for Main Enclosure IP67 Rated Gateway PCB ▪ Molded plastic cover ▪ Anti-corrosive ▪ Die Cast Alloy Frame (AI-Si-Mg) Warranty One-year warranty http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 50 Figure 57: LED displays with User button (#6 from Figure Reference Description Power Ethernet Wi-Fi User Note: All LEDs are green. Figure 58: Six LED display (#7 from Figure http://www.lairdconnect.com Americas: +1-800-492-2320 © Copyright 2020 Laird Connectivity, Inc.. Europe: +44-1628-858-940 All Rights Reserved Hong Kong: +852 2923 0610...
  • Page 51 Figure 59: Side panel of the IP67 Rated Sentrius™ RG191+LTE Gateway (Revision 1 & 2) Plastic gore ventilation plug Figure 60: Power cable (left) and Ethernet (right) assembly components https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/lorawan-solutions/sentrius-RG191+LTE- © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 lora-enabled-gateway-wi-fi-ethernet Hong Kong: +852 2923 0610...
  • Page 52 (Figure 63). Fit the lock (vi) and o-ring (ix) onto the housing (vii) (Figure 63). Figure 63: Steps 3 and 4 https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/lorawan-solutions/sentrius-RG191+LTE- © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 lora-enabled-gateway-wi-fi-ethernet Hong Kong: +852 2923 0610...
  • Page 53 4” hose clamps – 2 M5x1.0x10.0 mm, stainless steel screws with washers (optional) – 4 Figure 66: Wall Mount Figure 67: Wall mount dimensions https://www.lairdconnect.com/wireless- Americas: +1-800-492-2320 modules/lorawan-solutions/sentrius-RG191+LTE- © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 lora-enabled-gateway-wi-fi-ethernet Hong Kong: +852 2923 0610...
  • Page 54 Figure 69: Pole mount (pole diameter range ~34 mm – 90 Figure 70: Pole mount dimensions https://connectivity.lairdtech.com/wireless- America: +1 919 597 7300 modules/lorawan-solutions/sentrius-RG191+LTE-lora- © Copyright 2020 Laird Connectivity, Inc. Europe: +46 31 420530 enabled-gateway-wi-fi-bluetooth-ethernet All Rights Reserved Asia: +86 755 2714 1166...
  • Page 55 RG191+LTE Regulatory Information document which is also available from the RG191+LTE product page. The RG191+LTE contains the RG191-M2, the WB50NBT from Laird, and the Quectel Wireless Solutions EG91-NA. It holds current certifications in the following countries: Model US/FCC CANADA/IC RG191+LTE...
  • Page 56 Figure 71: RG191+LTE Region Supported Label https://connectivity.lairdtech.com/wireless- America: +1 919 597 7300 modules/lorawan-solutions/sentrius-RG191+LTE-lora- © Copyright 2020 Laird Connectivity, Inc. Europe: +46 31 420530 enabled-gateway-wi-fi-bluetooth-ethernet All Rights Reserved Asia: +86 755 2714 1166...
