Summary of Contents for IKEA KOLSTAN 605.594.67

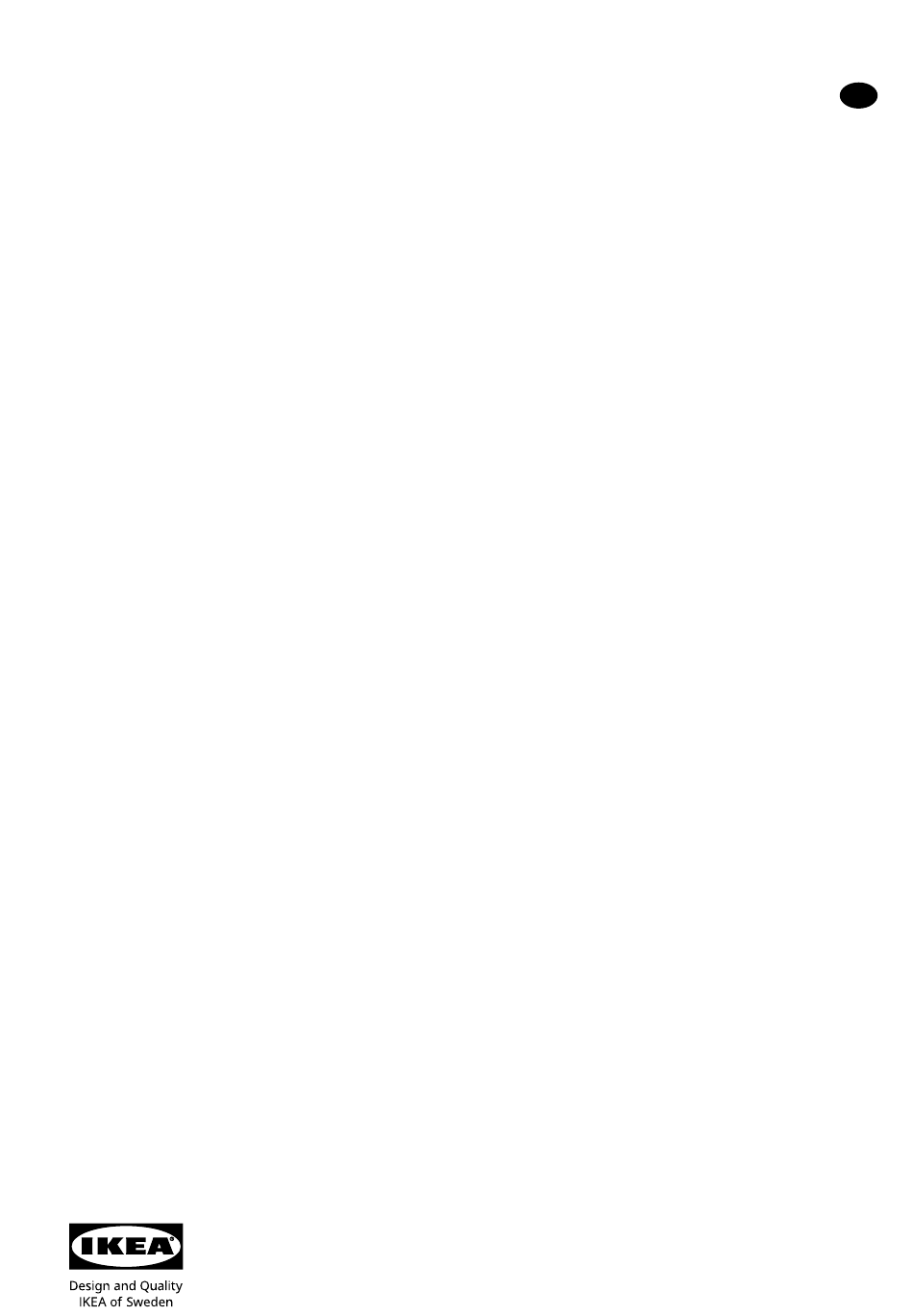

  • Page 1 KOLSTAN...
  • Page 3 ENGLISH Please refer to the last page of this manual for the full list of IKEA appointed Authorized Service Centre and relative national phone number...

  • Page 4: Safety Information

    Control panel Rating plate Power limitation Environmental aspects Functions IKEA GUARANTEE Cooking Table Safety information For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties.
  • Page 5 ENGLISH WARNING: Failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks. • Cleaning and maintenance must not be carried out by children, unless they are under the supervision of an adult. •...
  • Page 6 ENGLISH • Keep the packing material away from children and animals. • Make sure the device is connected directly to the power outlet. • Do not use adapters, multiple sockets or extension cables to connect the device. • Never use the appliance for purposes other than those for which it has been designed.

  • Page 7: Installation

    ENGLISH Installation Installation process must follow the laws, ordinances, directives and standards (electrical safety rules and regulations, proper recycling in accordance with the regulations, etc.) in force in the country of use! • For further information on the installation refer to the Assembly Instruction.

  • Page 8: Electrical Connection

    Warning strips show that specialist should do the connecting water, gas and electricity: • Check that the domestic power supply characteristics (voltage, parts cables. Contact the call center of your IKEA store. maximum power and current) are compatible with those of the appliance.
  • Page 9 ENGLISH Connection diagram product side Insert the shunts between the screws as shown. ENGLISH Connection diagram product side Insert the shunts between the screws as ENGLISH illustrated Connection diagram product side Insert the shunts between the screws as illustrated Brown Black Blue Yellow / Green...

  • Page 10: Product Description

    ENGLISH Product description Single cooking area (200 mm) 2300W, with Booster 3000W. Single cooking area (145 mm) 1400W, with Booster 1850W. Single cooking area (210 x 190 mm) 2100W, with Booster 3000W. Single cooking area (210 x 190 mm) 2100W, with Booster 3000W. Control panel Bridge cooking area (210 x 380 mm) 3000W, with Booster 3700W.

  • Page 11: Control Panel

    ENGLISH Control panel On/Off Power level indicator Timer symbol Timer control and cooking time indicator Melting function button Lock function button Pause function button Scroll keypad The cooking areas can be activated by pressing the reference digit . The digit lights up more intensely to confirm the ope- ration.

  • Page 12: Power Limitation

    ENGLISH Power limitation When first connecting to the domestic power supply, the installer must set the power of the hob cooking areas based on the actual abilities and capacity of the power supply itself. If this is not necessary, the hob can be turned on directly using , otherwise, follow the operations below to access the menu.
  • Page 13 ENGLISH Functions This function prevents an accidental operation of the appliance. To activate: If the pot is placed, press and hold for 3 seconds the correspondent digit. If the pot is not placed press and hold for 3 seconds one of the 4 digits (not visible) near the dot on the left side. Release and slide your finger from 0 to 9 along the power bar which shows the operating sequence.

  • Page 14: Cooking Table

    ENGLISH To activate: select one of the 4 cooking areas and press The digit for the selected area will show Melting To deactivate: press or press This function is used to heat up a pan at maximum power before continuing to cook at a selected level. The period of time the cooking area will remain at maximum power depends on the final cooking level that is set.

  • Page 15: Power Management

    ENGLISH Power Management This product is equipped with electronically controlled Power Management. See the illustration. This function monitors electric loading and limits the maximum power output to 3700 W for each cooking area group (1+2 and 3+4), optimizing the power distribution and preventing the system from overloading. Hob in full power setting - the function divides the power between cooking areas belonging to the same group and automatically decreases the power of the other cooking area, if necessary (the last command has highest priority).

  • Page 16: Care And Cleaning

    ENGLISH not impair the function or life of the appliance. The noise Loud whistling depends on the cookware used. If it causes considerable This noise occurs with cookware comprised of different disturbance, it may help to change the cookware. materials layered one upon the other, and when they are additionally used at maximum output and also on two Normal operating noises of the induction hob cooking zones.
  • Page 17 If the problem cannot be If you operated the appliance wrongly, or the installation resolved, contact your IKEA store or the After Sales Service. was not carried out by an authorized installer, the visit from You can find a full list of IKEA appointed the After Sales Service technician or dealer may not take contacts at the end of this user manual.
  • Page 18 ENGLISH Hob technical data Unit Value Type of product Built-in Hob Width Dimensions Depth Min./max height Total power 7400 Parameter Value 220-240 V, 50 Hz; 220 V, 60 Hz Power supply voltage/frequency 2N~ 380-415 V, 50 Hz; 2N~ 380 V, 60 Hz; Weight of the appliance 8,8 Kg Energy efficiency of hob...

  • Page 19: Rating Plate

    SE - 34381 Älmhult 23199 23199 Made in Italy Made in Italy Design and Quality Design and Quality © Inter IKEA Systems B.V.2019 © Inter IKEA Systems B.V.2019 IKEA of Sweden IKEA of Sweden Model: KOLSTAN 605.594.67 Model: KOLSTAN 905.594.61 Serial No: Serial No: 220-240V;...

  • Page 20: Environmental Aspects

    This guarantee is valid for five years from the original date of pur- purposes only and this guarantee does not cover damage arising chase of your appliance at IKEA Pty Ltd, ABN 84 006 270 757, and from use of the Product in a commercial environment.
  • Page 21 • Repairs caused by installation which is faulty or not according to specification. • The use of the appliance in a non-domestic environment i.e. The IKEA after sales customer service centre will assist you on the professional use. phone with basic trouble shooting for your appliance at the time •...
  • Page 22 ENGLISH Country name in local languages Telephone number Opening times (02) (02) 90100264 Australia New Zealand www.ikea.com...
  • Page 24 23199 AA-2368030-2 © Inter IKEA Systems B.V. 2023...

This manual is also suitable for:

Kolstan 905.594.61
