HWM DXmic User Manual page 14

NOTE: If you use other headphones, the pairing mode may be different. Refer to manual for
headphones.

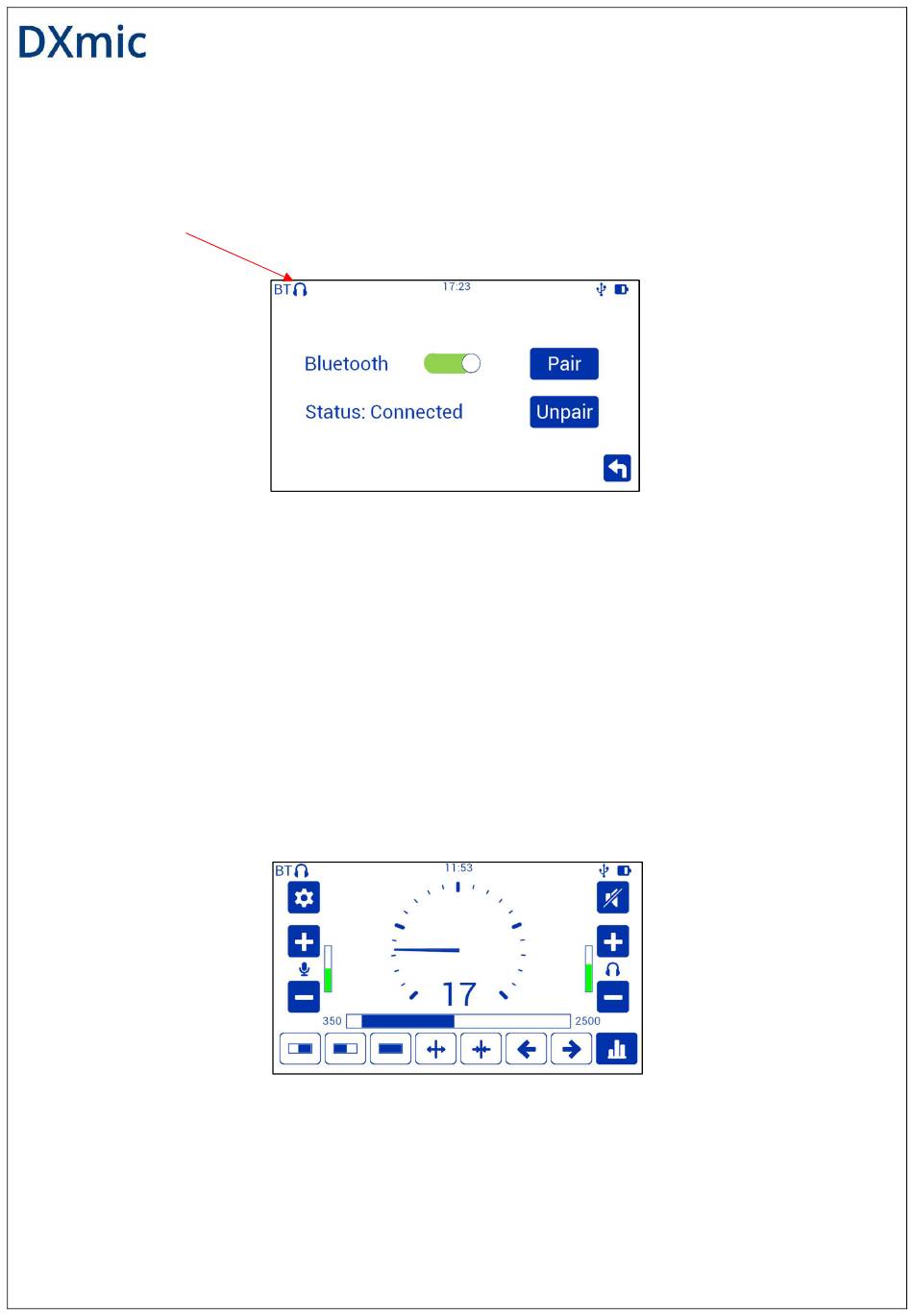

When headphones are paired, a small headphones icon will appear in the top left corner of
the display screen.
Alternatively, you can plug wired headphones into the headphone jack located under the rubber
headphone cover on top of the DXmic control unit to listen to audio. You can later temporarily
mute the headphones by pressing the 'mute' button on the main display screen. Firmly push the
rubber headphone cover back into position to protect the jack when not in use.
Gauge view
It is possible to have an alternate view of survey mode (the main display screen) as a gauge
with needle. To do this, tap the graph in the centre of the screen and the display will change.
Tap once again to change back to the graph and bar view.
Hearing Protection Feature
The DXmic has built–in functionality designed to turn off the headphones' output in case of
sudden loud noises which could damage the hearing.
ON
Page 13 of 35
