- Page 1 S1 SMART DEADBOLT S1 KEYLESS SMART DEADBOLT Quick Start Guide...
- Page 2 Two lengths provided Exterior assembly Cross bolt Bolt Cover Screws (4) Mounting plate Also includes (not shown): a) Strike plate & screws b) Reinforcement plate & screws c) 4 x AA Alkaline batteries For more information visit schlage.com.au/ease or schlage.co.nz/ease...
-
Page 3: Preparing For Installation

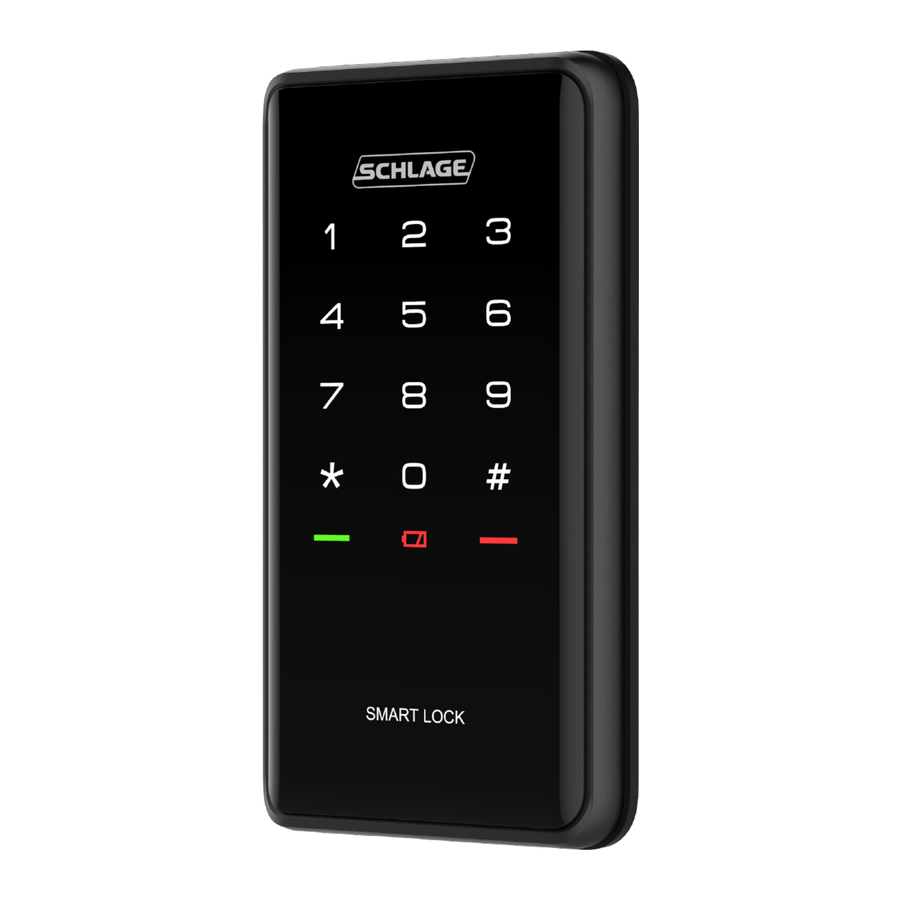

Preparing for installation Exterior assembly 1. Measure the dimension of the hole on your door to ensure you have a 54mm hole, or Status Indicators use the drilling template provided. Green: Unlocked or setting success Red: Keypad Locked or setting failed Status No adjustment needed. -
Page 4: Installation
3. Make sure the bolt is in the retracted (unlocked) position. NOTE: The bolt must be in retracted (unlocked) position before installing Ø70mm the lockset. (2-3/4”) Installation 1. Install the bolt on the door ensuring the word UP is in the upwards position. 4. - Page 5 5. Position the inside mounting plate to sit flush 7. Attach cable assembly to the interior on the door, ensuring the cable and tailpiece assembly PCB by lining up notches on go through the holes in the mounting plate. top of cable connector to slots on PCB connector.
- Page 6 9. Secure using 4 screws through the interior assembly onto the mounting plate. Keep your lock in “unlock”status, NOTE: Test operation using backup insert 4x AA key and thumb turn before installing batteries in batteries, see if bolt extends smoothly. battery pack.
- Page 7 11. Install battery cover. 12. Install reinforcement plate and strike into door jamb. reinforcement Warnings Do not install batteries until the lock is completely installed on the door. Failure to follow these instructions could result in damage to the product and void the factory warranty. The accuracy of the door preparation is critical for the functioning and security of this product.
-
Page 8: Hardware Specifications
This feature can be activated or deactivated in to factory default settings, all user credentials the Schlage Abode App or the lock itself. will be deleted. Refer to page 6 for instructions Activating away mode will disable all user codes, on how to reset your lock. -
Page 9: Lock Operation
Lock operation Enter Enter Enter Change Master PIN code # New master PIN code # New master PIN code # Press Master Wait for Wait for Success PIN Code 2 green lights and 2 beeps 2 green lights and 2 beeps 2 green lights and 2 beeps Enter Repeat... -
Page 10: Setting Pin Codes
Setting PIN codes How to use Unlock the door 1. Master PIN code (4~10 digit): Default master PIN code is “12345678”, 1. Unlock the door from outside: please modify it after installation. Master/User PIN code or key If you forget your master PIN code, you Wireless can reset your lock back to factory settings module... -
Page 11: Warranty Conditions
If unit is locked and you require emergency smartphone. battery power, located on the bottom of Ask your retailer about the Schlage Wi-Fi the external unit is a Micro USB Port (refer Bridge (AB100), sold separately. diagram on page 3). Using a micro USB cable and charged power bank, you can power the lock to regain access as required. - Page 12 For more information visit allegion.com.au/ease or allegion.co.nz/ease Australia New Zealand South East Asia 0800 477 869 +65 6488 2562 1800 098 094 nzinfo@allegion.com sea.info@allegion.com info.au@allegion.com www.allegion.com.au www.allegion.co.nz www.allegion.com...
