Schlage S-7100 User Manual

S-7100
USER MANUAL
Notice
Please read this manual before installation and
operation.

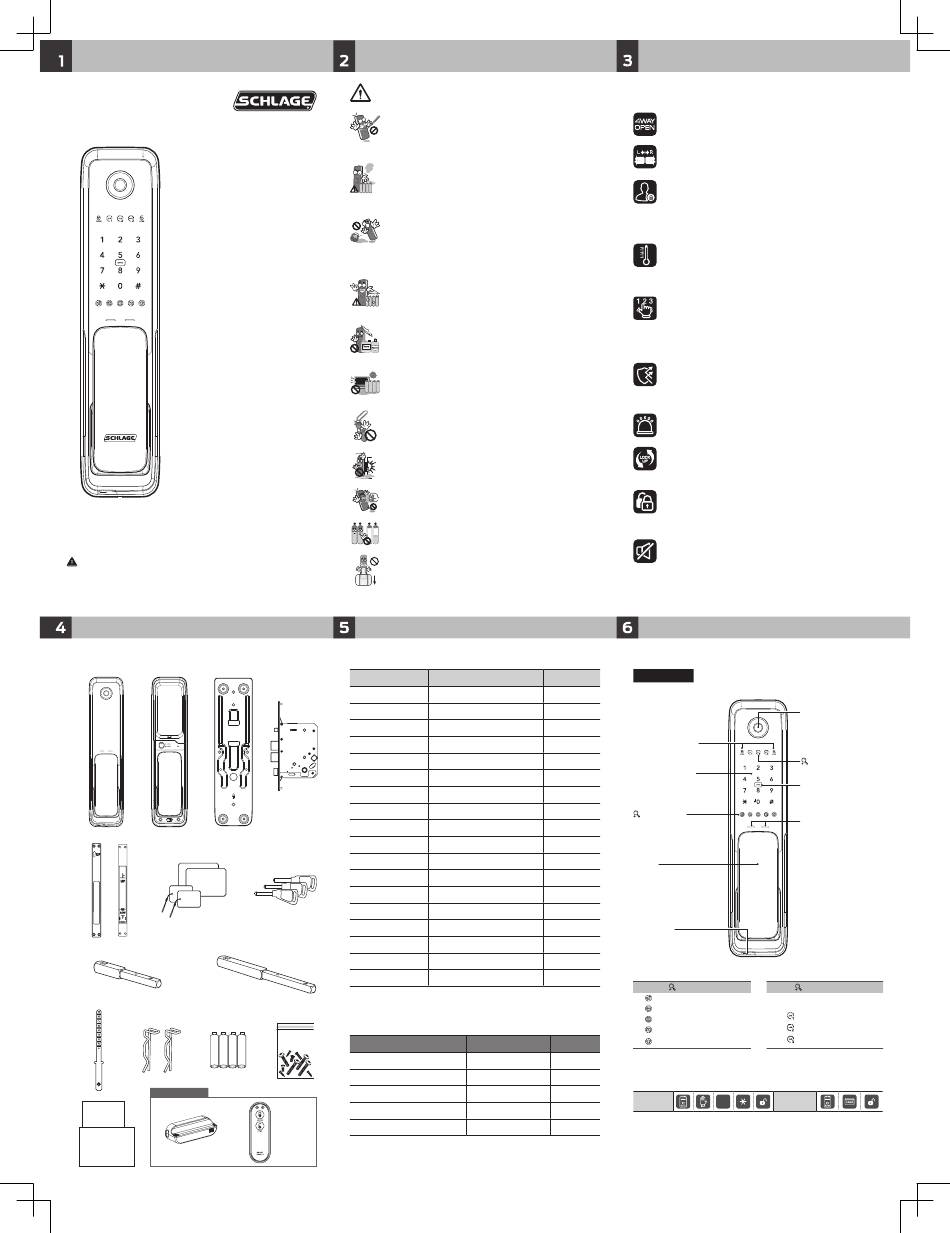

Product composition and components
① ① ② ③
⑤ ⑥ ⑦
ISO
CARD
Tag
key
⑧ ⑨
⑩ ⑪ ⑫
Optional parts
⑭ ⑯ ⑰
User
manual
⑮
Installation
template
Communication pack

Safety precautions

Do not disassemble or alter the lock. Disassembling the
door lock may damage the product. Damages to the
product caused by unauthorized persons may void the
warranty.
If the product generates harmful gases and smoke.
Please remove the batteries immediately from the
product, if you do not take this step immediately, the
product may suffer severe damage.
Please keep the product away from water or any liquids.
If the product is exposed to water or liquids, please wipe
the moisture off with a soft cloth. If moisture or foreign
materials penetrate the product, remove the batteries
immediately.
Please check the batteries every 6 months for leaks/
cleanliness. If leakage is discovered, please wipe out
with a dry cloth and replace with new batteries. In case
of exposure to leakage, wash affected skin area with
soap and water immediately.
Do not clean the product with flammable materials such
as alcohol, benzene or thinners. Such materials may
damage the surface of the lock or cause a fire.
Batteries should not be exposed directly to heat source
or submerged in water, because they may leak or
explode, resulting in severe damage. Do not use
damaged batteries.
Do not allow the battery electrodes to contact metals
such as keys, as the battery may overheat, causing
explosion or severe damage.
Please do not close the door with the deadbolt in the
locked position. It may damage the product or cause a
malfunction.
Do not force to pull the front cover. It may damage the
product or cause a malfunction.
Do not mix old and new batteries, or use different types
of batteries. The battery life is getting shorter and it may
cause leaks or explosion.
Please do not hang the heavy things or bag, etc on
the handle. It is may damage the handle or cause a
malfunction.
④
Name
① Front Ass`y 88mm(W) X 385mm(H) X 40mm(D)
② Back Ass`y 88mm(W) X 375mm(H) X 44mm(D)
③ Back bracket 81mm(W) X 319mm(H) X 8.7mm(D)
④ Mortise lock 105.4mm(W) X 240mm(H) X 24mm(D)
⑤ Strike 24mm(W) X 240mm(H) X 4.5mm(D)
⑥ Card key ISO card, Tag key
⑦ Mechanical key 3 EA
⑧ Handle shaft 70.5mm(W) X 8mm(H) X 8mm(D)
⑨ Handle shaft(M) 101.7mm(W) X 8mm(H) X 8mm(D)
⑩ Key Shaft 1 EA
⑪ Handle shaft stop-ring 2 EA
⑫ Battery 6V (1.5V 'AA' Size LR6 Alkaline, 4ea)
⑬ Screws 1 set
⑭ User manual English
⑮ Installation template
Using for making hole at the door
⑯ Communication pack Communication pack
⑰ Remote key Remote key
※ Installation condition Door thickness 40~80mm

Factory setting

⑬
Screws
Item
Auto/Manual lock mode
Normal mode / Safety Mode
Voice guide volume (1~3 level)
Beep sound level (1~8 level)
Factory setting PIN code
Remote key
Product specification Remark
Including rubber pad
40~50mm Door
70~90mm Door
Including warranty
form
Optional
Optional
Setting Status Ref.page
[Auto lock] 9
Normal mode 10-11
3 level [Maximum] 8
8 level 8
123456 -

Product features

Four way solution
(Fingerprint, PIN code, Card key, Override key)
Free-direction mortise lock type
The product can be installed in a left or right handed configuration.
Normal mode/Safety mode
ㆍ N ormal mode: easy to use for normal user.
ㆍ S afety mode: high security mode with manger function added,
provides individual register and delete function which is not
provided in normal mode.
High temperature warning
If a high temperature is detected that may cause a fire, the alarm
will ping sound for safety reasons. ( Working temperature : -15~55℃,
Sensor working temperature(high) : 60℃±10℃)
Random security coding function
When you enter your home with other people, you may not want to
show PIN code to them. In this case, you may press any numbers
randomly without limitation and then enter your PIN code at the
end.
Prevent mischief & hacking
After multiple incorrect attempted entries an alarm will sound and
all the functions of the lock will be suspended for three minutes. The
alarm activated after three incorrect PIN/card entries.
Trespass alarm function
When the door is opened by force an alarm will sound.
Auto relock function
If users do not open the door after unlocking the device it will lock
itself automatically.
Double lock function
When double lock function is activated, the door cannot be opened
from the outside, even with the registered card, PIN code or
fingerprint. Override key can still be used.
One touch mute function
Door will not emit any sound when mute is activated.
Name and function of each part
1. Front Ass`y
Fingerprint sensor
Touch the registered fingerprint
on the sensor to unlock the door
Lock / Unlock lamp
Indicate lock / unlock status
Status indicator
Touch numeric pad
Card key touch plate
Touch the registered card key to
unlock the door
Window icon
External emergency
power supply terminal
When battery does not operate,
product may be operated and
unlocked by contacting a 9V
Handle
battery on terminal located
You can open the door by pushing outside
or pulling it
Override key
Unlock the door with override key
manually
Window icon Status indicator
 Mute function Indicate operation status and
checking battery capacity.
  Double lock function
Remaining battery 20%
 Wireless interlock
Remaining battery 50%
 Battery replacement indicator
Remaining battery 80%
Trespass alarm function

How to apply external power in the emergency

PIN code Card key
C
