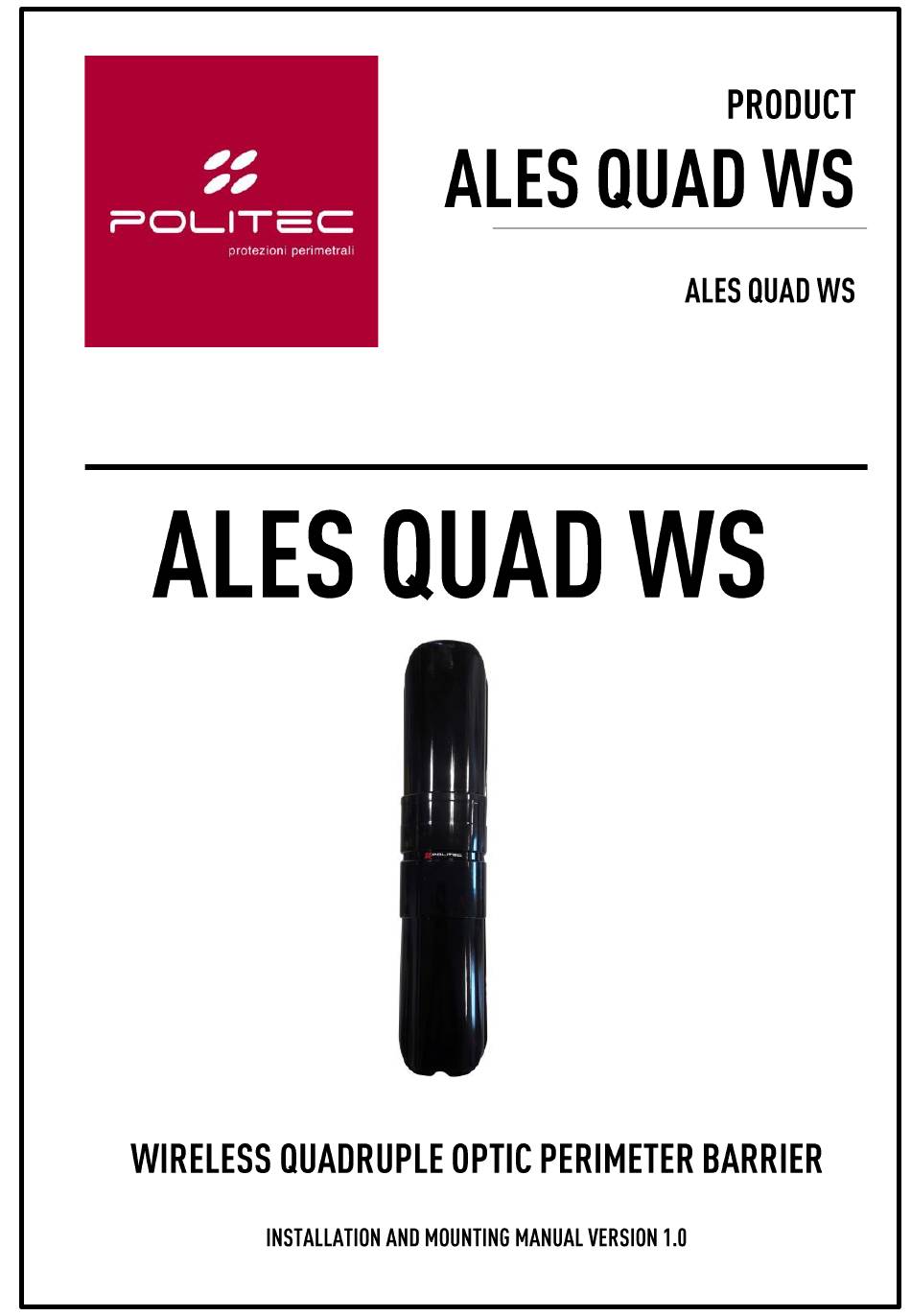

- Page 1 Product code...
- Page 2 ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
- Page 3 The system has been designed to detect intrusions and activate the alarm; it is not a device that prevents intrusion.Politec is not responsible for damage, injury or loss caused by accidents, theft, force majeure (including momentary lightning-induced overcurrent), abuse, improper or incorrect use, faulty installation or inadequate maintenance.
- Page 4 • Manufacturer's liability:Politec assumes no liability for failures resulting from incorrect installation; lack of maintenance, incorrect assembly or use. • Politec is also not liable for incorrect or incomplete operation of the product or failure to detect intrusion. •...
-
Page 5: Elenco Componenti
Optical group Lithium batteries 3,6V 19Ah Dis. TRG dual optics Battery compartment – TX RADIO 5 / 8 ATMP Concentric stop Board Wall mounting plate Concentric gasket U-shaped brackets for pole fixing ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0... - Page 6 • Check that the surface chosen for the installation of the product is sturdy so as to ensure stable fixing and that it is adequately protected against possible impacts or the elements. ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
- Page 7 However, it is necessary to take into consideration the specific beam diffusion of each model, to avoid reflection of the rays caused by the ground or by adjacent objects. Pole mounting with Wall mounting with wall brackets plus wall brackets U shaped-brackets ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
- Page 8 WARNING: In case of puncture of the aluminum profile or any component, the warranty of the product lapses ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
-
Page 9: Power Supply
The barriers can be divided into two categories, powered at low voltage and connected by wire, or powered by batteries for Wireless systems, then combined with radio transmitters to communicate with the alarm control unit, as required by specific sector regulations. ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0... - Page 10 DO NOT place barriers close to roads: vehicle lights directed towards the RX could create disturbances DO NOT place barriers near automatic gates: photocell signals can create interference ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
- Page 11 Position the filter in front of the TX optic positioning the two hooks on the pins of the optic fork.The filter is designed to refine the search for the alignment signal under adverse conditions. ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
- Page 12 The maximum alignment condition will be reached when the high-intensity LEDs are on steady and the buzzer will emit a continuous sound, for this reason, it may be necessary to make minor adjustments also on the RX optic. ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
- Page 13 TRANSMITTER optic with your hand: if the RECEIVER continues to give a continuous beep, it means that it sees another infrared source that must be turned off and eliminated. ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
- Page 14 Low battery signal output O.C.: NA to GND Not used Vrd / GND Output for radio transmitter power supply 3-3.6V ALM / ALM NC alarm output TMP / TMP Nc tamper output ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
-
Page 15: Signal Led
Channel 1-4: Used with optical synchronism SMA TEST DIP • DIP1: TX1 Lower Optical Test • DIP2: TX2 Superior Optical Test 3 DIP BENCH FOR CONFIGURATION • DIP1: Not used • DIP2: Enable anti-tear tamper ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0... - Page 16 Working with 2 beams it is necessary that the barrier is installed at a height greater than 70cm from the ground to effectively detect a person running ALARM ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
- Page 17 ANTI-TAMPERING OUTPUT Tamper column opening TX optically transmitted on RX FOG DESQUALIFICATION Yes with dedicated OC NA to GND OUTPUT ENVIRONMENTAL CLASS DIMENSIONS WxDxH 86 x 123 x 405 mm ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
- Page 18 Make sure that the connectors are well inserted and that the configuration of the DIPs is correct; Use the shielded cable for connecting tamper and alarm by connecting the sock to ground; ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
- Page 19 Warning!- Local regulations can impose heavy penalties for incorrect disposal of these products. ALES QUAD WS POLITEC | INSTALLATION MANUAL– VER. 1.0...
- Page 20 POLITEC | INSTALLATION MANUAL– VER. 1.0...
