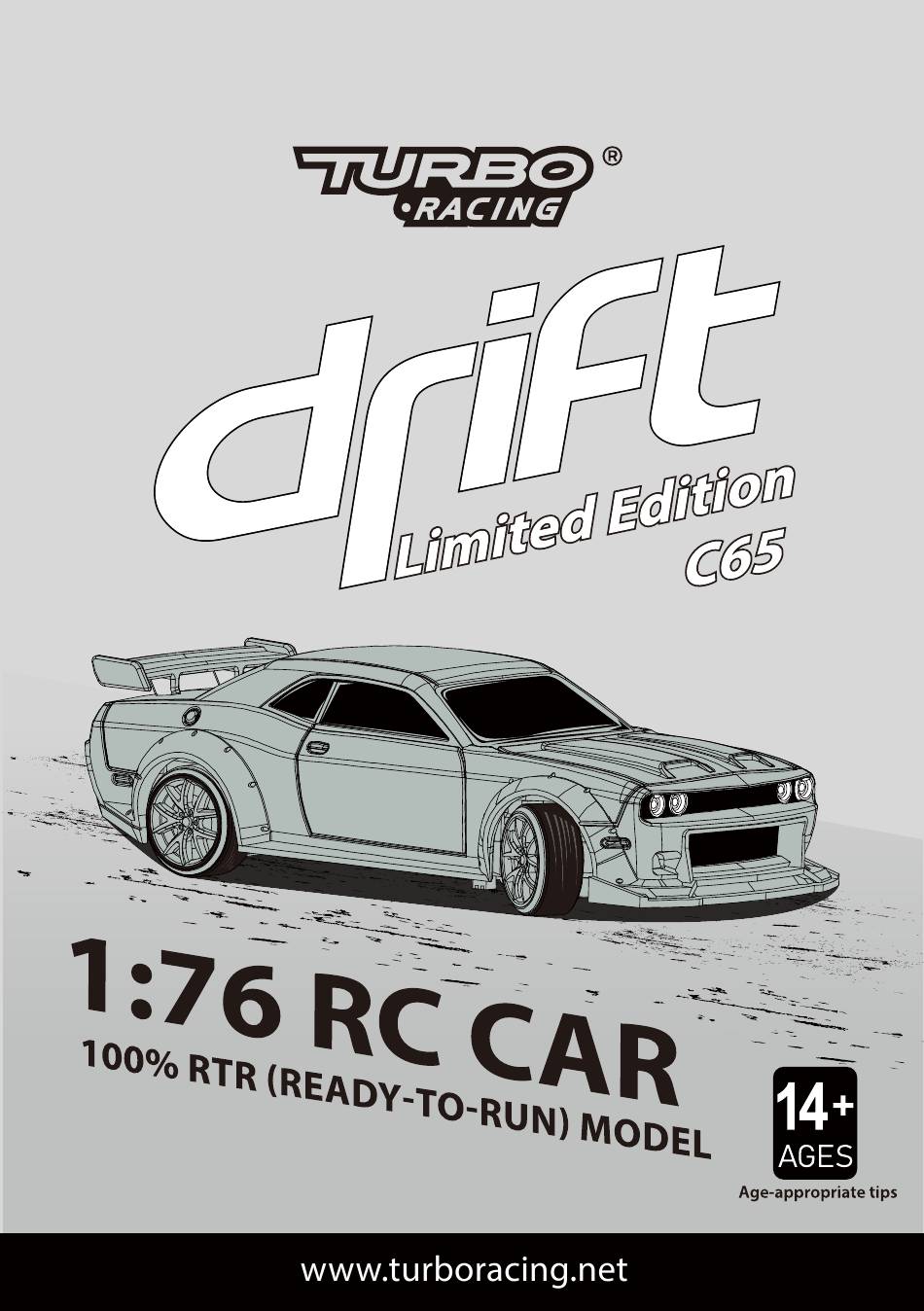

TURBO RACING drift Limited Edition C65 Instruction Manual

1:76 rc car
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the drift Limited Edition C65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TURBO RACING drift Limited Edition C65

Summary of Contents for TURBO RACING drift Limited Edition C65

  • Page 2: Safety Information

    Please read the manual before using the product and keep the manual for future use. SAFETY INFORMATION ● Movable parts are dangerous, so it is forbidden to put ngers、hair、clothes and other things into the space between the tire and the car body, to avoid being clamped by the rotating parts. ●...

  • Page 3: Function Description

    FUNCTION DESCRIPTION Right front light Left front light Left front light Right front light Tail Taillights/Highlighted brake lights Recharging hole: connect Type-C line Forward/backward Forward/backward Turn right/turn left Switch power Chassis lights Charging indicator light Chassis lights PREPARE FOR RUN Transmitter battery installation This product uses AA batteries or 2S nickel hydrogen batteries, when the voltage is below 4.4V ±...
  • Page 4 Transmitter battery installation. (Picture A-D) 4x 1.5V (AA) 1.5V (AA) 1.5V (AA) 1.5V (AA) 1.5V (AA) WARMING :DO NOT KEEP THE BATTERY IN THE BATTERY COMPARTMENT FOR A LONG TIME TO AVOID BATTERY OXIDATION AND DAMAGE THE PRODUCT. Charging Remove the remote control car and accessories from the packaging box, and in the shutdown state, insert the included charging cable into the vehicle's charging port and USB Port for charging (please charge the remote control car for the rst time).
  • Page 5 Vehicle startup: in the shutdown state, turn on the power switch (push to the "on" position), The vehicle starts up after the LED lights up for 1 second. Switch power If the front light of the car stays on, it indicates that it’s connected with the remote control. If the front light of the car is ashing, please check whether the power of remote control has been turned on.

  • Page 6: System Characteristics

    This product is (the fourth generation automatic frequency hopping digital system) a digital wireless system with independent intellectual property rights newly developed by TURBO RACING, which is compatible with single and double There are two ways to transmit real-time data packets and data streams transparently. The new 2.4G chip is used.

  • Page 7: Operation Note

    OPERATION NOTE Note: If you’re the rst time to use the 1:76 RC drift car, please take a few minutes to read this statement carefully to get familiar with di erent features of this operation system. Functions Transmitter...
  • Page 8 1. 2.4G Antenna 2. LCD screen: The main interface mainly displays model related information. (See page 9 for details) 3. Menu scroll key 4. Stop watch key: Stop watch timing, on/o , long press to clear stop watch time。 5. Flashlight: Turn on or o a ashlight. 6.

  • Page 9: System Interface

    SYSTEM INTERFACE The main interface mainly displays information related to the model, such as transmitter voltage, function status and so on. Temperature CCS Speed Battery Voltage Crawling Mode D Crawling Mode A Crawling Mode C Crawling Mode B Current Model Number Sec Stopwatch BIND Binding...
  • Page 10 Car running settings Neutral Forward/speed up Left Right Left Right Brake /Backward Neutral Forward/ speed up Brake /Backward Throttle tigger: Control forward / brake /backward. ● Steering wheel: Control left / right steering. ● TRIM Linearity This function is used to adjust the direction and center position of the throttle. If it is found that the steering wheel or throttle trigger is in the center position, the vehicle's driving direction is slightly o set or the vehicle automatically moves forward Forward and backward, use ne-tuning adjustment.
  • Page 11 This function is used to adjust the direction, throttle steering angle, and vehicle speed, with a default of 100% maximum travel.If the front wheel steering angle of the vehicle is found to be too small or too large, or the vehicle speed is too slow or too fast, a ratio adjustment can be used.

  • Page 12: Specification

    SPECIFICATION 1:76 Product name 1:76 RC drift car Scale Driving distance Driving time 30min Slope angel 30° Size Drive mode Two-wheel drive 67.5x28.8x19.5mm Proportional Proportional steering steering Battery parameter 3.7V, 55mAh, lithium battery Weight LED LIGHT STATUS TABLE Display Status Please check whether the power of remote control The headlights ash every 2 seconds has been turned on, if yes, you need to re-code the...

  • Page 13: Troubleshooting

    TROUBLESHOOTING Fault symptom Cause of failure Solutions Make sure that the product is in car 1. Distance is too far The tranmitter connection receiving mode.(The headlights ash). failed 2. Multicars pairing at the same time Check the wheels for foreign objects Foreign object between Freeze the wheels...
  • Page 14 PRECAUTION ● The car contains lithium batteries. Disassembling, striking, squeezing or throwing the car into the re is prohibited. If severe swelling occurs, do not continue to use it. Do not place it in high-temperature environment. ● Due to the special feature of lithium batteries, overly high or low temperature will a ect the battery charge and discharge performance and battery life, so please do not use or store this product under environments such as high temperature, low temperature, high humidity or direct sunlight.
  • Page 15 DISASSEMBLING 1. Disassemble The car body shell 1.Hold the front wheel with one hand , and 2.Then gently push out and take it out. other hand hold the head of the car. 2. Install the car body shell 1. An exhaust xture inserted into the tail of 2.
  • Page 16 INSTALLATION OF SHELL PARTS GROUP 760184 760185 760186 760190 Material bodyshell x1 car window x1 Front light x1 Tail light parts x1 760192 760208 760146 760250 Metal headlight xing base Exhaust pipe x1 Tail x1 Screw x2 760191 Tail light strip x2 Car shell assembly Installing car windows Installing tail light strip...
  • Page 17 Install the taillight Install the tail wing (note the direction of installation Install the screws for exhaust pipe Install exhaust pipe Install the front light holder Installing front lights Install the screws for front light holder Attach...

  • Page 18: General Assembly Drawing

    GENERAL ASSEMBLY DRAWING EXPLODED VIEW OF FINAL ASSEMBLY Car shell Screw 760147 Screw 760146 Machine meter screw Battery Gyro Secondary drive shaft Primary drive shaft Picture of Spring Rear wheel Steering assembly Chassis Steering support...
  • Page 19 CAR SHELL EXPLOSION 760208 760185 760190 760186 760191 760192 760250 760146...
  • Page 20 UPPER SHELL 760193 760098 760194 760128 760031 Drive motor Steering motor...

  • Page 21: Transmission Shaft

    TRANSMISSION SHAFT 760040 760034 760039 760035 760038 760037 760036 REAR WHEEL 760251 760201 760255 760043...

  • Page 22: Steering Assembly

    STEERING ASSEMBLY 760211 760203 760204 760253 760251 760253 760206 760207...
  • Page 23 ORIGINAL SPARE PART 760184 760185 Material bodyshell 2pcs car window 2pcs 760208 760186 Tail 2pcs Front light 2pcs 760250 760191 Metal headlight xing base 2pcs Tail light strip 4pcs 760190 760192 Taillights lights 2pcs Exhaust pipe 2pcs 760193 760146 760147 Battery75mAh 1pcs Screw 6pcs Screw 8pcs...
  • Page 24 760098 760128 Millimeter screw 4pcs Spring 4pcs 760194 760031 Motor 2pcs Switch handle 2pcs 760252 760201 Hub 4pcs Axle sleeve(Rear wheel) 4pcs 760251 760253 wheel 4pcs Fixed shaf 4pcs 760188 760255 Plastic headlight xing seat 2pcs Axis(Rear wheel) 2pcs...
  • Page 25 760043 760211 Gear(Rear wheel)2pcs Shim 8pcs 760206 760203 Fan teeth 2pcs Rocker arm 2pcs 760207 760204 Left and right components 4pcs Gear 2pcs 760256 760202 Left and right front wheels 2pcs Axis(Rear wheel) 2pcs 760034 760257 Rear wheel set 2pcs Gear(Primary drive shaft )2pcs...
  • Page 26 760036 760035 Axle sleeve(Secondary drive shaft)4pcs Axis(Primary drive shaft )2pcs 760038 760037 Gear(Secondary drive shaft)2pcs Gear(Secondary drive shaft)2pcs 760039 760040 Axis(Secondary drive shaft)2pcs Axle sleeve(Secondary drive shaft)2pcs 760100 760076 Red Bolt driver 2pcs Guardrail Total50pcs (Straight 45pcs) (Curved 5pcs) 760075 White 760074 Grey Guardrail Total50pcs Guardrail Total50pcs...
  • Page 27 760141 760021 PU guardrail(5m) Charging line 760140 760139 PU guardrail(13m) PU guardrail(10m) 760019 760148 Transparent box Drift car racing track mat 1pcs...
  • Page 28 CHOOSE A VARIETY OF STYLES RC car Fluorescent green Fluorescent red Cement gray Dark green Mint green Orange Purple Light yellow Light blue Blue RC Sports car C71-RD C71-YE C71-WH Yellow White C74-BK Violet Cement grey Black C75 (Hell Black） C75 (Caramel red)
  • Page 29 O Road RC Car C81-BK C81-YE Black Yellow Drift RC Car C64-BU C64-GN Blue Green Semi-Truck C50-BLACK C50-WHITE...
  • Page 30 Shenzhen NewStone Technology Co., Ltd. Manufacturer: Shenzhen NewStone Technology Co., Ltd. Address: Yuhong Industrial Park, No.20 Xingye West Road, ShaJing Town, Bao'an District, Shenzhen, Guangdong Province If this product can not operate normally during the warranty period, please contact the local distributor or manufacturer that sold this product to obtain warranty service.
