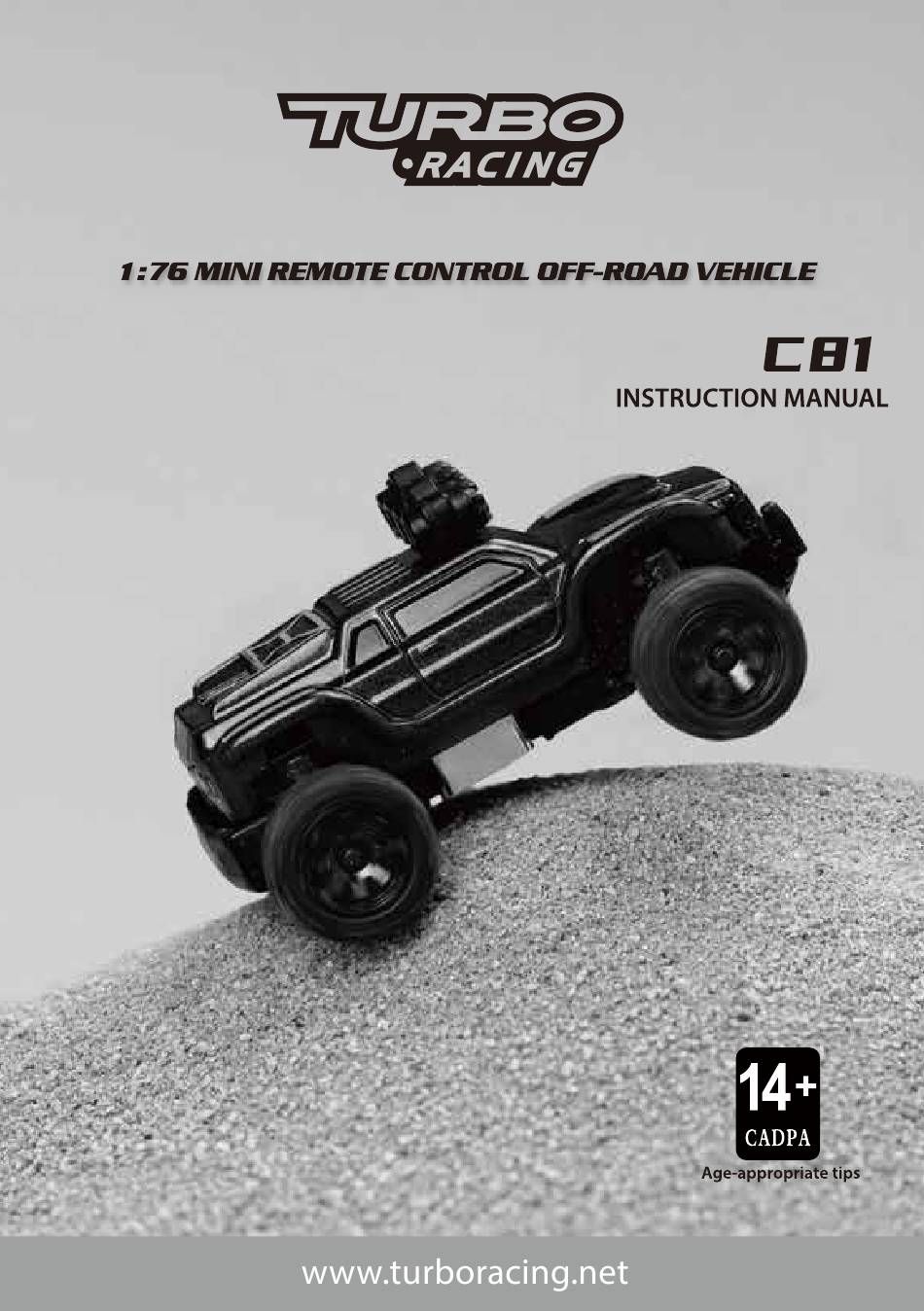

TURBO RACING C81 Instruction Manual

1:76 mini remote control off-road vehicle
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C81 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TURBO RACING C81

Summary of Contents for TURBO RACING C81

  • Page 2: Safety Information

    Please read the manual before using the product and keep the manual for future use. Safety information ● Movable parts are dangerous, so it is forbidden to put ngers、hair、clothes and other things into the space between the tire and the car body, to avoid being clamped by the rotating parts. ●...

  • Page 3: Function Description

    Function description Head light Rear light Forward/backward Forward/backward Turn right/turn left Recharging hole: connect Type-C line Switch power Charging indicator light Prepare for run Transmitter battery installation This remote uses AAA battery or Ni MH battery, when the voltage is lower than 4.5V ± 0.2V, the LED starts ashing.
  • Page 4 Transmitter battery installation. (Picture A-D) Rotate 90° clockwise A.Turn the coin button clockwise 90° B. Take out the battery box from the bottom of the remote 4x 1.5V (AAA) Rotate 90° counterclockwise C. Install four AAA batteries according to the polarity D.
  • Page 5 Use the hidden Type-C port on the remote to charge the car. (Picture A-G) Rotate 90° clockwise A. Push the charging rod forward to the bottom. B. When the push rod on the bottom, then rotate the push rod 90° clockwise C.

  • Page 6: Operation Note

    Red light Extinguish G. Then the default red led of the remote is long light. If the charging led light of the remote is o , means the charging is completed. (Short press channel 3 to switch the color of the multi-color light, long press channel 3 to switch the breathing light).
  • Page 7 Functions Transmitter 4. Steering Rev: use the reverse steering switch to reverse the left and right directions. 5. Throttle ne adjustment: when the trigger is in the neutral position, if the car moves forward or backward, please use the throttle ne adjustment. 6.
  • Page 8 Battery compartment Charging port push rod Battery compartment coin button Charging mode Charging indicator light RGB multi-color light Install and remove the remote control handle 1. Press the button 2. Remove the handle 3. Press and hold the remove button and push the handle inside Tips: Pay attention to the direction of the handle Note: If the handle of remote is in a wrong direction , it will not be powered on.

  • Page 9: Throttle Trigger

    BIND Binding 1.Switch on the transmitter. 2.Turn on the power switch on the 3.Insert the binding plug into the BIND car, and the rear light on the channel slot on the car, if the LED rear car ashes. light , and stays lit permanently, the binding procedure is completed.
  • Page 10 TH LIM ST-REV TH-DR TH-TRIM ST-DR ST-TRIM Linearity 1. TH/TRIM: When the throttle trigger is in the middle point, if the car is moving forward or backward, please adjust it with TH/TRIM “+” or “-”button. 2. ST/TRIM: When the steering wheel in the middle position, if the front wheel is not in a straight line, please adjust it with ST/TRIM “+”...

  • Page 11: Speci Cation

    Speci cation 1:76 mini remote control Product name Scale 1:76 o -road vehicle Driving distance Driving time 30min 53.5x40.5x28mm Slope angel 30° Size Weight Drive mode Two-wheel drive Proportional Battery parameter 3.7V, 75mAh, lithium battery Proportional steering steering LED light status table Display Status Please check whether the power of remote control...

  • Page 12: Troubleshooting

    Troubleshooting Fault symptom Cause of failure Solutions Make sure that the product is in car 1. Distance is too far The tranmitter connection receiving mode.(The rear lights ash). failed 2. Multicars pairing at the same time Check the wheels for foreign objects Foreign object between Freeze the wheels...
  • Page 13 Precaution ● This product includes the small parts, there is a risk of su ocation, children under 3 years old are not allowed. ● The car contains lithium batteries. Disassembling, striking, squeezing or throwing the car into the re is prohibited.
  • Page 14 Disassembling 1. Disassemble The car body shell: 2. After breaking o the upper shell, take it out 1.Grasp the front wheel (rear wheel) of the vehicle shell by hand Just break it up Install the car body shell: 1. Insert the lamp plug into the PCB interface 2.
  • Page 15 General assembly drawing Exploded view of nal assembly Roof lamp Car shell Screw Drive shaft Car shell trim Steering radius adjusting screw Switch handle Rear lid spring Front wheel damping spring Rear wheel upper housing Steering assembly Rear wheel Rear wheel lower housing Steering support Chassis...
  • Page 16 Car shell explosion 760081 Upper shell 760002 760084 Drive motor Steering motor...
  • Page 17 Installation position Installation of steering motor position of drive motor Installation position of drive shaft Transmission shaft 760004 760006 760090 760091 Rear wheel 760092 760013 760015 760093...

  • Page 18: Steering Assembly

    Steering assembly 760082 760087 760007 760008 760088 760086...
  • Page 19 Original spare part 760002 Switch handle 2pcs 760004 Gear 2pcs 760007 760006 Gear 2pcs Worm gear 2pcs 760013 760008 Rear wheel outer shaft sleeve (inner)2pcs Fan teeth 2pcs 760018 760020 Battery Track (900x400mm) 760022 Track (1200x800mm) 760021 Charging line...
  • Page 20 760050 Track (1200x800mm) 760074 Grey Guardrail Total 50pcs (Straight 45pcs) (Curved 5pcs) 760076 Red 760075 White Guardrail Total 50pcs Guardrail Total 50pcs (Straight 45pcs) (Curved 5pcs) (Straight 45pcs) (Curved 5pcs) 760082 760081 Wheel 4pcs Car Shell assembly 1pcs 760083 Roof lamp 2pcs 760084 motor 2pcs 760085...
  • Page 21 760087 760086 Front wheel xed shaft4pcs Left and right components 4pcs 760089 760088 Front wheel damping spring 4pcs Rocker arm 2pcs 760090 760091 Axle sleeve 4pcs Axis（Drive shaft） 2pcs 760093 760092 Axis（Rear wheel） 2pcs Rear wheel outer shaft sleeve (outer) 2pcs 760095 760096 Rear lid spring 2pcs...
  • Page 22 760097 760098 No. 2 Jumping platform 2pcs Steering radius adjusting screw 4pcs 170x135x40 760099 Hexagon screwdriver 2pcs...
  • Page 23 Steering radius adjustment Step 1 Step 2 1. Method to test the steering radius of car wheels: 2. Take out the car body shell above the car. Adjust the speed of the remote control to 50%, and adjust the vehicle to move in a straight line. Then, turn the vehicle left and right to see if the steering radius is consistent.
  • Page 24 Choose a variety of styles RC car Fluorescent green Fluorescent red Cement gray Dark green Purple Mint green Orange Light yellow Light blue Blue RC Sports car C71-RD C71-YE C71-WH Yellow White Violet Cement grey...
  • Page 25 O -road vehicle C81-BK C81-YE Black Yellow...
  • Page 26 Notes...
  • Page 28 Shenzhen NewStone Technology Co., Ltd. Manufacturer: Shenzhen NewStone Technology Co., Ltd. Address: Yuhong Industrial Park, No.20 Xingye West Road, ShaJing Town, Bao'an District, Shenzhen, Guangdong Province If this product can not operate normally during the warranty period, please contact the local distributor or manufacturer that sold this product to obtain warranty service.
