Exalto 223BDC Usual Manual page 23

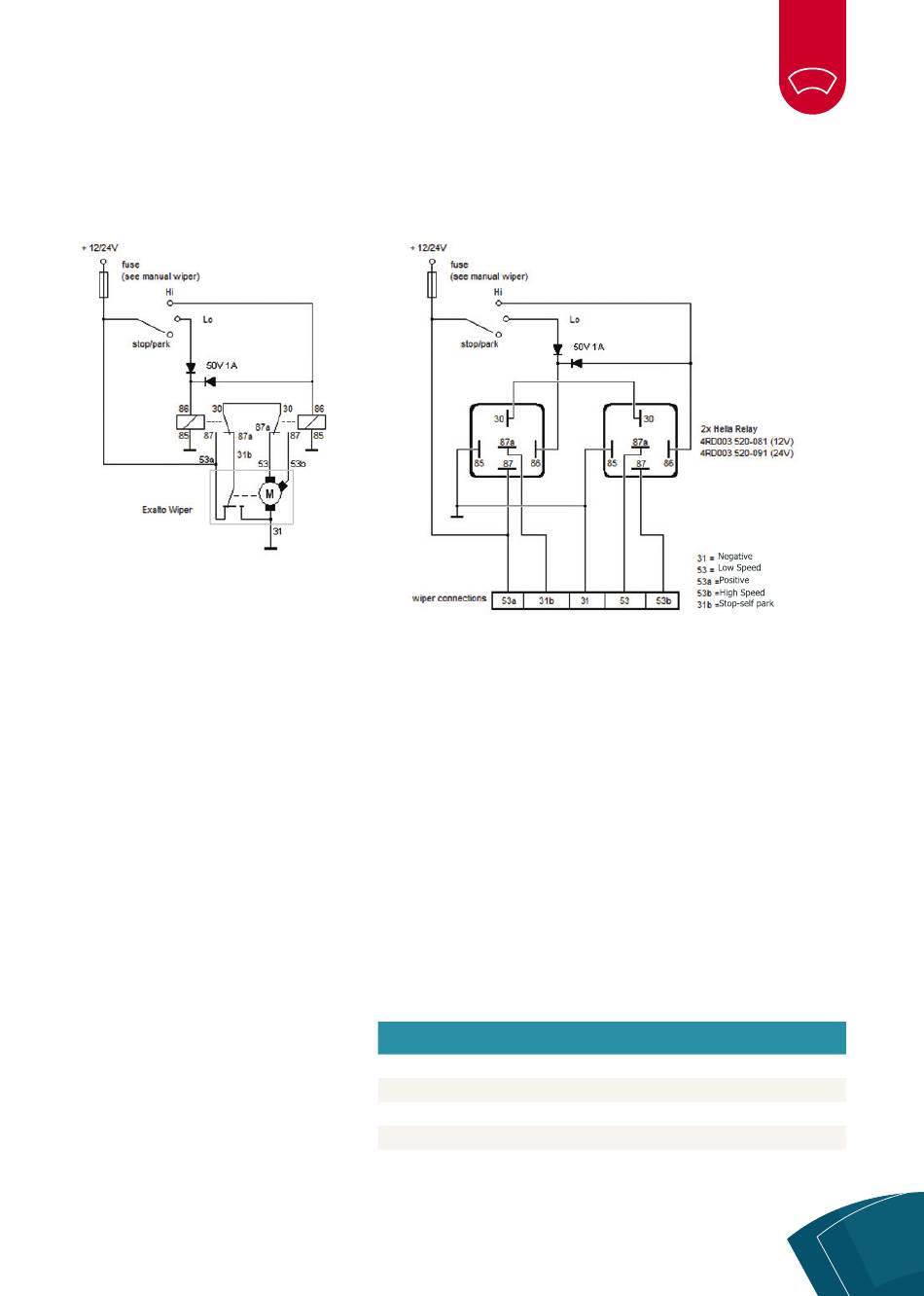

For a standard 3 stage switch of Carling or alternative this scheme below has to be used. This
scheme can also be used for the case of digital switching modules with only simple output
channels.
Exalto type 223BDC
MANUAL WIPER SYSTEMS
Function Polarity
High speed +
Low speed +
Negative -
Stop - self park
Positive +
Motorcode Switch code
53b H
53 L
31
31b P
53a B
Cable
White
Yellow
Black
Blue
Red
