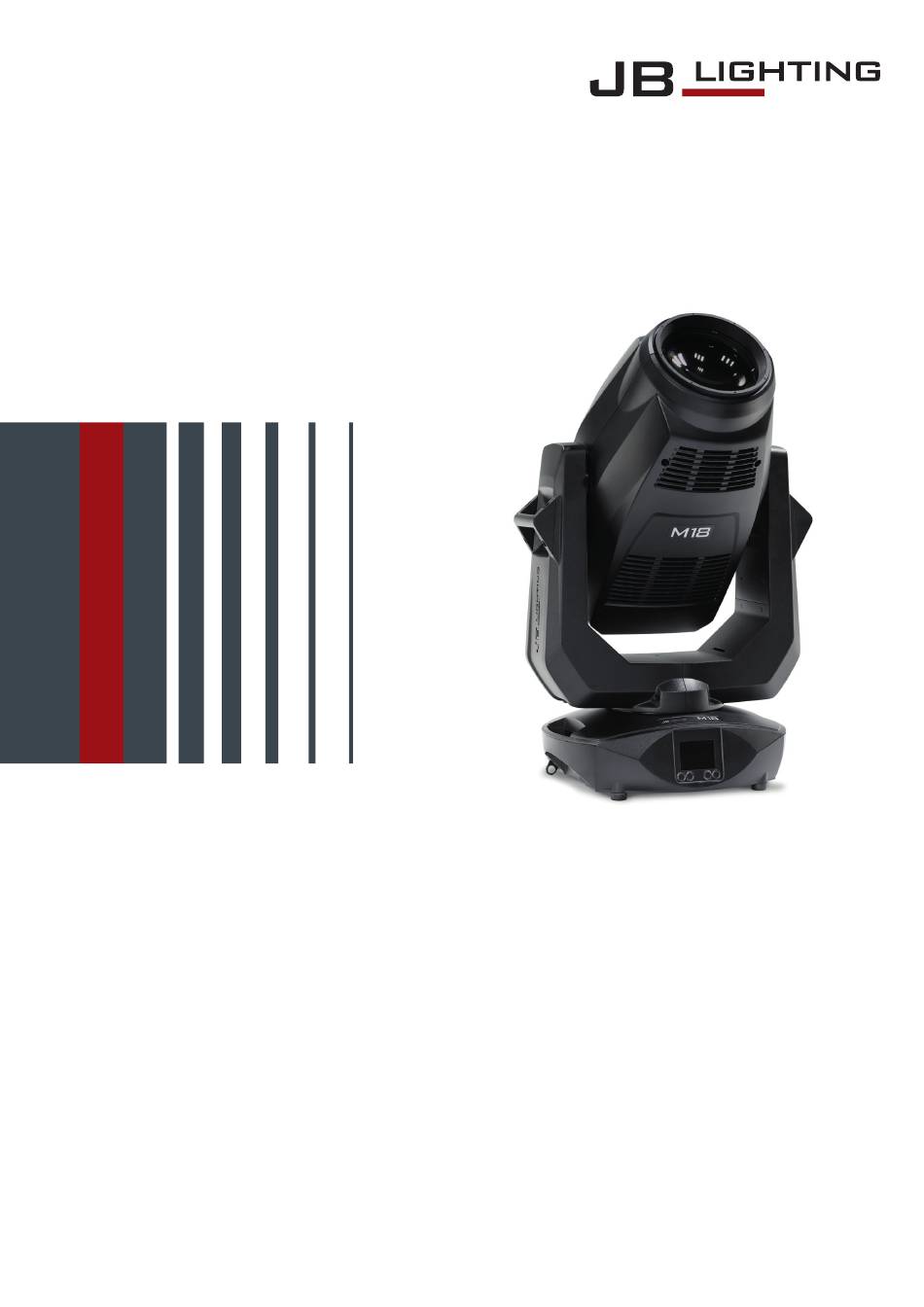

M
1 8Profile
Operating instructions
Version 1.08
Software >= 1.1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M18 Profile and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JB-Lighting M18 Profile

Summary of Contents for JB-Lighting M18 Profile

  • Page 1 1 8Profile Operating instructions Version 1.08 Software >= 1.1.5...
  • Page 2 1 8 Profile - 02 -...

  • Page 3: Table Of Contents

    6.1.2 DMX channel functions M18 Profile ........

  • Page 4: Dimensions

    1 8 Profile 1. Dimensions 258,4 258,4 258,4 Farbe: 258,4 Lichtanlagentechnik GmbH Oberfläche: Material: Sallersteig 15, 89134 Blaustein Tel.: 07304 / 9617-0 Blechdicke: Abmessung: Farbe: Farbe: Fax.: 07304 / 9617-99 Datum Name Lichtanlagentechnik GmbH Lichtanlagentechnik GmbH Oberfläche: Oberfläche: Material: Kuehngruen Erstellt Sallersteig 15, 89134 Blaustein 17.01.2018...

  • Page 5: Product Overview

    1 8 Profile 2. Product overview Bottom cover Top cover Arm cover Handles LCD display Function keys Farbe: Lichtanlagentechnik GmbH Oberfläche: Material: Sallersteig 15, 89134 Blaustein Tel.: 07304 / 9617-0 Abmessung: Blechdicke: Fax.: 07304 / 9617-99 Datum Name Kuehngruen 17.01.2018 Erstellt Head Allgemeintoleranzen...

  • Page 6: Safety Instructions

    ATTENTION: This device is only suitable for professional use! Protection class IP 20 - only for use in dry environments (indoors)! ATTENTION: JB-Lighting Lichtanlagentechnik GmbH does not authorise the use of its devices in life support systems. Life-supporting systems are systems whose purpose is to maintain or stabilise life and whose defect or malfunction may result in death or injury to persons.
  • Page 7 If the M18 Profile is operated below 20°C, gobo/prism swapping and gobo/prism rotation are reduced in speed. This is a protective mechanism of the M18 Profile, as at low temperatures the lubricant is relatively viscous in the rotational mechanism and can therefore cause the effect to be slurred.

  • Page 8: Installation

    Schuko cable and a safety note. Open the packaging at the top and remove the powerCON TRUE1 cable, the inlay and the safety instructions. The Omega brackets are located under the spotlight. Check the M18 Profile for possible transport damage. This should be communicated immediately to the transport company.

  • Page 9: Mains Connection

    4.4 Wiring the power feed-through ATTENTION: Only have it carried out by a specialist! The M18 Profile has a powerCON-TRUE1 out power output. Depending on the local conditions several devices can be linked by powerCON-TRUE1 in and powerCON-TRUE1 out. Connect a maximum of two (when using 230V/16A) M18 Profiles in a row.

  • Page 10: Signal Connections

    Special cables with etherCON connectors are recommended by Neutrik. The two sockets on the M18 Profile are connected to each other via a switch. Up to 10 devices can be connected in series without any delay. Of course, the spotlights can also be supplied in a star configuration via an external switch.

  • Page 11: Mounting The Devices

    4 meters. The M18 Profile can be placed on the floor or hang on a hanging system, for example a trussing system.

  • Page 12: Control Panel

    The display can be rotated in the PERSONALITY MENU or via short cut ENTER + UP in the main screen. All parameters of the M18 Profile can be set on the control panel (see menu overview page 13). Function and operation of the display The main menu provides information regarding the set DMX mode and, when the wireless mode is switched on, the field strength of the associated transmitter module.

  • Page 13: Dmx Addressing

    1 8 Profile DMX addressing In the main menu, the DMX address can be set directly by pressing the up/down keys. Display operation via battery backup By pressing the left button below the display, the configuration battery operation of the headlamp is activated, so the headlamp can be configured without power.
  • Page 14 1 8 Profile COLOR TEMP MODE VARIABLE 2700K 2700K TUNGSTEN 3200K 3200K TUNGSTEN 4200K 5600K 6000K 6500K 7000K 8000K BLACK BODY SHIFT GREEN +/- BACKLIGHT MODE FAST DISPLAY ORIENTA. STANDARD FLIP MAIN SCREEN MO STANDARD USER ID SAFE MODE SWIT USER FIXTURE ID ID +/- BLMODE...
  • Page 15 1 8 Profile SERVICE RESET FIXTURE SURE? ERROR LIST LIST PAN TIMEOUT COUNT: 1 CLEAR? CLEAR SURE? FUNCTION TEST START TEST TEST RUNNING DMX TEST DMX CHANNEL CH 001: --- INIT PAN/TILT SURE? FINE ADJUST OFS PAN OFS PAN +/- OFS TILT OFS TILT +/- OFS FOCUS...
  • Page 16 1 8 Profile STANDALONE EDIT STEP NR. +/- MODIFY FADE TIME FADE TIME +/- CAPT DMX NEXT TIME NEXT TIME +/- INSERT PAN +/- DELETE TILT TILT +/- RESET STEP CONTROL CONTROL +/- CLEAR ALL SHUTTER SHUTTER +/- DIMMER DIMMER +/- FOCUS FOCUS +/- ZOOM...
  • Page 17 1 8 Profile INFO SOFTWARE VER. FIXTURE ID TOT OP. TIME TOT LAMP TIME TOT BAT CHARGE T. TEMP BASE LCD ACTUAL RESET? TEMP BASE PS ACTUAL RESET? TEMP HEAD MAIN ACTUAL RESET? TEMP HEAD DRV ACTUAL RESET? TEMP HEAD LED R/A ACTUAL RESET? TEMP HEAD LED G/Y...

  • Page 18: Factory Defaults - Factory Settings

    5.3 USER DEFAULTS - User settings If the user has set the M18 Profile in the PERSONALITY menu to their personal settings, these can be saved and loaded in the USER DEFAULTS menu. In order to prevent unintentional alteration of the data, you must enter the following password during the saving process: Buttons "ESC...
  • Page 19 LED module runs cooler and thus more “stress-free”. There is no danger to the life of the device in any mode, as the M18 Profile has a temperature safety shutdown. In addition, the LED module is switched off from an ambient temperature of 60°C!
  • Page 20 In the menu item EFFECT SPEED you can set the maximum speed, the effects and thus also the volume of the effects of the M18 Profile. The following setting options are available. WHISPER: The speed of the effects is reduced so much that a volume of 29dB (A) is not exceed- SILENT: The speed of the effects is slightly faster and thus a bit louder than with the Whisper setting.
  • Page 21 BLACK BODY SHIFT - Adjusting the green/magenta balance (+-Green) With this option, the white point can be shifted towards green or magenta. With this option, the M18 Profile can be adapted to "old" headlights with a green/magenta shift. BACKLIGHT MODE - setting the display backlight This menu item controls the backlight of the display.

  • Page 22: Standalone Operation

    Always with the background information that the headlamp keeps the colors constant. 5.6 STANDALONE operation In standalone operation, up to 20 program steps can be stored in the M18 Profile, which can then run in an endless loop. The images can be saved in two ways. Either you program the desired DMX values directly on M18 Profile and save them, or you set the DMX values via a connected DMX console and then store them in the M18 Profile.

  • Page 23: Info-Menu

    To accept the DMX values of a connected console, you must first enable the Capture DMX input. To do this, go to the CAPT DMX menu item. The display now shows CAPTURE DMX 01/01, press the Enter key to switch to START CAPTURE. Now the M18 Profile reacts to the signals from the external console.

  • Page 24: Shortcuts - Quick Access

    6. Control options 6.1 DMX 6.1.1 Operating modes M18 Profile The M18 Profile has 2 different DMX modes. The respective mode can be set in the PERSONALITY, DMX MODE menu item. The set mode is displayed in the main menu. Mode 1(M1)
  • Page 25 1 8 Profile Channel 32 Lime Aperture 2a fine Channel 33 White Aperture 2b Channel 34 Aperture 2b fine Channel 35 Aperture 4a Channel 36 Sparkle Aperture 4a fine Channel 37 Sparkle speed Aperture 4b Channel 38 Prism 1 Aperture 4b fine Channel 39 Prism 1 rotation Aperture rotation...

  • Page 26: Dmx Channel Functions M18 Profile

    1 8 Profile 6.1.2 DMX channel functions M18 Profile M3 Function Pan (X) movement 546,74° 000-255 Pan (X) fine (16 Bit) 000-255 Tilt (Y) movement 281.16° 000-255 Tilt (Y) fine (16 Bit) 000-255 Control channel To enable uniform dimming manually via faders for all light mixing consoles, 5 differ- ent settings for the DMX smoothing are available.
  • Page 27 1 8 Profile Constant Brightness Limit - Sets the limit for constant brightness control 090-090 091-091 092-092 093-093 094-094 095-095 Setting for medium / maximum DMX smoothing Dimmer fade out via fader (fast - slow) 096-103 BACKLIGHT MODE - Display backlight configuration AUTO - the fixture controls the backlight automatically 104-104 ON - the backlight is always on...
  • Page 28 1 8 Profile EFFECT SPEED - selection of effect speed WHISPER 150-150 SILENT 151-151 MEDIUM 152-152 FAST 153-153 not used 154-155 BLMODE - type of shutter control 156-156 MOVE/ANGLE 157-157 not used 158-159 COOLING MODE - Adjust the fan volume and brightness This takes place with dimmer / shutter set to closed (DMX 000) then after 2 seconds the fixture will switch this option, except the switch "SAFE MODE SWITCH"...
  • Page 29 1 8 Profile RESET - a basic reset of the fixture is carried out Reset 240-247 not used 248-255 Shutter Shutter closed 000-015 Shutter open 016-095 Open pulsing shutter >20Hz (rapid - slow) 096-110 Shutter open 111-111 Fade effect with dimmer (slow - rapid) 112-125 Shutter open 126-126...
  • Page 30 1 8 Profile Gobo 1 008-015 Gobo 2 016-023 Gobo 3 024-031 Gobo 4 032-039 Gobo 5 040-047 Gobo 6 048-055 Gobo 7 056-063 Gobo 8 064-191 Gobo wheel rotation, right (fast - slow) 192-223 Gobo wheel rotation, left (slow - fast) 224-255 Gobo wheel 2 - rotating gobos Gobo 0...
  • Page 31 1 8 Profile Gobo 6 048-127 Gobo 0 (open) Gobo 1 shake (fast - slow) 128-135 Gobo 2 shake (fast - slow) 136-143 Gobo 3 shake (fast - slow) 144-151 Gobo 4 shake (fast - slow) 152-159 Gobo 5 shake (fast - slow) 160-167 Gobo 6 shake (fast - slow) 168-175...
  • Page 32 1 8 Profile Aperture 4a 0-100% 000-255 Aperture 4a fine (16 Bit) 000-255 Aperture 4b 0-100% 000-255 Aperture 4b fine (16 Bit) 000-255 Aperture slider rotation -65° / +65° 000-255 Fine aperture slider rotation (16 Bit) 000-255 Color wheel emulation Inactive, color mixing only via RGBAY 000-000 White (according to color temperature setting headlights)
  • Page 33 1 8 Profile Amber fine (16 Bit) 000-255 Lime (8 Bit) 0-100% 000-255 Lime fine (16 Bit) 000-255 White (8 Bit) 0-100% 000-255 White fine (16 Bit) 000-255 CTO (8 Bit) 0-100% 000-255 CTO fine (16 Bit) 000-255 CRI select 000-255 Sparkle - Glitter effect Sparkle effect inactive...

  • Page 34: Control Channel

    CAMERA MODE - sets the LED refresh rate RESET - a basic reset of the headlight is performed For details, see DMX Channel functions for the M18 Profile on page 26. 6.1.4 Sparkle effect, sparkle speed Animation effects can be created via this channel in connection with the focus. Depending on the intensity, the projection can be made to shake more or less.

  • Page 35: Auto Focus

    The M18 Profile is equipped with a Lumen Radio CRMX receiver for wireless DMX. The receiver can process both DMX and RDM. If there is a cable and wireless connection to the M18 Profile, the cable connection has priority! The received signal can be output via the DMX connection. To do this, set the DMX OUTPUT CONFIG setting to ON in the PERSONALITY menu.

  • Page 36: Standard Rdm Parameter Ids

    1 8 Profile 6.5.3 Standard RDM parameter IDs RDM parameter ID DISCO- Note VERY RDM identification DISC_UNIQUE_BRANCH is used for fixture identification DISC_MUTE is used for fixture identification DISC_UN_MUTE is used for fixture identification RDM status determination QUEUED_MESSAGE STATUS_MESSAGES STATUS_ID_DESCRIPTION CLEAR_STATUS_ID RDM information SUPPORTED_PARAMETERS...

  • Page 37: Manufacturer Specific Rdm Parameter Ids

    1 8 Profile 6.5.4 Manufacturer specific RDM parameter IDs RDM-Parameter-ID DISCO- Anmerkungen Befehl Befehl VERY RDM-Konfiguration Battery Charge Hours Error Number Error Select Next Error Remove Error Remove New Error Flag User Defaults User Fixture ID Fixture Lock On/Off Dimmer Curve RGBYA Curve Frost Curve Camera Mode...

  • Page 38: Service

    INIT PAN TILT The M18 Profile is calibrated in the pan/tilt position at the factory. If it loses this calibration, i.e. it strikes against the stop or no longer finds its position, it can be re-initialised using this function.

  • Page 39: Changing Gobos

    Now open the two knurled screws (5) and remove the gobo insert. The following figure (1) shows the gobo insert of the M18 Profile. To change the gobos, remove the clamping ring A (image (2) - rotating gobos and image (3) - fixed gobos).

  • Page 40: Gobo Size

    Above all, you should make sure that the air inlets and the inside of the M18 Profile are free of fluff and dust. Also make sure that the dust filters in the covers are clean.

  • Page 41: Service And Maintenance

    7.6.2 Checking the plastic parts The plastic parts of the M18 Profile should be checked regularly for damage and the onset of cracks. If a plastic part is cracked, do not use this fixture until the damaged part is replaced.

  • Page 42: Optional Pan/Tilt Limitation

    1 8 Profile 7.9 Optional pan/tilt limitation The M18 profile offers the option of installing a pan/tilt limitation. The following parts are included with the limitation: 2x Tilt stop with fastening screw 2x Pan stop with fastening screw 7.9.1 Installation of the limitation For installation, tweezers or needle-nose pliers, a Torx TX10 and a Torx TX20 are required.
  • Page 43 1 8 Profile This results in a tilt path as shown in the two images on the right, as in the example from -66° to 66° Now the parts for the PAN limitation are installed. To do this, place the perforated bricks on the intended screw holes according to the desired angle and fix them with the two TX10 screws (see pictures).
  • Page 44 1 8 Profile Pos. Pos. -288 00° -108° -12° -282 06° -102° -18° -276 12° -96° -24° -270 18° -90° -30° -264 24° -84° -36° -258 30° -78° -42° +-180° -252 36° -72° -48° -246 42° -66° -54° -240 48° -60°...

  • Page 45: Removal/Dismantling Of The Limitation

    1 8 Profile Now the fixture has to be taught that it has new end points for Pan/Tilt. To do this, press and hold buttons 1 and 3 below the display and plug in the fixture. As soon as the main menu appears, the buttons can be released.

  • Page 46: Overview Of Error Codes For All Fixtures

    1 8 Profile 8. Overview of error codes for all fixtures PAN TIMEOUT TILT TIMEOUT Tilt GOBO1 TIMEOUT Gobo wheel 1 position GROT1 TIMEOUT Gobo wheel 1 rotation GOBO2 TIMEOUT Gobo wheel 2 position GROT2 TIMEOUT Gobo wheel 2 rotation COLOR TIMEOUT Color wheel CYAN TIMEOUT...
  • Page 47 1 8 Profile TSENS HDRV ER Sensor Error Head LED Driver PCB TSENS HLED ER Sensor Error Head LED TSENS HAIR ER Sensor Error Head Air (Ambient) HIGH TEMP BLCD High Temperature Base LCD PCB HIGH TEMP BAIR High Temperatur Base Air (SPARX ONLY) HIGH TEMP BPS High Temperature Base PSU AC/DC HIGH TEMP HMAIN...

  • Page 48: Specifications

    1 8 Profile 9. Specifications Dimensions and weight Length ..............307 mm Width .

  • Page 49: Declaration Of Conformity

    Directive: 2014/30/EU Electromagnetic compatibility (Directive 2014/30/EU of the European Parliament and of the Council of 26/02/2014 to approximate the laws of the Member States relating to electromagnetic compatibility) The manufacturer, JB-Lighting Lichtanlagentechnik GmbH Sallersteigweg 15 89134 Blaustein-Wippingen declares that the product: M18 Profile complies with the essential protection requirements of the directives.
  • Page 50 1 8 Profile - 50 -...
  • Page 51 1 8 Profile - 51 -...
  • Page 52 JB-Lighting Lichtanlagentechnik GmbH Sallersteig 15 89134 Blaustein Tel. +49 7304 9617-0 Fax. +49 7304 9617-99 info@jb-lighting.de www.jb-lighting.de...
