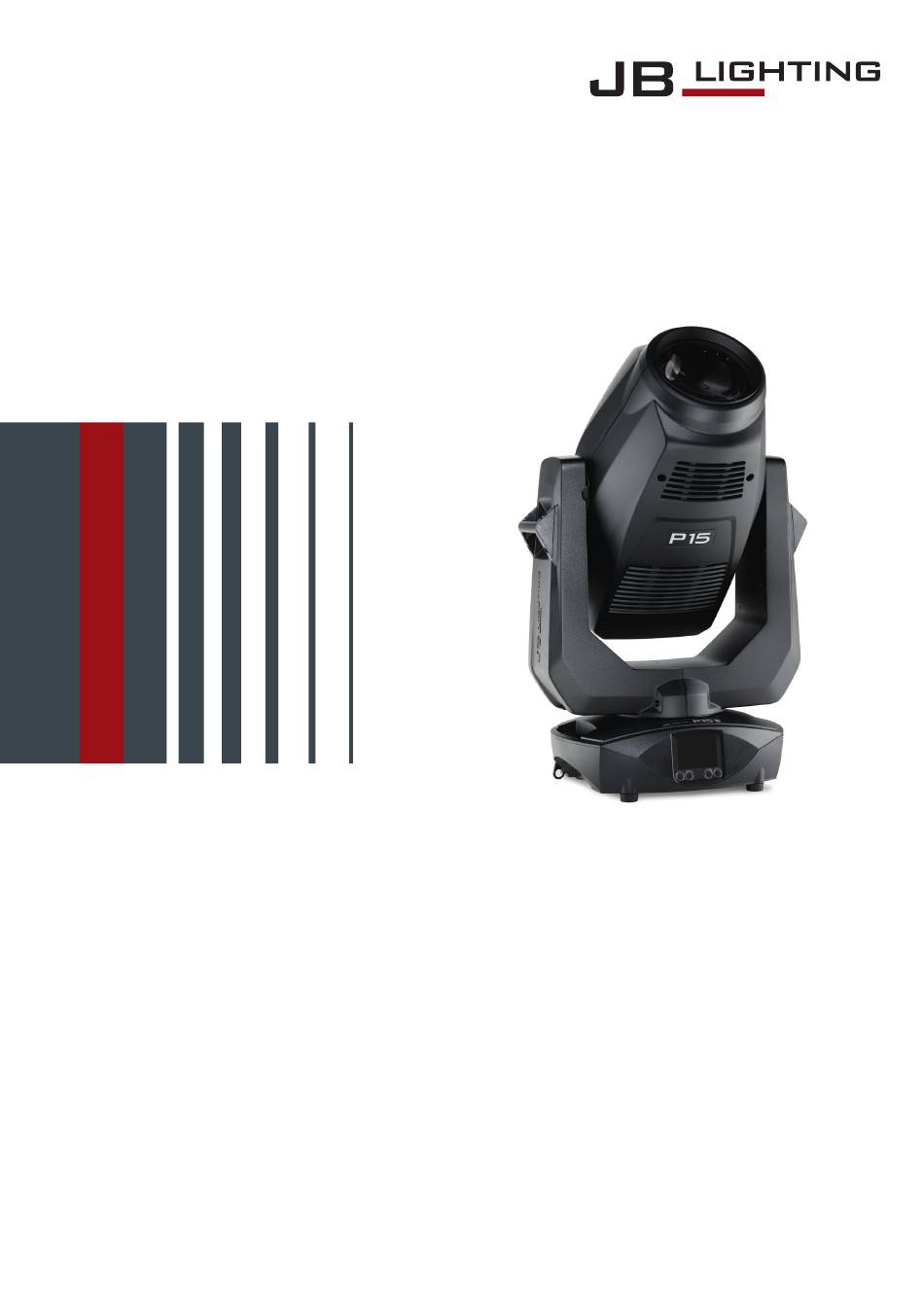

P1 5Profile
Operating instructions
Version 1.05
Software >= 1.0.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the P15 Profile and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for JB-Lighting P15 Profile

  • Page 1 P1 5Profile Operating instructions Version 1.05 Software >= 1.0.0...
  • Page 2 P1 5 - 02 -...
  • Page 3: Table Of Contents

    7.1.2 DMX channel functions P15 Profile ........
  • Page 4 P1 5 - 04 -...
  • Page 5: Introduction

    DMX Channel 30 (48/49) / 23 (32/33) at the HP and HC model is a different CTO filter color temperature correction: at the WW model a CTB filter Detailed information see DMX channel assignment for P15 Profile on page 25. - 05 -...
  • Page 6: Dimensions

    P1 5 2. Dimensions 223,65 223,65 223,65 223,6 Farbe: Lichtanlagentechnik GmbH Oberfläche: Material: Sallersteig 15, 89134 Blaustein Farbe: Farbe: Abmessung: Tel.: 07304 / 9617-0 Blechdicke: Fax.: 07304 / 9617-99 Lichtanlagentechnik GmbH Oberfläche: Lichtanlagentechnik GmbH Material: Oberfläche: Datum Name Sallersteig 15, 89134 Blaustein Sallersteig 15, 89134 Blaustein Kuehngruen Erstellt...
  • Page 7: Product Overview

    P1 5 3. Product overview Bottom cover Top cover Arm cover Handles LCD display Function keys Farbe: Lichtanlagentechnik GmbH Oberfläche: Material: Sallersteig 15, 89134 Blaustein Tel.: 07304 / 9617-0 Abmessung: Blechdicke: Fax.: 07304 / 9617-99 Head Datum Name Kuehngruen Erstellt 14.02.2019 Front lens Allgemeintoleranzen...
  • Page 8: Safety Instructions

    ATTENTION: This device is only suitable for professional use! Protection class IP 20 - only for use in dry environments (indoors)! ATTENTION: JB-Lighting Lichtanlagentechnik GmbH does not authorise the use of its devices in life support systems. Life-supporting systems are systems whose purpose is to maintain or stabilise life and whose defect or malfunction may result in death or injury to persons.
  • Page 9 P1 5 ATTENTION: This fixture corresponds to protection class I. For this reason, this spotlight must be connected to a mains socket with earthing contact. Never connect this device to a dimmer pack. During first use, some smoke and odour may occur. This is normal and does not necessarily mean that the device is defective.
  • Page 10: Installation

    P1 5 ATTENTION: The distance between the light emission and the surface to be illuminated must be at least 4,0 meters. ATTENTION: Allow a fixture distance of at least 1,0 meter from easily flammable material The maximum ambient temperature of 45°C must not be exceeded. ATTENTION: The front lens must be replaced if it is visibly damaged to the extent that its function is impaired, e.g.
  • Page 11: Mains Connection

    P1 5 Connection outside Europe: The P15 may only be operated on the following power supply systems: Mains 2 wires, 1 phase 3 wires, 1 phase 4 wires, 3 phases 5.3 Mains connection Connected loads: Voltage 200-240 V, frequency 50 - 60 Hz, power max. 1100 VA The electrical safety and function of the device can only be guaranteed if it is connected to a properly installed protective conductor system.
  • Page 12: Signal Connections

    P1 5 5.5 Signal connections 5.5.1 DMX cabling The DMX cabling (signal lines) should be done with a 4-pin cable with shielding. We recommend a DMX cable (110 Ohm, 2x0.22mm or 4x0.22mm ). The plugs and sockets are 5-pin XLR connectors, which can be purchased in specialist shops.
  • Page 13: Mounting The Devices

    This type of assembly only with special mounting plate To mount the unit on a trussing system use two of the original JB-Lighting omega brackets with original Camloc-connectors. You have following four possibilities to mount the omega brackets. 223,65 The Camlocs must snap in to be locked properly. Ensure that the structure (for example a truss system ) to which you are attaching the fixture is secure.
  • Page 14: Control Panel

    "JB-Lighting" is displayed means no DMX signal is present. A very rapidly flashing display illumination when "JB-Lighting" is displayed means that a new error has been stored in the "ERROR LIST", also an error message in the display (e.g. *PAN TIMEOUT) indicates this current error.
  • Page 15: Menu Overview P15 Profile

    It is possible to configure all the settings displayed by the menu, for example the DMX address can be set. 6.1 Menu overview P15 Profile grey - corresponds to the default setting...
  • Page 16 P1 5 DISPLAY ORIENTA. STANDARD FLIP MAIN SCREEN MO STANDARD USER ID SAFE MODE SWIT USER FIXTURE ID ID +/- LED FADE OUT STANDARD SOFT BLROT DIR NORMAL INVERS BLMODE MOVE/ANGLE SERVICE RESET FIXTURE SURE? ERROR LIST LIST PAN TIMEOUT COUNT: 1 CLEAR? CLEAR...
  • Page 17: Factory Defaults - Factory Settings

    P1 5 SPARKLE SPARKLE +/- SPARKLE SP SPARKLE SP +/- PRISM PRISM +/- PRISM ROT PRISM ROT +/- PRISM 2 PRISM 2 +/- PRISM ROT 2 PRISM ROT 2 +/- FROST FROST +/- FROST 2 FROST 2 +/- RESERVED RESERVED +/- SPEED P/T SPEED P/T +/- SPEED EFF...
  • Page 18: Personality - Personal Settings

    DMX MODE - setting the operation mode The P15 has 2 operating modes (see channel assignment for P15 Profile on page 25). All parameters of P15 can be operated via mode 1. However, all channels (except pan/tilt) are controlled with 8 bits.
  • Page 19 P1 5 CAMERA MODE - setting the repetition frequency of the LEDs To avoid flickering during TV recordings, the P15 can be adjusted from 50 HZ (PAL, Secam, repetition rate 100Hz) to 60 HZ (NTSC, repetition rate 100Hz) for different camera systems. Flex mode (repetition rate 600Hz is set when using different camera systems or when shooting with mobile phone cameras or similar non-professional cameras.
  • Page 20 P1 5 EFFECT SPEED - setting effect speed In the menu item EFFECT SPEED you can set the maximum speed, the effects and thus also the volume of the effects of the P15. The following setting options are available. WHISPER: The speed of the effects is reduced so much that a volume of 29dB (A) is not exceed- SILENT: The speed of the effects is slightly faster and thus a bit louder than with the Whisper setting.
  • Page 21: Standalone Operation

    P1 5 6.6 STANDALONE operation In standalone operation, up to 10 program steps can be stored in the P15, which can then run in an endless loop. The images can be saved in two ways. Either you program the desired DMX values directly on P15 and save them, or you set the DMX values via a connected DMX console and then store them in the P15.
  • Page 22: Info-Menu

    P1 5 Operation via master-slave function: Connect the P15 via DMX lines and activate the REMOTE menu item for all slave devices. To do this, navigate in the STANDALONE menu to the REMOTE sub-menu. Activate the REMOTE function by pressing and holding “ENTER”, and also pressing “ESC”. The spotlight is in slave mode when the display shows the status REMOTE INACTIVE or REMOTE ACTIVE.
  • Page 23: Control Options

    7. Control options 7.1 DMX 7.1.1 Operating modes P15 Profile The P15 Profile has 2 different DMX modes. The respective mode can be set in the PERSONALITY, DMX MODE menu item. The set mode is displayed in the main menu. Mode 1(M1)
  • Page 24 P1 5 Channel 41 Reserved Cyan Channel 42 Pan/tilt speed Fine cyan Channel 43 Effect speed Magenta Channel 44 Blackout Move Fine magenta Channel 45 Yellow Channel 46 Fine yellow Channel 47 Saturation Channel 48 Saturation fine Channel 49 Channel 50 CTO fine Channel 51 Channel 52...
  • Page 25: Dmx Channel Functions P15 Profile

    P1 5 7.1.2 DMX channel functions P15 Profile M3 Function Pan (X) movement 546,74° 000-255 Pan (X) fine (16 Bit) 000-255 Tilt (Y) movement 281,16° 000-255 Tilt (Y) fine (16 Bit) 000-255 Control channel To enable uniform dimming manually via faders for all light mixing consoles, 5 diffe- rent settings for the DMX smoothing are available.
  • Page 26 P1 5 Setting for maximum DMX smoothing Dimmer fade out via fader (fast - slow) 128-135 DIMMER CURVE - selection of dimmer curve LINEAR - linear dimmer curve 136-136 SQUARE - exponential dimmer curve 137-137 SQUARE INVERSE - exponential inverse dimmer curve 138-138 not used 139-139...
  • Page 27 P1 5 RESET - a basic reset of the fixture is carried out Reset (after 2 seconds) 240-247 nicht belegt 248-255 Shutter Shutter closed 000-015 Shutter open 016-095 Open pulsing shutter >20Hz (rapid - slow) 096-110 Shutter open 111-111 Fade effect with dimmer (slow - rapid) 112-125 Shutter open 126-126...
  • Page 28 P1 5 Gobo 1 008-015 Gobo 2 016-023 Gobo 3 024-031 Gobo 4 032-039 Gobo 5 040-047 Gobo 6 048-127 Gobo 0 shake (fast - slow) 128-135 Gobo 1 shake (fast - slow) 136-143 Gobo 2 shake (fast - slow) 144-151 Gobo 3 shake (fast - slow) 152-159...
  • Page 29 P1 5 Gobo4 032-039 Gobo 5 040-047 Gobo 6 048-127 Gobo 0 shake (fast - slow) 128-135 Gobo 1 shake (fast - slow) 136-143 Gobo 2 shake (fast - slow) 144-151 Gobo 3 shake (fast - slow) 152-159 Gobo 4 shake (fast - slow) 160-167 Gobo 5 shake (fast - slow) 168-175...
  • Page 30 P1 5 Aperture 4b 0-100% 000-255 Aperture 4b fine (16 Bit) 000-255 Aperture rotation -55° / +55° 000-255 Aperture rotation fine (16 Bit) 000-255 Color wheel White 000-001 White/Red 002-003 004-005 Red/Yellow 006-007 Yellow 008-009 Yellow/Magenta 010-011 Magenta 012-013 Magenta/Green 014-015 Green 016-017...
  • Page 31 P1 5 Black body shift 000-000 Minus green (-1% -> -100%) 001-127 Neutral white 128-128 Plus green (+1% -> +100%) 129-255 Sparkle - Glitter effect Sparkle effect inactive 000-000 Sparkle effect intensity (minimum - maximum) 001-255 Sparkle speed Faded sparkle effect (slow -> rapid) 000-031 Switched sparkle effect (slow ->...
  • Page 32: Control Channel

    CAMERA MODE - sets the LED refresh rate RESET - a basic reset of the headlight is performed For details, see DMX Channel Functions for the P15 Profile on page 25. 7.1.4 Sparkle effect, sparkle speed Animation effects can be created via this channel in connection with the focus. Depending on the intensity, the projection can be made to shake more or less.
  • Page 33: Artnet

    P1 5 7.2 Artnet The spotlight can be controlled via Artnet - ArtNET 4. To do this, set the Artnet address via the menu item DMX / NET ADDR -> ARTNET ADDRESS and also select it via the menu item PER- SONALITY ->...
  • Page 34: Standard Rdm Parameter Ids

    P1 5 7.5.3 Standard RDM parameter IDs RDM parameter ID DISCO- Note VERY RDM identification DISC_UNIQUE_BRANCH is used for fixture identification DISC_MUTE is used for fixture identification DISC_UN_MUTE is used for fixture identification RDM status determination QUEUED_MESSAGE STATUS_MESSAGES STATUS_ID_DESCRIPTION CLEAR_STATUS_ID RDM information SUPPORTED_PARAMETERS RDM configuration...
  • Page 35: Rdm Sensor Ids

    The P15 stores all occurring errors internally. An error message can have a harmless cause. If you experience frequent error messages, please contact your dealer or the JB-Lighting service department. All error messages are displayed with the respective frequency and can be deleted.
  • Page 36: Identify Device

    P1 5 IDENTIFY DEVICE The RDM command IDENTIFY DEVICE can be called up or deactivated via this menu item. 8.2 Changing gobos ATTENTION: Allow the device to cool down and disconnect the device from the mains before opening the device. Touching live parts (high voltage) can give you an electric shock.
  • Page 37: Gobo Size

    P1 5 8.3 Gobo size If you want to have your own gobos produced, please note the following dimensions: Usable diameter, rotating gobowheel 1: 22.00 mm Usable diameter, rotating gobowheel 2: 23.00mm Outer diameter: 27.90 mm (+0/-0.1 mm) Maximum thickness: 1.1 mm 8.4 Gobo handling instructions The used Gobo material for coating has low reflection and therefore it need to be handled ac- cording to following specification.
  • Page 38: Optional Pan/Tilt Limitation

    P1 5 8.7 Optional pan/tilt limitation The P15 profile offers the option of installing a pan/tilt limitation. The following parts are included with the limitation: 2x Tilt stop with fastening screw 2x Pan stop with fastening screw 8.7.1 Installation of the limitation The pictures show the installation of the pan/tilt limiter on the M18.
  • Page 39 P1 5 This results in a tilt path as shown in the two images on the right, as in the example from -66° to 66° Now the parts for the PAN limitation are installed. To do this, place the perforated bricks on the intended screw holes according to the desired angle and fix them with the two TX10 screws (see pictures).
  • Page 40 P1 5 Pos. Pos. -288 00° -108° -12° -282 06° -102° -18° -276 12° -96° -24° -270 18° -90° -30° -264 24° -84° -36° -258 30° -78° -42° +-180° -252 36° -72° -48° -246 42° -66° -54° -240 48° -60° -60°...
  • Page 41: Removal/Dismantling Of The Limitation

    P1 5 Now the fixture has to be taught that it has new end points for Pan/Tilt. To do this, press and hold buttons 1 and 3 below the display and plug in the fixture. As soon as the main menu appears, the buttons can be released.
  • Page 42: Cleaning The Device

    P1 5 8.8 Cleaning the device ATTENTION: Allow the device to cool down and disconnect the device from the mains before opening the device. Touching live parts (high voltage) can give you an electric shock. You should check the function of the fans in the head and foot at regular intervals.
  • Page 43: Checking The Plastic Parts

    P1 5 8.9.2 Checking the plastic parts The plastic parts of the P18 MK2 Profile should be checked regularly for damage and the onset of cracks. If a plastic part is cracked, do not use this fixture until the damaged part is replaced. Cracks or other damage to the plastic parts can be caused by transport or manipulation by third parties, as well as the aging process can affect plastic materials.
  • Page 44: Jb-Lighting User Network

    CPU LED Driver PCB: MK1 N.A. 10. JB-Lighting user network Do you want to rent out your JB-Lighting products or rent additional ones? Then join our User Network! Become part of our JB Community! Other members can easily filter by location or postal code, distance, and the JB product they need –...
  • Page 45: Specifications

    P1 5 11. Specifications Dimensions and weight Length ..............264 mm Width .
  • Page 46: Eu Declaration Of Conformity

    P1 5 12. EU Declaration of Conformity The manufacturer JB-Lighting Lichtanlagentechnik GmbH Sallersteigweg 15 89134 Blaustein-Wippingen hereby declares under its sole responsibility that the following product Product name P15 Profile meets the essential requirements of the following EU directives: 2014/53/EU (RED)
  • Page 47 P1 5 - 47 -...
  • Page 48 P1 5 JB-Lighting Lichtanlagentechnik GmbH Sallersteig 15 89134 Blaustein Tel. +49 7304 9617-0 Fax. +49 7304 9617-99 info@jb-lighting.de www.jb-lighting.de...
