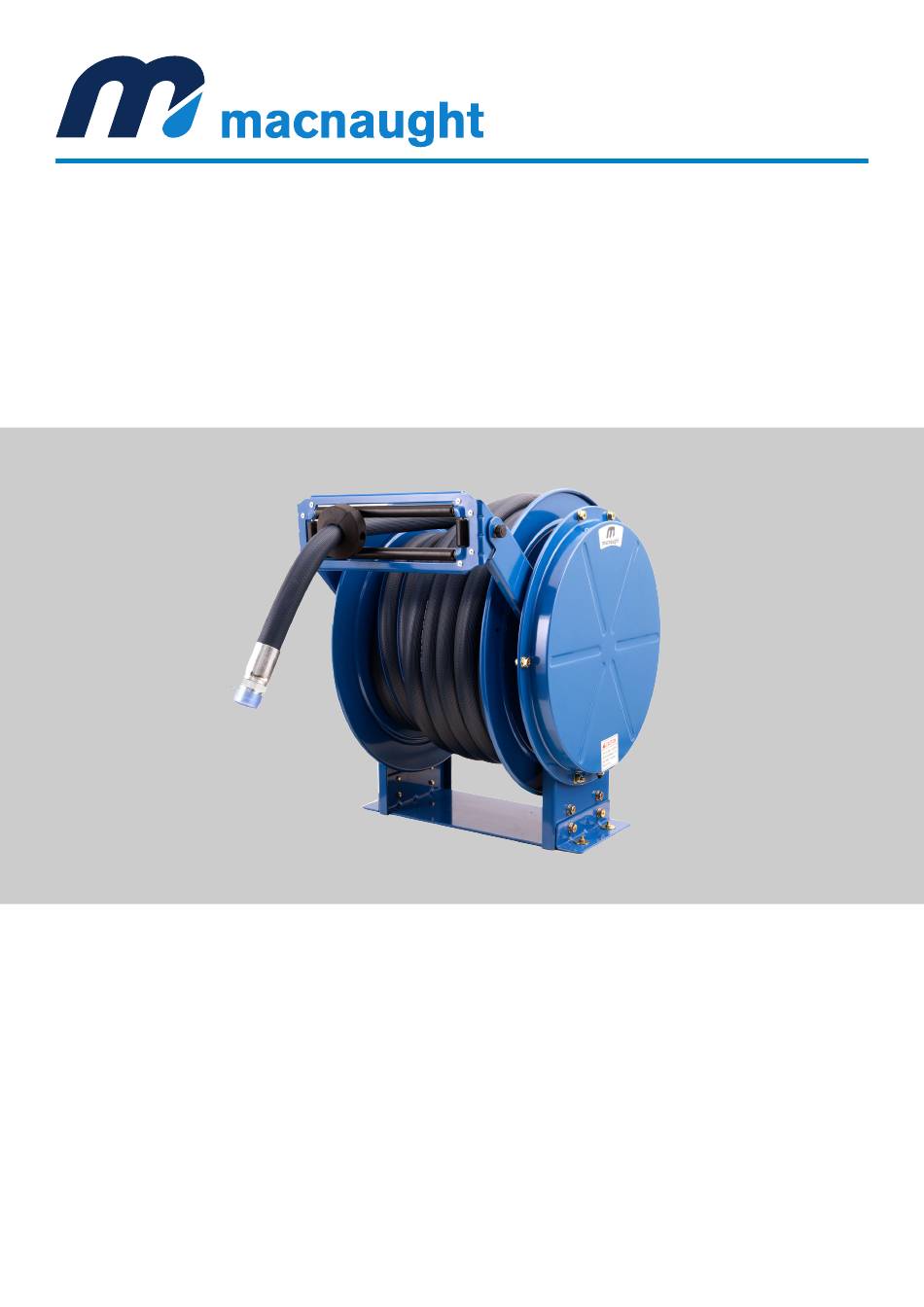

- Page 1 MRTP2520N-01 / MATP2520-01 / MDTP2520-01 HOSE REEL M-TP2520-01_MAC_IM_2504_KB_V1...
- Page 2 WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur.
-
Page 3: General Safety
GENERAL SAFETY The following general warnings should be observed when installing, operating or maintaining hose reel equipment. Keep the work area clean and dry. Damp or wet work areas can result in injury. Keep children away from work area. Do not allow children to handle this product. The operator should wear appropriate protection equipment to protect against personal injury. -
Page 4: Technical Details
TECHNICAL DETAILS SPECIFICATIONS Part Number MRTP2520N-01 MATP2520-01 MDTP2520-01 Colour Blue Blue Blue Oil / Air / Water / Air / Water / Diesel Oil / Air / Water / Compatible Fluids Diesel / Coolant / Coolant Diesel / Coolant Hose Size (ID) 1”... -
Page 5: Spare Parts Diagram
SPARE PARTS DIAGRAM SPARE PARTS Part Number Item No. Description MRTP2520N-01 MATP2520-01 MDTP2520-01 Roller Guide Set SKFG2520 SKRG2520 SKRG2520 Swivel Assembly RHA49S RHA53S RHA49S Swivel Seal Set (not shown) RHA50S RHA50S RHA50S Spring Drum Assembly SKSP2523 SKSP2520 SKSP2520 Latch Set... -
Page 6: Operation
GENERAL SAFETY Using the four holes in the base, mount the reel in the desired location. Be sure to use appropriate hardware and tighten securely. Apply Teflon tape or pipe sealant to supply line threads, attach to reel inlet and tighten. -
Page 7: Maintenance
MAINTENANCE ADJUSTING SPRING TENSION Pull out approximately 2m (6ft) of hose and allow the drum to latch. Remove hose stopper from hose, and feed hose back through the guide. Wrap the hose one time around the drum to increase tension or un-wrap hose one time from drum to decrease tension. - Page 8 HOSE REPLACEMENT Turn off and disconnect the supply to reel and release hose line pressure. Pull out approximately 2m (6ft) of hose and allow the drum to latch. Remove the outlet nozzle, gun or tool and hose stopper. Unlatch the reel and carefully allow the hose to slowly rewind until there is no spring tension remaining.
- Page 9 SPRING CANISTER REPLACEMENT Slide the flat inner plate over the shaft on the reel. Check the correct orientation of the spring locating boss. Remove the boss from the middle of the spring canister and slide the boss onto the shaft on the reel. Carefully hold the centre of the spring up in the middle of the drum, at the same time slide the drum assembly over the centre boss on the shaft.
-
Page 10: Troubleshooting
Replace the latch assembly. Replace swivel seals. (See Fluid leaks from the Swivel seals are worn. “Replacement of Swivel swivel. Seals”). LIMITED WARRANTY For Warranty Terms and Conditions see macnaught.com.au / macnaughtusa.com. For a list of Australian Service Centres see macnaught.com.au. - Page 11 Macnaught 1800 185 102 | sales@macnaught.com.au Macnaught Americas (813) 628-5506 | info@macnaughtusa.com This product should be disposed of according to all applicable local and national government environment regulations and guidelines.
