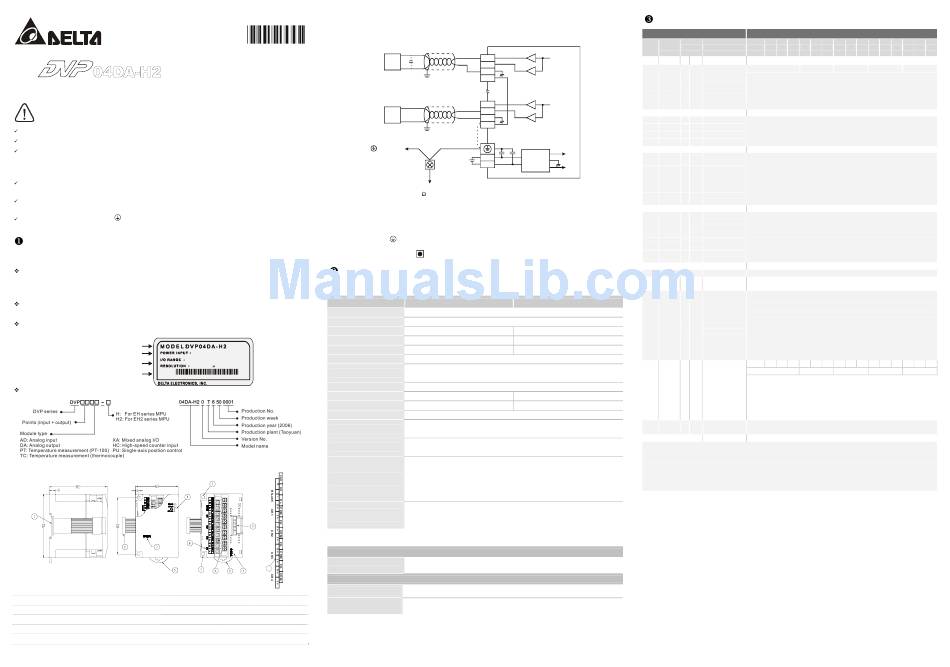

Delta DVP series Instruction Sheet

http://www.delta.com.tw/industrialautomation/
Analog Output Module
Instruction Sheet
Warning
Please read this instruction carefully before use.
Switch off the power before wiring.
DVP04DA-H2 is an OPEN-TYPE device and therefore should be installed in an enclosure free of
airborne dust, humidity, electric shock and vibration. The enclosure should prevent non-maintenance
staff from operating the device (e.g. key or specific tools are required to open the enclosure) in case
danger and damage on the device may occur.
DO NOT connect input AC power supply to any of the I/O terminals; otherwise serious damage may
occur. Check all the wiring again before switching on the power.
DO NOT tough any terminal when the power is switched on. DO NOT touch any internal circuit in 1
minute after the power is switched off.
Make sure the groud terminal is correctly grounded in order to prevent electromagnetic
interference.
Introduction
1.1 Model Explanation & Peripherals
Thank you for choosing Delta DVP series. DVP04DA-H2 is able to read and write data of DVP04DA-H2 analog
signal output modules through FROM/TO instructions given by the program of DVP-EH2 series MPU. The
analog signal output module receives 4 groups of 12-bit digital data from PLC MPU and converts the data into 4
points of analog signals for output in either voltage or current.
The user can select voltage or current output by wiring. Range of voltage output: 0V ~ +10VDC (resolution:
2.5mV). Range of current output: 0mA ~ 20mA (resolution: 5μA).
Nameplate Explanation
Delta PLC model name
Power input specification 24 Vdc 4.5W
0 V ~ + 10 V or 0mA ~ +20mA
Analog I/O module specification
2.5 mV or 5
Barcode, Serial No., Version
VX.XXXX 0 4 D A - H 2 0 T 6 5 0 0 0 0 1
Model/Serial No. Explanation
1.2 Product Profile (Indicators, Terminal Block, I/O Terminals)
Unit: mm
1 6
DIN rail (35mm) Terminals
2 Connection port for extension modules 7 Mounting hole
3 Model name 8 I/O terminals
4 9
POWER, ERROR, D/A indicator Mounting port for extension modules
5 DIN rail clip
2007-01-15
1.3 External Wiring
5011651101-D2E1
AC drive, recorder,
scale valve...
AC drive, recorder,
scale valve...
terminal of
power module
Note:
1. When performing analog output, please isolate other power wirings.
2. If the ripples at the loaded input terminal are too significant that causes noise interference on the wiring, connect the
wiring to 0.1 ~ 0.47μF 25V capacitor.
3. Please connect the
system contact or connect it to the cover of power distribution cabinet.
4. DO NOT wire empty terminals
Specifications
2.1. Functions
Digital/Analog (4D/A) Module
Power supply voltage
Analog output channel
Range of analog output
Range of digital data
Resolution
Output impedance
A
Overall accuracy
MADE I N XXXXX X
Responding time
Max. output current
Tolerable load impedance
Digital data format
Isolation
Protection
Communication mode
(RS-485)
When connected to
DVP-PLC MPU in series
2.2. Others
Max. rated power
consumption
8
Operation/storage
Vibration/shock
immunity
voltage output
0V~+10V
*2
CH1
V+ CH1
I+
COM
shielding cable *1
FG
current output
CH4
0mA~20mA CH4
V+
I+
COM
FG
shielding cable *1
+15V
DC/DC
24+
DC24V
*3
AG
converter
24-
-15V
system grounding
class 3 grounding
(100 or less)
terminal on both the power modules and DVP04DA-H2 to the system earth point and ground the
Voltage Output Current Output
24 VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%)
4 channels/module
0 ~ 10V 0 ~ 20mA
0 ~ 4,000 0 ~ 4,000
12 bits (1 = 2.5mV) 12 bits (1 = 5 μA)
LSB LSB
0.5Ω or lower
±0.5% when in full scale (25°C, 77°F)
±1% when in full scale within the range of 0 ~ 55°C, 32 ~ 131°F
3ms × the number of channels
10mA (1KΩ ~ 2MΩ) -
- 0 ~ 500Ω
11 significant bits out of 16 bits are available; in 2's complement
Internal circuit and analog output terminals are isolated by optical coupler.
No isolation among analog channels.
Voltage output is protected by short circuit. Short circuit lasting for too long may
cause damage on internal circuits. Current output can be open circuit.
ASCII/RTU mode.
Communication speed: 4,800/9,600/19,200/38,400/57,600/115,200 bps
ASCII data format: 7-bit, Even bit, 1 stop bit (7, E, 1)
RTU data format: 8-bit, Even bit, 1 stop bit (8, E, 1)
RS-485 cannot be used when connected to PLC MPU.
The modules are numbered from 0 to 7 automatically by their distance from MPU.
No.0 is the closest to MPU and No.7 is the furthest. Maximum 8 modules are allowed
to connect to MPU and will not occupy any digital I/O points.
Power Supply
24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%)., 4.5W supplied by external power
Environment
Operation: 0°C ~ 55°C (temperature); 50 ~ 95% (humidity); pollution degree 2
Storage: -40°C ~ 70°C (temperature); 5 ~ 95% (humidity)
International standards: IEC1131-2, IEC 68-2-6 (TEST Fc)/IEC1131-2 & IEC
68-2-27 (TEST Ea)
Control Registers
DVP04DA-H2 analog output module
RS-485
CR# Latched Register content b15 b14 b13 b12 b11 b10 b9
parameter
address
Set up by the system. DVP04DA-H2 model code = H'6401
#0 H'4032 ○ R Model name
reserved CH4
Output mode: Default = H'0000
Output mode Mode 0: Voltage output (0V ~ 10V)
#1 H'4033 ○ R/W
setting
Mode 1: Voltage output (2V ~ 10V)
Mode 2: Current output (4mA ~ 20mA)
Mode 3: Current output (0mA ~ 20mA)
#2 ~ #5 Reserved
#6 H'4038 ╳ R/W CH1 output value
#7 H'4039 ╳ R/W CH2 output value Range of output value at CH1 ~ CH4: K0 ~ K4,000
#8 H'403A ╳ R/W CH3 output value Default = K0 (unit: LSB)
#9 H'403B ╳ R/W CH4 output value
#10 ~ #17 Reserved
Adjusted OFFSET
#18 H'4044 ○ R/W
value of CH1
Adjusted OFFSET
#19 H'4045 ○ R/W
value of CH2 Range of OFFSET at CH1 ~ CH4: K-2,000 ~ K2,000
Default = K0 (unit: LSB)
Adjusted OFFSET
#20 H'4046 ○ R/W
value of CH3
Adjusted OFFSET
#21 H'4047 ○ R/W
value of CH4
#22 ~ #23 Reserved
Adjusted GAIN
#24 H'404A ○ R/W
value of CH1
Adjusted GAIN
#25 H'404B ○ R/W
value of CH2 Range of GAIN at CH1 ~ CH4: K-1,600 ~ K8,000
Adjusted GAIN Default = K2,000 (unit: LSB)
#26 H'404C ○ R/W
value of CH3
Adjusted GAIN
○ R/W
#27 H'404D
value of CH4
#28 ~ #29 Reserved
#30 H'4050 ╳ R Error status Register for storing all error status. See the table of error status for more information.
Communication For setting up RS-485 communication address. Range: 01 ~ 255
○
#31 H'4051 R/W
address setting
Default = K1
Default = H'0002. For setting up communication speed: 4,800 / 9,600 / 19,200 /
38,400 / 57,600 / 115,200bps
ASCII data format: 7-bit, Even bit, 1 stop bit (7, E, 1)
RTU data format: 8-bit, Even bit, 1 stop bit (8, E, 1)
Communication
b0: 4,800bps b1: 9,600bps (default)
#32 H'4052 ○ R/W speed (baud rate)
b2: 19,200bps b3: 38,400bps
setting
b4: 57,600bps b5: 115,200bps
b6 ~ b13: reserved
b14: High/low bit exchange of CRC checksum (only valid in RTU mode)
b15: Switch between ASCII/RTU mode. 0 = ASCII mode (default)
b15 b14 b13 b12 b11 b10 b9
reserved CH4
Return to default Default = H'0000. Take the setting of CH1 for example:
setting;
1. When b0 = 0, the user is allowed to tune CR#18 (OFFSET) and CR#24 (GAIN)
#33 H'4053 ○ R/W OFFSET/GAIN
of CH1. When b0 = 1, the user is not allowed to tune CR#18 (OFFSET) and
tuning
CR#24 (GAIN) of CH1.
authorization
2. b1 represents whether the OFFSET/GAIN tuning registers are latched. b1 = 0
(default, latched); b1 = 1 (non-latched)
3. When b2 = 1, all settings will return to default values. (except CR#31, CR#32)
Displaying the current firmware version In hex; e.g. version 1.0A is indicated as
#34 H'4054 ○ R Firmware version
H'010A.
#35 ~ #48 For system use.
Symbols
○: latched (when written in through RS-485 communication)
: non-latched
╳
R: Able to read data by FROM instruction or RS-485 communication
W: Able to write data by TO instruction or RS-485 communication
LSB (Least Significant Bit): For voltage output 1 = 10V/4,000 = 2.5mV。
LSB
For current output 1 = 20mA/4,000 = 5μA。
LSB
Explanations:
1. CR#0: Model name. The user can read the model name from the program and see if the extension module
exists.
2. CR#1: The working mode of the four channels in the analog input module. There are 4 modes for each channel
which can be set up separately. For example, if the user needs to set up CH1: mode 0 (b2 ~ b0 = 000); CH2:
mode 1 (b5 ~ b3 = 001), CH3: mode 2 (b8 ~ b6 = 010) and CH4: mode 3 (b11 ~ b9 = 011), CR#1 has to be set
as H'000A and the higher bits (b12 ~ b15) have to be reserved. Default value = H'0000.
3. CR#2 ~ CR#5, CR#10 ~ CR#17, CR#22, CR#23, CR#28 and CR#29 are reserved.
4. CR#6 ~ CR#9: The output values of CH1 ~ CH4 (range: K0 ~ K4,000; default = K0; unit: LSB)
5. CR#18 ~ CR#21: The adjusted OFFSET value of CH1 ~ CH4 (default = K0, unit = LSB), representing the analog
output voltage or current when the output digital value = 0 after calculation. The adjustable range: -2,000 ~
+2,000.
The adjustable range of voltage: -5V ~ +5V (-2,000 ~ +2,000 )
LSB LSB
The adjustable range of current: -10mA ~ +10mA (-2,000 ~ +2,000
LSB
6. CR#24 ~ CR#2: The adjusted GAIN value of CH1 ~ CH4 (default = K2,000, unit = LSB), representing the analog
output voltage or current when the output digital value = 2,000 after calculation.
Description
b8 b7 b6 b5 b4 b3 b2 b1 b0
CH3 CH2 CH1
b8 b7 b6 b5 b4 b3 b2 b1 b0
CH3 CH2 CH1
)
