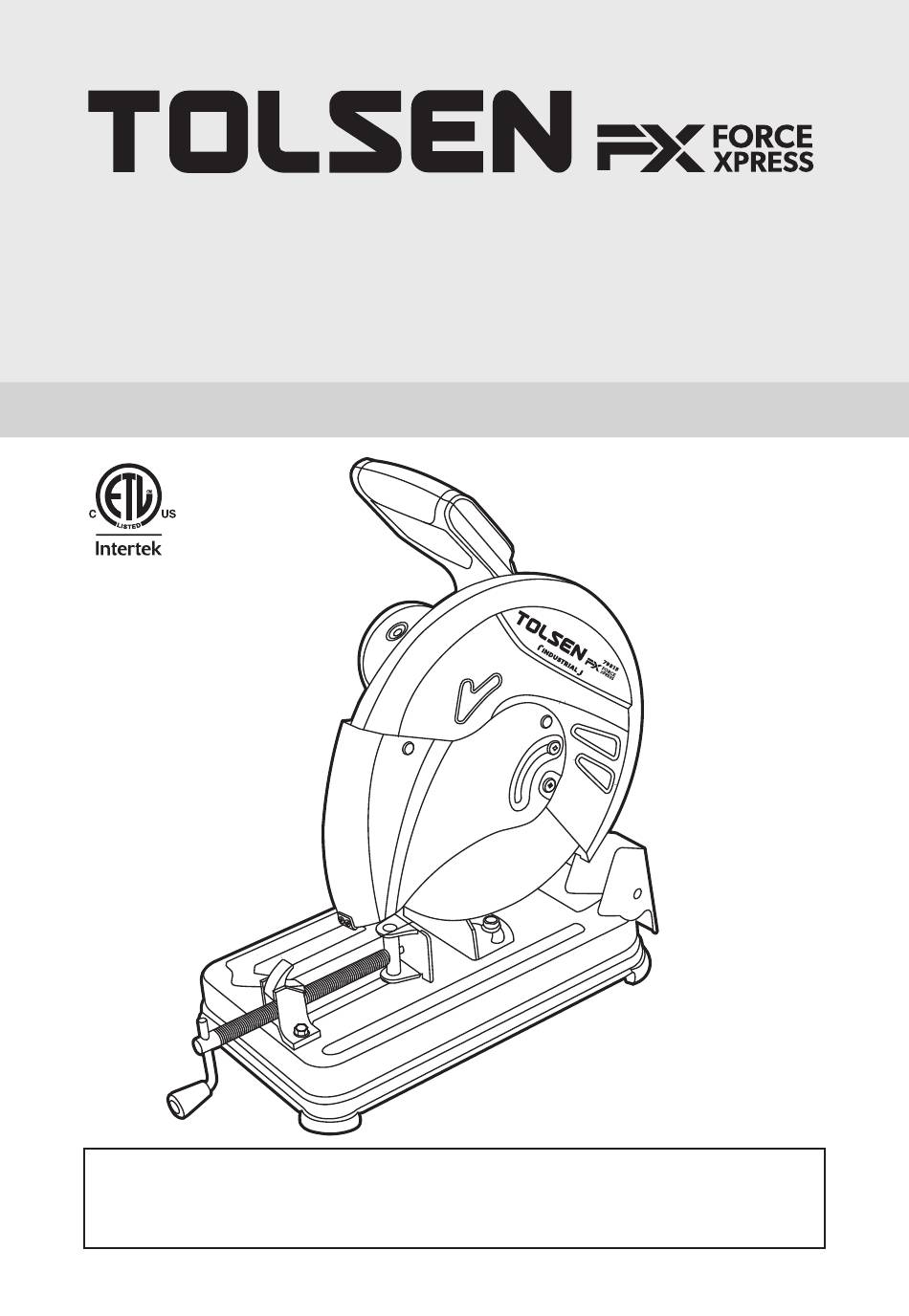

- Page 1 79815 CUT-OFF SAW INSTRUCTION MANUAL 120V~60Hz 15A 3151837 SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
-
Page 2: Important Safety Information
SAFETY IMPORTANT SAFETY INFORMATION General Power Tool Safety Warnings WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ”power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 SAFETY 14. Remove any adjusting key or wrench before children and do not allow persons unfamiliar turning the power tool on. A wrench or a key with the power tool or these instructions to le attached to a rotating part of the power tool operate the power tool.
-
Page 4: Grounding Instruction
SAFETY Grounding Instruction WARING TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING WIRE CONNECTION READ AND FOLLOW THESE INSTRUCTIONS: Grounding 1.In the event of a malfunction or breakdown, 4. Check with a qualified electrician or service grounding provides a path of least resistance for personnel if the grounding instructions are not electric current to reduce the risk of electric completely understood, or if in doubt as to... -
Page 5: Safety Warnings Specific For Sanding Operations
SAFETY Safety Warnings Specific for Sanding Operations For Your Own Safety Read Instruction Manual Before Operating Cut-Off Saw 1. Wear eye protection. cut aluminum, copper, brass, or other non-fer- 2. Use grinding wheel suitable for speed of Cut-Off rous metals. The cut-off wheel is designed to cut Saw. -
Page 6: Vibration Safety
SAFETY 23. People with pacemakers should consult their masks that are specially designed to filter out physician(s) before use. Electromagnetic fields in microscopic particles. close proximity to heart pacemaker could cause 25. WARNING: The cord of this product contains pacemaker interference or pacemaker failure. lead and/or di (2-ethylhexyl) phthalate (DEHP), 24. -
Page 7: Specifications
SPECIFICATIONS SPECIFICATIONS Electrical Rating 120V~60Hz Rated current Motor No Load Speed : 3800/min 3151837 Cutting capacity @4-1/2”, 45 @3-1/2“ Blade size 14” Note: Symbology Intertek testing services inc. WARNING mark concerning Risk of Eye Injury. Wear ANSI-approved safety goggles with side shields Read the manual before set-up and/or use. - Page 8 SET UP SETUP Functions Handle Motor Housing Base Vise Handle Depth adjustment bolt Trigger Lock ball...
-
Page 9: Tool Set Up
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Tool Set Up WARNING: TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Release the Trigger, unplug the tool from its electrical outlet before performing any inspection, maintenance, or cleaning procedures. TO PREVENT SERIOUS INJURY: DO NOT OPERATE WITH ANY GUARD DISABLED, DAMAGED, OR REMOVED. -
Page 10: Depth Adjustment
OPERATING INSTRUCTIONS a. Suspend wheel using a dowel or finger through the arbor hole. b. Tap the flat side of the wheel with a light non-metallic object, such as a screwdriver handle, at a point 45° from the vertical center line on each side of the wheel and 1 - 2 inches from the edge of the wheel (see Figure C). - Page 11 OPERATING INSTRUCTIONS Setting Up an Angle Cut 1. To cut at various angles (up to 45 ), adjust the Angle Scale (35) by loosening the two Bolts (41) as shown in Figure F. 2. Adjust the Angle Scale to the desired setting and then tighten both Bolts.
-
Page 12: Maintenance And Servicing
MAINTENANCE AND SERVICING MAINTENANCE AND SERVICING Procedures not specifically explained in this manual must be performed only by a qualified technician. WARNING: TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the Power Switch of the tool off and unplug the tool from its electrical outlet before performing any inspection, maintenance, or cleaning procedures. -
Page 13: Troubleshooting
TROUBLESHOOTING Troubleshooting Problem Possible Causes Likely Solu�ons Tool will not 1. Cord not connected. 1. Check that cord is plugged in. start. 2. No power at outlet. 2. Check power at outlet. If outlet is 3. Tool’s thermal reset breaker tripped unpowered, turn off... - Page 14 SUZHOU TOLSEN TOOLS CO.,LTD. www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. SCAN TO VISIT TolsenWorld MADE IN CHINA PRODUCT LINK...
