Installation Guide

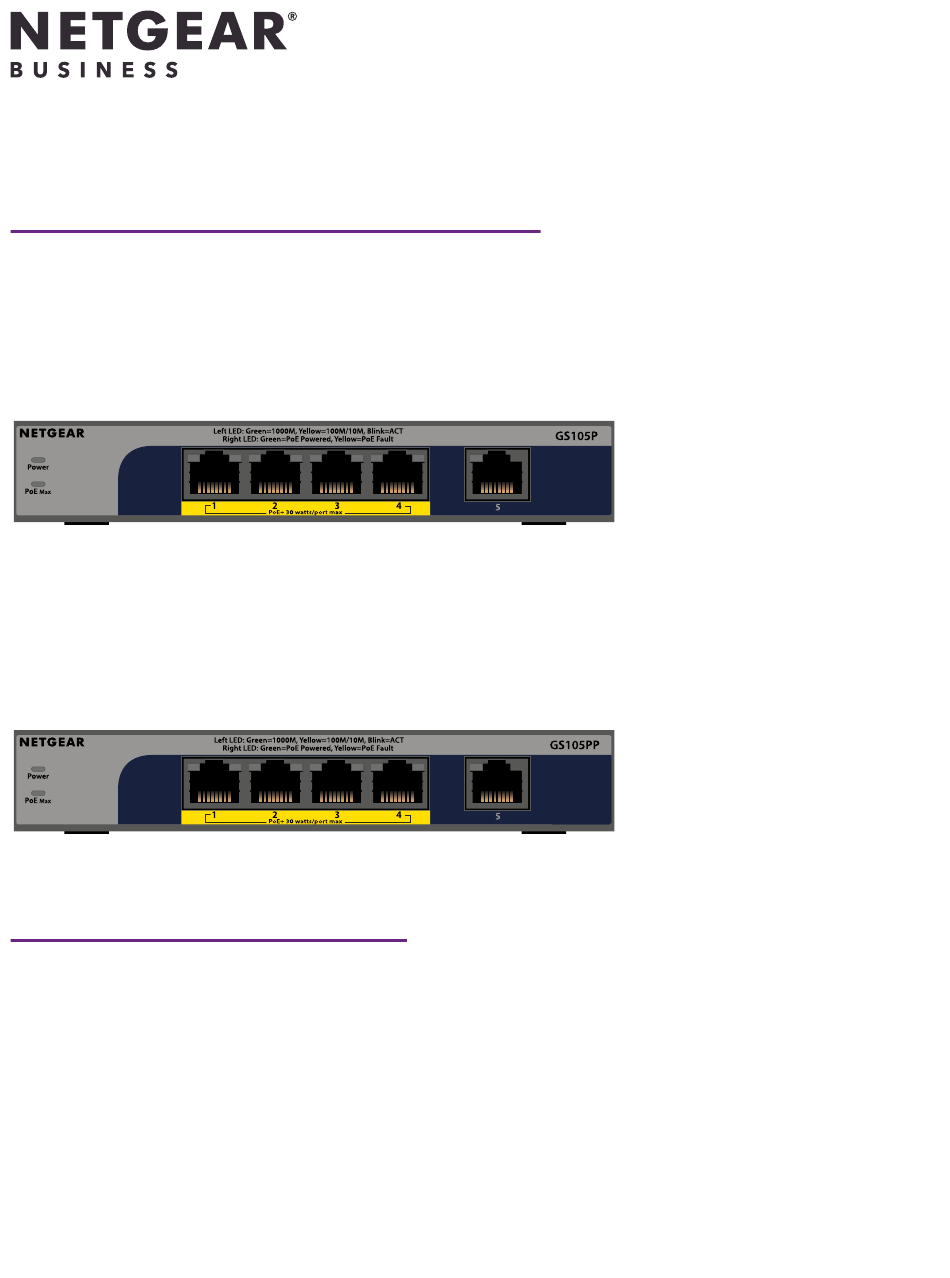

5-Port Gigabit Ethernet PoE+ Unmanaged
Switch (63W)
Model GS105P
5-Port Gigabit Hi-Power Ethernet PoE+
Unmanaged Switch (83W)
Model GS105PP
Package contents
•
Model GS105P or GS105PP Unmanaged Switch
•
DC power adapter
•
Detachable power cable (varies by region)
•
Wall-mount kit screws
•
Four rubber footpads
NOTE: We recommend that you use a Category 5e (Cat 5e) cable or a higher
rated cable for Gigabit Ethernet connections.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NETGEAR GS105P
Summary of Contents for NETGEAR GS105P
- Page 1 5-Port Gigabit Ethernet PoE+ Unmanaged Switch (63W) Model GS105P 5-Port Gigabit Hi-Power Ethernet PoE+ Unmanaged Switch (83W) Model GS105PP Package contents • Model GS105P or GS105PP Unmanaged Switch • DC power adapter • Detachable power cable (varies by region) • Wall-mount kit screws •...
-
Page 2: Register The Switch
From a computer or mobile device that is connected to the Internet, visit my.netgear.com. Log in to your NETGEAR account. NOTE: If you don’t have a free NETGEAR account, you can create one. The Your Registered Products page displays. Click the REGISTER NEW PRODUCT button. -
Page 3: Connect The Switch
Ethernet surge protector inline between the switch and the outdoor device. Failure to do so can damage the switch. Before connecting this switch to outdoor cables or devices, see kb.netgear.com/000057103 for safety and warranty information. -
Page 4: Connect To Power And Check The Leds
The switch provides PoE+ or PoE power on ports 1–4 up to 30W PoE to each port. Model GS105P provides a PoE power budget of 63W across all active PoE ports. Model GS105PP provides a PoE power budget of 83W across all active PoE ports. - Page 5 (from port 1 to port 4), with a total power budget of 63W for model GS105P and 83W for model GS105PP. If the power requirements for the attached powered devices (PDs) exceed the total power budget of the switch, the PD on the highest-numbered port is disabled to make sure that the PDs that are connected to the higher-priority, lower-numbered ports are supported first.
-
Page 6: Mount The Switch On A Wall
Model GS105P: 67.5W maximum; 1.02W standby Model GS105PP: 90.0W maximum; 1.01W standby PoE power budget Model GS105P: 30W maximum per PoE+ port with a total PoE power budget of 63W for the switch Model GS105PP: 30W maximum per PoE+ port with a total... - Page 7 Support and Community Visit netgear.com/support to get your questions answered and access the latest downloads. You can also check out our NETGEAR Community for helpful advice at community. netgear.com. Regulatory and Legal Si ce produit est vendu au Canada, vous pouvez accéder à ce document en français canadien à...
