Quick Reference Installation Guide – Air-Cooled Chillers
-
Location - Airflow:
o
Ensure proper airflow, no obstructions over top of the chiller. Fans discharge vertically and need
to have clear airflow to avoid recirculation. Must discharge to open air.
o
Required clearance around the chiller needs to be observed to ensure proper fresh airflow to the
chiller's condenser. Spacing between chillers needs to meet requirements to avoid chillers
competing for airflow.
-

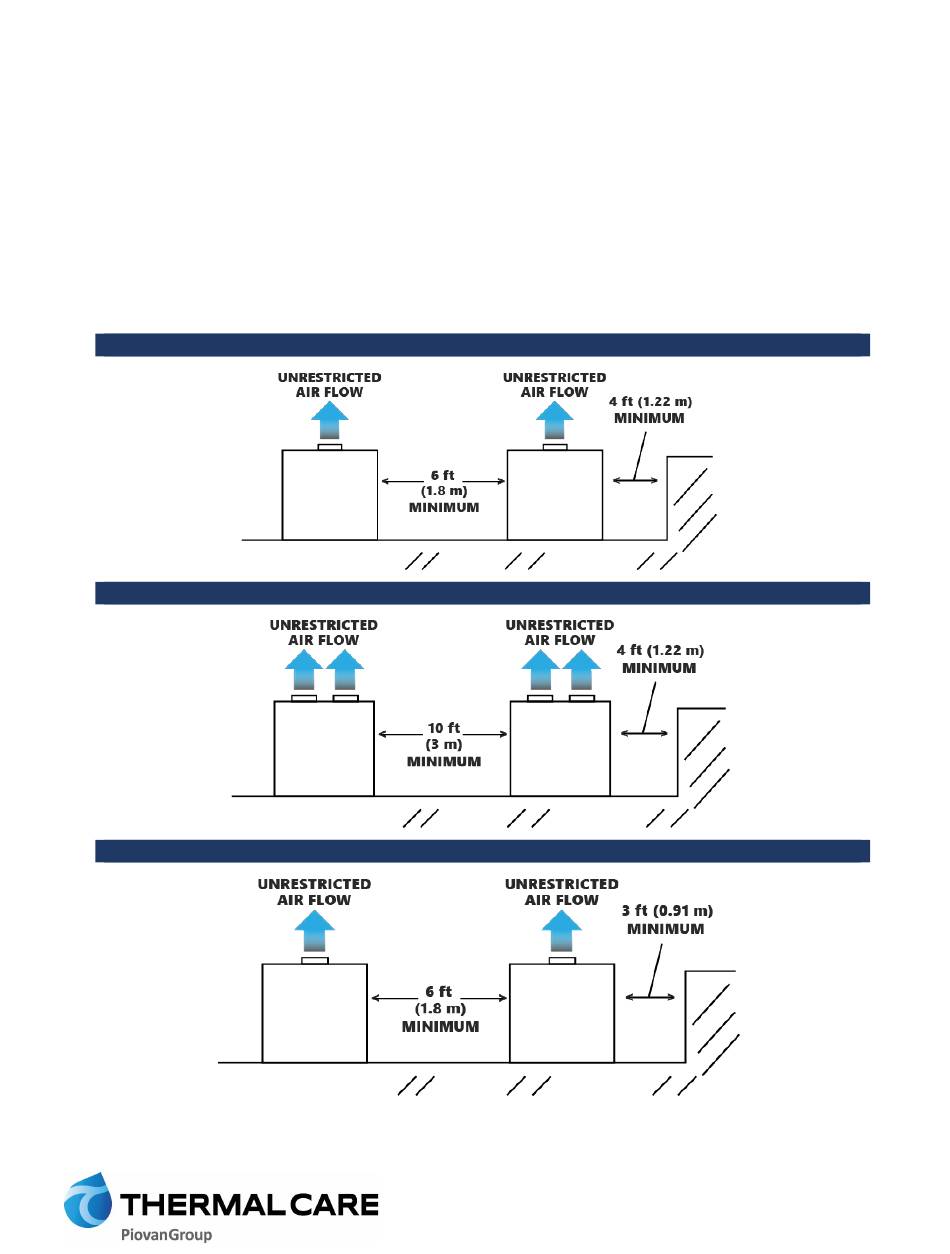

Air-Cooled Chiller Installation
Figure 1 – KSE 40 to 60 Unit Location
Figure 2 – KSE 80 to 120 Unit Location
Figure 3 – NQ 4 to 30 Unit Location
847.966.2260
Quick Reference Guide - 2
\
