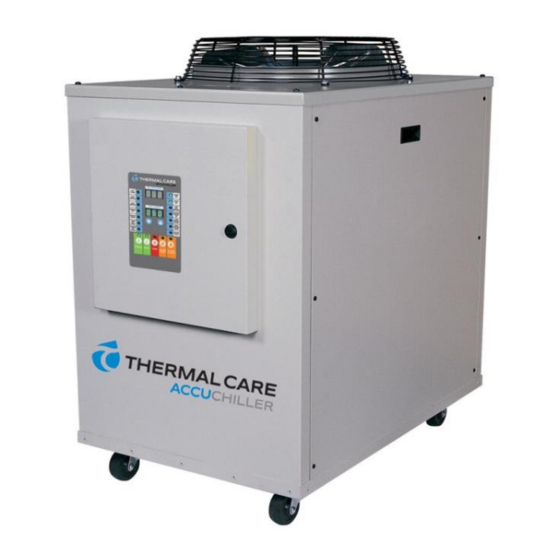

- Page 1 Installation & Operation Manual EQ Series Portable and Remote Condenser Chillers...
- Page 2 Page Intentionally Blank...
-
Page 3: Table Of Contents
Table of Contents Foreword ................................... 1 Safety Guidelines ................................1 Pre-Installation ................................. 2 Receiving Inspection ....................................... 2 Unit Storage ........................................3 Installation - Chiller ................................. 3 Foundation .......................................... 3 Unit Location ........................................3 Rigging ..........................................3 Chilled Process Fluid Piping ..................................3 Condenser Water Piping.................................... - Page 4 Page Intentionally Blank...
-
Page 5: Foreword
We trust your equipment will have a long and useful Foreword life. If you should have any questions, please contact our Customer Service Department specifying the The portable chiller is a packaged unit typically serial number and model number of the unit as consisting of a refrigeration circuit, coolant reservoir, indicated on the nameplate. -
Page 6: Pre-Installation
Only qualified personnel should install, start-up, and Pre-Installation service this equipment. When working on this equipment, observe precautions in this manual as Receiving Inspection well as tags, stickers, and labels on the equipment. When the unit arrives, verify the information on the unit nameplate agrees with the order WARNING: Any use or misuse of this equipment acknowledgement and shipping papers. -
Page 7: Unit Storage
Chillers with an integral water-cooled or air-cooled Proper ventilation is another important condenser ship with a full refrigerant charge. Chillers consideration when locating the chiller. In general, designed for use with a remote air-cooled condenser locate the unit in an area that will not rise above and the remote condensers themselves ship with a 110°F. -
Page 8: Condenser Water Piping
piping is overhead with a total run length over 90 Each condenser has a two-way condenser water- feet there should be a valve in the supply line and an regulating valve. The condenser water-regulating inverted P trap with a vacuum break valve installed valve controls the amount of water allowed to pass as shown in Figure 1. -
Page 9: Lifting
Avoid areas that can create a “micro-climate” such as The discharge and liquid lines leaving the chiller an alcove with east, north, and west walls that can be have caps. These line sizes do not necessarily reflect significantly warmer than surrounding areas. The the actual line sizes required for the piping between condenser needs to have unrestricted airways so it the chiller and the air-cooled condenser. - Page 10 General design considerations are: Figure 3 – Condenser Located at Chiller Level 1. The total distance between the chiller and the air-cooled condenser must not exceed 200 actual feet or 300 equivalent feet. Keep the distance as short as possible. 2.
-
Page 11: Determining Equivalent Line Length
Determining Equivalent Line Length make the vertical run immediately after the condenser before any additional restrictions. The To determine the appropriate size for field installed liquid line risers must not exceed 10 feet in height liquid and discharge lines, it is first necessary to from the condenser liquid line connection. -
Page 12: Calculating Refrigerant And Oil Charge
Check the oil-level sight glass in the compressor to Table 3 - Horizontal or Downflow Discharge Line ensure it is at the appropriate level to verify there is Sizes for 3-ton R407c Circuit (inches OD) no trapping of oil in the piping. The chiller is Total Equivalent Length (Ft) 75 100 125 150 175 200 225 250 275 300 equipped with hot-gas bypass capacity control and... -
Page 13: Installation - Electrical
leads that are from the unit contactors or the motor Installation - Electrical terminals. All wiring must comply with local codes and the WARNING: This equipment contains hazardous National Electric Code. Minimum circuit amps (MCA) voltages that can cause severe injury or death. and other unit electrical data are on the unit nameplate. -
Page 14: Standard Controller Operation
The chiller includes a controller to perform all Standard Controller Operation control functions directly from the front panel. When Control Power is applied, the controller initiates a diagnostic test of each indicating light and display segment by briefly lighting each sequentially. As part of this initial diagnostic test, the revision level of the control program displays for a moment. - Page 15 Table 7 - Operating Buttons Button Description of Operation Power Depressing the Power button switches the control power on or off. The control power must be on before the Start button or remote on/off contact can start the chiller. The light above this button is one when the power is on. Start Depressing the Start button starts the pump and enables the compressor.
-
Page 16: Diagnostic Error Codes
Table 9 – Controller Control Fault Logic Alarm Manual Remote Alarm Compressor Pump Fault Reset Reset Alarm Indication Shutdown Shut Off Required Required Activated No Flow High Refrigerant Pressure Low Refrigerant Pressure Freezestat Low Oil Pressure Over Set Point Under Set Point Low Water Level High Water Temperature Probe Fault... -
Page 17: Spi Communications Option
Table 10 – Diagnostic Error Codes (continued) Error Description Cause/Corrective Action Code Indicates the internal compressor motor winding thermostat or the external compressor motor overload has tripped. This fault also shuts off the pump. The internal compressor motor winding thermostat automatically resets when the temperature drops back into the normal operating range. - Page 18 Table 12 - SPI Parameters Command Poll Select Description Echo 20 20 20 21 This is the controller integrity command used to accept and retain data and provide it in response to a poll inquiry. This is an open 4 byte ASCII format with ASCII units. Version 20 22 This is the controller version command used to provide a version number following...
-
Page 19: Start-Up
CAUTION: The unit requires the main power to Start-Up remain connected during off-hours to energize the compressor’s crankcase heater. Disconnect Every unit is factory set to deliver chilled water in main power only when servicing the chiller. The crankcase heater should remain on when the accordance with the standard operating compressor is off to ensure liquid refrigerant specifications for that particular chiller. -
Page 20: Step 3 - Check Condenser
water can also encourage biological growth that can Table 13 – Fill Water Chemistry Requirements foul heat transfer surfaces. Water Characteristic Quality Limitation Alkalinity (HCO 70-300 ppm Aluminum (Al) Less than 0.2 ppm To avoid the unwanted side effects associated with Ammonium (NH Less than 2 ppm water cooling, proper chemical treatment and... -
Page 21: Step 4 - Check Refrigerant Valves
Integral Air-Cooled Condenser Check Step 6 – Turn On Control Power Make sure the chiller is installed as described in the Some chillers may have a control power switch. If mechanical installation section of this manual. Check present, turn the control power switch on. If not to make sure the chiller condenser is clear of present, turning the main power on should turn the obstructions and has at least 36 inches of open air... -
Page 22: Preventive Maintenance
Operate the system for approximately 30 minutes. 2. Check to make sure that the To Process Check the liquid line sight glass. The refrigerant flow temperature is reasonably close to the Set Point past the sight glass should be clear. Bubbles in the temperature. -
Page 23: Preventive Maintenance Checklist
everything is operating properly. Have condenser cleaned out if necessary. Preventive Maintenance Checklist Week Number Maintenance Activity Date Clean Air Coils and Inlet Filters Temperature Control Pump Discharge Pressure Coolant Level Glycol Concentration Pump Seal Refrigerant Sight Glass Electrical Connections Incoming Voltage Compressor #1 L1 Amps Compressor #1 L2 Amps... -
Page 24: General Troubleshooting
General Troubleshooting Problem Possible Cause Remedy Compressor will not Compressor overload Check supply voltage, amperage of each leg, start contactor and wiring, and overload set point Compressor contactor Replace if faulty Compressor failure Contact Customer Service for assistance Pump will not start Pump overload Check supply voltage, amperage of each leg, contactor and wiring, and overload set point... -
Page 25: Warranty
This warranty does not cover the cost of labor during overtime hours (after normal working hours or during weekends and holidays). Any cost differential for overtime labor will be the responsibility of the customer. Thermal Care is not responsible for any sales, use, excise or other applicable taxes associated with the replacement of parts under this warranty. - Page 26 Thermal Care’s obligation is limited to repair or replacement (not adjustment or maintenance), F.O.B. the factory of the compressor supplied by Thermal Care within a period five (5) years from the date of shipment to the original purchaser. This warranty applies to the cost of parts. Labor to replace the compressor is limited to twelve (12) months from the date of shipment.
- Page 27 Notes...
- Page 28 Thermal Care, Inc. New Equipment Sales Customer Service Parts 5680 W. Jarvis Ave. Phone (847) 966-2260 Phone (847) 966-2636 Phone (847) 966-8560 Niles, IL 60714-3491 (847) 966-9358 (847) 966-2906 (847) 966-6065 www.thermalcare.com info@thermalcare.com service@thermalcare.com tcparts@thermalcare.com EQ Series IOM 2-313.25 December 2016...
