Delta 23-592 Instruction Manual

8" bench grinder w/lamp
Hide thumbs
Table of Contents

Advertisement

Quick Links

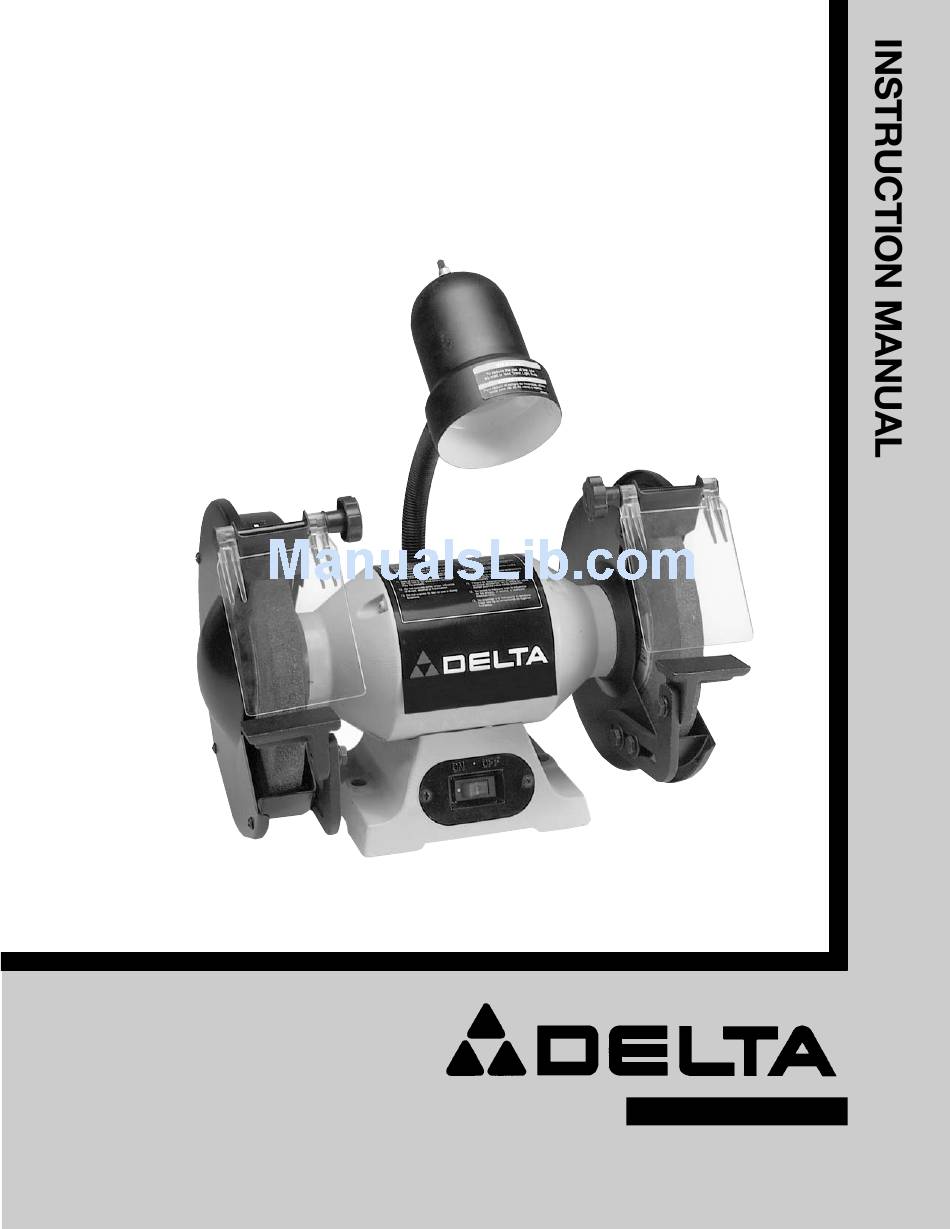

8" Bench Grinder W/Lamp
(Model 23-592)
PART NO. 901926 (015)
Copyright © 2001 Delta Machinery
To learn more about DELTA MACHINERY
ESPAÑOL: PÁGINA 11
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call

Advertisement

Table of Contents
loading

Related Manuals for Delta 23-592

Summary of Contents for Delta 23-592

  • Page 1 8" Bench Grinder W/Lamp (Model 23-592) PART NO. 901926 (015) Copyright © 2001 Delta Machinery To learn more about DELTA MACHINERY ESPAÑOL: PÁGINA 11 visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582). please call...

  • Page 2: Safety Rules

    If you have any questions relative to a particular application, DO NOT use the machine until you have first contacted Delta to determine if it can or should be performed on the product.

  • Page 3: Additional Safety Rules For Grinders

    (grinding wheels, wire brushs, buffing wheels, etc...) onto the shaft. 15. STAND to one side of the grinder when turning on the power. 16. AVOID awkward hand positions where a sudden slip could cause a hand to move into the attachment (grinding wheel, wire brush, buffing wheel, etc...).

  • Page 4: Unpacking And Cleaning

    WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE TOOL TO THE POWER SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU HAVE READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL. 1. Grinder 2. Tool rest (2) 3. Tool rest arm (2) 4.

  • Page 5: Tool Rests

    Fig. 5, on the side of the spark guard (A), must be placed in slot (E), before attaching the spark guard (A) to the grinder. The spark guard (A) should be adjusted as close as possible to the grinding wheel so that sparks never strike the operator’s hand.

  • Page 6: Grounding Instructions

    FASTENING GRINDER TO SUPPORTING SURFACE IF DURING OPERATION THERE IS ANY TENDENCY FOR THE GRINDER TO TIP OVER, SLIDE OR “WALK,” THE GRINDER MUST BE SECURED TO THE SUPPORTING SURFACE USING FASTENERS (NOT SUPPLIED) THROUGH THE TWO HOLES (A) Fig. 9, IN THE GRINDER BASE.

  • Page 7: Extension Cords

    A l l g r o u n d e d , c o r d - c o n n e c t e d t o o l s : In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

  • Page 8: Changing Grinding Wheels

    WARNING: THE USE OF ACCESSORIES AND ATTACHMENTS NOT RECOMMENDED BY DELTA MAY RESULT IN RISK OF INJURIES. Grinding wheels used with this grinder should be rated for 3600 RPM or higher and be 8" in diameter with a 1/2" arbor hole.

  • Page 9: Parts, Service Or Warranty Assistance

    Delta Building Trades and Home Shop Machinery Delta will repair or replace, at its expense and at its option, any Delta machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years and provides Delta with reasonable opportunity to verify the alleged defect by inspection.
