Bestarc BTC650DP-3GEN Manual

65amps hf pilot arc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

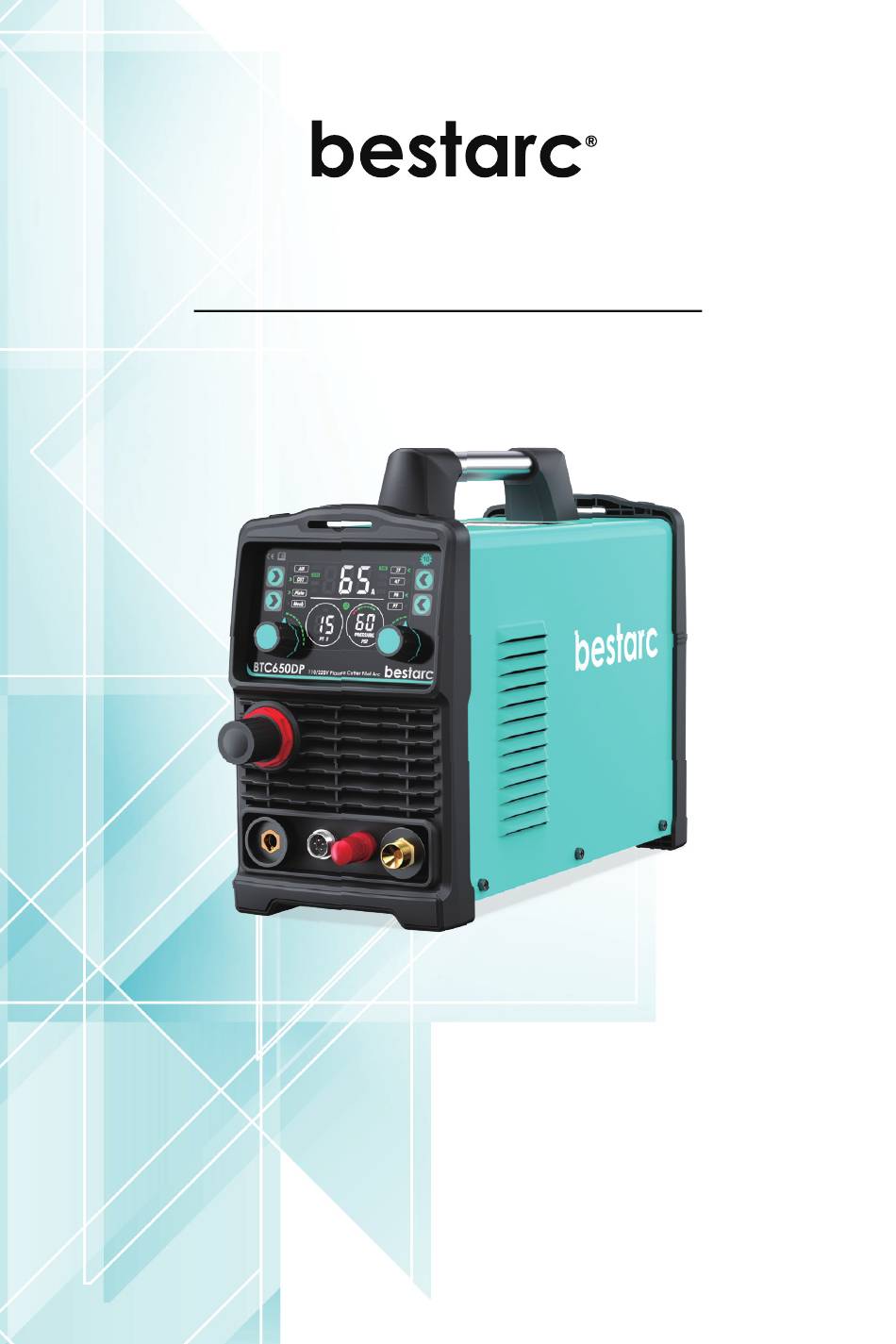

PLASMA CUTTER
65Amps HF Pilot Arc
BTC650DP-3GEN
BTC650DP-7GEN
BTC650DP-10GEN
PILOT ARC PLASMA CUTTER
MADE BY BESTARC MUST BE QUALITY PRODUCTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTC650DP-3GEN and is the answer not in the manual?

Questions and answers

Related Manuals for Bestarc BTC650DP-3GEN

Summary of Contents for Bestarc BTC650DP-3GEN

  • Page 1 PLASMA CUTTER 65Amps HF Pilot Arc BTC650DP-3GEN BTC650DP-7GEN BTC650DP-10GEN PILOT ARC PLASMA CUTTER MADE BY BESTARC MUST BE QUALITY PRODUCTS...
  • Page 2 CONTENTS www.bestarc.com Safety Main Parameter Func�on BTC650DP 3GEN BTC650DP 7GEN BTC650DP 10GEN Opera�on PILOT ARC PLASMA CUTTER...
  • Page 3 Incorrectly installed or improperly grounded equipment is a hazard, and can cause serious damage, properly install and ground this equipment according to this manual and na�onal, state, and local codes. Please contact us if any ques�on by mail: support@bestarc.com PILOT ARC PLASMA CUTTER...
  • Page 4 SAFETY SAFETY www.bestarc.com CAUTION 1. Working Environment 1.1 The environment in which this welding equipment is installed must be free of grinding dust, corrosive chemicals, flammable gas or materials etc, and at no more than maximum of 80% humidity. 1.2 When using the machine outdoors protect the machine from direct sun light, rain water and snow etc;the temperature of working environment should be maintained...

  • Page 5: Maintenance

    SAFETY SAFETY www.bestarc.com MAINTENANCE Exposure to extremely dusty, damp, or corrosive air is damaging to the welding machine. In order to prevent any possible failure or fault of this welding equipment, clean the dust at regular intervals with clean and dry compressed air of required pressure.
  • Page 6 SAFETY www.bestarc.com HOW A PLASMA CUTTER WORK Basic plasma cu�ers use electricity to superheat air into plasma (the 4th state of ma�er), which is then blown through the metal to be cut. Plasma cu�ers require a compressed air supply and AC power to operate.
  • Page 7 SAFETY www.bestarc.com HOW DOES PLASMA CUTTING COMPARE TO OXY-FUEL (GAS) CUTTING? Plasma cu�ng can be performed on any type of conduc�ve metal-mild steel, aluminium and stainless are some examples. With mild steel, operators will experience faster, thicker cuts than with alloys. Oxy-fuel cuts by burning, or oxidizing the metal it is severing.

  • Page 8: Main Parameter

    MAIN PARAMETER www.bestarc.com FEATURES • 65Amps Dual Voltage 110/220V • Screen Display Synergic Control • Pilot Arc & Post Time Adjustable • Built In Air Regulator & Filter • Mesh & Plate Cu�ng • IGBT Inverter Technology • 50/60Hz High Frequency •...
  • Page 9 FUNCTION www.bestarc.com Automa�cally detect input voltage of the machine The fan only runs when the machine gets hot Problem lamp Cu�ng ligh�ng 2T: Press switch torch working, Stop pressing switch torch stop working 4T: Press switch torch working, Stop pressing switch torch s�ll working;...
  • Page 10 FUNCTION www.bestarc.com Automa�cally detect input voltage of the machine Lights up when the input voltage is 380V (Only for 380V single voltage machine, not included with this model) The fan only runs when the machine gets hot Machine current overload Cu�ng ligh�ng...
  • Page 11 BTC650DP 3GEN www.bestarc.com BTC650DP 3GEN 65Amps HF Pilot Arc ACCESSORIES Model BTC 650DP 3GEN (110V/220V) BTC 650DP 3GEN (220V) 1 × Plasma cu�er √ √ 1 × Cu�ng torch √ √ 1 × Earth clamp with cable √ √ 2 × Tip (Nozzle) √...
  • Page 12 BTC650DP 3GEN www.bestarc.com BTC650DP 3GEN - FRONT & REAR PANEL LAYOUT BTC650DP 3GEN Handle Air Gauge Regulator Earth Clamp Pilot Arc Torch Switch Torch Connector Power Switch Power Cable Air Filter Please Note: 220V plugs are only provided for the US, Canada, and Japan markets. No power plug...
  • Page 13 BTC650DP 3GEN www.bestarc.com PARAMETER BTC650DP 3GEN Descrip�on 220V 110V / 220V Power Supply / Phases (V-Ph) 220V ±15% 110V ±10% 220V ±15% Duty Cycle @ 78°F (25°C) Rated Power (KVA) Input Curent Range (A) 15 - 43 20 - 52...
  • Page 14 BTC650DP 7GEN www.bestarc.com BTC650DP 7GEN 65Amps HF Pilot Arc ACCESSORIES Model BTC 650DP 7GEN (110V/220V) BTC 650DP 7GEN (220V) 1 × Plasma cu�er √ √ 1 × Cu�ng torch √ √ 1 × Earth clamp with cable √ √ 2 × Tip (Nozzle) √...
  • Page 15 BTC650DP 7GEN www.bestarc.com BTC650DP 7GEN - FRONT & REAR PANEL LAYOUT BTC650DP 7GEN Handle Screen Display Knob Earth Clamp Regulator Pilot Arc Torch Switch Torch Connector Power Switch Power Cable Air Filter Please Note: 220V plugs are only provided for the US, Canada, and Japan markets. No power plug...
  • Page 16 BTC650DP 7GEN www.bestarc.com PARAMETER BTC650DP 7GEN Descrip�on 220V 110V / 220V Power Supply / Phases (V-Ph) 220V ±15% 110V ±10% 220V ±15% Duty Cycle @ 78°F (25°C) Rated Power (KVA) Input Curent Range (A) 15 - 43 20 - 52...
  • Page 17 BTC650DP 10GEN www.bestarc.com BTC650DP 10GEN 65Amps HF Pilot Arc ACCESSORIES Model BTC 650DP 10GEN (110V/220V) BTC 650DP 10GEN (220V) 1 × Plasma cu�er √ √ 1 × Cu�ng torch √ √ 1 × Earth clamp with cable √ √ 2 × Tip (Nozzle) √...
  • Page 18 BTC650DP 10GEN www.bestarc.com BTC650DP 10GEN - FRONT & REAR PANEL LAYOUT Front Panel Layout Rear Panel Layout 1. Screen Display 5. Earth Clamp 9. Torch Connector 2. PA & PT Knob 6. Handle 10. Power Switch 3. Regulator 7. Current Knob 11.
  • Page 19 BTC650DP 10GEN www.bestarc.com PARAMETER Descrip�on BTC650DP 10GEN Power Supply / Phases (V-Ph) 220V ±15% 110V ±10% Duty Cycle @ 78°F(25.5°C) 60% @ 65 Amps 60% @ 40 Amps Rated Power (KVA) 9.4 KVA 5.7 KVA Input Current Range (A) 15 - 43 Amps...

  • Page 20: Operation

    OPERATION www.bestarc.com START CUTTING Hold the torch ver�cally Pull the trigger to start the Then, Proceed with the and observe the arc it cuts arc, the cu�ng arc will cut. along a straight line. ini�ate when the torch �p is close enough to the work piece.

  • Page 21: Safety Trigger Operation

    OPERATION www.bestarc.com Pull the trigger to energize the pilot arc. The cu�ng arc will start when the nuzzle is moved closer to the edge of Place and hold the torch ver�cal at the the workpiece. when the cu�ng arc is edge of the plate.
  • Page 22 OPERATION www.bestarc.com SET UP PROCEDURE FOR PLASMA CUTTING MACHINE 1. Connect the AG60 Plasma Torch to the machine. Insert the torch connec�on into the torch. Connec�on receptacle at the front of the machine and screw up hand �ght. Cau�on: Be careful not to bend the pins located inside the torch connector.
  • Page 23 OPERATION www.bestarc.com AMPERAGE Standard rule of thumb is the thicker the material the more amperage required. On thick material, set the machine to full output and vary your travel speed. On thinner material, you need to turn down the amperage and change to alower-amperage �p to maintain a narrow kerf.
  • Page 24 OPERATION www.bestarc.com TORCH TIP HEIGHT &POSITION The distance and pos�on of the plasma torch cu�ng �p has an affect on thequality of the cut and the extent of the bevel of the cut. The easiest way toreduce bevel is by cu�ng at the proper speed and height for the material andamperage that is being cut.

  • Page 25: Air Quality

    OPERATION www.bestarc.com AIR QUALITY Good air quality is essen�al to quality plasma cu�ng and consumable life span. Compressors take in air at atmospheric pressure and increase the pressure and store it in a tank. Humidity in the air is condensed in the tank and in the airlines producing water, more so in humid environments.
  • Page 26 OPERATION www.bestarc.com TORCH CONNECTOR COVER TORCH CONSUMABLES MODEL: AG-60P Wire Guide Shield Cup Nozzle Electrode Torch Head PILOT ARC PLASMA CUTTER...
  • Page 27 OPERATION bestarc Welder & Cutter...
