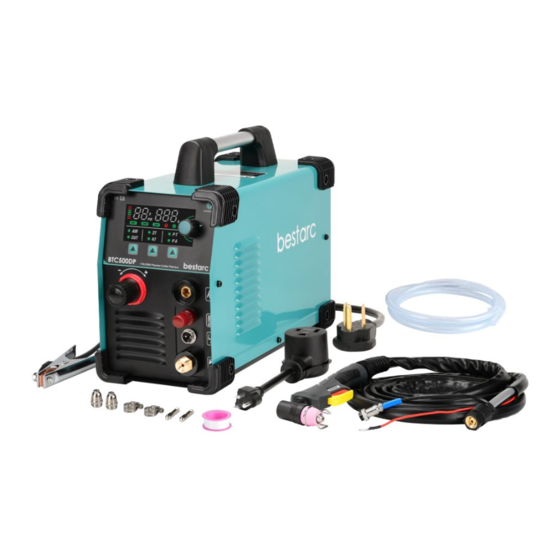

Bestarc BTC500DP Manual

Digital plasma cutter

Download this manual

IGBT DIGITAL PLASMA CUTTER

110/220V

BESTARC MANUAL

DIGITAL PLASMA CUTTER

BTC500DP 7

Gen

This Manual for Digital Plasma Cutter:

BTC500DP 7

Generation

EC DECLARATION OF CONFORMITY

We hereby declare that our machines for industrial and professional use as stated below.

Model: BTC500DP 7

Generation

Conforms with EMC Directives: 73/23/EEC and 89/336/EEC

European Standard: EN/IEC60974

Please read and understand this instruction manual carefully before the installation and operation

of this equipment. The contents of this manual may be revised without prior notice and

without obligation. This instruction manual is issued on 20-May-2023

website: www.bestarc.com

Technology Support: support@bestarc.com

Dear Customer,

Thank you for purchasing our Digital Plasma Cutter, Read this manual thoroughly.

Incorrectly installed or improperly grounded equipment is a hazard, and can cause serious

Damage, Properly install and ground this equipment according to this manual and national, state,

and local codes.

Need help?

Do you have a question about the BTC500DP and is the answer not in the manual?

Page 1 BTC500DP 7 Generation EC DECLARATION OF CONFORMITY We hereby declare that our machines for industrial and professional use as stated below. Model: BTC500DP 7 Generation Conforms with EMC Directives: 73/23/EEC and 89/336/EEC European Standard: EN/IEC60974 Please read and understand this instruction manual carefully before the installation and operation of this equipment.
Page 6 PARAMETER: This is 50Amps digital plasma cutter with pilot arc function. 14mm Quality Cutting thickness at Stainless Steel. Inverter with Industrial Rated, Lightweight and Portable. FEATURES • Latest IGBT Inverter Technology • Safe torch connection • High quality cutting torch with quality cable •...
Page 8 Function: AIR/CUT: AIR means Checking does air supplying to machine, CUT prepare for cutting 2T/4T: 2T: Press switch torch working, Stop pressing switch torch stop working. 4T: Press switch torch working, Stop pressing switch torch still working; Press torch switch again torch working, Stop pressing switch torch stop working. PT= Post time(Time for Post air), PA=Pilot Arc Time...
Page 9 One of them lighting up while machine connecting to 110V or 220V power Fan will work only when machine getting heat, It will not working all the time for efficient S: This symbol only means time (seconds) for PT and PA PSI: This symbol is for air pressure, User will get reading after pressure air supply into machine.
Page 17 PLASMA CUTTING TORCH PARTS...
Page 18 BESTARC PLASMA CUTTER www.bestarc.com...
