Summary of Contents for TCL 60 XE NXTPAPER 5G

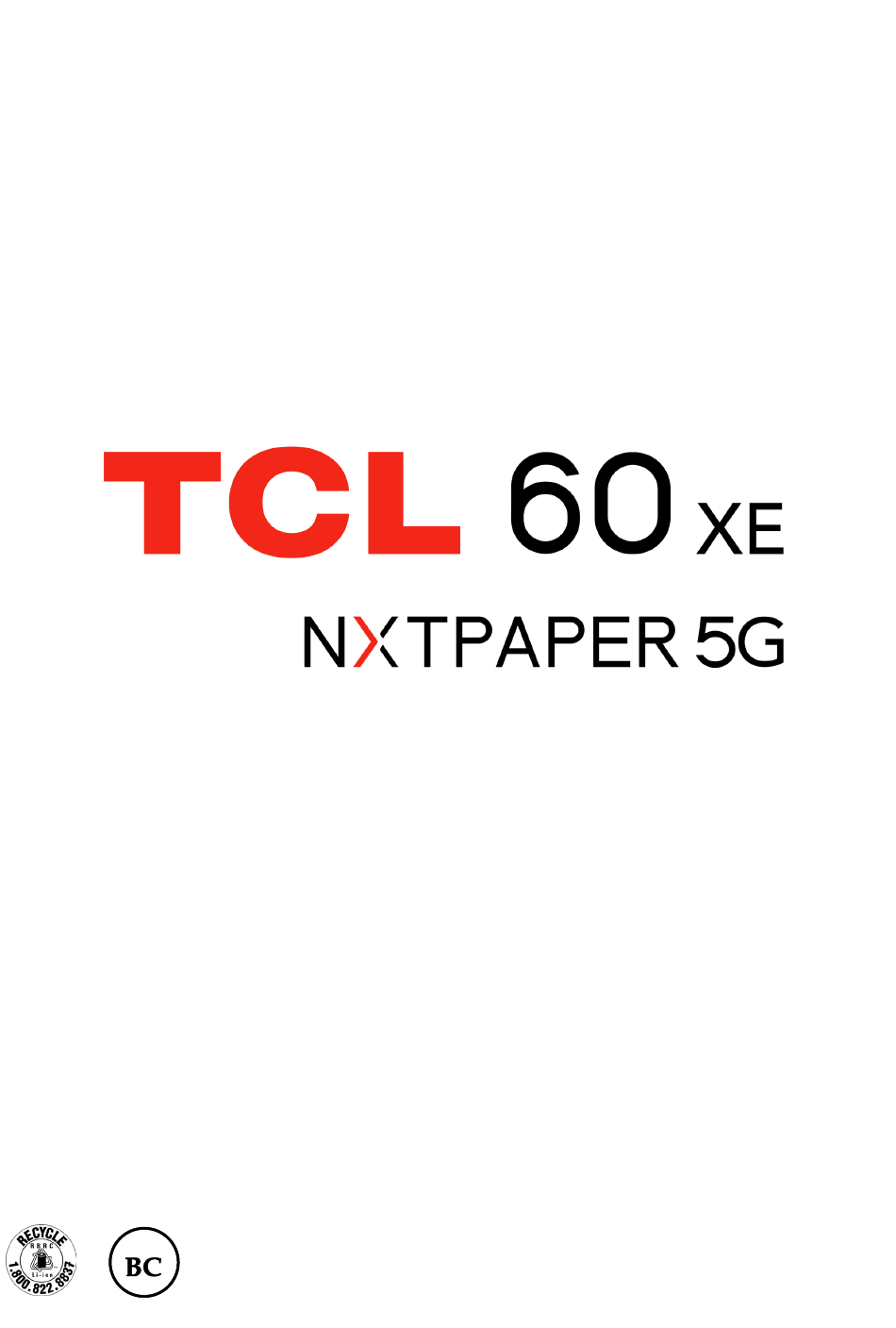

  • Page 1 T705J...
  • Page 2 Note: This is a user manual for TCL 60 XE NXTPAPER 5G (T705J). There may be certain differences between the user manual description and the phone’s operation, depending on the software release of your phone or specific carrier services. Help...
  • Page 3: Table Of Contents

    Table of Contents Basics ......................3 1.1 Device overview.................. 3 1.2 Getting started ..................6 1.3 Home screen ..................8 1.4 Text input ....................18 Multimedia applications ................20 2.1 Camera ....................20 2.2 Google Photos ...................26 Apps and features ..................28 3.1 Phone ....................28 3.2 Contacts ....................33 3.3 Messages .....................37...
  • Page 4 4.7 NXTPAPER zone ................57 4.8 Display ....................58 4.9 Sound & vibration ................60 4.10 Notifications ..................61 4.11 Smart Manager ..................62 4.12 Storage ....................62 4.13 Apps .....................63 4.14 Advanced features ................63 4.15 Security & privacy ................64 4.16 Location ....................67 4.17 Safety & emergency .................67 4.18 Accounts .....................68 4.19 Digital Wellbeing &...
  • Page 5: Basics

    Basics Device overview Microphone Receiver Front camera Touch screen Microphone Speaker 3.5mm headset connector USB Type-C connector...
  • Page 6 Rear cameras Flash Volume keys Power/Lock key & Fingerprint sensor NXTPAPER key...
  • Page 7 Power/Lock key & Fingerprint sensor • Press: Lock the screen/Light up the screen. Note: Additional shortcuts and customizable settings are available at Settings > Advanced Features > Power key. • Press the Power key and Volume up key at the same time: Show the popup menu to select from Power off/ Restart/ Emergency (SOS).
  • Page 8: Getting Started

    Getting started Setting up ① Your new phone is partially charged. Charge the battery by using the USB-C cable and charger provided. ② Use the provided SIM pin to open the SIM tray. ③ Place the Nano SIM card and/or microSD card into the tray, then slide the SIM tray into the slot.
  • Page 9: Powering On Your Phone

    Powering on your phone Hold down the Power key until the phone powers on. Unlock your phone (Swipe, PIN, Password, Pattern, Fingerprint or Face recognition) if necessary and confirm. The Home screen is displayed. If you do not know your PIN code or forget it, contact your network carrier.
  • Page 10: Home Screen

    Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. To return to the Home screen, swipe up from the bar at the bottom edge of the screen.
  • Page 11: Using The Touchscreen

    Using the touchscreen To access an application, tap it with your finger. Touch and hold To enter the available options for an item, touch and hold the item. For example, touch and hold a contact in Contacts and an options list will then appear.
  • Page 12: Status Bar

    Status bar From the status bar, you can view both phone status and notification information. Status icons Vibrate mode WCDMA Alarm is set Connected to a Wi-Fi network Speakerphone is on Signal strength No SIM card inserted No signal Battery is charging Airplane mode Battery is low Bluetooth connected...
  • Page 13 Notification panel When there are notifications, drag down the Status bar to open the Notification panel to read the detailed information. Tap on the notification directly to open the notification within the respective app. With the Notification panel open, drag down again to see the Quick Settings menu.
  • Page 14: Lock/Unlock Your Screen

    Quick settings panel Drag down the Notification panel to open the Quick Settings panel, where you can enable or disable functions or change modes by tapping the icons. Tap to open the full Settings menu. Lock/Unlock your screen To protect your phone and privacy, you can lock the screen with a pattern, PIN, password, fingerprint or registered face To create a screen unlock, tap Settings >...
  • Page 15 To lock the phone screen If your phone remains inactive for a period of time, it will automatically lock the screen and enter sleep mode to save power. Go to Settings > Display > Sleep and select a screen timeout period. You can also manually lock the screen by pressing the Power key once.
  • Page 16 Use Face unlock • Before using Face unlock, you need to set a pattern/PIN/password. • Hold your phone 20-50 inches from your face. Position your face in the square shown on the screen. For best results, we suggest that the face key is enrolled indoors and away from direct sunlight.
  • Page 17: Personalizing Your Home Screen

    Personalizing your Home screen You can touch and hold a folder, an application or a widget and drag the item to your preferred Home screen. Reposition Touch and hold an item and drag it to the desired position and then release.
  • Page 18: Recently Used Applications

    Recently used applications Swipe up from any screen for 1 second. Tap a thumbnail in the window to open the application. Tap one thumbnail and slide it up to close the application, slide it right/ left to switch between the applications. Tap Clear all at the bottom of the screen to close all the running applications.
  • Page 19: Volume Adjustment

    Volume adjustment Press the Volume keys to adjust volume. to adjust Media, Ring, Notification and Alarm volume.
  • Page 20: Text Input

    Text input Using the Onscreen Keyboard Onscreen Keyboard settings Swipe up on the Home screen, and then select Settings > System > Keyboard. A series of settings will become available for your selection. Adjust the Onscreen Keyboard orientation Turn the phone sideways or upright to adjust the onscreen keyboard orientation.
  • Page 21: Text Editing

    Text editing • Touch and hold or double tap within the text you want to edit. • Drag the tabs to change the amount of text to edit. • The following options will appear: Cut, Copy and Share. Insert new text •...
  • Page 22: Multimedia Applications

    Multimedia applications Camera .............. Launch Camera From the Home screen, tap Camera ① ⑥ ② ⑦ ③ ⑧ ④ ⑤ Slide left or right to switch between modes ① Tap to access settings, like flash and timer. ② Automatically zoom to Macro, 0.6x, 1x or 2x. ③...
  • Page 23: To Take A Photo

    ⑥ Manually zoom by pinching fingers together to zoom out, or spreading fingers apart to zoom in. ⑦ Apply real-time lighting and contrast effects on your photo or video while shooting. ⑧ View recently captured photos or videos. More options are available when you switch to using the front camera: ⑨...
  • Page 24: Modes And Settings

    Modes and settings Modes Slide left or right to switch between modes. • VIDEO: Access video mode. Slow motion: Captures video at 120 frames per second. Normal: Regular video mode. Time lapse: Speed up the playback based on the settings of Traffic Flow, Drifting Clouds, or Sunrise and Sunset.
  • Page 25 Path: Take multiple photos continuously and automatically generate motion trajectory. Keep the photos stable and well-lit. Path only supports landscape screen shooting. • Google Lens : Google Lens is a free tool that uses Google to help you: copy and translate text, search for similar products, identify plants and animals, discover books and media, scan barcodes, and more.
  • Page 26 Additional Settings: • AI scene detection: It can detect image content and scenes, and automatically apply a specific preset to images in different scenes. This allows you to apply more aggressive presets to images than can benefit from that - like landscapes and sunsets. •...
  • Page 27 • Camera leveler: Turn on/off. The camera level tool is useful for capturing balanced compositions. • Volume button function: Customize the Volume button to Shutter, Zoom or Volume when using camera. • Storage: Choose between phone and microSD card storage when a microSD card is inserted.
  • Page 28: Google Photos

    Google Photos ..........Google Photos acts as a media player for you to view photos and play videos. In addition, a set of further operations to pictures and videos are available for selection. To view the photos you have taken, tap from the Home screen.
  • Page 29: Working With Pictures

    Working with pictures Find the picture you want to work on, then tap the picture. ⑤ ① ③ ④ ② ① Edit the picture. ② Share the picture. ③ Access Google Lens. ④ Delete the picture. ⑤ View information about the picture or video, use as a Contact photo or wallpaper, create a slideshow, or print.
  • Page 30: Apps And Features

    Apps and features Phone ..............Making a call To make a call, tap in the Favorites tray. ① ④ ② ⑤ ③ ① View the Contact's detailed information. ② Call logs ③ Favorite contacts ④ Show the keypad. ⑤ Contacts list...
  • Page 31 Enter the desired number from the keypad and tap to place the call or select a contact from Contacts or Call logs by sliding or tapping tabs, then make the call. The number you entered can be saved to Contacts by tapping Create new contact or Add to a contact.
  • Page 32: Answering Or Rejecting A Call

    Emergency call If your phone has network coverage, dial the emergency number and to make an emergency call. Depending on your network and country this could even work without a SIM card and without typing in the SIM PIN code. Answering or rejecting a call When you receive a call: •...
  • Page 33: During A Call

    During a call To adjust the volume during a call, press the Volume up/down key. ① ② ③ ④ ⑥ ⑤ ⑦ ⑧ ⑨ ⑩ ① Swap the calls. ② Make a video call. ③ Make another call. ④ Add my camera. ⑤...
  • Page 34: Managing Multiple Calls

    To avoid accidental operation of the touchscreen during a call, the screen will be locked automatically when you put the cellphone close to your ear; and it will be unlocked when the cellphone is taken away from your ear. Managing multiple calls Swap calls When you accept two calls, tap the icon to switch between two lines.
  • Page 35: Contacts

    Tap one call to view information or further operations. You can launch a new call, send a message to the contact or number, or view detailed information of the call. To delete the call history of a selected contact or number, touch and hold the call log and choose Delete.
  • Page 36: Adding A Contact

    Adding a contact in the contact list to create a new contact. You are required to enter the contact's name and other contact information. By scrolling up and down the screen, you can move from one field to another. Tap to save. Select a picture or take a photo for the Phone contact.
  • Page 37: Editing Your Contacts

    Editing your contacts To edit contact information, tap in the contact details screen. When finished, tap Save. Using the Quick contact panel Tap a contact to open the Quick contact panel. ① ② ③ ① Make a call. ② Send a message. ③...
  • Page 38: Sharing Contacts

    Sharing contacts You can share a single contact or multiple contacts with others by sending the contact's vCard to them via Bluetooth, Gmail, etc. • From the Contacts screen, touch and hold a contact and tap • Select the application to perform this action. Accounts Contacts, data or other information can be synchronised from multiple accounts, depending on the applications installed on your phone.
  • Page 39: Messages

    Messages ............Writing a new message You can create, edit, send and receive SMS and MMS with this phone. To access Messages, tap from the Home screen. On the message list screen, tap to write text/multimedia messages. Sending a text message •...
  • Page 40 Specific letters (accented) will also increase the size of the SMS. This may cause multiple SMS to be sent to your recipient. Sending a multimedia message MMS enables you to send video clips, images, photos, animations, and sounds to other compatible mobiles and e-mail addresses. An SMS will be converted to MMS automatically when media files (image, video, audio, etc.) are attached or subject or email addresses are added.
  • Page 41: Manage Messages

    Manage messages When receiving a message, will appear on the Status bar as a notification. Drag down the Status bar to open the Notification panel. Tap the new message to open and read it. You can also access the Messages application and tap the message to open it.
  • Page 42: Calendar

    Calendar ............Use Calendar to keep track of important meetings, appointments, etc. To view the calendar and create events, swipe up from the Home screen, then tap Calendar. Multimode view You can display the Calendar by Schedule, Day, 3 days, Week, or Month, to select.
  • Page 43: Event Reminder

    Event reminder If a reminder is set for an event, the upcoming event icon will appear on the Status bar as a notification when the reminder time arrives. Drag down the Status bar to open the notification panel, tap an event name to view the Calendar notification list.
  • Page 44 Timer From the Clock screen, tap Timer to enter. ② ③ ① ① Tap to start the countdown. ② Tap to reset. ③ Tap to pause.
  • Page 45 Stopwatch From the Clock screen, tap Stopwatch to enter. ② ③ ① ④ ① Tap to start the Stopwatch. ② Tap to reset. ③ Tap to pause. ④ Tap to show a list of records according to the updated time.
  • Page 46 Bedtime From the Clock screen, tap Bedtime to enter. • Set a regular wake-up alarm • Set bedtime and reminder notification • Set a certain bedtime mode • Tap Done to finish your bedtime setting.
  • Page 47: Calculator

    Calculator ............To solve mathematical problems with Calculator, swipe up from the Home screen, then tap ① ② ③ ① Review calculation history, choose theme, review Google privacy policy, send feedback, search for help. ② Switch between Basic calculation and Scientific calculation. ③...
  • Page 48: Other Applications

    Other applications The previous applications in this section are preinstalled on your phone. To download and install more 3rd party applications, use the Google Play Store application. Google applications Google apps are preinstalled on your phone to improve work efficiency and help you enjoy life.
  • Page 49 Gmail As Google's web-based email service, Gmail is configured when you first set up your phone. With this application you can send and receive emails, manage emails by labels, archive emails, etc. Emails can be automatically synchronized with your Gmail account. Maps Google Maps offers satellite imagery, street maps, 360°...
  • Page 50 Meet Google Meet is a video chat mobile app. With phone numbers verified, users can easily video call people from their contact list. The app will automatically control the video quality by sensing the network connectivity. Photos Photos stores and backs up your photos and videos. It also automatically analyzes photos and organizes them into groups, so that you can quickly find the photos you need.
  • Page 51: Play Store

    Play Store Serves as the official app store for the Android operating system, allowing users to browse and download applications and games. Applications are either free of charge or at a cost. In Play Store, search for the app you need, download it and then follow the installation guide to install the app.
  • Page 52: Settings

    Settings To go to Settings, swipe up from the Home screen and then tap . You can also drag down from the notification panel and tap My device View specifications for your phone, including the device software version, Android OS version, CPU type, camera, and storage. You can also view legal information, build number, status and other specs.
  • Page 53: Bluetooth

    2. Enter the name of the network and any required network information. 3. Tap CONNECT. To forget a Wi-Fi network The following steps prevent automatic connection to networks which you no longer wish to use. 1. Turn on Wi-Fi, if it’s not already on. 2.
  • Page 54: Network & Internet

    1. When Bluetooth is on, available devices will appear under Your Devices. 2. Tap a Bluetooth device you want to pair your phone within the list. 3. In the dialog that pops up, tap PAIR to confirm. 4. If the pairing is successful, your phone will be connected to the device. To unpair from a Bluetooth device •...
  • Page 55: Connections

    Connections Airplane mode Use Airplane mode to simultaneously disable all wireless connections including Wi-Fi, Bluetooth and more. You can also open Airplane mode by tapping Airplane mode on the Quick setting bar. Turn on to enable NFC. The function allows data exchange when the phone touches another device.
  • Page 56: Hotspot & Tethering

    Printing Tap Printing to activate Print services. You can select your Default print service. Hotspot & tethering To share your phone's data connection via Wi-Fi, Bluetooth and USB, or as a mobile hotspot, go to Settings > Connections > Hotspot & tethering to activate these functions.
  • Page 57: Private Dns

    Virtual private networks (VPNs) allow you to connect to the resources inside a secured local network from outside that network. VPNs are commonly deployed by corporations, schools, and other institutions so that their users can access local network resources when not inside that network, or when connected to a wireless network.
  • Page 58: Android Auto

    You can use Quick Share even when you are completely offline. The device location permission needs to be turned on for Bluetooth and Wi-Fi to detect nearby devices. Android Auto Use apps on your car screen, if compatible with your car. Home screen &...
  • Page 59: Nxtpaper Zone

    NXTPAPER zone Use the NXTPAPER Zone to customize the actions on your NXTPAPER Key, test the different modes, and specify additional settings. NXTPAPER key settings Mode selector: Select a NXTPAPER mode when NXTPAPER key is on. Enter immediately: Enter the preset NXTPAPER mode when NXTPAPER key is on.
  • Page 60: Display

    Eye care Eye Care allows for alerts to appear if the device detects unhealthy use habits. Enable an alert to "Rest your eyes" during continuous screen time and specify the rest period, and if the device detects when your eyes are too close to the screen.
  • Page 61 Reading mode Optimize the screen display to make the reading experience as comfortable as physical books. NXTVISION Image enhancement Enhance image contrast automatically, sharpness and dark details. Video enhancement Enhance the color, contrast and depth of detail of video to bring a cinema- grade visual experience.
  • Page 62: Auto-Rotate Screen

    Display size and text Adjust font size, display size and text manually. Auto-rotate screen Enable or disable (auto-rotate is also accessible through Quick Settings panel). Status bar & dotch Set the style of the status bar, select whether notification icons are folded and how the battery percentage is displayed.
  • Page 63: Do Not Disturb

    Alarm ringtone Set your alarm ringtone. 3D Boom Sound When enabled, creates an immersive sound experience. Live Caption When enabled, detects speech on your device and automatically generates captions. Do Not Disturb If you do not want to be disturbed by your phone or information ringtones during work or rest, you can set the Do Not Disturb mode.
  • Page 64: Smart Manager

    Privacy Choose to show all notifications or don't show any notifications. Bubbles When enabled, compatible apps that support conversations will appear as floating icons on top of other apps. Notification icons folder When enabled, all notification icons will be hidden in a separate icon. Manage app notifications Configure whether to block the notifications from this app.
  • Page 65: Apps

    Long press power key Choose the action when long press the Power key: Access Google Assistant or access the Power menu. TCL AI AI text extraction In some apps, long press the text and drag it to the shortcut to quickly...
  • Page 66: Screen Recorder

    Help me write Swipe up with three fingers on the screen to quickly let AI help you write. Screen Recorder Adjust screen record settings like video resolution, with or without sound, and whether to record screen interactions. Swipe down from the status bar to access Quick Settings panel then go to Screen recorder.
  • Page 67: System & Updates

    Fingerprint Use your fingerprint to unlock the screen. Set it according to the on-screen steps. NOTE: You need to set a pattern, PIN, or password before using face & fingerprint unlock. Account security Check up Google account security. Device finders Locate your device remotely, and even wipe device data to keep it secure.
  • Page 68: Other Settings

    Other settings Android System intelligence When enabled, get suggestions based on the people, apps, and content you interact with. Notifications on lock screen Choose to show all notifications, hide sensitive notification content, or don't show any notifications Allow camera software extensions Enable or disable advanced camera features.
  • Page 69: Location

    Trust agents As part of Extended unlock, allows user to unlock their phone without entering a passcode. App pinning When enabled, keep the current app in view until you unpin it. 4.16 Location Enable Location use and view apps that have been allowed location permission.
  • Page 70: Accounts

    Emergency Location Service When enabled, your device can automatically send its location to emergency response partner when you call or text an emergency number. Earthquake alerts When enabled, when an earthquake is detected nearby, you will get an alert with the initial estimated magnitude and distance from your location. Unknown tracker alerts When enabled, you'll get a notification if an unknown tracker is detected traveling with you.
  • Page 71: Google

    Focus mode When enabled, pause distracting apps and hide their notifications. Manage notifications Enable or disable app notifications to reduce interruptions. Do not disturb Review and enable Do not disturb settings. Heads up If walking while using the tablet, get a reminder to focus on your surroundings.
  • Page 72: Navigation Mode

    Update apps Check app update information. Navigation mode Select your favorite navigation button layout. By default, your phone uses Gesture navigation. Languages Configure language settings, voice input settings, etc. Keyboard Configure the on-screen keyboard, pointer speed, etc. Date & time Use Date &...
  • Page 73: Reset Options

    Reset options Reset all network settings and app preferences, you won't lose your data with these settings. If Erase all data is selected, all data in your phone's internal storage will be erased, please back up your data before reset. Regulatory &...
  • Page 74: Fota Upgrade

    FOTA upgrade Use the FOTA (Firmware Over The Air) upgrade to update your phone's software. To access updates, from the app list, tap Settings > System > System Update. Turn on data connection or Wi-Fi before searching for updates. With Wi-Fi turned on, the system is able to discover if a new firmware version is available and if so, begin to download it automatically.
  • Page 75: Troubleshooting

    Troubleshooting Before contacting the service center, here are some instructions to help you troubleshoot your device: • For optimal operation, fully charge the battery. • To improve the phone’s performance, remove unnecessary files or apps on your phone. • Update your phone's software via Settings > System > System Update. •...
  • Page 76 • If it still doesn't work, reset the phone or update software. My phone can't charge properly • Make sure that you are using the TCL charger that comes with the phone. • Make sure that your battery is not completely discharged; if the battery power has been empty for a long time, it may take around 20 minutes to display the battery charging indicator on the screen.
  • Page 77 Invalid SIM card • Make sure that the SIM card has been correctly inserted. • Make sure that the chip on your SIM card is not damaged. • Make sure that the service of your SIM card is available. My phone can't make outgoing calls •...
  • Page 78 • Check with your carrier to make sure that your subscription includes this service. • Make sure that this feature doesn't require a TCL accessory. When I select a number from my contacts, the number can't be dialed • Make sure that you have correctly recorded the number in your contacts.
  • Page 79 I can't send and receive MMS • Check your phone storage as it might be full. • Contact your network carrier to check service availability and MMS parameters. • Verify the server center number or your MMS profile with your carrier. •...
  • Page 80 The battery drains too fast • Make sure that you follow the complete charge time (minimum 150 minutes). • After a partial charge, the battery level indicator may not be exact. Wait for at least 20 minutes after removing the charger to obtain an exact indication.
  • Page 81: Specifications

    Specifications Platform: • MTK 6835V_TZB • Android 15 Memory: • 128GB ROM + 6GB RAM Dimensions (LxWxD): • 167.6*75.5*7.99 mm Weight: • 199.5g Display: • 6.78" Network: • 2G: 850/900/1800/1900 • 3G: B1/2/4/5 • 4G-FDD LTE: B1/B2/B3/B4/B5/B7/B12/B13/B17/B20/B25/B26/ B28/B29/B30/B66/B71 • 4G-TDD LTE: B38/B42/B41(HPUE) •...
  • Page 82 • Wi-Fi 802.11 a/b/g/n/ac • 3.5 mm audio jack • Type-C USB Camera: • Rear Camera: 50MP(2 in 1) +5MP(UW) + 2MP(Depth) • Front camera: 32MP Audio & Video supported formats: • AAC, HE-AAC v1, HE-AAC v2, AMR, AWB, MIDI, MP3, OGG VORBIS, WAV(Alaw/Ulaw), WAV(Raw), FLAC, OPUS •...
  • Page 83: Accessories

    • Charger • Wrap Sticker • Type C 2.0 Cable • SIM Card PIN • Quick Start Guide • Product safety and warranty information • Accessories depend on countries. • Only use the TCL accessories included along with your device.
  • Page 84: Safety And Use

    Safety and use We recommend that you read this chapter carefully before using your phone. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. TRAFFIC SAFETY: Given that studies show that using a phone while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit, headset...), drivers are requested to refrain from using their phone when...
  • Page 85 • Do not drop, throw, or bend your phone; • Use only batteries, battery chargers, and accessories which are recommended by TCL Communication Ltd., and its affiliates and are compatible with your phone model. TCL Communication Ltd., and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries;...
  • Page 86 Note that any data shared with TCL Communication Ltd. is stored in accordance with applicable data protection legislation. For these purposes TCL Communication Ltd.
  • Page 87 • The risks involved with the processing of the personal data, and; • The sensitivity of the personal data processed. BATTERY: Observe the following precautions: • Do not attempt to open the back cover. • Do not attempt to eject, replace, or open the battery (due to the risk of toxic fumes and burns).
  • Page 88: Electronic Recycling

    Characteristics of power supply (depending on the country): Travel charger: Input: 100-240V,50/60Hz, 0.5A Output: 9V, 2A Battery: Lithium softpack 5010mAh typ Electronic Recycling For more information on Electronic Recycling, visit TCL Electronic Recycling Program website at https://www.tcl.com/ca/en/sustainability/electronics-recycling Battery Recycling TCL partners with Call2Recycle to offer a safe and convenient battery ®...
  • Page 89: Radio Waves

    Radio waves THIS PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio- frequency (RF) energy. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population.
  • Page 90 The highest SAR value for this model phone when tested is 1.30 W/Kg for use at the ear and 1.13 W/Kg for use close to the body. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for RF exposure.
  • Page 91 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For the receiver devices associated with the operation of a licensed radio service (e.g. FM broadcast), they bear the following statement: This phone complies with Part 15 of the FCC Rules.
  • Page 92: Licenses

    The Bluetooth word mark and logos are owned by the Bluetooth ® SIG, Inc. and any use of such marks by TCL Communication Ltd. and its affiliates is under license. Other trademarks and trade names are those of their respective owners.
  • Page 93: Hearing Aid Compatibility (Hac)

    You may download the source codes from https://sourceforge.net/ projects/tcl-mobile/files/. The provision of the source code is free of charge from the internet. Hearing Aid Compatibility (HAC) This device is hearing aid-compatible as determined by ANSI C63.19- 2019. The lowest conversational gain is 8.07 dB with a hearing-aid, and 16.07 dB without hearing-aid, using telecoil coupling capability.
  • Page 94 The table below shows the wireless technologies (including frequencies/ bands by air interface and codec) that were tested or not tested according to FCC rules and limited waiver DA23-914: Bands Codec T-coil Volume Interface control LTE/NR/ LTE:2/4/5/7/12/13/17/ EVS-NB/ Yes Yes WIFI 25/26/30/38/41/42/ AMR-NB/...
  • Page 95: General Information

    B41(HPUE)), 5G NSA (n2/n5/n12/n25/n38/n41/n66/n71/n77/n78), 5G SA (n1/n2/n3/n5/n12/n20/n25/n28/n30/n38/n40/n41/n48/n66/ n70/n71/n77/n78). 1 Year Limited Warranty For information on warranty of your device, visit the TCL Canada website at https://www.tcl.com/ca/en/mobile/warranty May not be available in all countries. Banding support may vary by network and location.
  • Page 96: Protection Against Theft

    TCL Communication Ltd. shall not be held legally responsible for such differences, if any, nor for their potential consequences, which responsibility shall be borne by the carrier exclusively.
