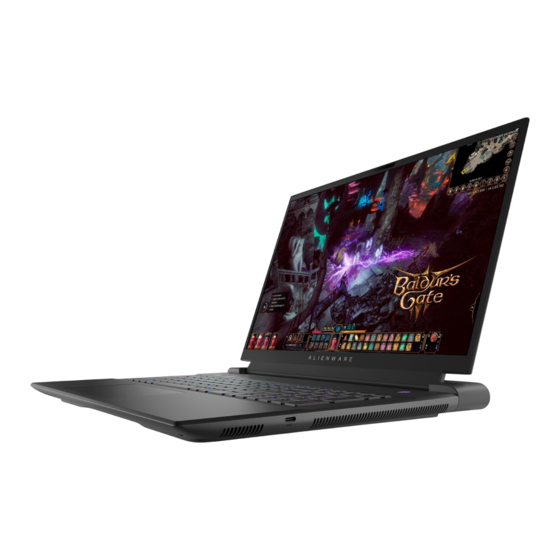

Alienware m18 R1
Setup and Specifications
Regulatory Model: P51E
Regulatory Type: P51E001
March 2023
Rev. A01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alienware m18 R1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dell Alienware m18 R1

  • Page 1 Alienware m18 R1 Setup and Specifications Regulatory Model: P51E Regulatory Type: P51E001 March 2023 Rev. A01...
  • Page 2 WARNING: A WARNING indicates a potential for property damage, personal injury, or death. © 2022-2023 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
  • Page 3: Table Of Contents

    Contents Chapter 1: Set up your Alienware m18 R1....................4 Chapter 2: Views of Alienware m18 R1....................5 Display....................................5 Right......................................6 Left......................................6 Top......................................7 Back....................................... 7 Bottom....................................8 Chapter 3: Specifications of Alienware m18 R1..................10 Dimensions and weight..............................10 Processor..................................... 10 Chipset....................................11 Operating system.................................11...
  • Page 4: Chapter 1: Set Up Your Alienware M18 R1

    Set up your Alienware m18 R1 NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Connect the power adapter and press the power button.
  • Page 5: Chapter 2: Views Of Alienware M18 R1

    Views of Alienware m18 R1 Display 1. Left microphone Provides digital sound input for audio recording and voice calls. 2. Infrared emitter Emits infrared light, which enables the infrared camera to sense and track motion. 3. Infrared camera Enhances security when paired with Windows Hello face authentication.
  • Page 6: Right

    Provides digital sound input for audio recording and voice calls. Right 1. USB 3.2 Gen 1 (Type-C) port Connect to external storage devices. Provides data transfer speeds up to 5 Gbps. NOTE: This port does not support video/audio streaming. Left 1.
  • Page 7: Top

    Press to put the computer into sleep state if it is turned on. When the computer is turned on, press and hold the power button for four seconds to force shut-down the computer. NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/ support/manuals.
  • Page 8: Bottom

    1. Thunderbolt 4.0 ports (2) Supports USB4, DisplayPort 1.4, Thunderbolt 4 and also enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 40 Gbps for USB4 and Thunderbolt 4. NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device. NOTE: USB4 is backward compatible with USB 3.2, USB 2.0, and Thunderbolt 3.
  • Page 9 The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. 3. Right speaker Provides audio output.
  • Page 10: Chapter 3: Specifications Of Alienware M18 R1

    Specifications of Alienware m18 R1 Dimensions and weight The following table lists the height, width, depth, and weight of your Alienware m18 R1. Table 1. Dimensions and weight Description Values Height: Front height 24.10 mm (0.95 in.) Rear height 25.10 mm (0.99 in.) Width 410.30 mm (16.15 in.)
  • Page 11: Chipset

    24 MB Integrated graphics Intel UHD Graphics Intel UHD Graphics Intel UHD Graphics Intel UHD Graphics Chipset The following table lists the details of the chipset supported by your Alienware m18 R1. Table 3. Chipset Description Values Chipset HM770 Processor...
  • Page 12: External Ports

    ● 32 GB, 2 x 16 GB, DDR5, 5800 MHz, dual-channel, XMP ● 64 GB, 2 x 32 GB, DDR5, 5600 MHz, dual-channel, XMP External ports The following table lists the external ports of your Alienware m18 R1. Table 5. External ports Description...
  • Page 13: Ethernet

    Ethernet The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Alienware m18 R1. Table 7. Ethernet specifications Description Values Model number ● Killer E3100 integrated Ethernet controller, for computers shipped with a NVIDIA GeForce RTX 4050/4060/4070/4080/4090 graphics card ●...
  • Page 14: Storage

    ● Two M.2 2280 solid-state drive slots, for computers shipped with NVIDIA GeForce RTX 4050/4060/4070 graphics card The primary drive of your Alienware m18 R1 varies with the storage configuration. The primary drive of your computer is the M.2 2280 drive where the operating system is installed.
  • Page 15: Media-Card Reader

    RAID volume without incurring the additional penalties when one or more drives in the volume are lower performing. Alienware m18 R1 supports RAID 0/1/5 with more than one SSD configuration, for computers shipped with NVIDIA GeForce RTX 4080/4090 graphics card.
  • Page 16: Camera

    (F1–F12) changing Function Key Behavior in BIOS setup program. For more information, see Keyboard shortcuts. Camera The following table lists the camera specifications of your Alienware m18 R1. Table 13. Camera specifications Description Values Number of cameras Camera type...
  • Page 17: Power Adapter

    For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at support.microsoft.com. Power adapter The following table lists the power adapter specifications of your Alienware m18 R1. Table 15. Power adapter specifications Description Option one...
  • Page 18: Battery

    CAUTION: Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.
  • Page 19: Gpu-Integrated

    Anti-glare Anti-glare Adaptive sync support G-SYNC, AdaptiveSync G-SYNC, AdaptiveSync GPU—Integrated The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Alienware m18 R1. Table 18. GPU—Integrated Controller Memory size Processor Intel UHD Graphics Shared system memory...
  • Page 20: Gpu-Discrete

    GPU—Discrete The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Alienware m18 R1. Table 19. GPU—Discrete Controller Memory size Memory type NVIDIA GeForce RTX 4050 6 GB GDDR6 NVIDIA GeForce RTX 4060 8 GB...
  • Page 21: Chapter 4: Keyboard Shortcuts

    Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions.
  • Page 22 Table 24. List of keys to control audio features Keys Description Mute microphone Mute speakers Increase volume Decrease volume...
  • Page 23: Chapter 5: Low Blue Light

    Low blue light WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes. Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.
  • Page 24: Chapter 6: Alienware Command Center

    AlienFX, and game library. AWCC also supports Sound Management, Thermal Controls, CPU, GPU, Memory (RAM) monitoring. For more information about AWCC, see the Alienware Command Center Online Help or search in the Knowledge Base Resource at www.dell.com/support.
  • Page 25: Chapter 7: Getting Help And Contacting Alienware

    Express Service Code. To view relevant support resources for documents. your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your...
